صنعتی، منابع تغذیه ریلی DIN
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع ورودی | تعداد خروجی ها | ولتاژ AC - ورودی | ولتاژ DC - ورودی (حداقل) | ولتاژ DC - ورودی (حداکثر) | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی (حداکثر) | توان (وات) | ولتاژ - جداسازی | برنامه های کاربردی | کارایی | دمای عملیاتی | ویژگی ها | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DDR-120D-12DC/DC DIN RAIL SUPPLY 12V 120W |
28 |
|
برگه مشخصات |
DDR-120 (120W) | Box | Active | DC | 1 | - | 67.2V | 154V | 12V | - | - | - | - | - | 10A | 120W | 4 kV | Industrial, ITE (Commercial), Railway | 89.5% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC | - |
|
|
DDR-120D-24DC/DC DIN RAIL SUPPLY 24V 120W |
27 |
|
برگه مشخصات |
DDR-120 (120W) | Box | Active | DC | 1 | - | 67.2V | 154V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | Industrial, ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC | - |
|
TDR-240-48AC/DC DIN RAIL SUPPLY 48V 240W |
55 |
|
برگه مشخصات |
TDR-240 (240W) | Box | Active | AC or DC | 1 | 340 ~ 550 VAC (3 Phase) | 480V | 780V | 48V | - | - | - | - | - | 5A | 240W | 4.87 kV | Laboratory | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 4.47" L x 2.48" W x 4.93" H (113.5mm x 63.0mm x 125.2mm) | CE, EAC, TUV, UL | - |
|

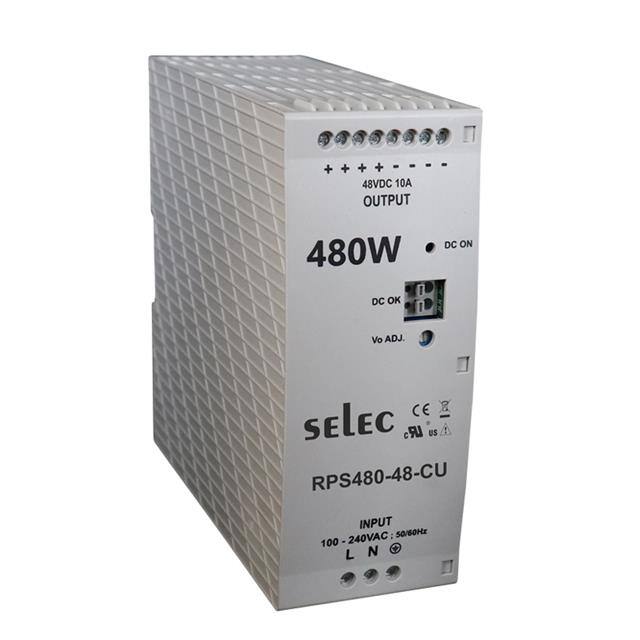

RPS480-48-CUAC/DC DIN RAIL SUPPLY 48V 480W |
85 |
|
برگه مشخصات |
RPS480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 6.05" L x 2.36" W x 6.06" H (153.7mm x 60.0mm x 154.0mm) | CE, cULus | 62368-1; UL 508 |
|
S8FS-G10012CDAC/DC DIN RAIL SUPPLY 12V 100W |
77 |
|
برگه مشخصات |
S8FS-G (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8.5A | 100W | 3 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 5.08" L x 1.54" W x 3.82" H (129.0mm x 39.2mm x 97.0mm) | CE, cURus, TUV, UL | - |
|
TIB 080-124AC/DC DIN RAIL SUPPLY 24V 82W |
63 |
|
برگه مشخصات |
TIB 080 (80W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.4A | 82W | 4.25 kV | Industrial, ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 3.71" L x 1.26" W x 4.50" H (94.2mm x 32.0mm x 114.2mm) | CB, CE, cULus, cURus, SIQ | - |
|
6EP13315BA10AC/DC DIN RAIL SUPPLY 24V 31W |
45 |
|
برگه مشخصات |
6EP1 | Bulk | Active | AC or DC | 1 | 100 ~ 230 VAC, 85 ~ 264 VAC | 110V | 300V | 24V | - | - | - | - | - | 1.3A | 31W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.94" L x 1.18" W x 3.15" H (100.0mm x 30.0mm x 80.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
DPP120-48-1AC/DC DIN RAIL SUPPLY 48V 120W |
151 |
|
برگه مشخصات |
DPP (120W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing | 4.59" L x 2.50" W x 4.92" H (116.6mm x 63.5mm x 125.0mm) | CE | - |
|
TCL 024-124 DCDC/DC DIN RAIL SUPPLY 24V 24W |
43 |
|
برگه مشخصات |
TCL-DC (24 ~ 60W) | Box | Active | DC | 1 | - | 18V | 75V | 24V | - | - | - | - | - | 1A | 24W | 1.5 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 3.94" L x 1.06" W x 2.95" H (100.1mm x 26.9mm x 74.9mm) | CB, cULus | - |
|
DRP024V120W3BNAC/DC DIN RAIL SUPPLY 24V 120W |
168 |
|
برگه مشخصات |
CliQ II (120W) | Bulk | Active | AC | 1 | 400 ~ 500 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 88% | -25°C ~ 85°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.62" L x 1.97" W x 4.76" H (117.3mm x 50.0mm x 121.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
DRF-48V240W1GBAAC/DC DIN RAIL 48V 240W COATED |
27 |
|
برگه مشخصات |
DRF (240W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial), Laboratory | 94.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.57" W x 4.60" H (123.7mm x 39.9mm x 116.8mm) | CB, CE, cURus, EAC, KC, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
6EP13321LB00AC/DC DIN RAIL SUPPLY 24V 60W |
89 |
|
برگه مشخصات |
6EP1 | Bulk | Active | AC | 1 | 93 ~ 132 VAC, 187 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | Hazardous Locations, Industrial, ITE (Commercial) | 85% | 0°C ~ 60°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.72" L x 1.28" W x 4.92" H (120.0mm x 32.5mm x 125.0mm) | CB, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
ECE80US12-SDAC/DC DIN RAIL SUPPLY 12V 80W |
62 |
|
برگه مشخصات |
ECE80 (80W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 6.67A | 80W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Universal Input | 4.45" L x 1.87" W x 1.12" H (113.0mm x 47.5mm x 28.5mm) | CB, TUV, UL | 62368-1 |
|
|
REDIIN480-24480W AC/DC-CONVERTER 'DIN-RAIL' |
28 |
|
برگه مشخصات |
REDIIN480 (480W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial), Laboratory | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.60" L x 2.20" W x 4.87" H (116.8mm x 55.9mm x 123.7mm) | CE, cULus, cURus, UKCA | 61010-1; 62368-1 |
|
PIM90.245AC/DC DIN RAIL SUPPLY 24V 91W |
31 |
|
برگه مشخصات |
PIANO (90W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.58" L x 1.42" W x 3.54" H (91.0mm x 36.0mm x 90.0mm) | CB, CE, cULus, EAC | 61010-1; 62368-1; UL 508 |
|
|
S8FS-G10024CDAC/DC DIN RAIL SUPPLY 24V 100W |
31 |
|
برگه مشخصات |
S8FS-G (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.5A | 100W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 5.08" L x 1.54" W x 3.82" H (129.0mm x 39.2mm x 97.0mm) | CE, cURus, TUV, UL | - |
|
2909577AC/DC DIN RAIL SUPPLY 24V 91W |
28 |
|
برگه مشخصات |
Quint | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 3.8A | 91W | 4 kV | ITE (Commercial), Laboratory | 93.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 3.54" L x 1.77" W x 4.17" H (90.0mm x 45.0mm x 106.0mm) | CB, CE, UL | - |
|
|
S8FS-G15012CDAC/DC DIN RAIL SUPPLY 12V 150W |
50 |
|
برگه مشخصات |
S8FS-G (150W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 13A | 150W | 3 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.26" L x 1.54" W x 3.82" H (159.0mm x 39.2mm x 97.0mm) | CE, cURus, TUV, UL | - |
|
|
DRP-24V240W1CANAC/DC DIN RAIL SUPPLY 24V 240W |
63 |
|
برگه مشخصات |
CliQ III (240W) | Box | Active | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | Industrial, ITE (Commercial) | 94.48% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | CB, CE, cULus, cURus, EAC, SIQ | - |
|

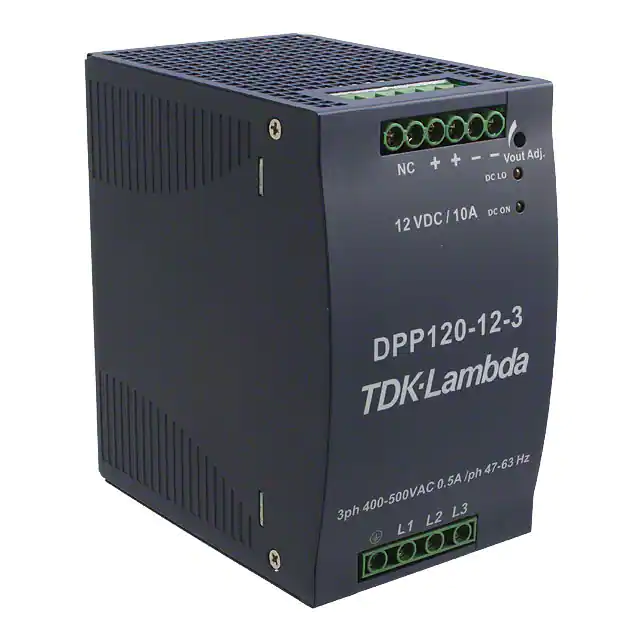

DPP120-12-3AC/DC DIN RAIL SUPPLY 12V 120W |
71 |
|
برگه مشخصات |
DPP (120W) | Bulk | Not For New Designs | AC | 1 | 340 ~ 575 VAC (3 Phase) | - | - | 12V | - | - | - | - | - | 10A | 120W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing | 4.68" L x 2.92" W x 4.88" H (118.9mm x 74.2mm x 124.0mm) | CE | - |
