صنعتی، منابع تغذیه ریلی DIN
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع ورودی | تعداد خروجی ها | ولتاژ AC - ورودی | ولتاژ DC - ورودی (حداقل) | ولتاژ DC - ورودی (حداکثر) | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی (حداکثر) | توان (وات) | ولتاژ - جداسازی | برنامه های کاربردی | کارایی | دمای عملیاتی | ویژگی ها | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TIB 240-124AC/DC DIN RAIL SUPPLY 24V 240W |
23 |
|
برگه مشخصات |
TIB 240 (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 4.25 kV | Industrial, ITE (Commercial) | 94.5% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.50" L x 1.89" W x 4.89" H (114.2mm x 48.0mm x 124.2mm) | CB, CE, cULus, cURus, SIQ | - |
|

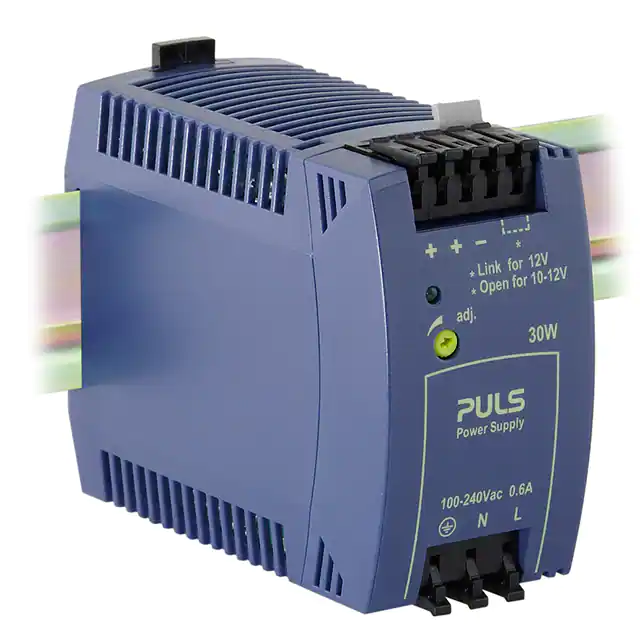

ML30.102AC/DC DIN RAIL SUPPLY 12V 30W |
24 |
|
برگه مشخصات |
MiniLine (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3A | 30W | - | ITE (Commercial) | 84% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | CSA, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
ML30.101AC/DC DIN RAIL SUPPLY 5V 30W |
15 |
|
برگه مشخصات |
MiniLine (25W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 5A | 30W | - | ITE (Commercial) | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
SDP2-24-100TAC/DC DIN RAIL SUPPLY 24V 50W |
2 |
|
برگه مشخصات |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 2.1A | 50W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm) | CE, cULus, cURus | - |
|
SDP5-5-100TAC/DC DIN RAIL SUPPLY 5V 25W |
14 |
|
برگه مشخصات |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 5V | - | - | - | - | - | 5A | 25W | - | Hazardous Locations, Industrial, ITE (Commercial) | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm) | CE, cULus, cURus | - |
|
CS3.241AC/DC DIN RAIL SUPPLY 24V 80W |
18 |
|
برگه مشخصات |
DIMENSION C (80W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.3A | 80W | - | ITE (Commercial) | 89.8% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
DPX40-24WD15DC/DC DIN RAIL SUPPLY +/-15V 40W |
5 |
|
برگه مشخصات |
DPX (40W) | Bulk | Active | DC | 2 | - | 9.5V | 36V | 15V | -15V | - | - | - | - | 1.333A, 1.333A | 40W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE | - |
|

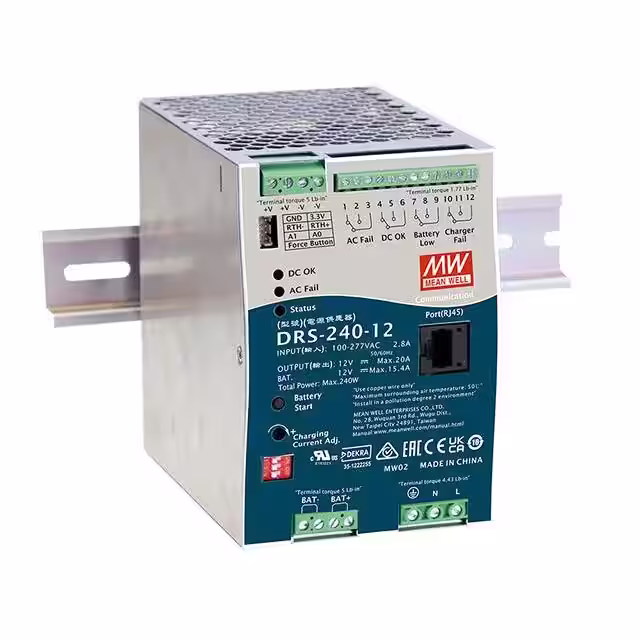

DRS-240-12AC/DC DIN RAIL SUPPLY 12V 240W |
13 |
|
برگه مشخصات |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 12V | - | - | - | - | - | 20A | 240W | 4 kV | ITE (Commercial) | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
|
DRS-240-24AC/DC DIN RAIL SUPPLY 24V 240W |
12 |
|
برگه مشخصات |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) | CB, CE, cURus, EAC, UKCA | 62368-1 |
|

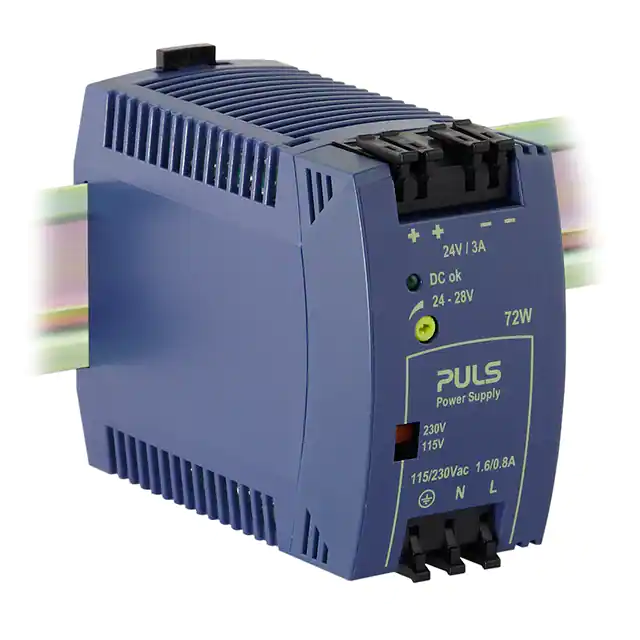

ML70.100AC/DC DIN RAIL SUPPLY 24V 72W |
17 |
|
برگه مشخصات |
MiniLine (72W) | Box | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3A | 72W | - | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 3.58" L x 1.77" W x 2.95" H (91.0mm x 45.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
1478180000AC/DC DIN RAIL SUPPLY 24V 240W |
2 |
|
برگه مشخصات |
PRO MAX3 (240W) | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | Industrial, ITE (Commercial) | 91.5% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 2.36" W x 5.12" H (125.0mm x 60.0mm x 130.0mm) | CE, cULus, cuRus, EAC, TUV | - |
|
2687-2146POWER SUPPLY; ECO 2; 1-PHASE; 24 |
22 |
|
- |
- | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3.51 kV | Laboratory | 93% | -25°C ~ 70°C | Adjustable Output, PFC, Universal Input | 5.12" L x 1.97" W x 5.12" H (130.0mm x 50.0mm x 130.0mm) | CE, cULus, UKCA | 61010-1 |
|
SDP3-15-100TAC/DC DIN RAIL SUPPLY 15V 51W |
19 |
|
برگه مشخصات |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 15V | - | - | - | - | - | 3.4A | 51W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm) | CE, cULus, cURus | - |
|

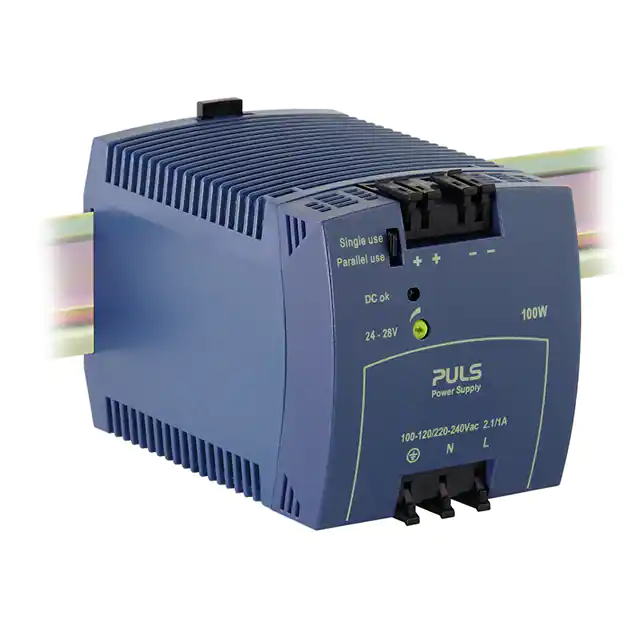

ML100.100AC/DC DIN RAIL SUPPLY 24V 100W |
16 |
|
برگه مشخصات |
MiniLine (100W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.2A | 100W | - | ITE (Commercial) | 90% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.06" L x 2.87" W x 2.95" H (103.0mm x 73.0mm x 75.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

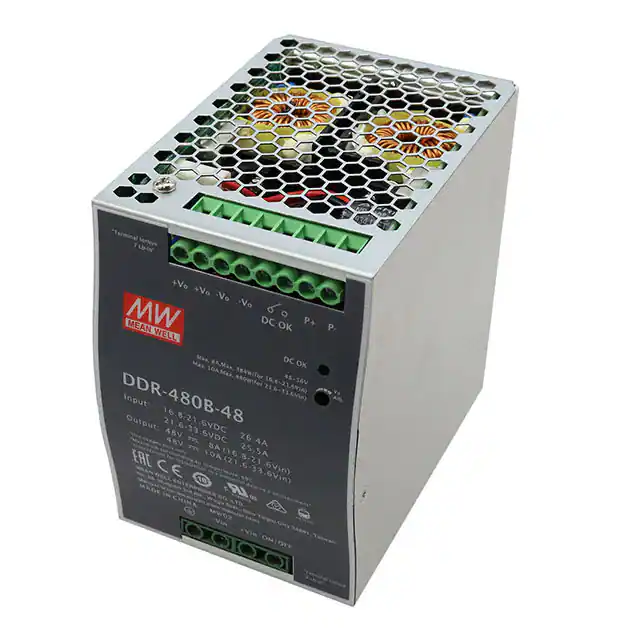

DDR-480B-48DC/DC DIN RAIL SUPPLY 48V 480W |
18 |
|
برگه مشخصات |
DDR-480 (480W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial), Railway | 90.5% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) | CB, CE, cURus, EAC | - |
|

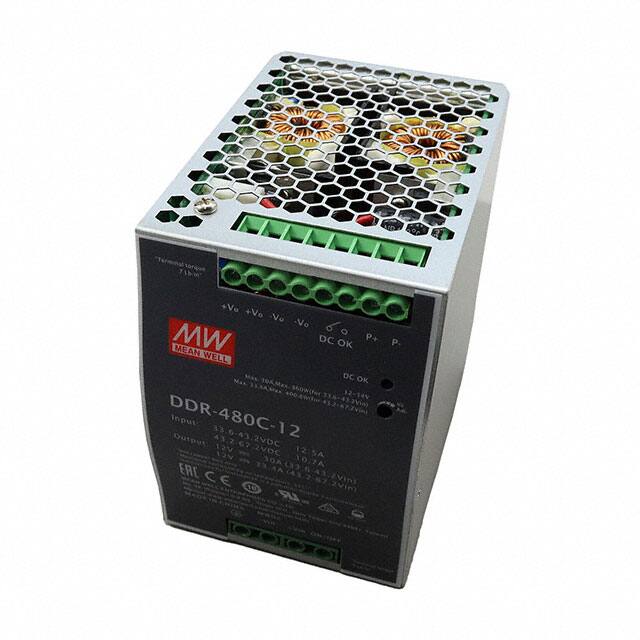

DDR-480C-12DC/DC DIN RAIL SUPPLY 12V 401W |
7 |
|
برگه مشخصات |
DDR-480 (480W) | Box | Active | DC | 1 | - | 33.6V | 67.2V | 12V | - | - | - | - | - | 33.4A | 401W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) | CB, CE, cURus, EAC | - |
|
|
DDR-480B-24DC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
برگه مشخصات |
DDR-480 (480W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) | CB, CE, cURus, EAC | - |
|
2001800000DC/DC DIN RAIL SUPPLY 24V 120W |
13 |
|
برگه مشخصات |
PRO-DCDC (120W) | Box | Active | DC | 1 | - | 14V | 32V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 92% | -20°C ~ 70°C | - | 4.72" L x 1.26" W x 5.12" H (120.0mm x 32.0mm x 130.0mm) | cULus | - |
|
2903159AC/DC DIN RAIL SUPPLY 48V 240W |
18 |
|
برگه مشخصات |
TRIO | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 6.30" L x 1.65" W x 5.12" H (160.0mm x 42.0mm x 130.0mm) | cUL, UL | - |
|
|
1066708QUINT4-PS/48-110DC/24DC/2.5/PT |
10 |
|
برگه مشخصات |
- | Bulk | Active | DC | 1 | - | 30V | 110V | 24V | - | - | - | - | - | 2.5A | 60W | 1.2 kV | Laboratory | 93.7% | -25°C ~ 70°C (With Derating) | Adjustable Output | 3.54" L x 1.26" W x 4.17" H (90.0mm x 32.0mm x 106.0mm) | CB | 61010-1 |
