صنعتی، منابع تغذیه ریلی DIN
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع ورودی | تعداد خروجی ها | ولتاژ AC - ورودی | ولتاژ DC - ورودی (حداقل) | ولتاژ DC - ورودی (حداکثر) | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی (حداکثر) | توان (وات) | ولتاژ - جداسازی | برنامه های کاربردی | کارایی | دمای عملیاتی | ویژگی ها | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2866718AC/DC DIN RAIL SUPPLY 12V 180W |
5 |
|
برگه مشخصات |
Quint | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 15A | 180W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 2.36" W x 5.12" H (125.0mm x 60.0mm x 130.0mm) | CB, cULus, cURus | - |
|
CPS20.481-D1DC/DC DIN RAIL SUPPLY 48V 480W |
8 |
|
برگه مشخصات |
DIMENSION C (480W) | Bulk | Active | DC | 1 | - | 88V | 360V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 92.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm) | ATEX, CSA, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
2866598AC/DC DIN RAIL SUPPLY 12V 48W |
5 |
|
برگه مشخصات |
MINI | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4A | 48W | 4 kV | ITE (Commercial) | 82% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.53" L x 2.66" W x 3.90" H (115.0mm x 67.5mm x 99.0mm) | cULus, cURus | - |
|
1478150000AC/DC DIN RAIL SUPPLY 24V 960W |
18 |
|
برگه مشخصات |
PRO MAX (960W) | Bulk | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 370V | 24V | - | - | - | - | - | 40A | 960W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C | Adjustable Output, IP20 | 5.91" L x 5.51" W x 5.12" H (150.0mm x 140.0mm x 130.0mm) | CE, cULus, cuRus, EAC, TUV | - |
|

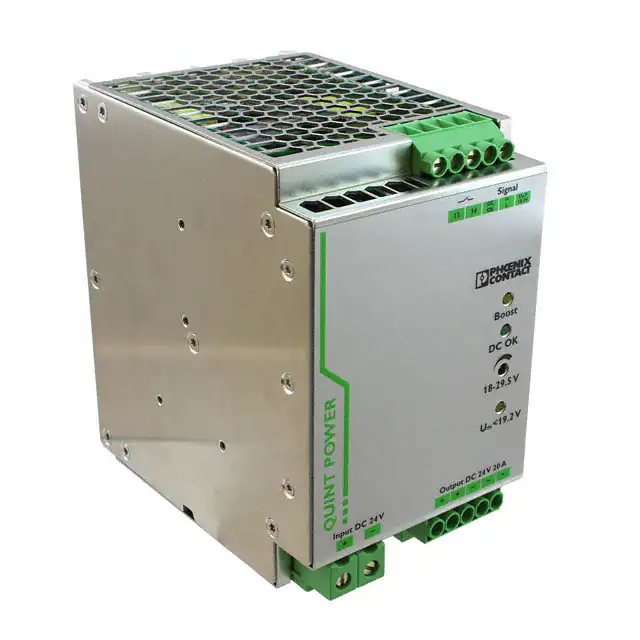

2320102DC/DC DIN RAIL SUPPLY 24V 480W |
9 |
|
برگه مشخصات |
Quint | Bulk | Active | DC | 1 | - | 18V | 32V | 24V | - | - | - | - | - | 20A | 480W | - | ITE (Commercial) | 93% | -25°C ~ 60°C | - | 4.92" L x 3.23" W x 5.12" H (125.0mm x 82.0mm x 130.0mm) | cULus, VDE | - |
|

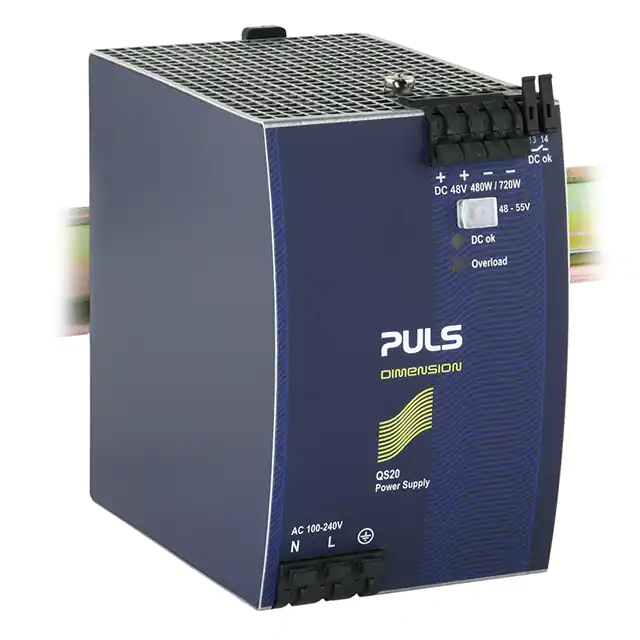

QS20.481AC/DC DIN RAIL SUPPLY 48V 480W |
15 |
|
برگه مشخصات |
DIMENSION Q (480W) | Box | Active | AC or DC | 1 | 85 ~ 276 VAC | 88V | 187V | 48V | - | - | - | - | - | 10A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 94.3% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
QT20.481AC/DC DIN RAIL SUPPLY 48V 480W |
12 |
|
برگه مشخصات |
DIMENSION Q (480W) | Box | Active | AC | 1 | 323 ~ 552 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 10A | 480W | 500 V | ITE (Commercial) | 95.4% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
2904627AC/DC DIN RAIL SUPPLY 48V 960W |
4 |
|
برگه مشخصات |
- | Box | Active | AC or DC | 1 | 320 ~ 550 VAC (3 Phase), 360 ~ 550 VAC (2 Phase) | 226.2V | 390V | 48V | - | - | - | - | - | 20A | 960W | 4 kV | Laboratory | 96.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.92" L x 4.72" W x 5.12" H (125.0mm x 120.0mm x 130.0mm) | CB, CSA, UL | 61010-1 |
|
2787-2348POWER SUPPLY; PRO 2; 3-PHASE; 24 |
2 |
|
برگه مشخصات |
- | Bulk | Active | AC | 1 | 340 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 3.15 kV | Laboratory | 96.1% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | 5.12" L x 4.72" W x 5.12" H (130.0mm x 120.0mm x 130.0mm) | UL | 61010-1 |
|
XT40.242AC/DC DIN RAIL SUPPLY 24V 960W |
19 |
|
برگه مشخصات |
DIMENSION X (960W) | Box | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 500 V | Industrial, ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20, PFC | 6.18" L x 3.78" W x 4.88" H (157.0mm x 96.0mm x 124.0mm) | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
|
XT40.482AC/DC DIN RAIL SUPPLY 48V 960W |
14 |
|
برگه مشخصات |
DIMENSION X (960W) | Box | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 20A | 960W | 3 kV | ITE (Commercial) | 96% | -25°C ~ 70°C (With Derating) | IP20 | 6.18" L x 3.78" W x 4.88" H (157.0mm x 96.0mm x 124.0mm) | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
2904612AC/DC DIN RAIL SUPPLY 48V 960W |
18 |
|
برگه مشخصات |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90.2V | 350V | 48V | - | - | - | - | - | 20A | 960W | 4 kV | Laboratory | 96.2% | -25°C ~ 70°C (With Derating) | IP20, PFC | 5.51" L x 4.72" W x 5.12" H (140.0mm x 120.0mm x 130.0mm) | CB, CSA, UL | 61010-1 |
|

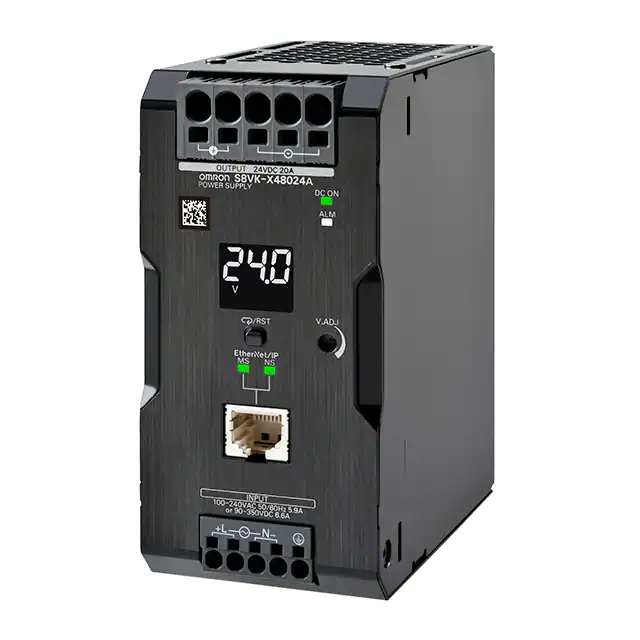

S8VK-X48024A-EIPAC/DC DIN RAIL SUPPLY 24V 480W |
14 |
|
برگه مشخصات |
S8VK-X (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 350V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | CE, cURus, EAC, KC, RCM, TUV, UL | - |
|

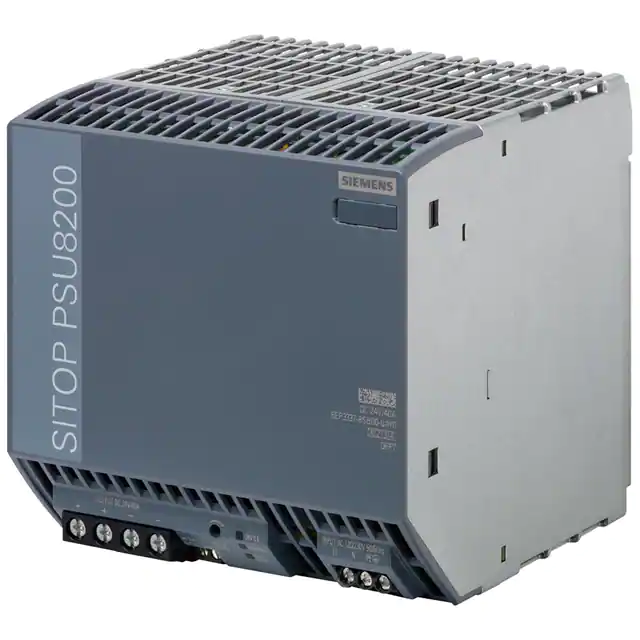

6EP33378SB000AY0AC/DC DIN RAIL SUPPLY 24V 960W |
8 |
|
برگه مشخصات |
6EP3 | Bulk | Active | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | - | Hazardous Locations, Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 5.91" L x 5.71" W x 5.71" H (150.0mm x 145.0mm x 145.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
2866721AC/DC DIN RAIL SUPPLY 12V 240W |
5 |
|
برگه مشخصات |
Quint | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 20A | 240W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 3.54" W x 5.12" H (125.0mm x 90.0mm x 130.0mm) | CB, cULus, cURus | - |
|

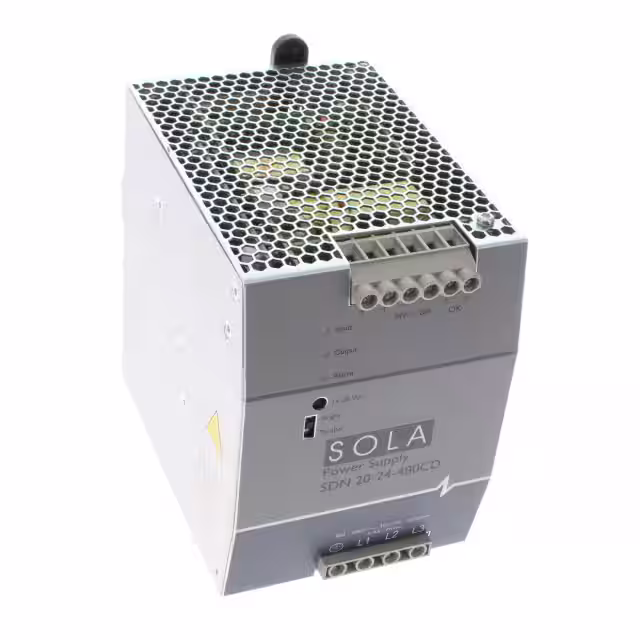

SDN 20-24-480CDAC/DC DIN RAIL SUPPLY 24V 480W |
14 |
|
برگه مشخصات |
SDN-C | Bulk | Active | AC or DC | 1 | 320 ~ 540 VAC | 550V | 650V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.98" L x 3.42" W x 4.85" H (126.5mm x 86.9mm x 123.2mm) | CE, cULus, cURus, EAC | - |
|
2320924AC/DC DIN RAIL SUPPLY 24V 480W |
6 |
|
برگه مشخصات |
Quint | Bulk | Active | AC | 1 | 320 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 93% | 0°C ~ 55°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 2.72" W x 5.12" H (125.0mm x 69.0mm x 130.0mm) | CB, CSA, cULus, cRUus | - |
|

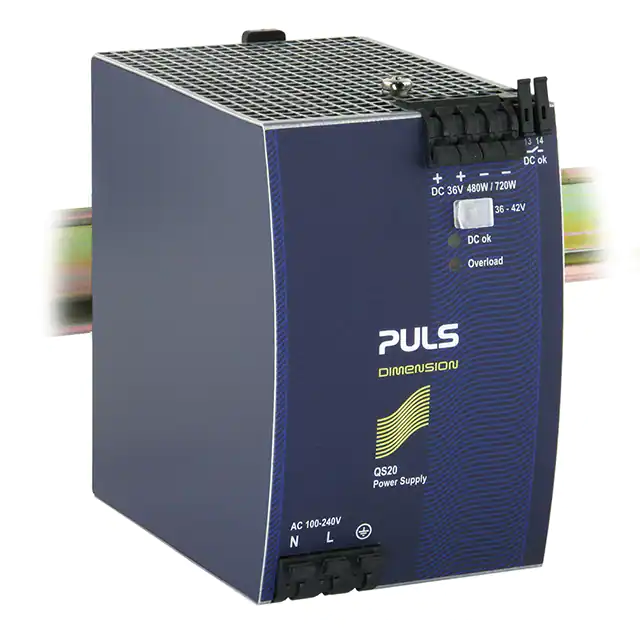

QS20.361AC/DC DIN RAIL SUPPLY 36V 480W |
6 |
|
برگه مشخصات |
DIMENSION Q (480W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 36V | - | - | - | - | - | 13.3A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 94% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
|
2866682AC/DC DIN RAIL SUPPLY 48V 480W |
12 |
|
برگه مشخصات |
Quint | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 3.54" W x 5.12" H (125.0mm x 90.0mm x 130.0mm) | CB, cULus, cURus | - |
|
2320898AC/DC DIN RAIL SUPPLY 24V 480W |
21 |
|
برگه مشخصات |
Quint | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 3.54" W x 5.12" H (125.0mm x 90.0mm x 130.0mm) | CB, CSA, cULus, cRUus | - |
