سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4610ESD+TG074IC SW SPST-NOX4 100OHM 14SOIC |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
MAX4610EUD+TIC SW SPST-NOX4 100OHM 14TSSOP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
MAX4610ESD+TIC SW SPST-NOX4 100OHM 14SOIC |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
|
MAX4611ESD+TIC SW SPST-NCX4 100OHM 14SOIC |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
DG643DY-T1IC SWITCH SPDT X 2 15OHM 16SOIC |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 15Ohm | 1Ohm | 3V ~ 15V | ±3V ~ 15V | 70ns, 50ns | 500MHz | 19pC | 12pF, 12pF | 10nA | -87dB @ 5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4066CEE+TIC SWITCH SPST-NOX4 45OHM 16QSOP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 45Ohm | 500mOhm | 2V ~ 16V | - | 100ns, 75ns | 100MHz | 1pC | 9pF, 9pF | 1nA | -86dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
|
CD74HC4051MDREPIC MUX 8:1 130OHM 16SOIC |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 130Ohm | 5Ohm | 2V ~ 6V | ±1V ~ 5V | - | 180MHz | - | 25pF | 400nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
PS392EPEIC SWITCH SPST-NOX4 45OHM 16DIP |
0 |
|
برگه مشخصات |
- | - | Obsolete | SPST - NO | 1:1 | 4 | 45Ohm | 500mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | 100MHz | 3pC | 12pF, 12pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
PS393EPEIC SW SPST-NO/NCX4 45OHM 16DIP |
0 |
|
برگه مشخصات |
- | Tray | Obsolete | SPST - NO/NC | 1:1 | 4 | 45Ohm | 500mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | 100MHz | 3pC | 12pF, 12pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
DG418LEUA+TIC SWITCH SPST-NOX1 35OHM 8UMAX |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 35Ohm | 100mOhm | 9V ~ 36V | ±4.5V ~ 20V | 175ns, 185ns | - | 15pC | 8pF, 8pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DG641DJIC SWITCH SPST-NOX4 15OHM 16DIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 15Ohm | 1Ohm | 3V ~ 15V | ±3V ~ 15V | 70ns, 50ns | 500MHz | 19pC | 12pF, 12pF | 10nA | -87dB @ 5MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
ISL76123AHZ-T7AIC SWITCH SPDT X 1 23OHM 6SOT |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 23Ohm | 800mOhm | 2.7V ~ 12V | - | 25ns, 17ns (Typ) | - | 5pC | 8pF, 8pF | 3nA | -105dB @ 1MHz | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-SOT |
|
MAX4621CPEIC SWITCH SPST-NO X 2 5OHM 16DIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 5Ohm | 250mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 250ns, 200ns | - | 480pC | 34pF, 34pF | 500pA | -60dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX4622CPEIC SWITCH SPDT X 2 5OHM 16DIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | DPST | 1:1 | 2 | 5Ohm | 250mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 250ns, 200ns | - | 480pC | 34pF, 34pF | 500pA | -60dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX4622CSEIC SWITCH SPDT X 2 5OHM 16SOIC |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | DPST | 1:1 | 2 | 5Ohm | 250mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 250ns, 200ns | - | 480pC | 34pF, 34pF | 500pA | -60dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4623CSEIC SWITCH DPST-NOX2 5OHM 16SOIC |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | DPST - NO | 2:1 | 2 | 5Ohm | 250mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 250ns, 200ns | - | 480pC | 34pF, 34pF | 500pA | -60dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|

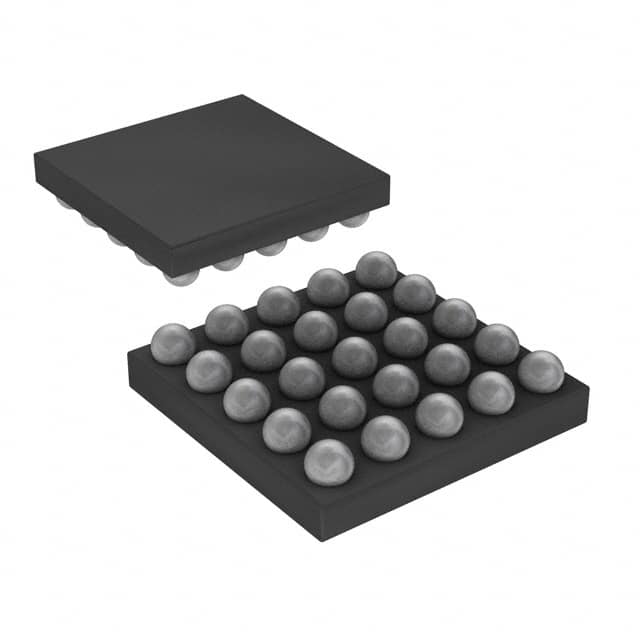

MAX4948EBA+TIC SWITCH SPDT X 6 5.5OHM 25UCSP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 6 | 5.5Ohm | 300mOhm | 1.8V ~ 5.5V | - | 800ns, 800ns | 300MHz | 10pC | 15pF | 3nA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 25-UCSP (2.54x2.54) |
|
MAX4748EWE+TIC SWITCH SPST-NCX4 25OHM 16WLP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 25Ohm | 100mOhm | 2V ~ 11V | - | 85ns, 45ns | 250MHz | 9pC | 20pF, 20pF | 100pA | -84dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WLP |
|
|
MAX4632ESE-TIC SWITCH SPDT X 2 85OHM 16SOIC |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 85Ohm | 3Ohm | 9V ~ 36V | ±4.5V ~ 18V | 150ns, 100ns | - | 5pC | 18pF, 18pF | 500pA | -66dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
PI5A392AQEXIC SWITCH SPST-NOX4 18OHM 16QSOP |
0 |
|
- |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 18Ohm | 400mOhm | 2V ~ 6V | - | 20ns, 10ns | 200MHz | 5pC | 13pF | 30nA | -72dB @ 30MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
