سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

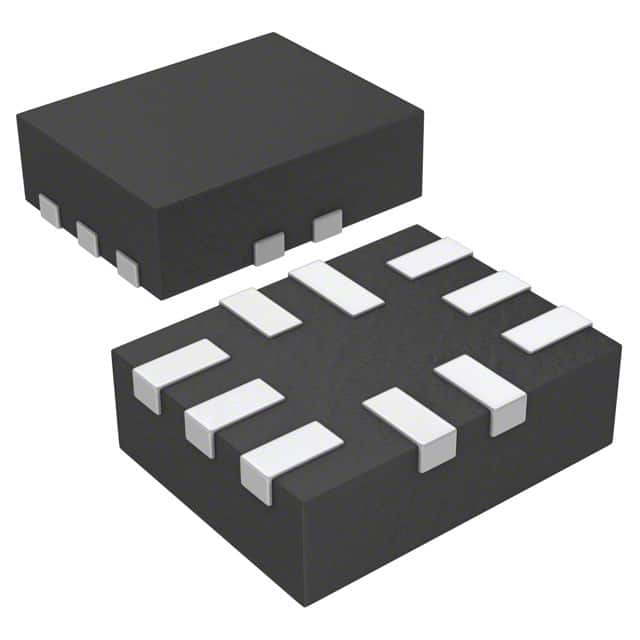

DG2735ADN-T1-GE4IC SW SPDTX2 500MOHM 10MINIQFN |
4,800 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 500mOhm | 60mOhm | 1.65V ~ 4.3V | - | 78ns, 58ns | 50MHz | - | 55pF | 2nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-miniQFN (1.4x1.8) |
|

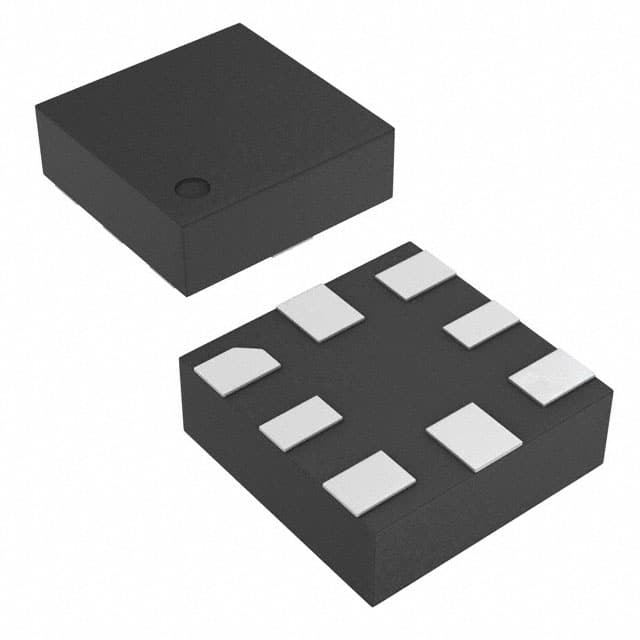

TS5A21366RSERIC SWITCH SPST-NO X 2 1OHM 8UQFN |
2,334 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 1Ohm | 40mOhm | 1.65V ~ 5.5V | - | 72ns, 318ns | 260MHz | 1.3pC | 19pF, 17pF | 10nA | -98dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-UQFN (1.5x1.5) |
|

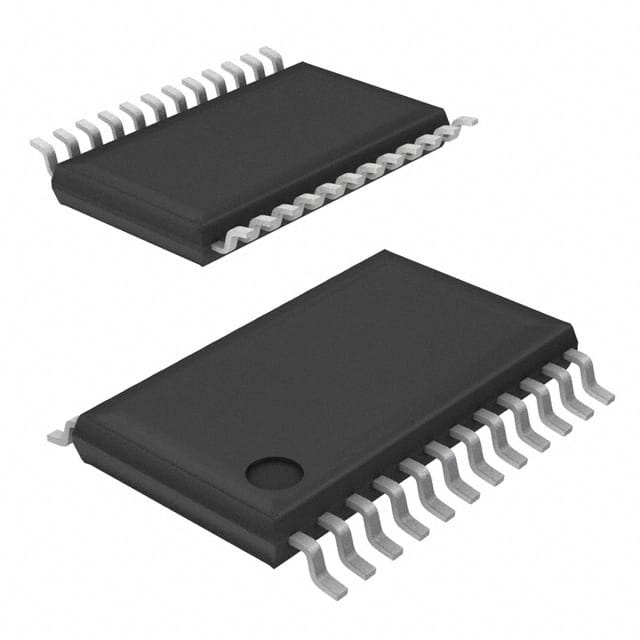

74HC4067PW,118IC MUX 16:1 120OHM 24TSSOP |
3,733 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 16:1 | 1 | 120Ohm | 6Ohm | 2V ~ 10V | - | 45ns, 45ns | 100MHz | - | 3.5pF | 100nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
TMUX1575YCJRIC SWITCH SPDT X 4 8OHM 16WLCSP |
12,437 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 8Ohm | 100mOhm | 1.08V ~ 3.6V | - | 130ns, 60ns | 1.8GHz | 5pC | 3.5pF | 100pA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WLCSP (1.34x1.34) |
|
TS5A22362DGSRIC SWITCH SPDTX2 740MOHM 10VSSOP |
5,428 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 10pC | 70pF | 50nA | -78dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
NX3DV3899GU,115IC SWITCH DPDT X 2 3.3OHM 16XQFN |
2,852 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | DPDT | 2:2 | 2 | 3.3Ohm | 700mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 200MHz | 4pC | 8pF | 5nA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-XQFN (1.8x2.6) |
|
TS5A3357QDCURQ1IC SWITCH SP3T X 1 15OHM 8VSSOP |
3,880 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SP3T | 3:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 5.5V | - | 10ns, 6.5ns | 334MHz | 3.4pC | 4.5pF, 10.5pF | 200nA | -62dB @ 10MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-VSSOP |
|

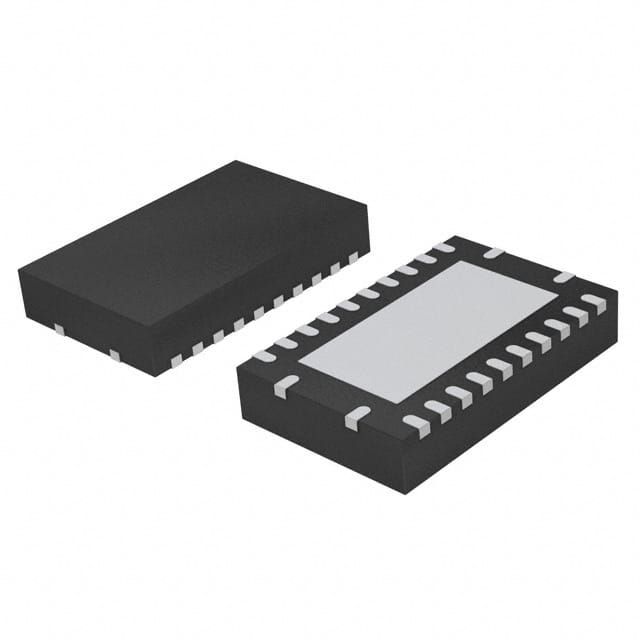

74HC4067BQ,118IC MUX 16:1 120OHM 24DHVQFN |
10,219 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 16:1 | 1 | 120Ohm | 6Ohm | 2V ~ 10V | - | 45ns, 45ns | 100MHz | - | 3.5pF | 100nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-DHVQFN (5.5x3.5) |
|
DG468DV-T1-E3IC SWITCH SPST-NO X 1 9OHM 6TSOP |
20,871 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 9Ohm | - | 7V ~ 36V | ±4.5V ~ 20V | 140ns, 80ns | - | 21pC | 30pF, 15pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSOP |
|
|
TS3A24159DGSRIC SWITCH SPDTX2 300MOHM 10VSSOP |
12,115 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 300mOhm | 10mOhm | 1.65V ~ 3.6V | - | 35ns, 25ns | 23MHz | 9pC | 90pF | 10nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
DG419LEDY-T1-GE4IC SWITCH SPDT X 1 18OHM 8SO |
11,348 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 1:2 | 1 | 18Ohm | - | 3V ~ 16V | ±3V ~ 8V | 40ns, 35ns | - | 26pC | 6pF, 20pF | 10nA | -72dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | 8-SO |
|
|
DG467DV-T1-E3IC SWITCH SPST-NC X 1 9OHM 6TSOP |
8,896 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 9Ohm | - | 7V ~ 36V | ±4.5V ~ 20V | 140ns, 80ns | - | 21pC | 30pF, 15pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSOP |
|
NX3L4051PW,118IC MUX 8:1 750MOHM 16TSSOP |
239 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 750mOhm | 70mOhm | 1.4V ~ 4.3V | - | 45ns, 25ns | 15MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
FSA4157P6XIC SWITCH SPDT X 1 1.15OHM SC88 |
12,953 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.15Ohm | 60mOhm | 1.65V ~ 5.5V | - | 35ns, 15ns | 300MHz | 20pC | 12pF | 2nA (Typ) | -70dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88 (SC-70-6) |
|

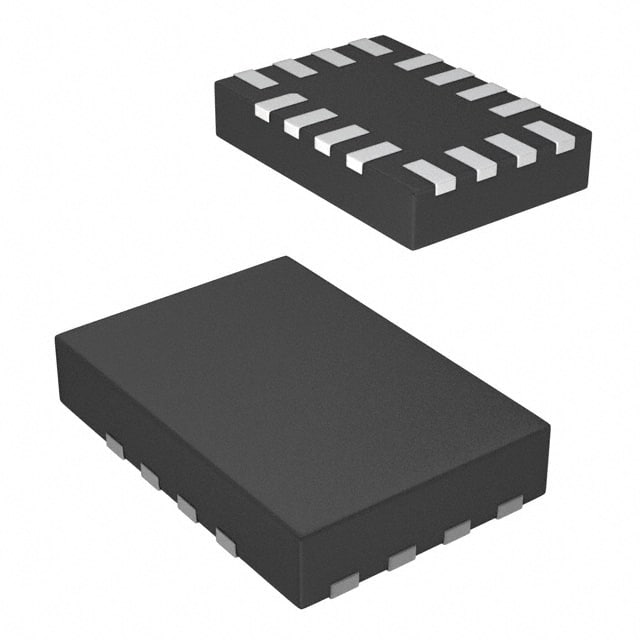

FSA2466UMXIC SWITCH DPDT X 2 1.6OHM 16UMLP |
8,206 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | DPDT | 2:2 | 2 | 1.6Ohm (Typ) | 40mOhm | 1.65V ~ 4.45V | - | 50ns, 32ns | 240MHz | 8pC | 6pF | 10nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UMLP (1.8x2.6) |
|
DG2525DN-T1-GE4IC SW DPDTX2 500MOHM 16MINIQFN |
4,499 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | DPDT | 2:2 | 2 | 500mOhm | 50mOhm | 1.8V ~ 5.5V | - | 60µs, 1µs | 310MHz | -19pC | - | 1nA | -61dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
|
74HCT4067PW,118IC MUX 16:1 120OHM 24TSSOP |
4,274 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 16:1 | 1 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | - | 65ns, 60ns | 100MHz | - | 3.5pF | 800nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
|
DG448DV-T1-E3IC SWITCH SPST-NOX1 25OHM 6TSOP |
1,186 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 25Ohm | - | 7V ~ 36V | ±4.5V ~ 20V | 130ns, 95ns | - | 10pC | 8pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSOP |
|
|
NX3L4051PW-Q100JIC MUX 8:1 750MOHM 16TSSOP |
8,780 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 750mOhm | 70mOhm | 1.4V ~ 4.3V | - | 45ns, 25ns | 15MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
|
DG419LEDQ-T1-GE3IC SWITCH SPDT X 1 18OHM 8TSSOP |
3,546 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 1:2 | 1 | 18Ohm | - | 3V ~ 16V | ±3V ~ 8V | 40ns, 35ns | - | 26pC | 6pF, 20pF | 10nA | -72dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
