سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MM74HC4052WMIC SWITCH SP4T X 2 100OHM 16SOIC |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm | 2V ~ 6V | ±2V ~ 6V | 41ns, 32ns | 35MHz | - | 5pF, 45pF | 100nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|

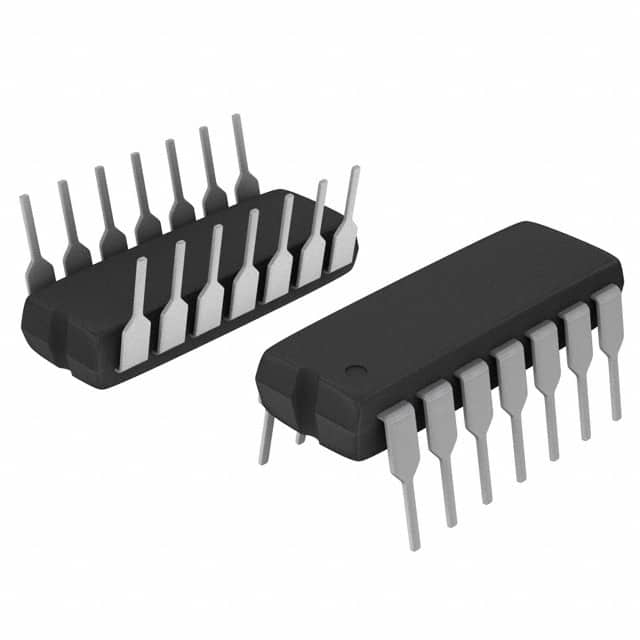

MC74HC4066ANGIC SWITCH SPST-NOX4 70OHM 14DIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 70Ohm | 15Ohm | 2V ~ 12V | - | - | 160MHz | - | 10pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 14-PDIP |
|
MC74HC4316ANGIC SW SPST-NO/NCX4 90OHM 16DIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 4 | 90Ohm | 15Ohm | 2V ~ 6V | ±2V ~ 6V | - | 160MHz | - | 10pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-PDIP |
|
ADG836LYRM-REELIC SWITCH SPDTX2 650MOHM 10MSOP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 26ns, 7ns | 57MHz | 40pC | 25pF | 1nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
ADG836LYRM-REEL7IC SWITCH SPDTX2 650MOHM 10MSOP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 26ns, 7ns | 57MHz | 40pC | 25pF | 1nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
ISL43111IH-TIC SWITCH SPST-NC X 1 10OHM 5SOT |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 10Ohm | - | 2.4V ~ 12V | - | 80ns, 50ns | - | 8pC | 15pF, 15pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-SOT |
|
ISL43112IH-TIC SWITCH SPST-NO X 1 20OHM 5SOT |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 20Ohm | - | - | ±1.5V ~ 6V | 70ns, 45ns | - | 7pC | 13pF, 13pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-SOT |
|
|
ISL84514IH-TIC SWITCH SPST-NO X 1 20OHM 5SOT |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 20Ohm | - | 2.4V ~ 12V | - | 150ns, 100ns | - | 2pC | 14pF, 14pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-SOT |
|
ISL84515IH-TIC SWITCH SPST-NC X 1 20OHM 5SOT |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 20Ohm | - | 2.4V ~ 12V | - | 150ns, 100ns | - | 2pC | 14pF, 14pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-SOT |
|
|
ISL84516IH-TIC SWITCH SPST-NO X 1 20OHM 5SOT |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 20Ohm | - | - | ±1.5V ~ 6V | 100ns, 75ns | - | 10pC | 9pF, 9pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-SOT |
|
|
ISL84517IH-TIC SWITCH SPST-NC X 1 20OHM 5SOT |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 20Ohm | - | - | ±1.5V ~ 6V | 100ns, 75ns | - | 10pC | 9pF, 9pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-SOT |
|
ISL84714IH-TIC SWITCH SPDTX1 600MOHM SC70-6 |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 600mOhm | 5mOhm | 1.65V ~ 3.6V | - | 11ns, 7ns | - | 20pC | 40pF | 2nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
ISL84715IH-TIC SW SPST-NOX1 400MOHM SC70-5 |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 400mOhm | - | 1.65V ~ 3.6V | - | 12ns, 8ns | - | 70pC | 68pF, 68pF | 3nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
DG406DYIC MUX 16:1 100OHM 28SOIC |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 16:1 | 1 | 100Ohm | 5Ohm | 5V ~ 34V | ±5V ~ 20V | 200ns, 150ns | - | 40pC | 8pF, 160pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
|
DG407DYIC MUX DUAL 8:1 100OHM 28SOIC |
0 |
|
برگه مشخصات |
- | Bag | Obsolete | - | 8:1 | 2 | 100Ohm | 5Ohm | 5V ~ 34V | ±5V ~ 20V | 200ns, 150ns | - | 40pC | 8pF, 80pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
|
DG408DYIC MUX 8:1 100OHM 16SOIC |
0 |
|
برگه مشخصات |
- | Bag | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 5V ~ 34V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
HI1-5047-5IC SW 4PST-NOX1 75OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | 4PST - NO | - | 1 | 75Ohm | 2Ohm | - | ±15V | 500ns, 500ns | - | - | 11pF, 11pF | 2nA | -88dB @ 100kHz | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-CERDIP |
|
HI3-0506-5IC MUX 16:1 400OHM 28DIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 16:1 | 1 | 400Ohm | 20Ohm | - | ±15V | 250ns, 250ns (Typ) | - | - | 10pF, 52pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 28-PDIP |
|
|
HI3-0507-5IC MUX DUAL 8:1 400OHM 28DIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 8:1 | 2 | 400Ohm | 20Ohm | - | ±15V | 250ns, 250ns (Typ) | - | - | 10pF, 30pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 28-PDIP |
|
HI3-0508-5IC MUX 8:1 400OHM 16DIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 20Ohm | - | ±15V | 250ns, 250ns (Typ) | - | - | 10pF, 17pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-PDIP |
