سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG508ABKIC MUX 8:1 400OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 24Ohm | - | ±15V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | -25°C ~ 85°C (TA) | - | - | Through Hole | 16-CERDIP |
|
DG508ACJIC MUX 8:1 400OHM 16DIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 24Ohm | - | ±15V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
DG508ACJZIC MUX 8:1 400OHM 16DIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 24Ohm | - | ±15V | 1.5µs, 1µs | - | 4pC | 5pF, 25pF | 1nA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
HI1-0201-4IC SW SPST-NCX4 80OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 80Ohm | - | - | ±15V | 180ns, 220ns | - | - | 5.5pF, 5.5pF | 50nA | - | -25°C ~ 85°C (TA) | - | - | Through Hole | 16-CERDIP |
|
HI1-0201-5IC SW SPST-NCX4 80OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 80Ohm | - | - | ±15V | 180ns, 220ns | - | - | 5.5pF, 5.5pF | 50nA | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
HI1-0201HS-4IC SW SPST-NCX4 50OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 50Ohm | 1.5Ohm | - | ±15V | 50ns, 50ns | - | 10pC | 10pF, 10pF | 10nA | -86dB @ 100kHz | -25°C ~ 85°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
HI1-0201HS-5IC SW SPST-NCX4 50OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 50Ohm | 1.5Ohm | - | ±15V | 50ns, 50ns | - | 10pC | 10pF, 10pF | 10nA | -86dB @ 100kHz | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-CERDIP |
|

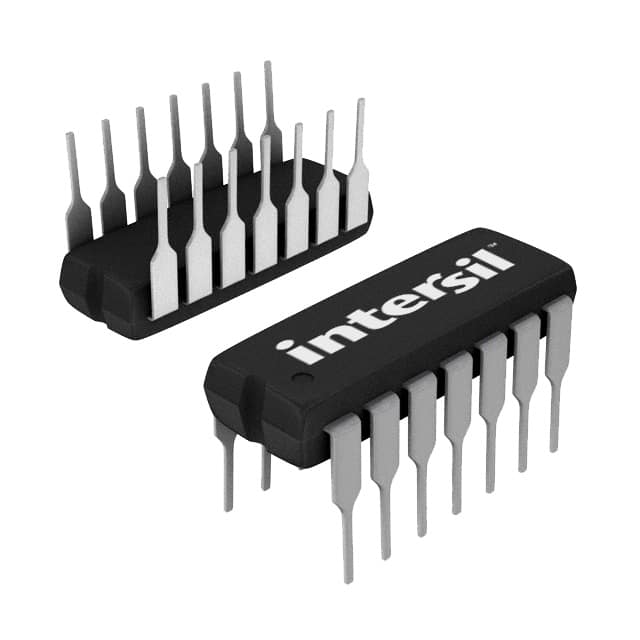

HI1-0303-5IC SWITCH SPDTX2 50OHM 14CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SPDT | 2:1 | 2 | 50Ohm | - | 5V ~ 34V | ±5V ~ 20V | 300ns, 250ns | - | 30pC | 16pF, 14pF | 5nA | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 14-CERDIP |
|
|
HI1-0390-2IC SWITCH SPDTX2 50OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SPDT | 2:1 | 2 | 50Ohm | - | 5V ~ 34V | ±5V ~ 20V | 300ns, 250ns | - | 30pC | 16pF, 14pF | 5nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
HI1-0506-5IC MUX 16:1 400OHM 28CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 16:1 | 1 | 400Ohm | 20Ohm | - | ±15V | 250ns, 250ns (Typ) | - | - | 10pF, 52pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 28-CerDip |
|
|
HI1-0507-2IC MUX DUAL 8:1 300OHM 28CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 8:1 | 2 | 300Ohm | 15Ohm | - | ±15V | 500ns, 500ns | - | - | 10pF, 30pF | 30pA (Typ) | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 28-CerDip |
|
HI1-0508-5IC MUX 8:1 400OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 20Ohm | - | ±15V | 250ns, 250ns (Typ) | - | - | 10pF, 17pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
HI1-0509-4IC SWITCH SP4TX2 400OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 400Ohm | 20Ohm | - | ±15V | 500ns, 500ns | - | - | 10pF, 30pF | 30pA (Typ) | - | -25°C ~ 85°C (TA) | - | - | Through Hole | 16-CERDIP |
|
HI1-0509-5IC SWITCH SP4TX2 400OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 400Ohm | 20Ohm | - | ±15V | 500ns, 500ns | - | - | 10pF, 30pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
HI1-0509A-5IC SW SP4TX2 1.8KOHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 1.8kOhm | - | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 12pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
HI1-0539-5IC SWITCH SP4TX2 900OHM 16CERDIP |
0 |
|
- |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 900Ohm | 4.5Ohm | - | ±15V | 750ns, 650ns | - | 10pC | 5pF, 7pF | 100pA (Typ) | -124dB @ 1kHz | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
HI1-0546-5IC MUX 16:1 1.8KOHM 28CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 16:1 | 1 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 52pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 28-CerDip |
|
HI1-0547-5IC MUX DUAL 8:1 1.8KOHM 28CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 8:1 | 2 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 30pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 28-CerDip |
|
|
HI1-0548-5IC MUX 8:1 1.8KOHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 8:1 | 1 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 25pF | 30pA (Typ) | - | 0°C ~ 75°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
HI1-1818A-2IC MUX 8:1 400OHM 16CERDIP |
0 |
|
برگه مشخصات |
- | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | - | - | ±15V | 500ns, 500ns | - | - | 4pF, 20pF | 50nA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
