سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG2038DQ-T1-E3IC SWITCH SPST-NO X 2 5OHM 8MSOP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 5Ohm | 200mOhm (Max) | 1.8V ~ 5.5V | - | 30ns, 22ns | - | 1pC | 15pF, 17pF | 1nA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
DG2042DN-T1-E4IC SWITCH SPST-NOX4 1.5OHM 16QFN |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 1.5Ohm | 300mOhm (Max) | 1.8V ~ 5.5V | - | 42ns, 32ns | - | 3pC | 26pF | 1nA | -93dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (4x4) |
|
DG2303DL-T1-E3IC SWITCH SPST-NOX1 7OHM SC70-5 |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 7Ohm | - | 1.65V ~ 5.5V | - | 2ns, 7.5ns | - | 0.5pC | 9pF | 10µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|

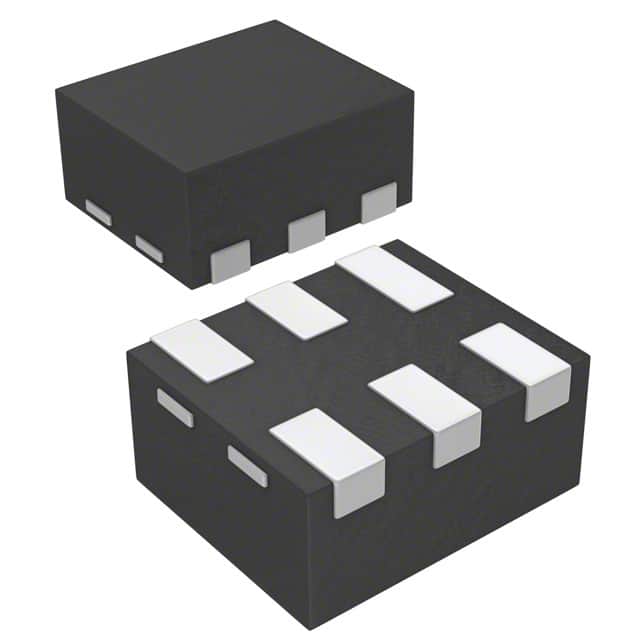

DG2511DN-T1-E4IC SWITCH SPDTX1 1.3OHM 6MINIQFN |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 1.3Ohm | 150mOhm (Max) | 1.8V ~ 5.5V | - | 35ns, 31ns | - | 14pC | 19pF | 2nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-miniQFN (1x1.2) |
|
DG2517DN-T1-E4IC SWITCH SPDT X 2 4OHM 10DFN |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 25ns, 20ns | 242MHz | 2pC | 8pF | 1nA | -73dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
DG2517DQ-T1-E3IC SWITCH SPDT X 2 4OHM 10MSOP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 25ns, 20ns | 242MHz | 2pC | 8pF | 1nA | -73dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2535DN-T1-E4IC SWITCH SPDT X 2 500MOHM 10DFN |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 50mOhm (Max) | 3V | - | 82ns, 73ns | - | 21pC | 145pF | 1nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
DG2535DQ-T1-E3IC SWITCH SPDTX2 500MOHM 10MSOP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 50mOhm (Max) | 3V | - | 82ns, 73ns | - | 21pC | 145pF | 1nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2616DN-T1-E4IC SWITCH SPDT X 2 7OHM 10DFN |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 7Ohm | 100mOhm | 1.5V ~ 3.6V | - | 69ns, 39ns | - | 7pC | 9pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
DG2618DN-T1-E4IC SWITCH SPDT X 2 7OHM 10DFN |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 7Ohm | 100mOhm | 1.5V ~ 3.6V | - | 69ns, 39ns | - | 7pC | 9pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
DG2707DN-T1-E4IC SW SP4TX2 5.5OHM 16MINIQFN |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 5.5Ohm | 300mOhm | 1.65V ~ 4.3V | - | 45ns, 35ns | 120MHz | -14pC | 16pF, 42pF | 5nA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
DG2711DL-T1-E3IC SWITCH SPDTX1 600MOHM SC70-6 |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 600mOhm | 70mOhm (Max) | 1.6V ~ 3.6V | - | 46ns, 38ns | - | 28pC | 70pF | 1nA | -56dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
|
DG2715DL-T1-E3IC SW SPST-NOX1 600MOHM SC70-5 |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 600mOhm | - | 1.5V ~ 3.6V | - | 29ns, 26ns | - | 9pC | 72pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
DG2716DL-T1-E3IC SW SPST-NCX1 600MOHM SC70-5 |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 600mOhm | - | 1.5V ~ 3.6V | - | 29ns, 26ns | - | 9pC | 72pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
DG2733DQ-T1-E3IC SWITCH SPDTX2 450MOHM 10MSOP |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 450mOhm | 30mOhm | 1.65V ~ 4.3V | - | 110ns, 30ns | - | 9pC | 104pF | 1nA | -75dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2741DQ-T1-E3IC SW SPST-NOX2 800MOHM 8MSOP |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 800mOhm | - | 1.5V ~ 3.6V | - | 30ns, 28ns | - | 5.8pC | 81pF | 1nA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
DG2741DS-T1-E3IC SW SPST-NOX2 800MOHM SOT23-8 |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 800mOhm | - | 1.5V ~ 3.6V | - | 30ns, 28ns | - | 5.8pC | 81pF | 1nA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
DG2789DN-T1-E4IC SW SPDTX4 500MOHM 16MINIQFN |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 500mOhm | 50mOhm | 1.65V ~ 4.3V | - | 72ns, 43ns | - | 87pC | 81pF | 1nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
|
DG3002DB-T1-E1IC SWITCH SPST 700MOHM 6MICRO FT |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 700mOhm | 10mOhm | 1.8V ~ 5.5V | - | 71ns, 59ns | - | 64pC | 100pF | 1nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-Micro Foot™ (1.5x1) |
|
|
DG3003DB-T1-E1IC SW SPDTX1 700MOHM 6MICRO FOOT |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 700mOhm | 10mOhm | 1.8V ~ 5.5V | - | 71ns, 59ns | - | 64pC | 100pF | 1nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-Micro Foot™ (1.5x1) |
