سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG417AK/883BIC SW SPST-NCX1 35OHM 8CERDIP |
0 |
|
- |
- | Bag | Active | SPST - NC | 1:1 | 1 | 35Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 3pC | 8pF, 8pF | 250pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-CERDIP |
|
MAX14724ETP+TIC MUX 8:4 3OHM 20TQFN |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | 8:4 | 1 | 3Ohm | 500mOhm | 1.6V ~ 5.5V | ±5V | 2µs, 600ns (Typ) | 50MHz | -15pC | 50pF, 85pF | 250nA | -65dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TQFN (4x4) |
|

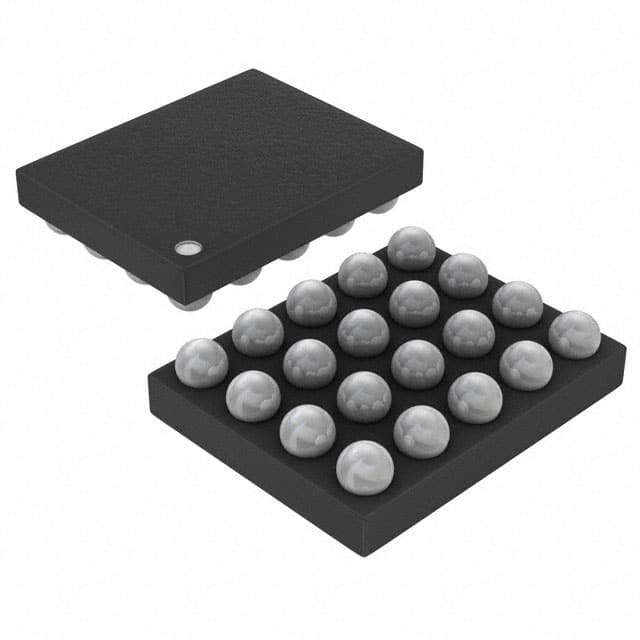

MAX14724EWP+TIC MUX 8:4 3OHM 20WLP |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | 8:4 | 1 | 3Ohm | 500mOhm | 1.6V ~ 5.5V | ±5V | 2µs, 600ns (Typ) | 50MHz | -15pC | 50pF, 85pF | 250nA | -65dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-WLP (1.63x2.03) |
|
74LVC2G3157GMXIC SWITCH SPDT X 2 15OHM 10XQFN |
0 |
|
برگه مشخصات |
74LVC | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 15Ohm | - | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 300MHz | 7.5pC | 6pF | 5µA | -54dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
ADG786WBCPZ-REEL7IC SWITCH SPDTX3 4.5OHM 20LFCSP |
0 |
|
برگه مشخصات |
ADI0012 | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10.5ns | 160MHz | 5pC | 11pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | Automotive | - | Surface Mount | 20-LFCSP (4x4) |
|
9073704PAIC SWITCH SPST-NC X 1 25OHM |
0 |
|
- |
- | Bulk | Obsolete | SPST - NC | 1:1 | 1 | 25Ohm | - | - | ±15V | 89ns, 80ns | - | 38pC | 12pF, 12pF | 250pA | - | -55°C ~ 125°C (TA) | - | - | - | - |
|
|
9073705PAIC SW SPST-NOX1 25OHM 8CERDIP |
0 |
|
- |
- | Bulk | Obsolete | SPST - NO | 1:1 | 1 | 25Ohm | - | - | ±15V | 89ns, 80ns | - | 38pC | 12pF, 12pF | 250pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
9073706PAIC SWITCH SPDT X 1 25OHM 8CERDIP |
0 |
|
- |
- | Bulk | Obsolete | SPDT | 2:1 | 1 | 25Ohm | - | - | ±15V | - | - | 38pC | 12pF | 250pA | -88dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
92042012AIC MUX 8:1 100OHM 20LCC |
0 |
|
- |
- | Bulk | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCC |
|
|
92042012CIC MUX 8:1 100OHM 20LCC |
0 |
|
- |
- | Bulk | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCC (8.89x8.89) |
|
|
9204201EAIC MUX 8:1 100OHM 16CERDIP |
0 |
|
- |
- | Bulk | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
92042022CIC SWITCH SP4T X 2 100OHM 20LCC |
0 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCC |
|
|
9204202XCIC SW SP4TX2 100OHM 16FLATPACK |
0 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-Flatpack |
|
|
8671602EAMOSFET |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
77053012AIC SWITCH SPST-NCX4 175OHM 20LCC |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±15V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCC |
|
|
7801401XAMOSFET N-CH |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9204201XCIC MUX 8:1 100OHM 16FLATPACK |
0 |
|
- |
- | Bulk | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-Flatpack |
|
|
9204202EAIC SWITCH SP4TX2 100OHM 16CERDIP |
0 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 16-CERDIP |
|
|
9204201XAIC MUX 8:1 100OHM 16FLATPACK |
0 |
|
- |
- | Bulk | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 26pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-Flatpack |
|
|
92042022AIC SWITCH SP4T X 2 100OHM 20LCC |
0 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCC |
