سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG712BRUZIC SWITCH SPST-NOX4 4OHM 16TSSOP |
6,981 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG711BRZIC SWITCH SPST-NCX4 4OHM 16SOIC |
366 |
|
برگه مشخصات |
- | Tube | Active | SPST - NC | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG711BRUZIC SWITCH SPST-NOX4 4OHM 16TSSOP |
248 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG709CRUZIC SWITCH SP4TX2 4.5OHM 16TSSOP |
16,991 |
|
برگه مشخصات |
- | Tube | Active | SP4T | 4:1 | 2 | 4.5Ohm | 400mOhm | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 42pF | 10pA (Typ) | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TMUX7213RUMRIC SW SPST-NO/NCX4 2.5OHM 16WQFN |
5,790 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 2.5Ohm | 100mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 185ns, 210ns | 48MHz | 92pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
MAX4641EUA+IC SWITCH SPST-NO X 2 4OHM 8UMAX |
3,116 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 2 | 4Ohm | 200mOhm | 1.8V ~ 5.5V | - | 15ns, 8ns | - | 2pC | 7pF, 7pF | 250pA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
TMUX6236RUMRIC SW SPDT-NO/NCX2 3.1OHM 16WQFN |
1,629 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 2 | 3.1Ohm | 100mOhm (Typ) | 4.5V ~ 36V | - | 130ns, 165ns | 35MHz | 78pC | 45pF, 60pF | 50pA (Typ) | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
MAX4581ESE+IC MUX 8:1 80OHM 16SOIC |
475 |
|
برگه مشخصات |
- | Tube | Active | - | 8:1 | 1 | 80Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 200ns, 100ns | - | 0.5pC | 4pF, 18pF | 1nA | -78dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|

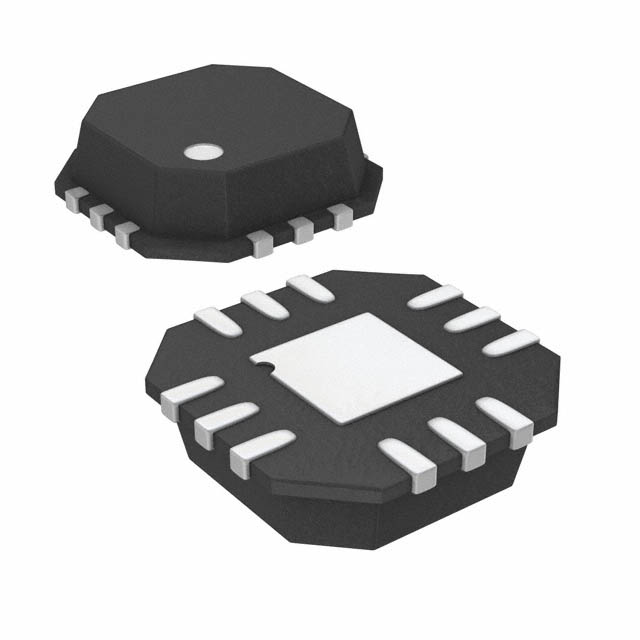

ADG836YCPZ-REEL7IC SWITCH SPDTX2 650MOHM 12LFCSP |
2,813 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 26ns, 7ns | 57MHz | 40pC | 25pF | 200pA (Typ) | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 12-LFCSP-VQ (3x3) |
|
TMUX7211PWRIC SW SPST-NOX4 2.4OHM 16TSSOP |
10,420 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 2.4Ohm | 100mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 185ns, 205ns | 46MHz | 104pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4524LEUB+IC SWITCH SP4T X 1 80OHM 10UMAX |
140 |
|
برگه مشخصات |
- | Tube | Active | SP4T | 4:1 | 1 | 80Ohm | 2Ohm | 2V ~ 12V | - | 150ns, 120ns | 200MHz | 0.8pC | 4pF, 14pF | 2nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
|
ADG712BRZIC SWITCH SPST-NOX4 4OHM 16SOIC |
662 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG738BRUZIC MUX 8:1 4.5OHM 16TSSOP |
21,203 |
|
برگه مشخصات |
- | Tube | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 20ns, 10ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

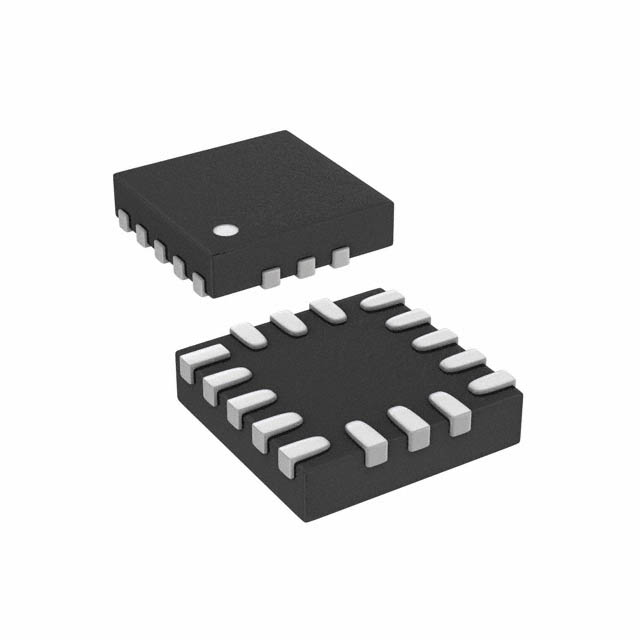

ADG858BCPZ-REEL7IC SWITCH SPDTX2 720MOHM 16LFCSP |
3,296 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:2 | 2 | 720mOhm | 40mOhm | 1.8V ~ 5.5V | - | 27ns, 12ns | 70MHz | 45pC | 25pF | 10pA (Typ) | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-LFCSP-UQ (2.1x2.1) |
|
TMUX7212RUMRIC SWITCH SPST X 4 2.4OHM 16WQFN |
1,593 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 2.4Ohm | 180mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 185ns, 205ns | 46MHz | 104pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
ADG758BCPZIC MUX 8:1 4.5OHM 20LFCSP |
749 |
|
برگه مشخصات |
- | Tray | Active | - | 8:1 | 1 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 85pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
|
DG271BDY-E3IC SWITCH SPST-NCX4 50OHM 16SOIC |
554 |
|
برگه مشخصات |
- | Tube | Last Time Buy | SPST - NC | 1:1 | 4 | 50Ohm | - | - | ±15V | 65ns, 65ns | - | -5pC | 8pF, 8pF | 1nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
ADG1222BRMZ-REEL7IC SW SPST-NCX2 200OHM 10MSOP |
7,254 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
ADG1223BRMZ-REEL7IC SW SPST-NO/NCX2 200OHM 10MSOP |
4,850 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
ADG1223BRMZIC SW SPST-NO/NCX2 200OHM 10MSOP |
364 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO/NC | 1:1 | 2 | 200Ohm | 2.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 130ns, 105ns | 960MHz | 0.1pC | 2.2pF, 2.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
