سوئیچ های آنالوگ، مولتی پلکسر، دی مولتی پلکسر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار سوئیچ | مدار مالتی پلکسر/دی مولتی پلکسر | تعداد مدارها | مقاومت در ایالت (حداکثر) | تطبیق کانال به کانال (ΔRon) | ولتاژ - منبع تغذیه، تک (V+) | ولتاژ - منبع تغذیه، دوگانه (V±) | زمان سوئیچ (تن، خاموش) (حداکثر) | - پهنای باند 3db | تزریق شارژ | ظرفیت کانال (CS(خاموش)، CD(خاموش)) | جریان - نشتی (IS(خاموش)) (حداکثر) | متقاطع | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS5A3157YZPRIC SWITCH SPDT X 1 10OHM 6DSBGA |
2,000 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 10Ohm | 150mOhm | 1.65V ~ 5.5V | - | 8.5ns, 6.5ns | 300MHz | 7pC | 5.5pF | 100nA | -66dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA (1.39x.89) |
|
74HC4851BQ-Q100,11IC MUX 8:1 195OHM 16DHVQFN |
8,855 |
|
برگه مشخصات |
74HC | Tape & Reel (TR) | Active | - | 8:1 | 1 | 195Ohm | 3Ohm | 2V ~ 6V | - | 78ns, 78ns | - | - | 10pF | 100nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-DHVQFN (2.5x3.5) |
|
NX3L2G384GM,125IC SW SPST-NCX2 750MOHM 8XQFNU |
1,819 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 24ns, 7ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XQFNU (1.6x1.6) |
|
74HCT4851PW-Q100,1IC MUX 8:1 210OHM 16TSSOP |
2,131 |
|
برگه مشخصات |
74HCT | Tape & Reel (TR) | Active | - | 8:1 | 1 | 210Ohm | 2Ohm | 4.5V ~ 5.5V | - | 25ns, 80ns | - | - | 10pF | 100nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
|
MAX4594DCKRIC SWITCH SPST-NOX1 10OHM SC70-5 |
2,973 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 2.4V ~ 5.5V | - | 35ns, 40ns | 300MHz | 2pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
74HC4852BQ-Q100,11IC SWITCH SP4TX2 195OHM 16DHVQFN |
8,698 |
|
برگه مشخصات |
74HC | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 195Ohm | 3Ohm | 2V ~ 6V | - | 39ns, 78ns | - | - | 10pF | 100nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-DHVQFN (2.5x3.5) |
|
NX3L4684GM,115IC SWITCH SPDTX2 750MOHM 10XQFN |
6,019 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 750mOhm | 40mOhm | 1.4V ~ 4.3V | - | 45ns, 20ns | 20MHz | 50pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
NX3L1G53GM,125IC SWITCH SPDTX1 750MOHM 8XQFNU |
10,563 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 24ns, 8ns | 60MHz | 15pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XQFNU (1.6x1.6) |
|
TS5A23167YZPRIC SW SPST-NCX2 900MOHM 8DSBGA |
2,333 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 900mOhm | 40mOhm | 1.65V ~ 5.5V | - | 7.5ns, 11ns | 150MHz | 6pC | 19pF, 18pF | 20nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DSBGA |
|
MC74HC4852ADTR2GIC SWITCH SP4TX2 400OHM 16TSSOP |
1,392 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 400Ohm | - | 2V ~ 6V | - | - | - | - | 40pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
74HC4351D,653IC MUX 8:1 120OHM 20SO |
5,783 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 120Ohm | 6Ohm | 2V ~ 10V | ±1V ~ 5V | 55ns, 45ns | 170MHz | - | 3.5pF | 100nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-SO |
|
TS5A22364DRCRIC SWITCH SPDTX2 740MOHM 10VSON |
8,242 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 740mOhm | 40mOhm | 2.3V ~ 5.5V | - | 80ns, 70ns | 18.3MHz | 10pC | 70pF | 50nA | -78dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSON (3x3) |
|
MAX4594DBVRIC SWITCH SPST-NOX1 10OHM SOT23 |
6,748 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 10Ohm | - | 2.4V ~ 5.5V | - | 35ns, 40ns | 300MHz | 2pC | 8pF, 8pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MC74HC4851ADTR2GIC MUX 8:1 400OHM 16TSSOP |
3,983 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 400Ohm | - | 2V ~ 6V | - | - | - | - | 40pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

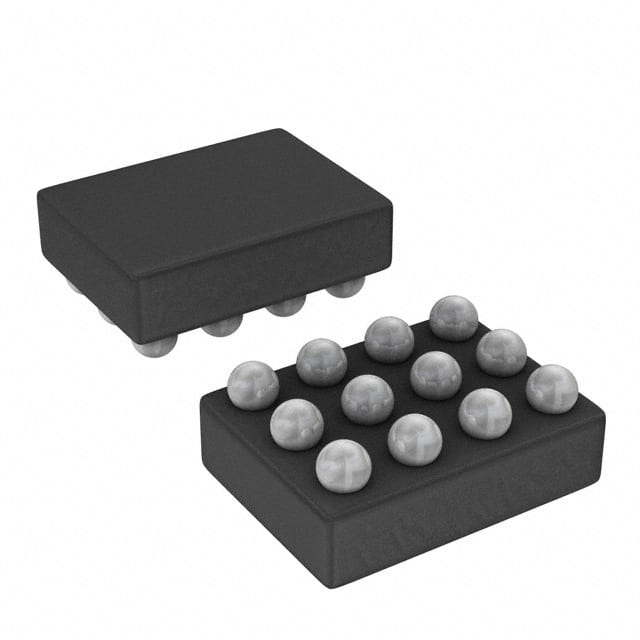

TS5A22366YFCRIC SWITCH SPDT X 2 1OHM 12DSBGA |
3,145 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 1Ohm | 100mOhm | 2.25V ~ 5.5V | - | 374ns, 325ns | 32MHz | 168pC | 48pF | 50nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DSBGA (1.57x1.17) |
|
MC74VHC4066DR2GIC SWITCH SPST-NOX4 70OHM 14SOIC |
4,544 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 70Ohm | 15Ohm | 2V ~ 12V | - | - | 160MHz | - | 10pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 14-SOIC |
|
|
MC14016BDR2GIC SW SPST-NOX4 400OHM 14SOIC |
4,431 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 400Ohm | 10Ohm | 3V ~ 18V | - | - | 37MHz | - | 5pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 14-SOIC |
|
MC74HC4852ADR2GIC SWITCH SP4T X 2 400OHM 16SOIC |
1,655 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 400Ohm | - | 2V ~ 6V | - | - | - | - | 40pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MC14016BDGIC SW SPST-NOX4 400OHM 14SOIC |
653 |
|
برگه مشخصات |
- | Tube | Active | SPST - NO | 1:1 | 4 | 400Ohm | 10Ohm | 3V ~ 18V | - | - | 37MHz | - | 5pF | 100nA | -80dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 14-SOIC |
|
|
MC74HC4851ADR2GIC MUX 8:1 400OHM 16SOIC |
14,264 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 400Ohm | - | 2V ~ 6V | - | - | - | - | 40pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
