LCD، کاراکتر OLED و عددی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تعداد کاراکترها | فرمت نمایش | قالب کاراکتر | نوع نمایشگر | حالت نمایش | اندازه کاراکتر | طرح کلی L x W x H | منطقه مشاهده | نور پس زمینه | ولتاژ - منبع تغذیه | اندازه نقطه | رابط | نوع کنترلر | دمای عملیاتی | رنگ متن | رنگ پس زمینه |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GFC2004J-GPFEJS0620X4STN-GRAYWHITE98*60WITHOU |
7 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 13.30mm | 76.00mm L x 25.20mm W | LED - White | 5V | 0.55mm W x 0.55mm H | Parallel | ST7066U-0A | -20°C ~ 70°C | Dark Blue | White |
|
|
MC44005A6W-FPTLW-V2DISPLAY, 4x40 COB LCD, Black on |
80 |
|
برگه مشخصات |
MC44005A | Tray | Active | 160.0 | 40 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 4.89mm H x 2.78mm W | 190.00mm x 54.00mm x 13.00mm | 147.00mm L x 29.50mm W | LED - White | 5V | 0.50mm W x 0.55mm H | Parallel | ST7063C, ST7066U | -20°C ~ 70°C | Black | White |
|
|
GFOC1602D-WGOLEDWHITE + PCB+FRAME 80X36X9.1 |
100 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.57mm H x 2.97mm W | 80.00mm x 36.00mm x 9.10mm | 58.22mm L x 13.52mm W | - | 2.8V ~ 5.3V | 0.56mm W x 0.66mm H | - | US2066 | -40°C ~ 85°C | White | Black |
|
|
GFOC1602D-YGOLEDYELLOW LIGHT + PCB+FRAME 80 |
10 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.57mm H x 2.97mm W | 80.00mm x 36.00mm x 9.10mm | 58.22mm L x 13.52mm W | - | 2.8V ~ 5.3V | 0.56mm W x 0.66mm H | - | US2066 | -40°C ~ 85°C | Yellow | Black |
|
|
MC42008A6W-FPTLWDISPLAY, 4x20 COB LCD, Black on |
70 |
|
برگه مشخصات |
MC42008A | Tray | Active | 80.0 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 9.22mm H x 4.84mm W | 146.00mm x 62.50mm x 14.50mm | 123.00mm L x 42.50mm W | LED - White | 5V | 0.92mm W x 1.10mm H | Parallel | - | -20°C ~ 70°C | Black | White |
|
|
MC42008A6W-BNMLWDISPLAY, 4x20 COB LCD, White on |
48 |
|
برگه مشخصات |
MC42008A | Tray | Active | 80.0 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | - | 146.00mm x 62.50mm x 14.50mm | 123.00mm W x 42.50mm H | LED - White | 5V | 0.92mm W x 1.10mm H | Parallel | ST7066U | -20°C ~ 70°C | White | Blue |
|
|
MD44005A6W-FPTLRGBDISPLAY, 4x40 COB LCD, Black on |
49 |
|
برگه مشخصات |
MD44005A | Tray | Active | 160.0 | 40 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | - | 190.00mm x 54.00mm x 13.00mm | 147.00mm L x 29.50mm W | LED - Red/Green/Blue | 5V | 0.50mm W x 0.55mm H | Parallel | ST7063C, ST7066U | -20°C ~ 70°C | Black | Red/Green/Blue |
|
|
GFOR1602AA-WGOLEDWHITE LIGHT 85 37 18. |
23 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | Passive | 5.57mm H x 2.97mm W | 85.00mm x 37.00mm x 13.60mm | 58.22mm L x 13.52mm W | - | 4.5V ~ 5.5V | 0.57mm W x 0.67mm H | RS-232 | US2066 | -30°C ~ 80°C | White | Black |
|
NHD-0216BZ-RN-YBWLCD MOD 32 DIG 16 X 2 REFLECTIVE |
0 |
|
برگه مشخصات |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.23mm H x 3.00mm W | 84.00mm x 44.00mm x 9.00mm | 64.50mm L x 16.40mm W | Without Backlight | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green |
|
LCM-S01604DSRLCD MOD 64 DIG 16 X 4 REFLECTIVE |
0 |
|
برگه مشخصات |
- | Bulk | Active | 64.0 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 4.75mm H x 2.95mm W | 87.00mm x 60.00mm x 8.90mm | 65.00mm L x 25.60mm W | Without Backlight | 5V | 0.55mm W x 0.55mm H | Parallel | - | 0°C ~ 50°C | - | Green |
|
NHD-0220DZW-AG5OLED MODULE 40DIG 20 X 2 PASSIVE |
0 |
|
برگه مشخصات |
- | Tray | Active | 40.0 | 20 x 2 | 5 x 8 Dots | OLED | Passive | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 9.80mm | 85.00mm L x 18.60mm W | Without Backlight | 3V ~ 5.3V | 0.60mm W x 0.65mm H | Parallel/Serial | - | -40°C ~ 80°C | Green | Black |
|
NHD-0216SZW-BB5OLED MODULE 32DIG 16 X 2 |
0 |
|
برگه مشخصات |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | OLED | - | 8.90mm H x 4.74mm W | 122.00mm x 44.00mm x 10.00mm | 99.00mm L x 24.00mm W | - | 3V ~ 5.3V | 0.90mm W x 1.06mm H | Parallel/Serial | - | -40°C ~ 80°C | Blue | Black |
|
EA DOGS104N-ALCD MOD 40DIG 10X4 REFLECTIVE |
0 |
|
برگه مشخصات |
EA DOG | Bag | Active | 40.0 | 10 x 4 | - | STN - Super-Twisted Nematic | Reflective | - | 36.00mm x 27.50mm x 4.60mm | 33.00mm L x 12.10mm W | LED | 3.3V | 0.49mm W x 0.31mm H | I2C, SPI | - | -20°C ~ 70°C | - | White |
|
AMC1602AR-B-B6WTDW-I2CCOB CHAR 16X2 BLUE TRANSM I2C |
0 |
|
برگه مشخصات |
- | Box | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 14.00mm | 64.50mm L x 15.50mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.65mm H | I2C | AC780S | -20°C ~ 70°C | White | Blue |
|
398LCD MODULE 32 DIG 16 X 2 R/G/B |
0 |
|
برگه مشخصات |
- | Bulk | Active | 32.0 | 16 x 2 | 5 x 8 Dots | - | - | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.00mm | 64.50mm L x 16.40mm W | LED - Red/Green/Blue | 5V | 0.56mm W x 0.61mm H | Parallel, 8-Bit | - | - | Black | Red/Green/Blue |
|
EA DOGM162E-ALCD MOD 32DIG 16X2 TRANSFLECTIVE |
0 |
|
برگه مشخصات |
EA DOG | Bag | Active | 32.0 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.57mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.67mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Gray | Green |
|
399LCD MOD 32DIG 16X2 TRANSMS R/G/B |
0 |
|
برگه مشخصات |
- | Bulk | Active | 32.0 | 16 x 2 | - | - | Transmissive | 5.56mm H x 2.96mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 15.50mm W | LED - Red/Green/Blue | 5V | 0.56mm W x 0.66mm H | - | - | - | - | Red/Green/Blue |
|
|
ACM2004F-FL-YBW-RDISPLAY LCD CHARACTER 20X4 MONOC |
0 |
|
برگه مشخصات |
ACM2004F | Box | Active | 80.0 | 20 x 4 | 5 x 8 Dots | - | - | 9.22mm H x 4.84mm W | 146.00mm x 62.50mm x 13.50mm | 123.00mm L x 42.50mm W | LED | 2.7V ~ 5.5V | 0.93mm W x 1.11mm H | - | S6A0069X01-COCX | - | - | - |
|

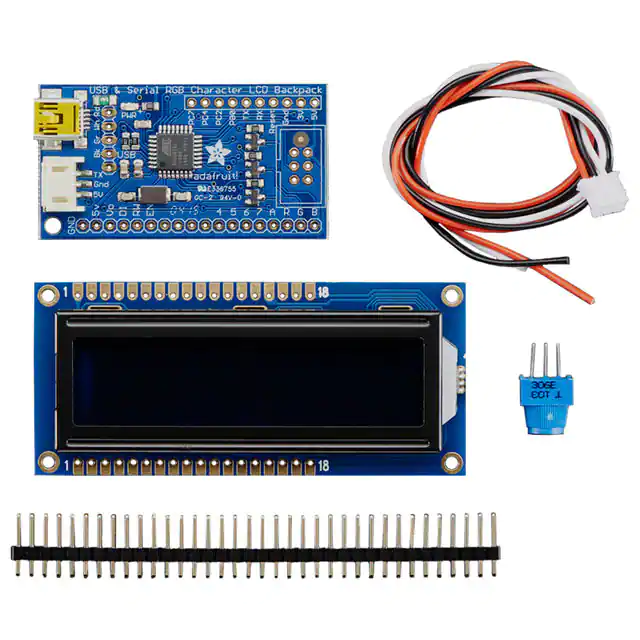

784LCD MODULE 32 DIG 16 X 2 R/G/B |
0 |
|
برگه مشخصات |
- | Bulk | Active | 32.0 | 16 x 2 | - | - | - | - | - | - | LED - Red/Green/Blue | - | - | Serial, USB | - | - | Black | Red/Green/Blue |
|
EA OLEDM204-LGAOLED MODULE 80DIG 20 X 4 W/PINS |
0 |
|
برگه مشخصات |
EA OLED | Bag | Active | 80.0 | 20 x 4 | 5 x 32 Dots | OLED | - | - | 60.96mm x 26.00mm x 2.40mm | 50.00mm L x 20.00mm W | - | 2.4V ~ 3.6V, 4.4V ~ 5.5V | 0.37mm W x 0.51mm H | I2C, SPI | - | -40°C ~ 80°C | Yellow | Black |
