| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12V-DUB-PW-12MLED ENG NEU WHT 4200K 12M REEL |
832 |
|
- |
- | Tape & Reel (TR) | Active | LED Engine | White, Neutral | 4200K | - | Linear Light Strip, Flexible | 95lm (Typ) | - | - | 12V | - | - | 83 | 120° | - | 12000.0mm L x 16.00mm W (30.48mm L per Segment) | 1.50mm | - | Flat |
|
12V-DUB-WW-12MLED ENG WM WHT LNR STRP 3000K |
699 |
|
- |
- | Tape & Reel (TR) | Active | LED Engine | White, Warm | 3000K | - | Linear Light Strip, Flexible | 85lm (Typ) | - | - | 12V | - | - | 83 | 120° | - | 12000.0mm L x 16.00mm W (30.48mm L per Segment) | 1.50mm | - | Flat |
|
12V-DUB-CW-12MLED ENG COOL WHT 6000K 12M REEL |
45 |
|
- |
- | Tape & Reel (TR) | Active | LED Engine | White, Cool | 6000K | - | Linear Light Strip, Flexible | 92lm (Typ) | - | - | 12V | - | - | 85 | 120° | - | 12000.0mm L x 16.00mm W (30.48mm L per Segment) | 1.50mm | - | Flat |
|
SPHWHAHDNA25WJV3DBLED COB D GEN2 WM WHT SQ 3000K |
288 |
|
برگه مشخصات |
COB D Gen2 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 485lm (Typ) | 180mA | 85°C | 17V | 158 lm/W | 360mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
AB-FC024BL-19700-XA1LED MOD AB-FC BLUE LNR STRIP |
426 |
|
برگه مشخصات |
AB-FC | Tape & Reel (TR) | Active | LED Module | Blue | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 168lm | 660mA | 25°C | 24V | 90 lm/W | - | - | 120° | IP65 | 5000.00mm L x 10.00mm W (50.00mm L per Segment) | 2.50mm | - | Flat |
|
|
SPHWHAHDNA27YZV3DBLED COB D GEN2 WM WHT SQ 3000K |
301 |
|
برگه مشخصات |
COB D Gen2 Plus | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 410lm (Typ) | 180mA | 85°C | 34V | 67 lm/W | 360mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
AB-FC02465-19700-8A1LED MOD AB-FC WH LNR STRP 6500K |
227 |
|
برگه مشخصات |
AB-FC | Tape & Reel (TR) | Active | LED Module | White, Cool | 6500K | - | Linear Light Strip, Flexible | 334lm | 660mA | 25°C | 24V | 46 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W (50.00mm L per Segment) | 2.50mm | - | Flat |
|
CXA1304-0000-000C00C20E3LED COB XLAMP COOL WHT SQ 5000K |
81 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 458lm (440lm ~ 475lm) | 400mA | 85°C | 9V | 127 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C00B240FLED COB XLAMP NEUT WHT SQU 4000K |
51 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 395lm (380lm ~ 410lm) | 400mA | 85°C | 9V | 110 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C0HC265FLED COB XLAMP COOL WHT SQU 6500K |
90 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 400mA | 85°C | 9V | 127 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000F0HC250FLED COB XLAMP COOL WHT SQU 5000K |
63 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 200mA | 85°C | 18V | 127 lm/W | 500mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|

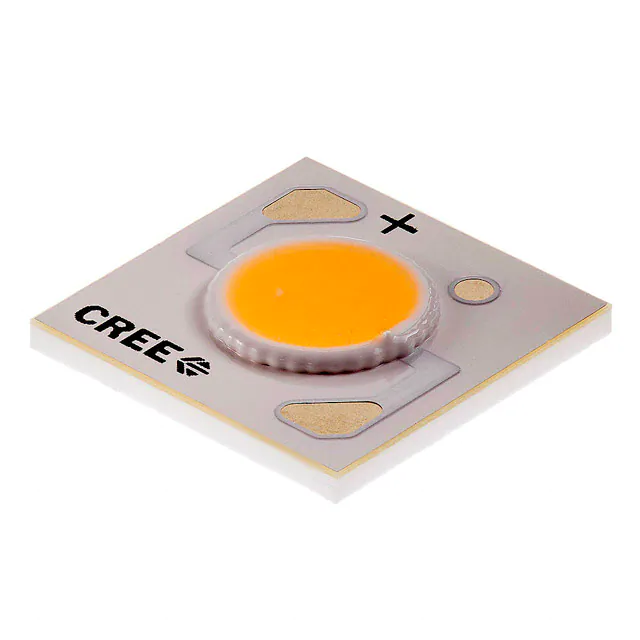

CXA1304-0000-000C00C450FLED COB XLAMP COOL WHT SQU 5000K |
55 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 493lm (475lm ~ 510lm) | 400mA | 85°C | 9V | 137 lm/W | 1A | 70 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
CXA1507-0000-000N00G40E5LED COB XLAMP NEUT WHT SQ 4000K |
97 |
|
برگه مشخصات |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 870lm (840lm ~ 900lm) | 200mA | 85°C | 37V | 118 lm/W | 375mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1304-0000-000C00B435GLED COB XLAMP WARM WHT SQU 3500K |
35 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 400mA | 85°C | 9V | 118 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C00B430HLED COB XLAMP WARM WHT SQU 3000K |
43 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 400mA | 85°C | 9V | 118 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C00B427GLED COB XLAMP WARM WHT SQU 2700K |
83 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 400mA | 85°C | 9V | 118 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000N00B427GLED COB XLAMP WARM WHT SQU 2700K |
44 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 425lm (410lm ~ 440lm) | 100mA | 85°C | 36V | 118 lm/W | 250mA | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000C00A40E7LED COB XLAMP WARM WHT SQ 3000K |
35 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 368lm (355lm ~ 380lm) | 400mA | 85°C | 9V | 102 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1507-0000-000N00G265FLED COB XLAMP COOL WHT SQU 6500K |
81 |
|
برگه مشخصات |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 200mA | 85°C | 37V | 110 lm/W | 375mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1304-0000-000C00A430FLED COB XLAMP WARM WHT SQU 3000K |
91 |
|
برگه مشخصات |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 368lm (355lm ~ 380lm) | 400mA | 85°C | 9V | 102 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
