COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2530-0000-000N00T20E5LED COB XLAMP NEUT WHT SQ 4000K |
43 |
|
برگه مشخصات |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CXA1507-0000-000F0YE227FLED COB XLAMP WARM WHT SQU 2700K |
100 |
|
برگه مشخصات |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 4-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 400mA | 85°C | 18V | 85 lm/W | 750mA | 93 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
XPEEPR-L1-0000-00C01-SB01LED MOD XLAMP RED STARBOARD |
38 |
|
برگه مشخصات |
XLamp® XP-E Horticulture | Bulk | Not For New Designs | LED Module | Red | - | 660nm | Starboard | 463mW (425mW ~ 500mW) | 350mA | 25°C | 2.1V | - | 1A | - | 130° | - | 19.89mm Dia | 2.04mm | - | Domed |
|

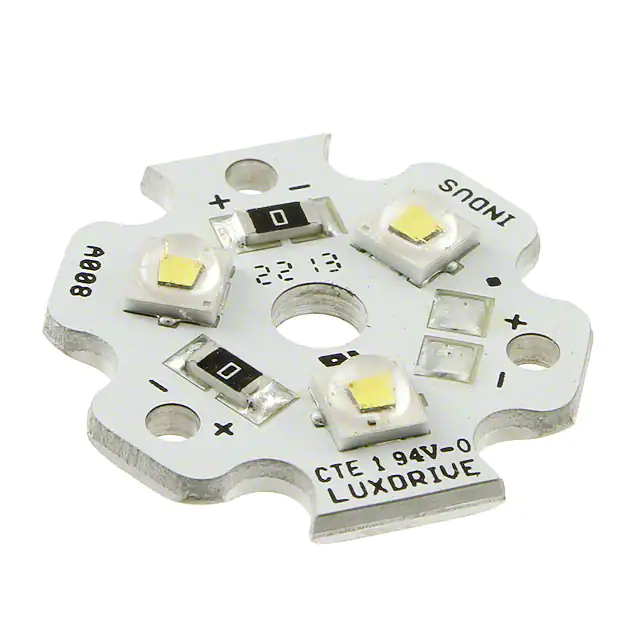

A008-E2750-Q4LED MOD INDUS STAR STARBOARD |
26 |
|
برگه مشخصات |
Indus Star™ | - | Active | LED Module | - | - | - | Starboard | - | - | - | - | - | - | - | - | - | - | - | - | Domed |
|
|
CXA2530-0000-000N00T230HLED COB XLAMP WARM WHT SQU 3000K |
72 |
|
برگه مشخصات |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 37V | 112 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CLU02Q-1204E1-302M2X2LED COB CLU02Q WARM WHT SQ 3000K |
55 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2060lm (Typ) | 360mA | 85°C | 33.8V | 157 lm/W | 920mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1204E1-302H5X3LED COB CLU02Q WARM WHT SQ 3000K |
54 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1781lm (Typ) | 360mA | 85°C | 33.8V | 136 lm/W | 920mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
BXEB-L0340U-40E0750-C-C3LED MOD EB SER WH LNR STRP 4000K |
54 |
|
برگه مشخصات |
EB Series™ Slim Gen 3 | Tray | Active | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1530lm (Typ) | 700mA | 25°C | 10.9V | 200 lm/W | 1.7A | 80 | 120° | With Connector | 340.00mm L x 12.70mm W | 4.30mm | - | Flat |
|

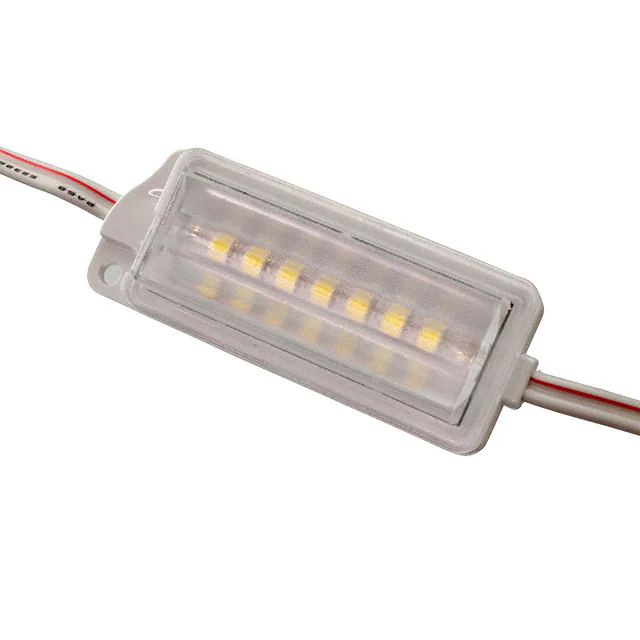

ZM-6223-CWLED MOD COOL WHT RECT 6500K |
60 |
|
برگه مشخصات |
- | Strip | Active | LED Module | White, Cool | 6500K | - | Rectangle | 212lm | - | - | 24V | - | - | - | 18° x 70° | - | 61.70mm L x 22.86mm W | 12.32mm | - | Flat |
|
|
CLU02Q-1204E1-272H5X3LED COB CLU02Q WARM WHT SQ 2700K |
41 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1672lm (Typ) | 360mA | 85°C | 33.8V | 127 lm/W | 920mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1204E1-272M2X2LED COB CLU02Q WARM WHT SQ 2700K |
37 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1952lm (Typ) | 360mA | 85°C | 33.8V | 149 lm/W | 920mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1204E1-402M2X2LED COB CLU02Q NEUT WHT SQ 4000K |
26 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2085lm (Typ) | 360mA | 85°C | 33.8V | 159 lm/W | 920mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU703-1202E1-243H5X3LED COB CLU703 WARM WHT SQ 2400K |
39 |
|
برگه مشخصات |
CLU703 | Tray | Active | Chip On Board (COB) | White, Warm | 2400K 3-Step MacAdam Ellipse | - | Square | 1330lm (Typ) | 350mA | 85°C | 36.5V | 97 lm/W | 600mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 6.00mm Dia | Flat |
|
CXA1830-0000-000N00T230GLED COB XLAMP WARM WHT SQ 3000K |
81 |
|
برگه مشخصات |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3320lm (3200lm ~ 3440lm) | 800mA | 85°C | 36V | 115 lm/W | 1.4A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CXA2530-0000-000N00U20E5LED COB XLAMP NEUT WHT SQ 4000K |
39 |
|
برگه مشخصات |
XLamp® CXA2530 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.6A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CXA2520-0000-000N0HR250GLED COB XLAMP COOL WHT SQU 5000K |
100 |
|
برگه مشخصات |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
CLU028-1202C4-353M2K1LED COB CLU028 WARM WHT SQ 3500K |
29 |
|
برگه مشخصات |
CLU028 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 937lm (Typ) | 180mA | 85°C | 34.6V | 150 lm/W | 460mA | 80 | - | - | 13.50mm L x 13.50mm W | 1.40mm | 9.80mm Dia | Flat |
|
XQEAWT-00-0000-00000HDE5-SB01LED MOD XLAMP WHT STARBRD 4000K |
32 |
|
برگه مشخصات |
XLamp® XQ-E | Tray | Active | LED Module | White, Neutral | 4000K | - | Starboard | - | 350mA | 85°C | 2.9V | 116 lm/W | 1A | 75 | 110° | - | 19.89mm Dia | - | - | Domed |
|
BXRC-30G10H0-C-83LED COB VERO 10C STARBRD 3000K |
65 |
|
برگه مشخصات |
Gen 8 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1395lm (Typ) | 300mA | 25°C | 30.7V | 151 lm/W | 1A | 90 | 120° | - | 20.00mm Dia | 1.80mm | 10.00mm Dia | Flat |
|
BXRC-57E1001-C-84-SELED COB VERO SE 10C WH RND 5700K |
75 |
|
برگه مشخصات |
Gen 8 Vero® SE 10 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Round | 1595lm (Typ) | 300mA | 25°C | 30.7V | 173 lm/W | 1A | 80 | 120° | - | 30.80mm Dia | 3.60mm | 10.00mm Dia | Flat |
