COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B8R08128CWWLED MOD LT-V282B LNR STRP 5000K |
52 |
|
برگه مشخصات |
LT-V282B | Tray | Obsolete | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1026lm (Typ) | 300mA | 50°C | 25.2V | 136 lm/W | 360mA | 80 | 120° | With Connector | 275.00mm L x 18.00mm W | 5.50mm | - | Flat |
|
CLU7S3-0403C4-353H7X5LED COB CLU7S3 WARM WHT SQ 3500K |
52 |
|
برگه مشخصات |
CLU7S3 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 642lm (Typ) | 525mA | 85°C | 12.2V | 94 lm/W | 750mA | 97 (Typ) | - | With Connector | 9.50mm L x 9.50mm W | 1.40mm | 3.50mm Dia | Flat |
|
|
CLU02Q-1203E1-402M2X2LED COB CLU02Q NEUT WHT SQ 4000K |
52 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1601lm (Typ) | 270mA | 85°C | 33.8V | 162 lm/W | 690mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU7R3-0403E1-403H5X3LED COB CLU7R3 NEUT WHT SQ 4000K |
49 |
|
برگه مشخصات |
CLU7R3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 809lm (Typ) | 525mA | 85°C | 12.2V | 119 lm/W | 900mA | 90 | - | With Connector | 11.50mm L x 11.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CLU02Q-1202E1-402H5X3LED COB CLU02Q NEUT WHT SQ 4000K |
54 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 981lm (Typ) | 180mA | 85°C | 33.8V | 149 lm/W | 460mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1201E1-402M2X2LED COB CLU02Q NEUT WHT SQ 4000K |
49 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 558lm (Typ) | 90mA | 85°C | 33.8V | 169 lm/W | 230mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1201E1-503L7X4LED COB CLU02Q COOL WHT SQ 5000K |
44 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 591lm (Typ) | 90mA | 85°C | 33.8V | 179 lm/W | 230mA | 70 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU7R3-0403E1-403H7X5LED COB CLU7R3 NEUT WHT SQ 4000K |
52 |
|
برگه مشخصات |
CLU7R3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 741lm (Typ) | 525mA | 85°C | 12.2V | 109 lm/W | 900mA | 97 (Typ) | - | With Connector | 11.50mm L x 11.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CLU02Q-1201E1-352M2X2LED COB CLU02Q WARM WHT SQ 3500K |
54 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 545lm (Typ) | 90mA | 85°C | 33.8V | 165 lm/W | 230mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1201E1-352H5X3LED COB CLU02Q WARM WHT SQ 3500K |
54 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 479lm (Typ) | 90mA | 85°C | 33.8V | 145 lm/W | 230mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1201E1-402H5X3LED COB CLU02Q NEUT WHT SQ 4000K |
54 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 495lm (Typ) | 90mA | 85°C | 33.8V | 150 lm/W | 230mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1201E1-302H5X3LED COB CLU02Q WARM WHT SQ 3000K |
50 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 470lm | 90mA | 85°C | 33.8V | 142 lm/W | 230mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1201E1-302M2X2LED COB CLU02Q WARM WHT SQ 3000K |
49 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 533lm (Typ) | 90mA | 85°C | 33.8V | 161 lm/W | 230mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
SPHWHAHDNE25YZW3DBLED COB D GEN2 WARM WHT SQ 2700K |
90 |
|
برگه مشخصات |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2305lm (Typ) | 450mA | 85°C | 34V | 151 lm/W | 900mA | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|

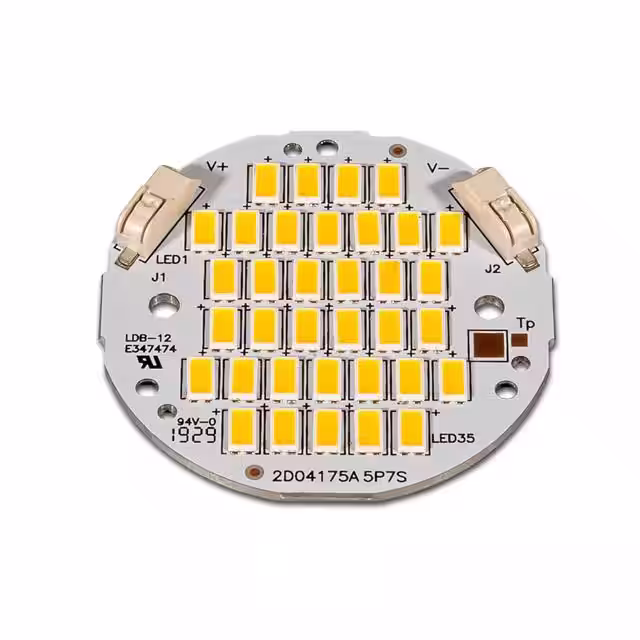

QLUXR5010W35LED930LED ENG QLUX WHT ROUND 3000K |
86 |
|
برگه مشخصات |
QLUX | Bag | Active | LED Engine | White, Neutral | 3000K 3-Step MacAdam Ellipse | - | Round | 1360lm | 700mA | 25°C | 21V | 132 lm/W | 700mA | 90 | 120° | Dimming, With Connector | 50.00mm Dia | 6.00mm | - | Flat |
|
|
CLU02Q-1201E1-302H7X5LED COB CLU02Q WARM WHT SQ 3000K |
52 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 409lm (Typ) | 90mA | 85°C | 33.8V | 124 lm/W | 230mA | 97 (Typ) | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1201E1-402H7X5LED COB CLU02Q NEUT WHT SQ 4000K |
54 |
|
برگه مشخصات |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 398lm (Typ) | 90mA | 85°C | 33.8V | 131 lm/W | 230mA | 97 (Typ) | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
SPHWHAHDNG25YZT3DBLED COB D GEN2 NEUT WHT SQ 4000K |
100 |
|
برگه مشخصات |
COB D Gen2 Plus | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3950lm (Typ) | 720mA | 85°C | 34V | 161 lm/W | 1.44A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
CLU7A3-1201E1-403H5X3LED COB CLU7A3 NEUT WHT SQ 4000K |
54 |
|
برگه مشخصات |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 815lm (Typ) | 175mA | 85°C | 36.5V | 119 lm/W | 300mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CLU7A3-1201E1-303H5X3LED COB CLU7A3 WM WHT SQ 3000K |
47 |
|
برگه مشخصات |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 762lm (Typ) | 175mA | 85°C | 36.5V | 111 lm/W | 300mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
