COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRA-30E2000-B-00LED COB ES WARM WHT RECT 3000K |
0 |
|
برگه مشخصات |
ES | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Rectangle | 2400lm (Typ) | 700mA | 25°C | 37V | 93 lm/W | 750mA | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - | Domed |
|
|
BXRA-35E2000-B-00LED COB ES WARM WHT RECT 3500K |
0 |
|
برگه مشخصات |
ES | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K | - | Rectangle | 2550lm (Typ) | 700mA | 25°C | 37V | 98 lm/W | 1A | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - | Domed |
|
|
BXRA-27G2000-B-00LED COB ES WARM WHT RECT 2700K |
0 |
|
برگه مشخصات |
ES | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Rectangle | 1975lm (Typ) | 700mA | 25°C | 37V | 76 lm/W | 1A | 90 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - | Domed |
|

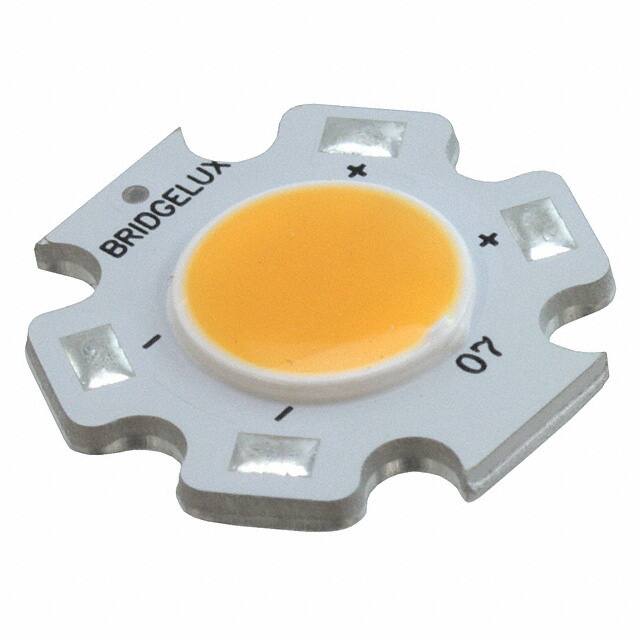

BXRA-27G0740-A-00LED COB ES WH STARBRD 2700K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Starboard | 720lm (Typ) | 350mA | 25°C | 27.3V | 75 lm/W | 500mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
|
BXRA-30G0740-A-00LED COB ES WH STARBRD 3000K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 780lm (Typ) | 350mA | 25°C | 27.3V | 82 lm/W | 350mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
|

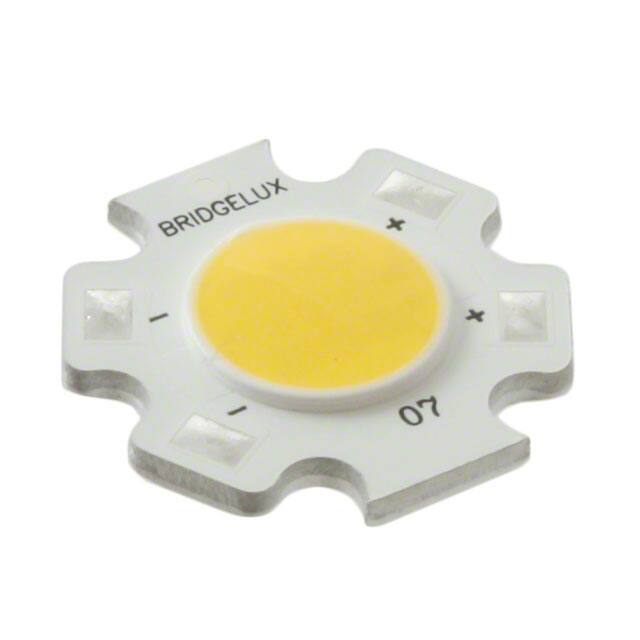

BXRA-40E0810-A-00LED COB ES STAR WH STARBRD 4000K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 7-Step MacAdam Ellipse | - | Starboard | 1030lm (Typ) | 350mA | 25°C | 27.3V | 108 lm/W | 350mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
|
BXRA-27E0540-A-00LED COB ES WH STARBRD 2700K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Starboard | 560lm (Typ) | 350mA | 25°C | 18.8V | 85 lm/W | 500mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | 10.90mm Dia | Domed |
|
BXRA-30E0540-A-00LED COB ES WH STARBRD 3000K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 630lm (Typ) | 350mA | 25°C | 18.2V | 99 lm/W | 700mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
|

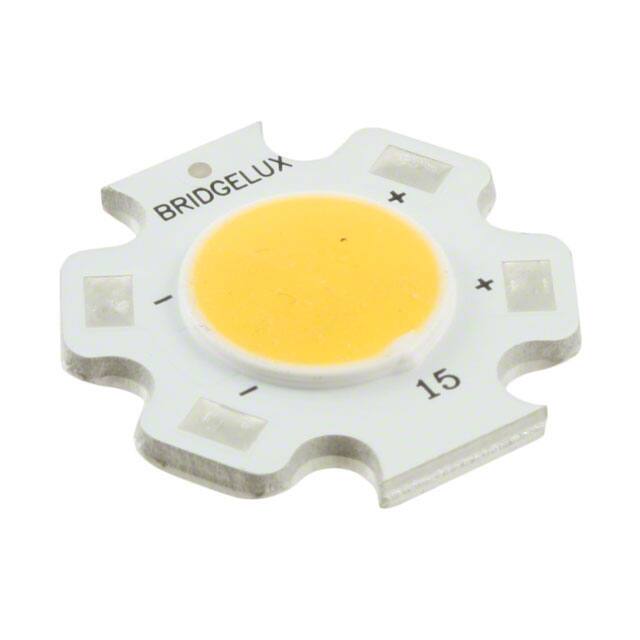

BXRA-27G0540-A-00LED COB ES WH STARBRD 2700K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Starboard | 480lm (Typ) | 350mA | 25°C | 18.2V | 75 lm/W | 500mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
|
BXRA-30G0540-A-00LED COB ES WH STARBRD 3000K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 530lm (Typ) | 350mA | 25°C | 18.2V | 83 lm/W | 350mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
|
BXRA-27E0740-A-00LED COB ES WH STARBRD 2700K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2700K | - | Starboard | 810lm (Typ) | 350mA | 25°C | 28.1V | 82 lm/W | 500mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | 10.90mm Dia | Domed |
|
BXRA-30E0740-A-00LED COB ES WH STARBRD 3000K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Starboard | 920lm (Typ) | 350mA | 25°C | 27.3V | 96 lm/W | 700mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
|
BXRA-56C0700-A-00LED COB ES STAR WH STARBRD 5600K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5600K 7-Step MacAdam Ellipse | - | Starboard | 780lm (Typ) | 350mA | 25°C | 18.8V | 118 lm/W | 500mA | 70 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
|
|
BXRA-56C1000-A-00LED COB ES STAR WH STARBRD 5600K |
0 |
|
برگه مشخصات |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5600K 7-Step MacAdam Ellipse | - | Starboard | 1120lm (Typ) | 350mA | 25°C | 28.1V | 114 lm/W | 500mA | 70 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | 10.00mm W x 11.00mm L | Domed |
|
7040-PDRED-CLED MOD ENDOR STAR RED STARBRD |
0 |
|
- |
Endor Star™ | - | Obsolete | LED Module | Red | - | - | Starboard | - | - | 25°C | - | - | - | - | 120° | - | 19.90mm Dia | 3.58mm | - | Domed |
|
7007-PDRED-CLED MOD ENDOR STAR RED STARBRD |
0 |
|
- |
Endor Star™ | - | Obsolete | LED Module | Red | - | - | Starboard | - | - | 25°C | - | - | - | - | 120° | - | 19.90mm Dia | 3.58mm | - | Domed |
|
7040-PR000-DLED MOD ENDOR STAR RED STARBRD |
0 |
|
- |
Endor Star™ | - | Obsolete | LED Module | Red | - | - | Starboard | 20lm (Typ) | 350mA | 25°C | - | - | 700mA | - | 120° | - | 19.90mm Dia | 3.58mm | - | Domed |
|
7007-PR000-DLED MOD ENDOR STAR RED STARBRD |
0 |
|
- |
Endor Star™ | - | Obsolete | LED Module | Red | - | - | Starboard | 20lm (Typ) | 350mA | 25°C | - | - | 700mA | - | 120° | - | 19.90mm Dia | 3.58mm | - | Domed |
|
TR-SS1-36CLED ENG LED CORE WHT SQU 4500K |
0 |
|
- |
LED Core™ | Box | Obsolete | LED Engine | White, Neutral | 4500K | - | Square, Plug and Play | 2925lm (Typ) | - | - | - | - | - | 75 (Typ) | - | Dimming - Analog | 10.00mm L x 10.00mm W | 2.51mm | - | Flat |
|
TR-SS1-64GLED ENG LED CORE WHT SQU 4500K |
0 |
|
- |
LED Core™ | Box | Obsolete | LED Engine | White, Neutral | 4500K | - | Square, Plug and Play | 7202lm (Typ) | - | - | - | - | - | 75 (Typ) | - | Dimming - Analog | 10.00mm L x 10.00mm W | 2.26mm | - | Flat |
