در دسترس ۲۴/۷ در
+86 13632816717
COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-30H1000-B-03LED COB DECOR WHT STARBRD 3000K |
0 |
|
برگه مشخصات |
Décor Series™ Ultra Vero® 10 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 755lm (Typ) | 350mA | 25°C | 26.7V | 81 lm/W | 700mA | 97 | 120° | - | 20.00mm L x 20.00mm W | 1.90mm | 9.90mm Dia | Flat |
|
BXRC-50C10K0-L-04LED COB VERO 29 ARRAY RND 5000K |
0 |
|
- |
Vero® 29 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 11340lm (Typ) | 2.1A | 25°C | 38.6V | 140 lm/W | 4.2A | 70 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-35E1000-B-03LED COB VERO WHT STARBRD 3500K |
0 |
|
برگه مشخصات |
Vero® 10 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 1160lm (Typ) | 350mA | 25°C | 26.7V | 124 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-40E1000-B-03LED COB VERO WHT STARBRD 4000K |
0 |
|
برگه مشخصات |
Vero® 10 Array | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1180lm (Typ) | 350mA | 25°C | 26.7V | 126 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-50C1000-B-04LED COB VERO WHT STARBRD 5000K |
0 |
|
برگه مشخصات |
Vero® 10 Array | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Starboard | 1305lm (Typ) | 350mA | 25°C | 26.7V | 140 lm/W | 700mA | 70 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
BXRC-27E2000-C-03LED COB VERO 13 ARRAY RND 2700K |
0 |
|
برگه مشخصات |
Vero® 13 Array | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 1880lm (Typ) | 500mA | 25°C | 32.5V | 116 lm/W | 1.05A | 80 | 120° | With Connector | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|

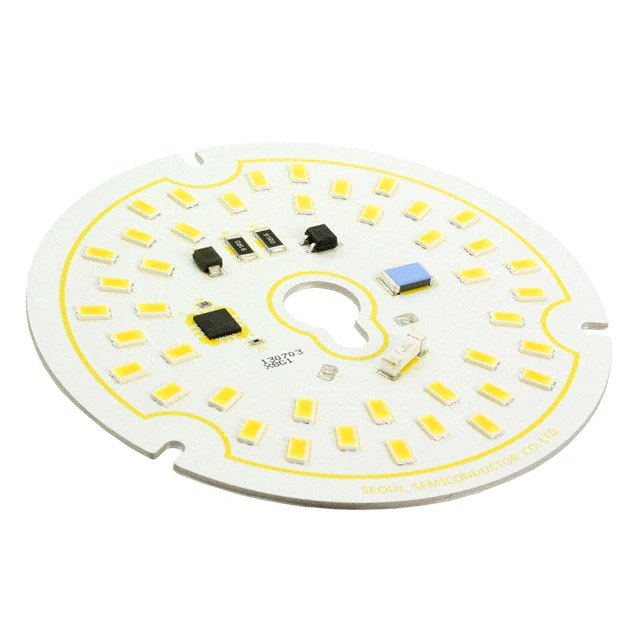

SMJD2V16W2P3-CALED ENG ACRICH2 WHT ROUND 5000K |
0 |
|
برگه مشخصات |
Acrich2 | Tray | Obsolete | LED Engine | White, Cool | 5000K | - | Round | - | - | 25°C | 120VAC | - | - | 80 | 120° | - | 100.00mm Dia | 4.72mm | - | Flat |
|
SMJD2D16W2P3LED ENG ACRICH2 WHT ROUND 120V |
0 |
|
- |
Acrich2 | Tray | Obsolete | LED Engine | - | - | - | Round | - | - | - | - | - | - | 80 | 120° | - | 294.00mm L x 36.00mm W | - | - | Flat |
|
|
SMJD2D16W2P3-CALED ENG ACRICH2 WHT ROUND 5000K |
0 |
|
- |
Acrich2 | Tray | Obsolete | LED Engine | White, Cool | 5000K | - | Round | - | - | 25°C | 120VAC | - | - | 80 | 120° | - | 100.00mm Dia | 4.72mm | - | Flat |
|
|
SMJD2D16W2P3-HALED ENG ACRICH2 WM WH RND 2700K |
0 |
|
- |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 2700K | - | Round | - | - | 25°C | 120VAC | - | - | 80 | 120° | - | 100.00mm Dia | 4.72mm | - | Flat |
|
|
SMJD2V16W2P3-EALED ENG ACRICH2 WHT ROUND 4000K |
0 |
|
برگه مشخصات |
Acrich2 | Tray | Obsolete | LED Engine | White | 4000K | - | Round | 1590lm (Typ) | - | 25°C | - | 87 lm/W | - | 80 | 120° | - | 100.00mm Dia | 4.72mm | - | Flat |
|
|
SMJD2D16W2P3-GALED ENG ACRICH2 WM WH RND 3000K |
0 |
|
- |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 3000K | - | Round | - | - | 25°C | 120VAC | - | - | 80 | 120° | - | 100.00mm Dia | 4.72mm | - | Flat |
|
|
SMJD2V16W2P3-GALED ENG ACRICH2 WM WH RND 3000K |
0 |
|
برگه مشخصات |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 3000K | - | Round | 1300lm (Typ) | - | 25°C | - | 67 lm/W | - | 80 | 120° | - | 100.00mm Dia | 4.72mm | - | Flat |
|
|
SMJD-2V16W2P3-HALED ENG ACRICH2 WM WH RND 2700K |
0 |
|
برگه مشخصات |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 2700K | - | Round | 1300lm (Typ) | - | 25°C | - | 67 lm/W | - | 80 | 120° | - | 100.00mm Dia | 4.72mm | - | Flat |
|
LXK8-PW27-0016ALED MOD LUXEON K WH STARBRD |
0 |
|
برگه مشخصات |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1530lm (1480lm ~ 1770lm) | 350mA | 85°C | 42V | 104 lm/W | 1.05A | 80 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - | Domed |
|
|
LXK8-PW30-0012ALED MOD LUXEON K STARBRD 3000K |
0 |
|
برگه مشخصات |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1200lm (1140lm ~ 1360lm) | 350mA | 85°C | 31.5V | 109 lm/W | 1.05A | 80 | 100° | - | 24.35mm L x 24.45mm W | 3.42mm | - | Domed |
|
|
LXK8-PW30-0024ALED MOD LUXEON K STARBRD 3000K |
0 |
|
برگه مشخصات |
LUXEON K | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 2445lm (2280lm ~ 2730lm) | 350mA | 85°C | 63V | 111 lm/W | 1.05A | 80 | 100° | - | 30.00mm L x 30.00mm W | 3.42mm | - | Domed |
|

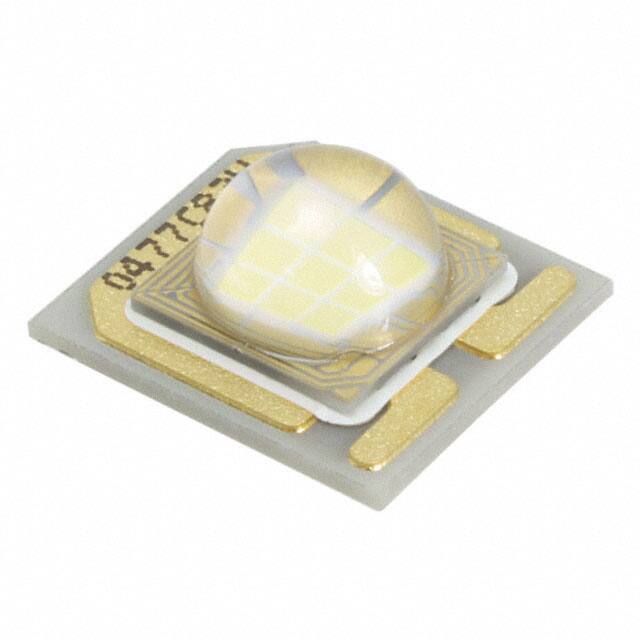

LXS8-PW27LED MOD LUXEON S1000 WH SQ |
0 |
|
- |
LUXEON S1000 | Tray | Obsolete | LED Module | White, Warm | 2700K | - | Square | 1250lm (Typ) | 700mA | 85°C | 25.6V | 70 lm/W | 900mA | 80 | 105° | - | 13.87mm L x 12.87mm W | 6.09mm | 8.06mm Dia | Domed |
|
|
LXS8-PW30LED MOD LUXEON S1000 WH SQ |
0 |
|
- |
LUXEON S1000 | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Square | 1390lm (Typ) | 700mA | 85°C | 25.6V | 78 lm/W | 900mA | 80 | 105° | - | 13.87mm L x 12.87mm W | 6.09mm | 8.06mm Dia | Domed |
|
|
LXS8-PW35LED MOD LUXEON S1000 WH SQ |
0 |
|
- |
LUXEON S1000 | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Square | 1420lm (Typ) | 700mA | 85°C | 25.6V | 79 lm/W | 900mA | 80 | 105° | - | 13.87mm L x 12.87mm W | 6.09mm | 8.06mm Dia | Domed |
