COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L2M0-4070004MC2200LED MOD LUXEON NEUT WH SQ 4000K |
10 |
|
برگه مشخصات |
LUXEON XR-M | Tray | Obsolete | LED Module | White, Neutral | 4000K | - | Square | 4211lm (Typ) | 700mA | 85°C | 43.8V | 137 lm/W | 1.05A | 70 | - | - | 73.00mm L x 73.00mm W | 6.21mm | - | Domed |
|
P117-1-62LED MOD WHITE ROUND 4000K |
90 |
|
- |
- | Bulk | Active | LED Module | White, Warm / White, Neutral | 3000K, 4000K | - | Round | - | - | - | 120V | - | - | - | - | Dimming | 121.92mm Dia | 787.40mm | 121.92mm Dia | Flat |
|
BXRC-35E10K0-C-83LED COB VERO 29C WM WH RND 3500K |
25 |
|
برگه مشخصات |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 16420lm (Typ) | 1.3A | 25°C | 66.7V | 189 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
BXRC-27G10K0-C-83-SELED COB VERO SE 29C WH RND 2700K |
50 |
|
برگه مشخصات |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 12426lm (Typ) | 1.3A | 25°C | 66.7V | 143 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|

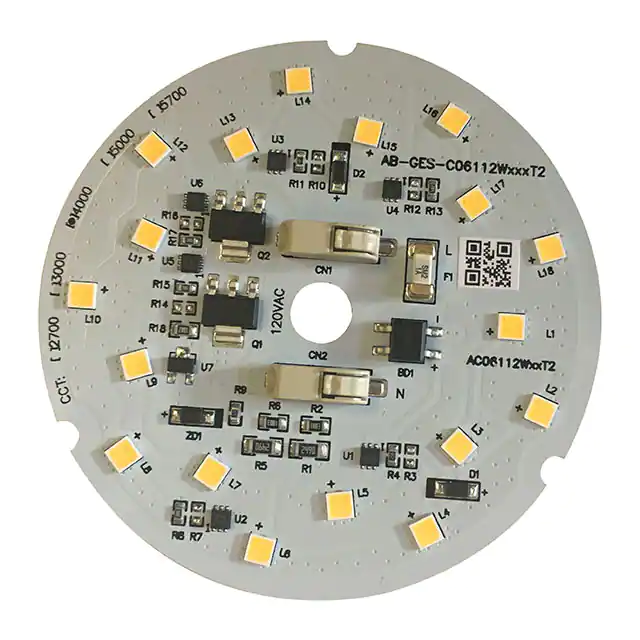

AB-GES-C06112W303T2LED ENG AB-GES WH ROUND 3000K |
40 |
|
برگه مشخصات |
AB-GES | Bag | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1100lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 65.00mm Dia | - | - | Flat |
|
L2C2-35801211E1900LED COB LUXEON WARM WHT SQ 3500K |
42 |
|
برگه مشخصات |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5616lm (Typ) | 1.2A | 85°C | 35V | 134 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 18.50mm Dia | Flat |
|
|
BXRC-57C10K1-C-83LED COB VERO 29C WHT ROUND 5700K |
38 |
|
برگه مشخصات |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 16892lm (Typ) | 1.3A | 25°C | 66.7V | 195 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-27H10K0-C-83LED COB VERO 29C WM WH RND 2700K |
35 |
|
برگه مشخصات |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 11041lm (Typ) | 1.3A | 25°C | 66.7V | 127 lm/W | 4.75A | 97 (Typ) | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-40C10K1-C-83LED COB VERO 29C WHT ROUND 4000K |
26 |
|
برگه مشخصات |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 17270lm (Typ) | 1.3A | 25°C | 66.7V | 199 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
P117-A-62LED MOD WM WHT LNR STRP 2700K |
18 |
|
برگه مشخصات |
- | Bulk | Active | LED Module | White, Warm | 2700K | - | Linear Light Strip, Plug and Play | - | - | - | 120V | - | - | - | - | - | 121.92mm Dia | 787.40mm | - | - |
|
CLU05Q-1825E1-303L7X4LED COB CLU05Q WM WHT SQ 3000K |
19 |
|
برگه مشخصات |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 20784lm (Typ) | 2.25A | 85°C | 50.7V | 170 lm/W | 5.75A | 70 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-1825E1-403L7X4LED COB CLU05Q NEUT WHT SQ 4000K |
19 |
|
برگه مشخصات |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 20906lm (Typ) | 2.25A | 85°C | 50.7V | 171 lm/W | 5.75A | 70 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-1825E1-352H5X3LED COB CLU05Q WARM WHT SQ 3500K |
18 |
|
برگه مشخصات |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 17277lm (Typ) | 2.25A | 85°C | 50.7V | 141 lm/W | 5.75A | 90 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-1825E1-302H5X3LED COB CLU05Q WARM WHT SQ 3000K |
20 |
|
برگه مشخصات |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 16581lm (Typ) | 2.25A | 85°C | 50.7V | 136 lm/W | 5.75A | 90 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-1825E1-272H5X3LED COB CLU05Q WARM WHT SQ 2700K |
15 |
|
برگه مشخصات |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 15481lm (Typ) | 2.25A | 85°C | 50.7V | 127 lm/W | 5.75A | 90 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU05Q-1825E1-402M2X2LED COB CLU05Q NEUT WHT SQ 4000K |
15 |
|
برگه مشخصات |
CLU05Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 19721lm (Typ) | 2.25A | 85°C | 50.7V | 161 lm/W | 5.75A | 80 | - | With Connector | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|

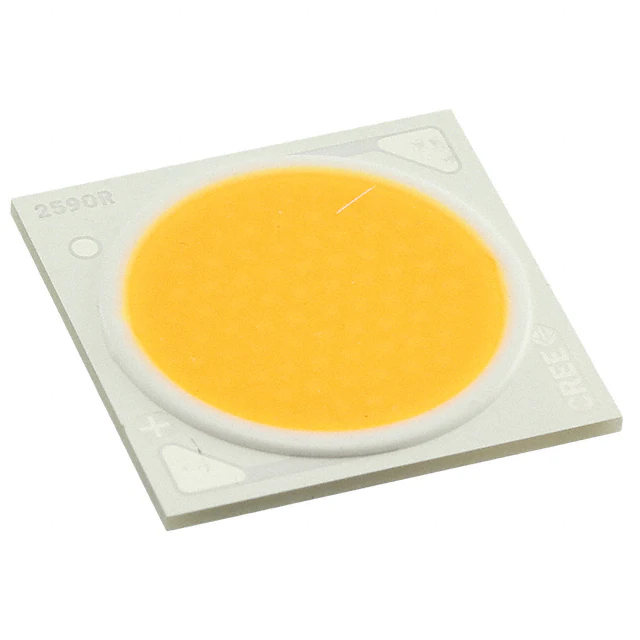

CXA2590-0000-000R0HAB0E5LED COB XLAMP NEUT WHT SQ 4000K |
16 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 69V | 106 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
AB-GES-L56124W404T2LED ENG AB-GES WH LNR STRP 4000K |
94 |
|
برگه مشخصات |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2700lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 560.00mm L x 24.00mm W | - | - | Flat |
|
|
L2C2-22901216E2300LED COB LUXEON WARM WHT SQ 2200K |
67 |
|
برگه مشخصات |
LUXEON CoB Core Range | Tube | Obsolete | Chip On Board (COB) | White, Warm | 2200K 3-Step MacAdam Ellipse | - | Square | 5210lm (Typ) | 1.6A | 85°C | 35V | 93 lm/W | 3.2A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|

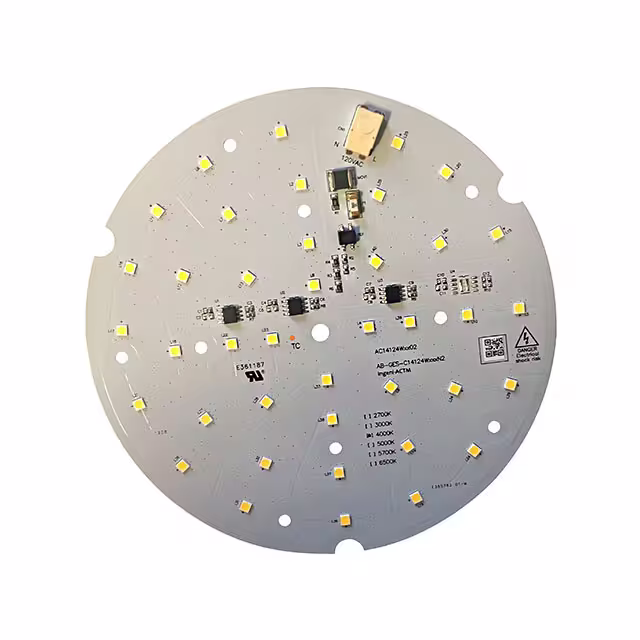

AB-GES-C14124W301N2LED ENG AB-GES WH ROUND 3000K |
61 |
|
برگه مشخصات |
AB-GES | Bag | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 2400lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 140.00mm Dia | - | - | Flat |
