COB های LED، موتورها، ماژول ها، نوارها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNB27YZV3D2LED COB D GEN2 WM WHT SQ 3000K |
0 |
|
برگه مشخصات |
COB D Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 824lm (Typ) | 180mA | 85°C | 34.6V | 132 lm/W | 460mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
CXM-6-35-90-18-AC30-F4-3GENERATION 3 STANDARD COB PRODUC |
0 |
|
برگه مشخصات |
CXM-6 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 601lm (Typ) | 300mA | 85°C | 17.3V | 116 lm/W | 650mA | 70 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
SPHWHAHDNB25YZT2D2LED COB D GEN2 NEUT WHT SQ 4000K |
0 |
|
برگه مشخصات |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1024lm (Typ) | 180mA | 85°C | 34.6V | 164 lm/W | 460mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB25YZU2D2LED COB D GEN2 WARM WHT SQ 3500K |
0 |
|
برگه مشخصات |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1001lm (Typ) | 180mA | 85°C | 34.6V | 161 lm/W | 460mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB25YZV2D2LED COB D GEN2 WARM WHT SQ 3000K |
0 |
|
برگه مشخصات |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 971lm (Typ) | 180mA | 85°C | 34.6V | 156 lm/W | 460mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB25YZW2D2LED COB D GEN2 WARM WHT SQ 2700K |
0 |
|
برگه مشخصات |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 924lm (Typ) | 180mA | 85°C | 34.6V | 148 lm/W | 460mA | 80 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB27YZT2D2LED COB D GEN2 NEUT WHT SQ 4000K |
0 |
|
برگه مشخصات |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 870lm (Typ) | 180mA | 85°C | 34.6V | 140 lm/W | 460mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB27YZU2D2LED COB D GEN2 WARM WHT SQ 3500K |
0 |
|
برگه مشخصات |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 853lm (Typ) | 180mA | 85°C | 34.6V | 137 lm/W | 460mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB27YZV2D2LED COB D GEN2 WARM WHT SQ 3000K |
0 |
|
برگه مشخصات |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 824lm (Typ) | 180mA | 85°C | 34.6V | 132 lm/W | 460mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|
|
SPHWHAHDNB27YZW2D2LED COB D GEN2 WARM WHT SQ 2700K |
0 |
|
برگه مشخصات |
COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 786lm (Typ) | 180mA | 85°C | 34.6V | 126 lm/W | 460mA | 90 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia | Flat |
|

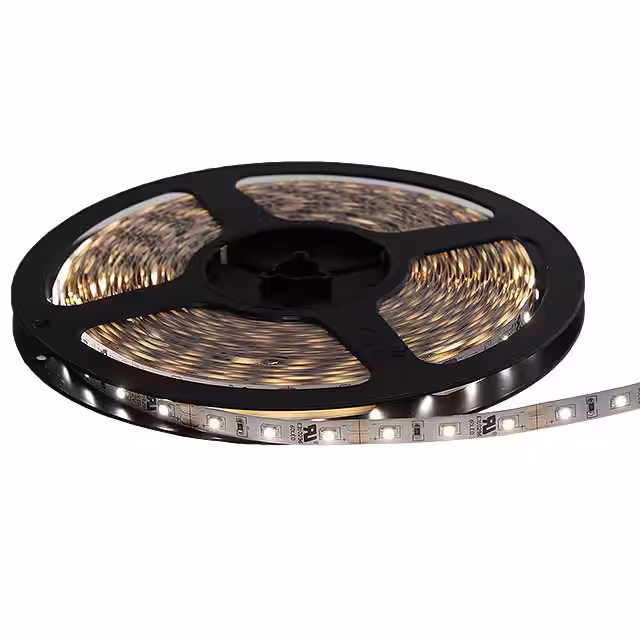

24V-MB100-PW-12MLED ENG WHT LNR STRIP 4100K |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | LED Engine | White, Neutral | 4100K | - | Linear Light Strip, Flexible | - | - | - | 24V | - | - | - | - | - | 12000.0mm L x 10.00mm W (50.80mm L per Segment) | 6.35mm | - | Flat |
|
|
CXM-4-40-70-18-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-4-22-90-9-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
0 |
|
- |
CXM-4 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 2200K 2-Step MacAdam Ellipse | - | Square | 375lm (Typ) | 480mA | 85°C | 8.46V | 92 lm/W | 1.6A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|
|
CXM-4-65-70-18-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-4-22-90-36-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
0 |
|
برگه مشخصات |
CXM-4 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 2200K 2-Step MacAdam Ellipse | - | Square | 375lm (Typ) | 120mA | 85°C | 33.8V | 92 lm/W | 400mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|
|
CXM-4-24-90-18-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
0 |
|
برگه مشخصات |
CXM-4 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 2400K 2-Step MacAdam Ellipse | - | Square | 390lm (Typ) | 240mA | 85°C | 16.9V | 96 lm/W | 800mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|
|
CXM-4-57-80-9-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-4-30-90-36-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
0 |
|
برگه مشخصات |
CXM-4 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 440lm (Typ) | 120mA | 85°C | 33.8V | 108 lm/W | 400mA | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|
|
CXM-4-40-70-36-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-4-65-70-9-AC40-F5-2GENERATION 4 STANDARD COB PRODUC |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
