| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ | CCT (K) | طول موج | پیکربندی | شار نور @ جریان / دما | فعلی - تست | دما - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | CRI (شاخص رندر رنگ) | زاویه دید | ویژگی ها | اندازه / ابعاد | ارتفاع | سطح ساطع نور (LES) | نوع لنز |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA1510-0000-000N00H230GLED COB XLAMP WARM WHT SQ 3000K |
0 |
|
برگه مشخصات |
XLamp® CXA1510 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 250mA | 85°C | 36V | 104 lm/W | 450mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1510-0000-000N00H235GLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
برگه مشخصات |
XLamp® CXA1510 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 935lm (900lm ~ 970lm) | 250mA | 85°C | 36V | 104 lm/W | 450mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CHA0304-R160-000G0U0A35GLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
برگه مشخصات |
XLamp® CHA0304 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 408lm (Typ) | 175mA | 85°C | 21V | 111 lm/W | 300mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 3.30mm Dia | Flat |
|
|
CHA0304-R160-000G0U0A27GLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
برگه مشخصات |
XLamp® CHA0304 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 370lm | 175mA | 85°C | 21V | 101 lm/W | 300mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 3.30mm Dia | Flat |
|
|
CHA0304-R160-00PG0U0A27GXLAMP CHA LED WHITE PRO9 |
0 |
|
برگه مشخصات |
XLamp® CHA0304 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | - | 175mA | 85°C | 21V | - | 300mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 3.30mm Dia | Flat |
|
|
CHA0304-R160-00PG0U0A35GXLAMP CHA LED WHITE PRO9 |
0 |
|
برگه مشخصات |
XLamp® CHA0304 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K | - | Square | - | 175mA | 85°C | 21V | - | 300mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 3.30mm Dia | Flat |
|
|
CHA0304-R160-00PG0U0A40GXLAMP CHA LED WHITE PRO9 |
0 |
|
برگه مشخصات |
XLamp® CHA0304 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | - | 175mA | 85°C | 21V | - | 300mA | 90 | 114° | - | 13.50mm L x 13.50mm W | 1.50mm | 3.30mm Dia | Flat |
|

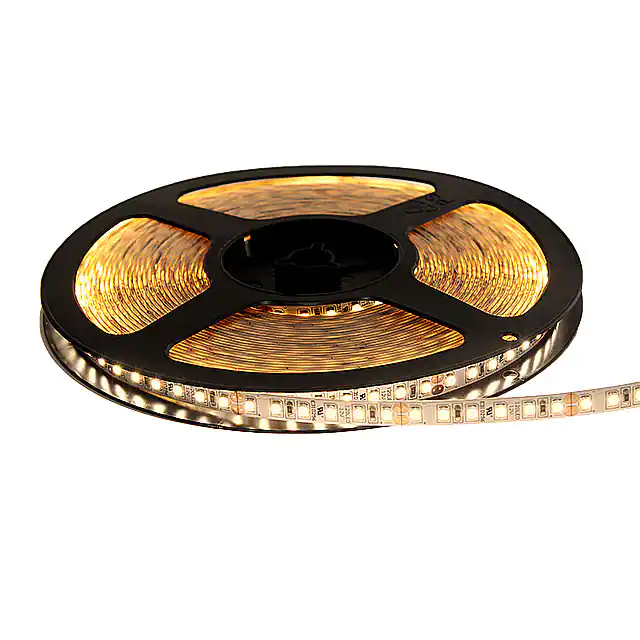

24V-MB100-WW-12MLED ENG WM WHT LNR STRP 2700K |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | LED Engine | White, Warm | 2700K | - | Linear Light Strip, Flexible | - | - | - | 24V | - | - | - | - | - | 12000.0mm L x 10.00mm W (50.80mm L per Segment) | 6.35mm | - | Flat |
|
24V-MB240-PW-12MLED ENG WHT LNR STRIP 4100K |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | LED Engine | White, Neutral | 4100K | - | Linear Light Strip, Flexible | - | - | - | 24V | - | - | - | - | - | 12000.0mm L x 8.00mm W (50.80mm L per Segment) | - | - | Flat |
|
|
24V-MB240-WW-12MLED ENG WM WHT LNR STRP 2700K |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | LED Engine | White, Warm | 2700K | - | Linear Light Strip, Flexible | - | - | - | 24V | - | - | - | - | - | 12000.0mm L x 8.00mm W (50.80mm L per Segment) | 6.35mm | - | Flat |
|
|
SPHWHAHDNF27YZUMDBLinear IC's |
0 |
|
برگه مشخصات |
COB R Gen2 | Bulk | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2484lm (Typ) | 540mA | 85°C | 34V | 133 lm/W | 1.08A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF27YZVMDBLinear IC's |
0 |
|
برگه مشخصات |
COB R Gen2 | Bulk | Last Time Buy | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2423lm (Typ) | 540mA | 85°C | 34V | 129 lm/W | 1.08A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNF27YZTMDBLinear IC's |
0 |
|
برگه مشخصات |
COB R Gen2 | Bulk | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2520lm (Typ) | 540mA | 85°C | 34V | 135 lm/W | 1.08A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
BXRE-40G10F0-B-82LED COB V10 F90 WHT SQ 4000K |
0 |
|
برگه مشخصات |
V10 F90 Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 1166lm (Typ) | - | 85°C | 33.4V | 175 lm/W | 200mA | 90 | 120° | Dimming | 13.50mm L x 13.50mm W | 1.65mm | 10.00mm Dia | Flat |
|
|
CHM-9-27-80-36-AA10-F3-3LED COB CHM9 GEN2 WHT SQU 2700K |
0 |
|
برگه مشخصات |
CHM-9 Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1468lm (Typ) | 360mA | 85°C | 35.5V | 115 lm/W | 720mA | 80 | 120° | - | 15.00mm L x 15.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-27-90-36-AA00-F2-3LED COB CHM9 WM WH SQUARE 2700K |
0 |
|
برگه مشخصات |
CHM-9 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1020lm (Typ) | 360mA | 85°C | 35V | 81 lm/W | 545mA | 90 | 120° | - | 15.00mm L x 15.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-27-90-36-AA10-F3-3LED COB CHM9 GEN2 WHT SQU 2700K |
0 |
|
برگه مشخصات |
CHM-9 Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1190lm (Typ) | 360mA | 85°C | 35.5V | 93 lm/W | 720mA | 90 | 120° | - | 15.00mm L x 15.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-30-80-18-AA00-F2-3LED COB CHM9 WARM WHT SQU 3000K |
0 |
|
برگه مشخصات |
CHM-9 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | - | 360mA | 85°C | 18V | - | 545mA | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-30-80-36-AA00-F2-3LED COB CHM9 WARM WHT SQU 3000K |
0 |
|
برگه مشخصات |
CHM-9 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1380lm (Typ) | 360mA | 85°C | 35V | 110 lm/W | 545mA | 90 | 120° | - | 15.00mm L x 15.00mm W | 1.37mm | 9.00mm Dia | Flat |
|
|
CHM-9-30-80-36-AA10-F3-3LED COB CHM9 GEN2 WHT SQ 3000K |
0 |
|
برگه مشخصات |
CHM-9 Gen2 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1550lm (Typ) | 360mA | 85°C | 35.5V | 121 lm/W | 720mA | 80 | 120° | - | 15.00mm L x 15.00mm W | 1.37mm | 9.00mm Dia | Flat |
