نورپردازی رنگ LED
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | رنگ | طول موج | فعلی - تست | ولتاژ - جلو (Vf) (نوع) | Lumens/Watt @ Current - تست | فعلی - حداکثر | شار نور @ جریان / دما | دما - تست | زاویه دید | نوع نصب | بسته دستگاه تامین کننده | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCG H9RN-MYNY-1LED OSTAR GREEN 550NM |
0 |
|
برگه مشخصات |
Ostar | - | Tape & Reel (TR) | Obsolete | Green | 550nm (500nm ~ 600nm) | 700mA | 3.3V | 130 lm/W | 1A | 300lm (210lm ~ 390lm) | 25°C | 120° | Surface Mount | - | 0.148" L x 0.148" W (3.75mm x 3.75mm) | - |
|
LT CP7P-KZLX-26-0-350-R18LED OSLON SSL80 GREEN 528NM 2SMD |
0 |
|
برگه مشخصات |
OSLON® SSL 80 | 1212 (3030 Metric) | Tape & Reel (TR) | Discontinued | Green | 528nm (513nm ~ 543nm) | 350mA | 3.2V | 102 lm/W | 1A | 114lm (97lm ~ 130lm) | 25°C | 80° | Surface Mount | 2-SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.093" (2.35mm) |
|
|
LD H9GP-3T2U-35-1-350-R18-ZLED OSLON BLUE 455NM SMD |
0 |
|
برگه مشخصات |
OSLON® Black | 1515 (3838 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (449nm ~ 461nm) | 350mA | 3.2V | - | 1A | 458mW (355mW ~ 560mW) | 25°C | 90° | Surface Mount | SMD | 0.152" L x 0.152" W (3.85mm x 3.85mm) | 0.095" (2.41mm) |
|
GR DASPA1.23-FSFU-46-1-100-R18LED DURIS P5 RED 625NM SMD |
0 |
|
برگه مشخصات |
DURIS® P 5 | 1009 (2622 Metric) | Tape & Reel (TR) | Discontinued | Red | 625nm (620nm ~ 630nm) | 100mA | 2.05V | 78 lm/W | 250mA | 16lm (14lm ~ 18lm) | 25°C | 120° | Surface Mount | SMD | 0.102" L x 0.087" W (2.60mm x 2.20mm) | 0.052" (1.31mm) |
|

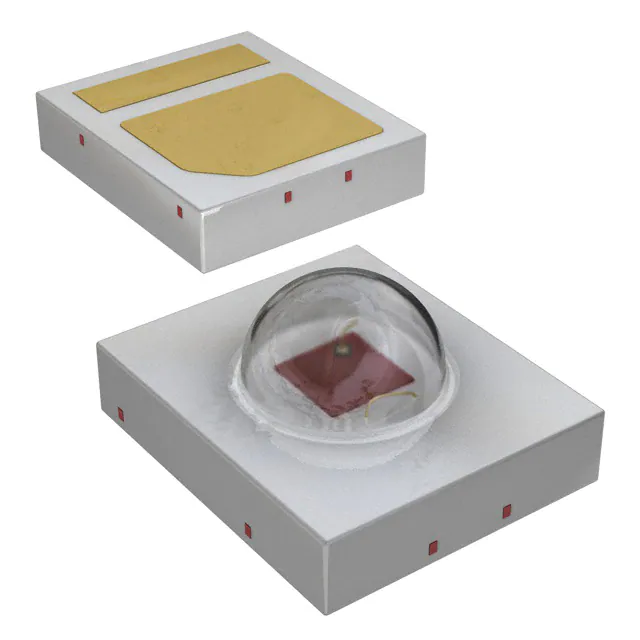

GT DASPA1.13-GSGU-26-1-100-R18LED DURIS P5 GREEN 528NM SMD |
0 |
|
برگه مشخصات |
DURIS® P 5 | 1009 (2622 Metric) | Tape & Reel (TR) | Obsolete | Green | 528nm (513nm ~ 543nm) | 100mA | 3.25V | 77 lm/W | 250mA | 25lm (22lm ~ 28lm) | 25°C | 120° | Surface Mount | SMD | 0.102" L x 0.087" W (2.60mm x 2.20mm) | 0.052" (1.31mm) |
|
|
LT CQBP-KYLX-36-1-350-R18-ZLED OSLON SIGNAL GREEN 531NM SMD |
0 |
|
برگه مشخصات |
OSLON® Signal | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Green | 531nm (519nm ~ 543nm) | 350mA | 3.3V | 92 lm/W | 1A | 106lm (82lm ~ 130lm) | 25°C | 130° | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.072" (1.82mm) |
|
LV CQBP-JZLX-BD-1-350-R18-ZLED OSLON SIGNAL GREEN 505NM SMD |
0 |
|
برگه مشخصات |
OSLON® Signal | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Green | 505nm (Typ) | 350mA | 3.25V | 84 lm/W | 1A | 96lm (61lm ~ 130lm) | 25°C | 130° | Surface Mount | SMD | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.072" (1.82mm) |
|

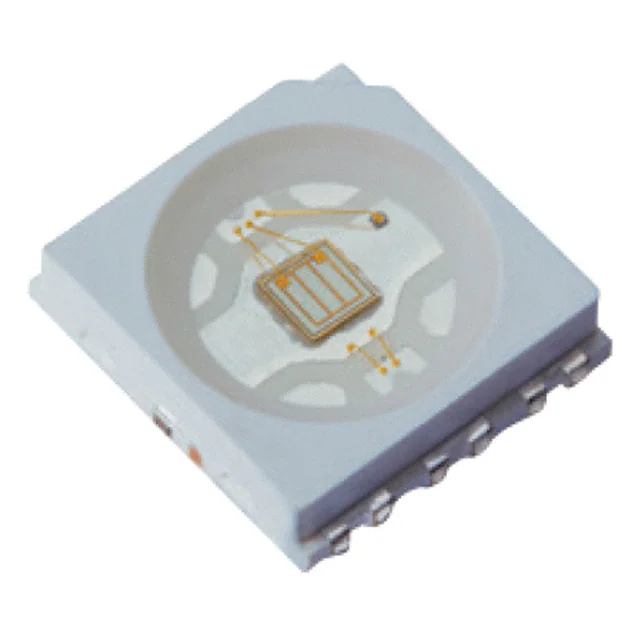

XZCB14X146SLED BLUE 460NM SMD |
0 |
|
برگه مشخصات |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Blue | 460nm (Typ) | 350mA | 3.3V | 17 lm/W | 600mA | 20lm (Typ) | 25°C | 120° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.057" (1.45mm) |
|
XZDG10X146SLED GREEN 530NM SMD |
0 |
|
برگه مشخصات |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Green | 530nm (Typ) | 350mA | 3.3V | 42 lm/W | 500mA | 48lm (Typ) | 25°C | 120° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.057" (1.45mm) |
|
XZMDH146SLED RED 625NM SMD |
0 |
|
برگه مشخصات |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Red | 625nm (Typ) | 350mA | 2.5V | 46 lm/W | 500mA | 40lm (Typ) | 25°C | 120° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.057" (1.45mm) |
|
XZMYH146SLED YELLOW 593NM SMD |
0 |
|
برگه مشخصات |
- | 2020 (5050 Metric) | Tape & Reel (TR) | Obsolete | Yellow | 593nm (Typ) | 350mA | 2.5V | 40 lm/W | 500mA | 35lm (Typ) | 25°C | 120° | Surface Mount | SMD | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.057" (1.45mm) |
|
|
LZ1-00A100-0A45LED LZ1 AMBER 593NM SMD |
0 |
|
برگه مشخصات |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Amber | 593nm (588nm ~ 598nm) | 1A | 2.6V | 43 lm/W | 1.2A | 111lm (75lm ~ 146lm) | 25°C | 76° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.114" (2.90mm) |
|
|
LZ1-00B200-0B34LED LZ1 BLUE 455NM SMD |
0 |
|
برگه مشخصات |
LZ1 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Blue | 455nm (450nm ~ 460nm) | 1A | 3.3V | 13 lm/W | 1.2A | 42lm (24lm ~ 60lm) | 25°C | 80° | Surface Mount | SMD | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.118" (3.00mm) |
|
|
LZ4-00DB00-0000LED LZ4 BLUE 460NM SMD |
0 |
|
برگه مشخصات |
LZ4 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | Blue | 460nm (457nm ~ 463nm) | 700mA | 3.25V | - | 1A | 2900mW (2000mW ~ 3800mW) | 25°C | 110° | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.173" (4.40mm) |
|
|
LZ4-00DB00-R000LED LZ4 BLUE 460NM SMD |
0 |
|
برگه مشخصات |
LZ4 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | Blue | 460nm (457nm ~ 463nm) | 700mA | 3.25V | - | 1A | 3100mW (2400mW ~ 3800mW) | 25°C | 110° | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.173" (4.40mm) |
|
|
LZ4-00MA00-0000LED LZ4 RGBA 10W SMD |
0 |
|
برگه مشخصات |
LZ4 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | Amber, Blue, Green, Red | 593nm Amber, 457nm Blue, 525nm Green, 624nm Red | 700mA Amber, 700mA Blue, 700mA Green, 700mA Red | 2.5V Amber, 3.5V Blue, 3.5V Green, 2.2V Red | 45 lm/W Amber, 12 lm/W Blue, 65 lm/W Green, 75 lm/W Red | 1A Amber, 1A Blue, 1A Green, 1A Red | 78lm Amber, 30lm Blue, 160lm Green, 115lm Red | 25°C | 95° | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.173" (4.40mm) |
|
|
LZ4-00MC00-0000LED LZ4 RGB 624/525NM/457NM SMD |
0 |
|
برگه مشخصات |
LZ4 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue (RGB) | 624nm Red, 525nm Green, 457nm Blue | 700mA Red, 700mA Green, 700mA Blue | 2.2V Red, 7V Green, 3.5V Blue | 75 lm/W Red, 59 lm/W Green, 13 lm/W Blue | 1A Red, 1A Green, 1A Blue | 115lm Red, 290lm Green, 31lm Blue | 25°C | 95° | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.173" (4.40mm) |
|
|
LZ4-00MD00-0000LED RGBW 624/525/457/6658K SMD |
0 |
|
برگه مشخصات |
LZ4 | 2828 (7070 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue, White - Cool (RGBW) | 624nm Red, 525nm Green, 457nm Blue, 6658K White | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 2.2V Red, 3.35V Green, 3.2V Blue, 3.2V White | 75 lm/W Red, 68 lm/W Green, 13 lm/W Blue, 85 lm/W White | 1A Red, 1A Green, 1A Blue, 1A White | 115lm Red, 160lm Green, 30lm Blue, 190lm White | 25°C | 95° | Surface Mount | SMD | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.173" (4.40mm) |
|
|
LZC-03MA07-0000LED LZC RGBA 40W SMD |
0 |
|
برگه مشخصات |
LZC | 3535 (9090 Metric) | Tape & Reel (TR) | Obsolete | Amber, Blue, Green, Red | 593nm Amber, 457nm Blue, 525nm Green, 624nm Red | 700mA Amber, 700mA Blue, 700mA Green, 700mA Red | 7V Amber, 10.5V Blue, 10.5V Green, 7V Red | 49 lm/W Amber, 12 lm/W Blue, 43 lm/W Green, 49 lm/W Red | 1A Amber, 1A Blue, 1A Green, 1A Red | 240lm Amber, 89lm Blue, 315lm Green, 240lm Red | 25°C | 95° | Surface Mount | SMD | 0.354" L x 0.354" W (9.00mm x 9.00mm) | 0.220" (5.60mm) |
|
|
LZC-03MC00-0000LED LZC RGB 624/525NM/457NM SMD |
0 |
|
برگه مشخصات |
LZC | 3535 (9090 Metric) | Tape & Reel (TR) | Obsolete | Red, Green, Blue (RGB) | 624nm Red, 525nm Green, 457nm Blue | 700mA Red, 700mA Green, 700mA Blue | 9.4V Red, 16.8V Green, 14V Blue | 49 lm/W Red, 36 lm/W Green, 12 lm/W Blue | 1A Red, 1A Green, 1A Blue | 320lm Red, 425lm Green, 120lm Blue | 25°C | 95° | Surface Mount | SMD | 0.354" L x 0.354" W (9.00mm x 9.00mm) | 0.220" (5.60mm) |
