سوئیچ های محدود
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار | عملکرد سوئیچ | رتبه فعلی (آمپر) | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | نوع محرک | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها | نیروی عملیاتی | نیروی رهاسازی | موقعیت عملیاتی | قبل از سفر | سفر دیفرانسیل | سفر بیش از حد | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DH4C-C6AASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
برگه مشخصات |
DH | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 90gf | - | 0.220" (5.6mm) | 0.008" (0.2mm) | 0.003" (0.075mm) | 0.004" (0.1mm) | -25°C ~ 70°C |
|
|
DH3C-C6LASWITCH SNAP ACTION SPDT 0.3A 30V |
0 |
|
برگه مشخصات |
DH | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.264" (6.7mm) | 0.051" (1.3mm) | 0.025" (0.6mm) | 0.011" (0.3mm) | -25°C ~ 70°C |
|

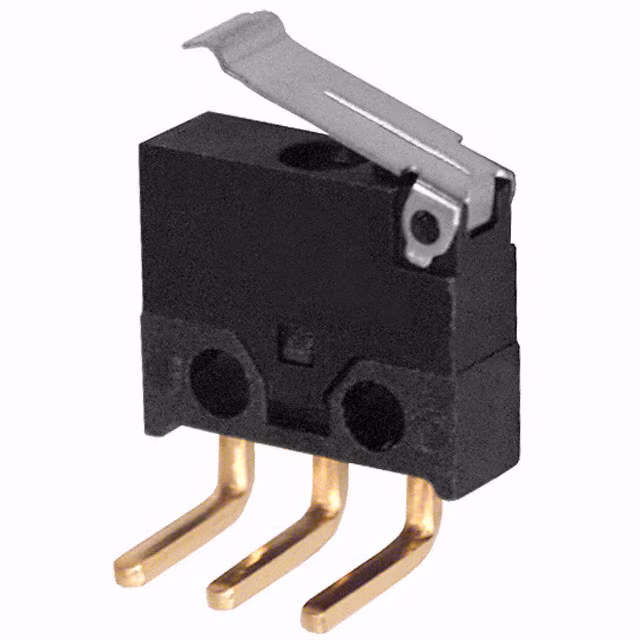

DH4C-C6LASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
برگه مشخصات |
DH | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.264" (6.7mm) | 0.051" (1.3mm) | 0.025" (0.6mm) | 0.011" (0.3mm) | -25°C ~ 70°C |
|
D2RW01L2SWITCH SNAP SPST-NO 0.25A 100V |
0 |
|
برگه مشخصات |
D2RW | Bulk | Obsolete | SPST-NO | Off-Mom | 250mA (DC) | - | 100 V | Lever, Roller | Chassis Mount | Wire Leads | IP40 | - | 76gf | 5.099gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.062" (1.6mm) | 0.040" (1.0mm) | -10°C ~ 60°C |
|

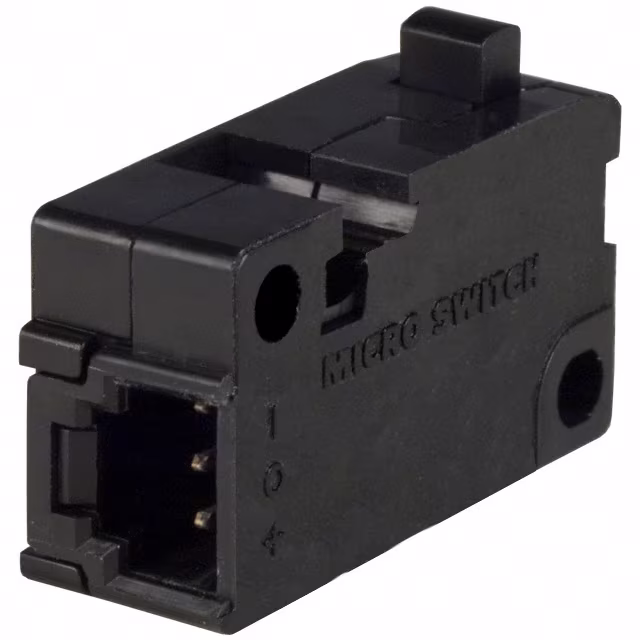

VX10SWITCH SNAP ACT DGTL OC 10MA 24V |
0 |
|
برگه مشخصات |
VX | Bulk | Obsolete | Digital, Open Collector | Off-Mom | 10mA (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | - | - | 10gf | - | 0.560" (14.2mm) | - | 0.002" (0.05mm) | 0.040" (1.0mm) | -40°C ~ 70°C |
|
|
VX80SWITCH SNAP ACT DGTL OC 10MA 24V |
0 |
|
برگه مشخصات |
VX | Bulk | Obsolete | Digital, Open Collector | Off-Mom | 10mA (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | - | - | 85gf | - | 0.560" (14.2mm) | - | 0.002" (0.05mm) | 0.040" (1.0mm) | -40°C ~ 70°C |
|

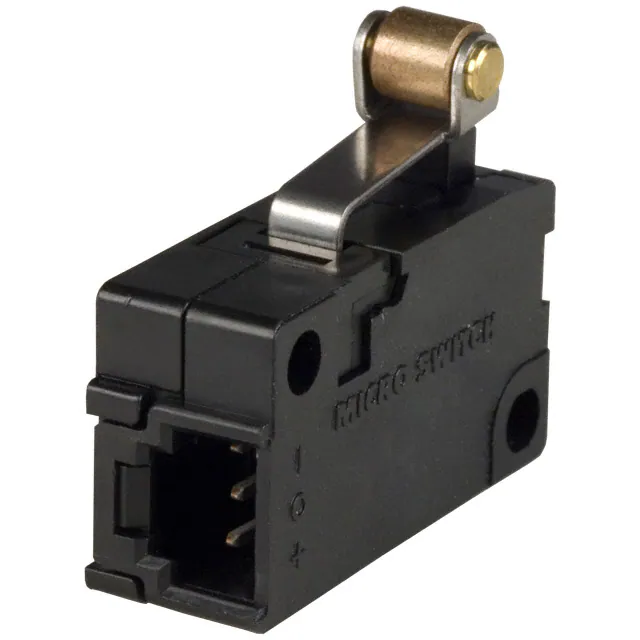

VX80-C1SWITCH SNAP ACT DGTL OC 10MA 24V |
0 |
|
برگه مشخصات |
VX | Bulk | Obsolete | Digital, Open Collector | Off-Mom | 10mA (DC) | - | 24 V | Lever, Roller | Chassis Mount | Connector | - | - | 85gf | - | 0.787" (20.0mm) | - | 0.002" (0.05mm) | 0.040" (1.0mm) | -40°C ~ 70°C |
|
V-15G3-1C24-KSWITCH SNAP ACTION SPDT 15A 250V |
0 |
|
برگه مشخصات |
V | Tray | Obsolete | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 35gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.125" (3.2mm) | -25°C ~ 80°C |
|
TD1104SWITCH DETECTOR SPST-NO 0.1A 30V |
0 |
|
برگه مشخصات |
TD | Bulk | Obsolete | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 36gf | - | 0.321" (8.2mm) | 0.015" (0.4mm) | - | - | -20°C ~ 85°C |
|
TD1105ASWITCH DETECTOR SPST-NO 0.1A 30V |
0 |
|
برگه مشخصات |
TD | Bulk | Obsolete | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 36gf | - | 0.197" (5.0mm) | 0.015" (0.4mm) | - | - | -20°C ~ 85°C |
|
TD1105BSWITCH DETECT SPST-NO 0.1A 30V |
0 |
|
برگه مشخصات |
TD | Bulk | Obsolete | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 36gf | - | 0.197" (5.0mm) | 0.015" (0.4mm) | - | - | -20°C ~ 85°C |
|
ESE-2121ATSWITCH DETECTOR SPST-NO 0.01A 5V |
0 |
|
برگه مشخصات |
ESE21 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | SMD (SMT) Tab | - | - | 30gf | - | 0.138" (3.5mm) | - | - | - | -10°C ~ 60°C |
|
|
DB2CA1LBSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 100gf | - | 0.420" (10.7mm) | 0.178" (4.5mm) | 0.027" (0.7mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|

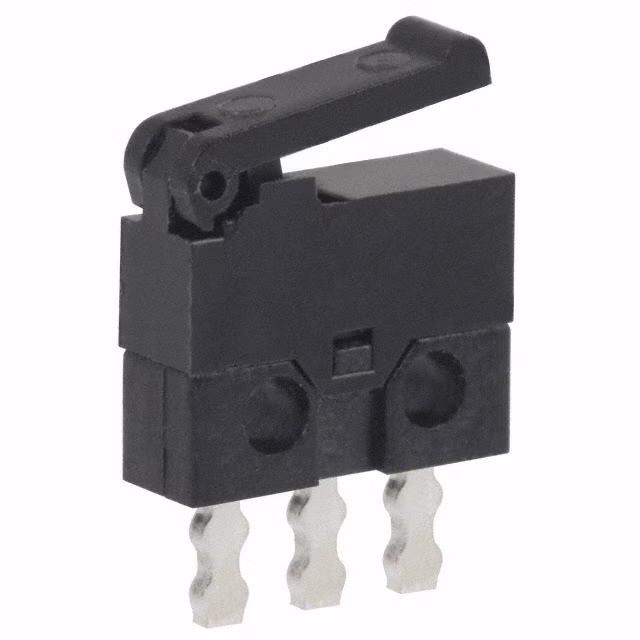

MDS001SWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
برگه مشخصات |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

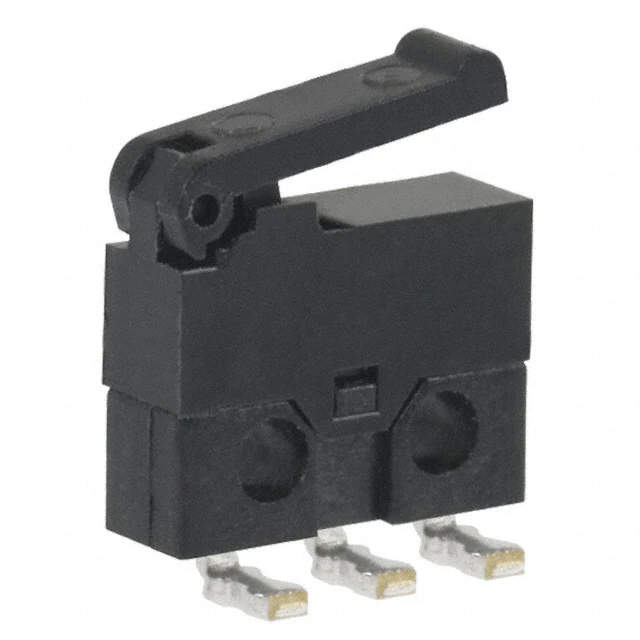

MDS002SWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
برگه مشخصات |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

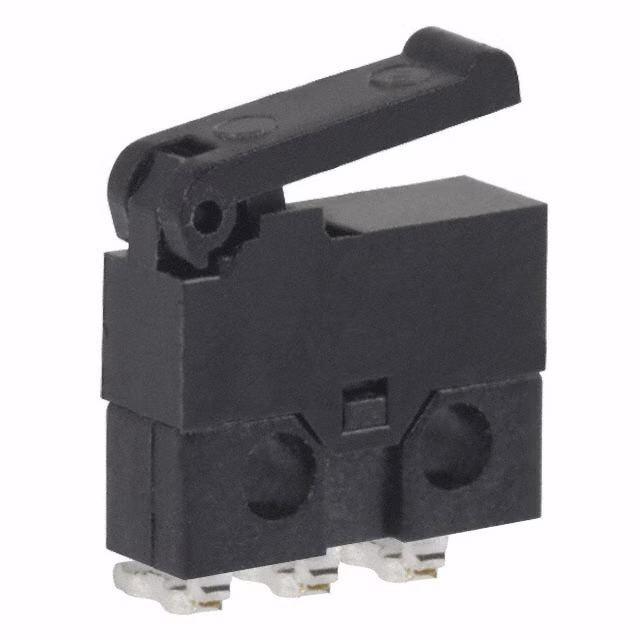

MDS003SWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
برگه مشخصات |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

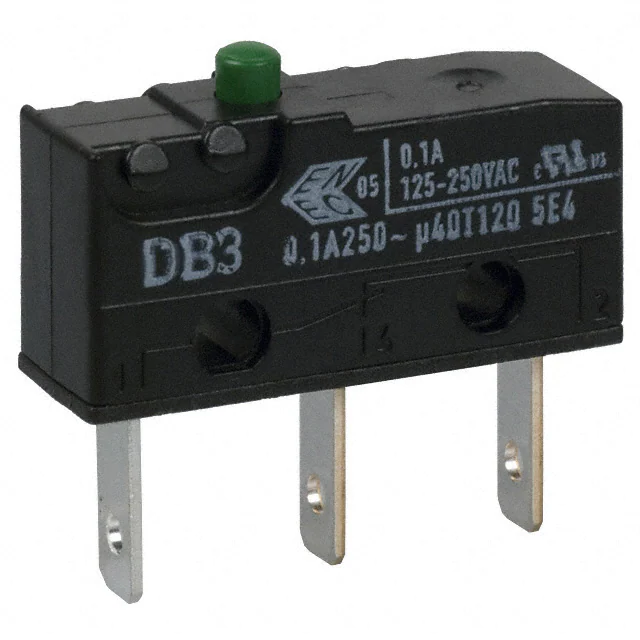

DB3CB1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 150gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|

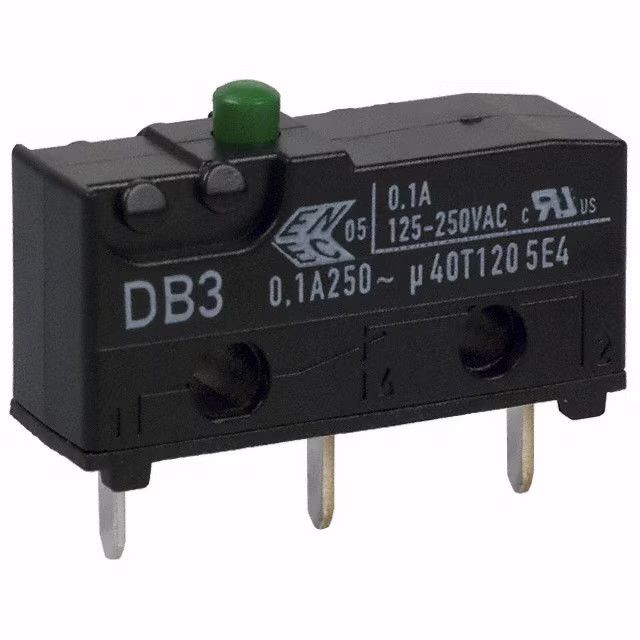

DB3CC1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 150gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
311SM23-TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
برگه مشخصات |
SM | Tray | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 40gf | 7.138gf | 0.340" (8.6mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -55°C ~ 125°C |
|
EVN2000CSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
برگه مشخصات |
EVN2000 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC) | 120 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1428gf | - | 1.100" (28.0mm) | - | 0.040" (1.0mm) | 0.158" (4.0mm) | -25°C ~ 85°C |
