سوئیچ های محدود
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار | عملکرد سوئیچ | رتبه فعلی (آمپر) | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | نوع محرک | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها | نیروی عملیاتی | نیروی رهاسازی | موقعیت عملیاتی | قبل از سفر | سفر دیفرانسیل | سفر بیش از حد | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2F-L3-D3SWITCH SNAP ACTION SPDT 3A 125V |
4,758 |
|
برگه مشخصات |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 150gf | 5.000gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
D2LS-21(20M)SWITCH SNP ACT SPST-NO 0.001A 6V |
4,269 |
|
برگه مشخصات |
D2LS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 6 V | Round (Pin Plunger) | Surface Mount | SMD (SMT) Tab | IP40 | - | 61gf | 15gf | 0.126" (3.2mm) | - | 0.005" (0.13mm) | 0.004" (0.1mm) | -25°C ~ 85°C |
|
|
D2LS-11(10M)SWITCH SNP ACT SPST-NO 0.001A 6V |
6,415 |
|
برگه مشخصات |
D2LS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 6 V | Round (Pin Plunger) | Surface Mount | SMD (SMT) Tab | IP40 | - | 122gf | 15gf | 0.126" (3.2mm) | - | 0.005" (0.13mm) | 0.004" (0.1mm) | -25°C ~ 85°C |
|
D3SH-A1L1SWITCH DETECT SPST-NO 0.001A 5V |
5,556 |
|
برگه مشخصات |
D3SH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide, Left Operating Lever | 24gf | - | 0.213" (5.4mm) | - | - | - | -25°C ~ 85°C |
|
D2A-1110SWITCH SNAP ACTION SPDT 0.1A 30V |
313 |
|
برگه مشخصات |
D2A | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | IP00 | - | 100gf | 15gf | 0.319" (8.1mm) | - | - | - | -10°C ~ 80°C |
|

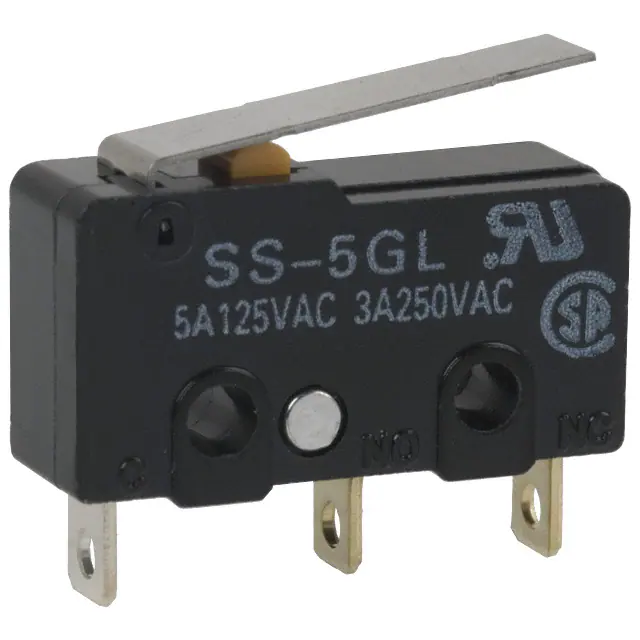

SS-5GLSWITCH SNAP ACTION SPDT 5A 125V |
9,924 |
|
برگه مشخصات |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

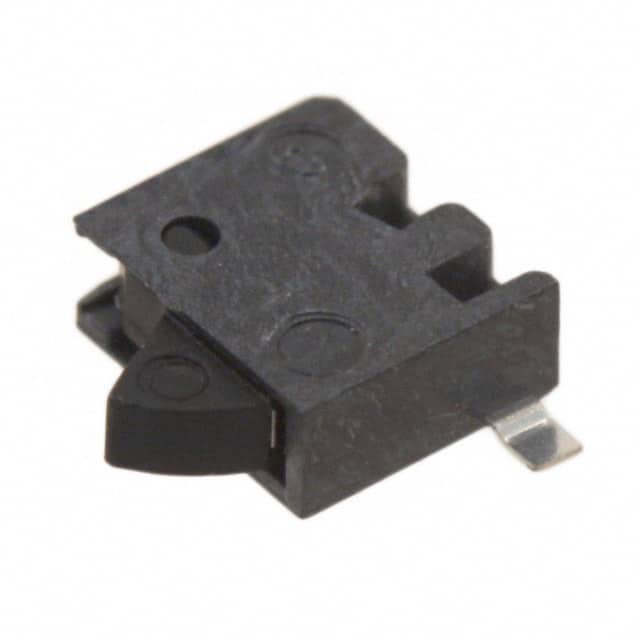

HDS001RSWITCH DETECTOR SPST-NO 1MA 5V |
3,159 |
|
برگه مشخصات |
HDS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.059" (1.5mm) | 0.007" (0.17mm) | - | 0.020" (0.5mm) | -40°C ~ 80°C |
|

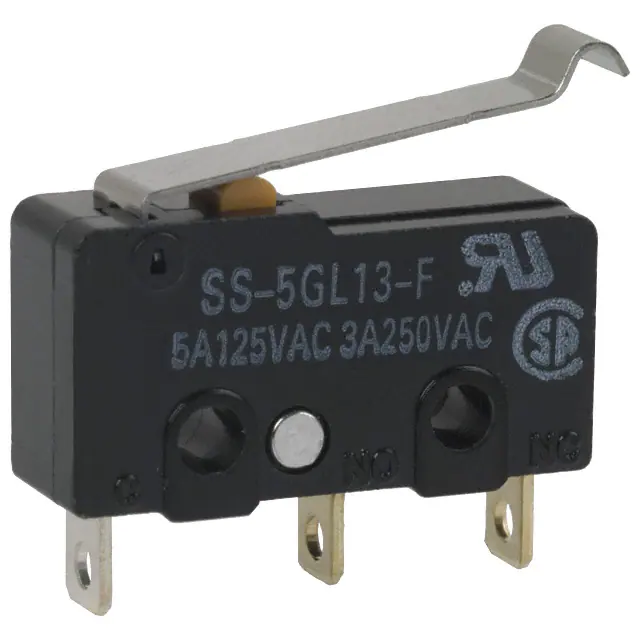

SS-5GL13-FSWITCH SNAP ACTION SPDT 5A 125V |
6,092 |
|
برگه مشخصات |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 16gf | 2.039gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2F-01FLSWITCH SNAP ACTION SPDT 0.1A 30V |
925 |
|
برگه مشخصات |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 25gf | 2.039gf | 0.268" (6.8mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
SS-5GLTSWITCH SNAP ACTION SPDT 5A 125V |
3,893 |
|
برگه مشخصات |
SS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

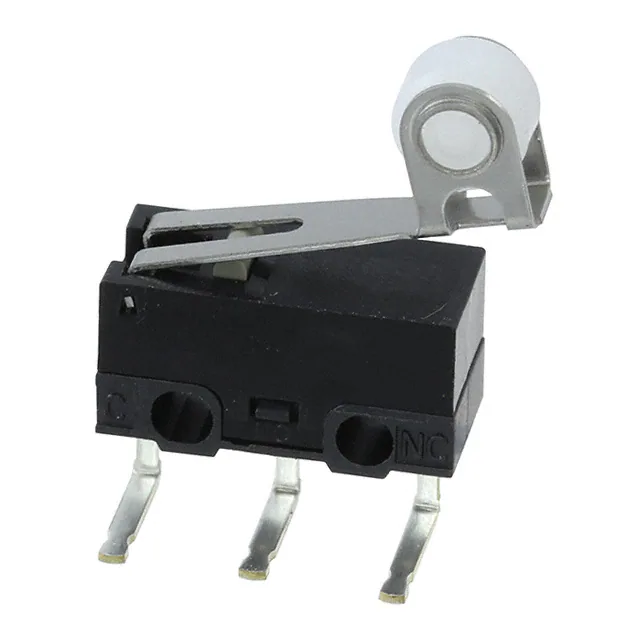

D2F-01FL2-A1SWITCH SNAP ACTION SPDT 0.1A 30V |
970 |
|
برگه مشخصات |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 40gf | 2.039gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
.jpg)
|
D3V-01-1C22SWITCH SNAP ACT SPDT 0.1A 125V |
448 |
|
برگه مشخصات |
D3V | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | 3.059gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
MDS6500AL02PSSWITCH SNAP ACT SPDT 300MA 30V |
3,050 |
|
برگه مشخصات |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
D2F-01-D3SWITCH SNAP ACTION SPDT 0.1A 30V |
1,929 |
|
برگه مشخصات |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
|
D2EW-B03HSWITCH PLUNGER SPST-NO 0.1A 12V |
984 |
|
برگه مشخصات |
D2EW | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 122gf | 10gf | 0.280" (7.1mm) | - | 0.010" (0.25mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
D2FSWITCH SNAP ACTION SPDT 3A 125V |
10,394 |
|
برگه مشخصات |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
|
D2F-01FSWITCH SNAP ACTION SPDT 0.1A 30V |
6,513 |
|
برگه مشخصات |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
SS-5FL111-3TSWITCH SNAP ACT SPST-NO 3A 250V |
429 |
|
برگه مشخصات |
SS | Bulk | Active | SPST-NO | Off-Mom | 3A (AC), 5A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 55gf | 1.020gf | 0.345" (8.8mm) | - | 0.118" (3.0mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
D2LS-21SWITCH SNP ACT SPST-NO 0.001A 6V |
2,268 |
|
برگه مشخصات |
D2LS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 6 V | Round (Pin Plunger) | Surface Mount | SMD (SMT) Tab | IP40 | Board Guide | 61gf | 15gf | 0.126" (3.2mm) | - | 0.005" (0.13mm) | 0.004" (0.1mm) | -25°C ~ 85°C |
|
SS-3GL13PSWITCH SNAP ACTION SPDT 3A 125V |
502 |
|
برگه مشخصات |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 51gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
