سوئیچ های محدود
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار | عملکرد سوئیچ | رتبه فعلی (آمپر) | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | نوع محرک | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها | نیروی عملیاتی | نیروی رهاسازی | موقعیت عملیاتی | قبل از سفر | سفر دیفرانسیل | سفر بیش از حد | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D449-R1RA-G2SWITCH SNAP ACTION SPDT 10A 250V |
3,286 |
|
برگه مشخصات |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 76gf | 22gf | 0.806" (20.5mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
PP2-1U7-2B2SWITCH DETECTOR DPDT 16A 125V |
5,709 |
|
برگه مشخصات |
PP2 | Bulk | Active | DPDT | On-Mom | 16A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 330gf | - | 0.610" (15.5mm) | - | - | - | 0°C ~ 85°C |
|
D2VW-5L2-1HSSWITCH SNAP ACTION SPDT 5A 125V |
11,908 |
|
برگه مشخصات |
D2VW | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
V7-1C17D8-048SWITCH SNAP ACTION SPDT 15A 125V |
480 |
|
برگه مشخصات |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 5.000gf | 0.600" (15.2mm) | 0.234" (5.9mm) | 0.060" (1.5mm) | 0.164" (4.2mm) | -40°C ~ 85°C |
|
D2SW-3HSWITCH SNAP ACTION SPDT 3A 125V |
689 |
|
برگه مشخصات |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
KDS33SWITCH SNAP SPST-NC 0.4VA 20V |
551 |
|
برگه مشخصات |
KDS | Bulk | Active | SPST-NC | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Overtravel Plunger | Chassis Mount | Wire Leads | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
V7-3E17D8-148SWITCH SNAP ACTION SPDT 10A 125V |
654 |
|
برگه مشخصات |
V7 | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 8.000gf | 0.510gf | 0.579" (14.7mm) | 0.460" (11.7mm) | 0.103" (2.6mm) | 0.205" (5.2mm) | -40°C ~ 85°C |
|
V15H22-CZ100A02-KSWITCH SNAP ACTION SPDT 22A 250V |
1,158 |
|
برگه مشخصات |
V15 | Tray | Active | SPDT | On-Mom | 22A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 150°C |
|
D2F-L2SWITCH SNAP ACTION SPDT 3A 125V |
935 |
|
برگه مشخصات |
D2F | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|

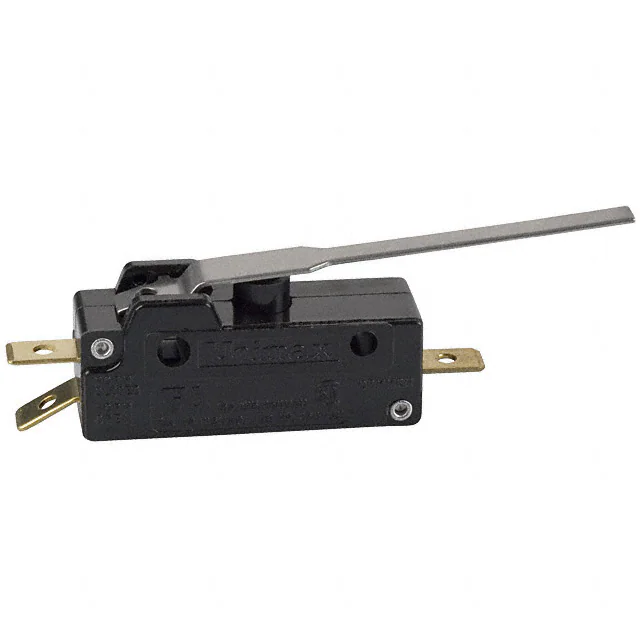

ASKHC2T04ACSWITCH SNAP ACTION SPDT 15A 125V |
5,299 |
|
برگه مشخصات |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.312" (7.9mm) | 0.312" (7.9mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
KDS11SWITCH SNAP SPST-NO 0.4VA 20V |
698 |
|
برگه مشخصات |
KDS | Bulk | Active | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Overtravel Plunger | Chassis Mount | Wire Leads | - | - | - | - | - | 0.180" (4.6mm) | - | 0.224" (5.7mm) | -40°C ~ 85°C |
|
V7-1C17E9-201SWITCH SNAP ACTION SPDT 15A 125V |
150 |
|
برگه مشخصات |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 176gf | 19gf | 0.803" (20.4mm) | 0.052" (1.32mm) | 0.012" (0.3mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
D2VW-5-1HSSWITCH SNAP ACTION SPDT 5A 125V |
15,211 |
|
برگه مشخصات |
D2VW | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
D2HW-C202MRSWITCH SNP ACT SPST-NC 0.1A 125V |
3,328 |
|
برگه مشخصات |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|

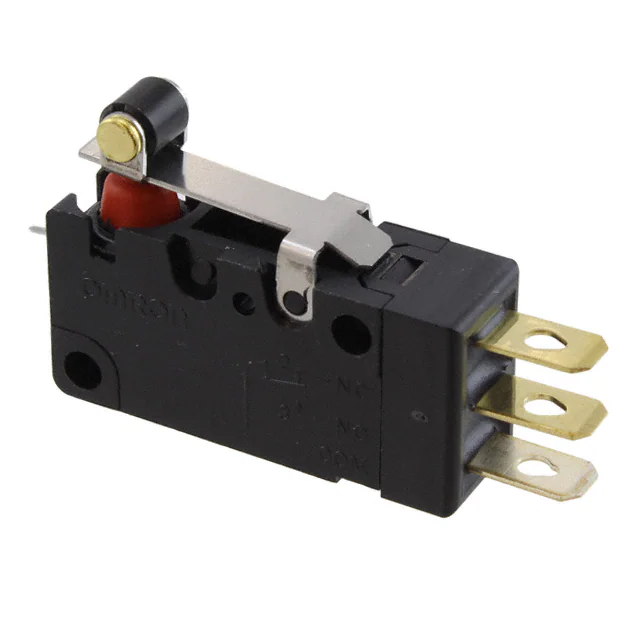

D2VW-5L2A-1HSSWITCH SNAP ACTION SPDT 5A 125V |
3,944 |
|
برگه مشخصات |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 230gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

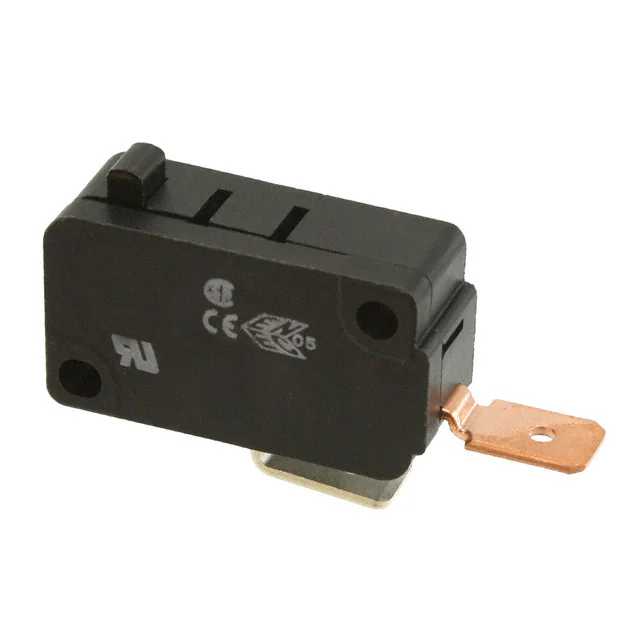

V7-1Z20E9SWITCH SNAP ACT SPST-NO 25A 277V |
240 |
|
برگه مشخصات |
V7 | Bulk | Active | SPST-NO | Off-Mom | 25A (AC) | 277 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 225gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
D2HW-BL201MSWITCH SNAP ACT SPDT 0.1A 125V |
262 |
|
برگه مشخصات |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
D449-R1ML-G2SWITCH SNAP ACTION SPDT 10A 250V |
1,560 |
|
برگه مشخصات |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 10gf | 2.039gf | 0.600" (15.2mm) | 0.500" (12.7mm) | 0.098" (2.5mm) | 0.312" (7.9mm) | -40°C ~ 85°C |
|
ABJ362860SWITCH SNAP ACT SPST-NC 2A 125V |
223 |
|
برگه مشخصات |
ABJ | Bulk | Active | SPST-NC | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 130gf | 30gf | 0.630" (16.0mm) | 0.236" (6.0mm) | 0.040" (1.0mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|
D2SW-01L2MSSWITCH SNAP ACT SPDT 0.1A 125V |
1,348 |
|
برگه مشخصات |
D2SW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
