سوئیچ های محدود
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار | عملکرد سوئیچ | رتبه فعلی (آمپر) | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | نوع محرک | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها | نیروی عملیاتی | نیروی رهاسازی | موقعیت عملیاتی | قبل از سفر | سفر دیفرانسیل | سفر بیش از حد | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Z-10FM22Y-BSWITCH SNAP ACTION SPDT 10A 125V |
2 |
|
برگه مشخصات |
Z | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 650gf | 170gf | 1.156" (29.4mm) | - | 0.022" (0.56mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
|
D4N-1A62RSWITCH SNAP ACTION DPST 10A 120V |
5 |
|
برگه مشخصات |
D4N-R | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 10A (AC), 2.5A (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Reset Function | 765gf | - | 2.087" (53.0mm) | 0.157" (4.0mm) | - | - | -30°C ~ 70°C |
|
831698CR.5.0SWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
برگه مشخصات |
83169 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
|
D4N-1D32SWITCH SNAP ACT 3PST-NC 3A 240V |
1 |
|
برگه مشخصات |
D4N | Bulk | Active | 3PST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|
D4N-6C62SWITCH SNAP ACTION 3PST 3A 240V |
3 |
|
برگه مشخصات |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|
12SX1-TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
برگه مشخصات |
SX | Tray | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.003" (0.075mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
D4N-4A32R-NPTSWITCH SNAP ACTION DPST 10A 120V |
2 |
|
برگه مشخصات |
D4N-R | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 10A (AC), 2.5A (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Reset Function | 1101gf | - | 1.748" (44.4mm) | 0.080" (2.0mm) | - | - | -30°C ~ 70°C |
|
D4N-4B20SWITCH SNAP ACT DPST-NC 3A 240V |
4 |
|
برگه مشخصات |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N-8C62SWITCH SNAP ACTION 3PST 3A 240V |
5 |
|
برگه مشخصات |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|
D4N-4131-NPTSWITCH SNAP ACTION DPST 3A 240V |
4 |
|
برگه مشخصات |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.715" (18.2mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|
D4N-1A22SWITCH SNAP ACTION DPST 3A 240V |
2 |
|
برگه مشخصات |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 510gf | 51gf | - | 18° | - | 40° | -30°C ~ 70°C |
|

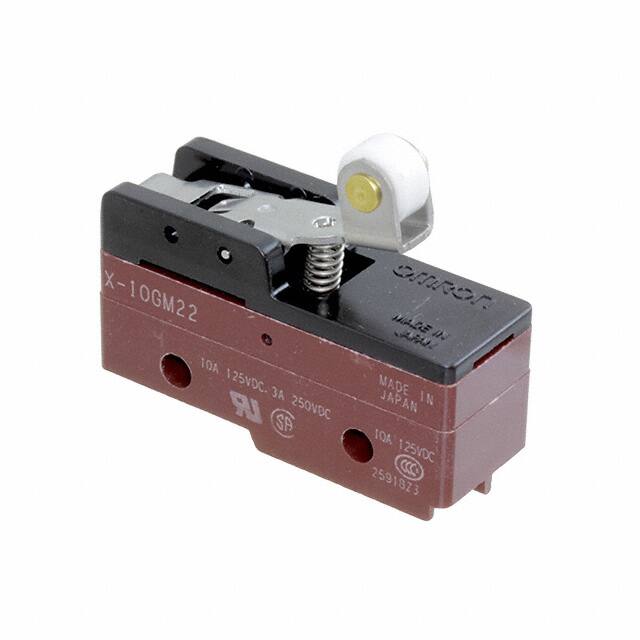

X-10GM22SWITCH SNAP ACTION SPDT 10A 30V |
2 |
|
برگه مشخصات |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP00 | - | 700gf | 155gf | 1.266" (32.2mm) | - | 0.060" (1.5mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
|
D4N-2D20SWITCH SNAP ACT 3PST-NC 3A 240V |
1 |
|
برگه مشخصات |
D4N | Bulk | Active | 3PST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N4C62NPTSWITCH SNAP ACTION 3PST 3A 240V |
1 |
|
برگه مشخصات |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|
XCMD2515L1SWITCH LIMIT DPDT 1.5A 240V |
1 |
|
برگه مشخصات |
XCMD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Cable with Connector | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
83870101SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
برگه مشخصات |
83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
83731319SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
برگه مشخصات |
83731 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 1m | 1530gf | - | - | - | 0.008" (0.2mm) | - | -5°C ~ 70°C |
|

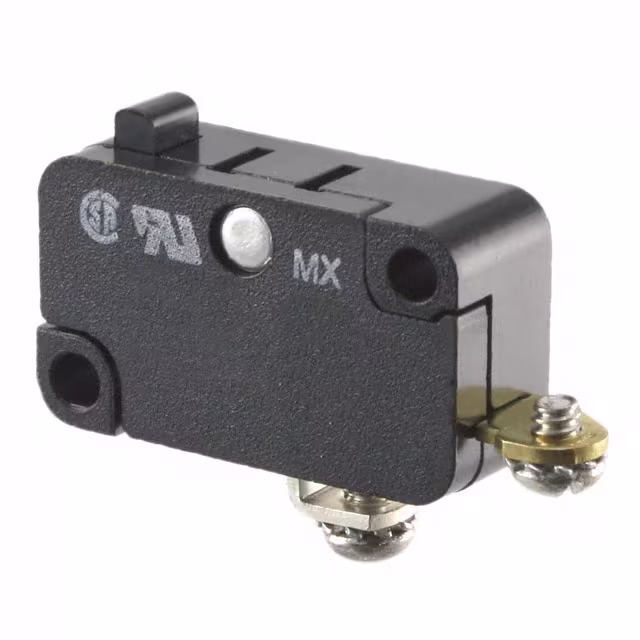

V3-23SWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
برگه مشخصات |
V3 | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 170 ~ 397gf | 113gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|
D4B-2A70NSWITCH SNAP ACT DPST-NC 10A 120V |
1 |
|
برگه مشخصات |
D4B-N | Bulk | Active | DPST-NC | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1900gf | 200gf | 1.380" (35.0mm) | 0.080" (2.0mm) | - | 0.197" (5.0mm) | -40°C ~ 80°C |
|
|
83870103SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
برگه مشخصات |
83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
