سوئیچ های مغناطیسی، نی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | مدار | محدوده عملیاتی | محدوده انتشار | جریان - سوئیچینگ | ولتاژ - سوئیچینگ AC | ولتاژ - سوئیچینگ DC | قدرت - دارای رتبه | زمان عملیات | زمان انتشار | نوع نصب | سبک خاتمه | طول - به طور کلی | اندازه - بدن | ارتفاع بالای تخته | دمای عملیاتی | ظرفیت | جاری - حمل |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT10-1030-G4SWITCH REED SPST-NO 500MA 140V |
70,466 |
|
برگه مشخصات |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 30AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.770" (19.56mm) | 0.505" L x 0.090" W x 0.095" H (12.83mm x 2.29mm x 2.41mm) | 0.100" (2.54mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
MK23-87-B-2SWITCH REED SPST-NO 400MA 200V |
5,280 |
|
برگه مشخصات |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 400mA (AC/DC) | 200 V | 200 V | 10W | 0.6 ms | 0.05 ms | Surface Mount | Gull Wing | 0.614" (15.60mm) | 0.079" Dia x 0.394" L (2.00mm x 10.00mm) | 0.089" (2.26mm) | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|
59165-1-S-00-ASWITCH REED SPST-NO 350MA 140V |
3,246 |
|
برگه مشخصات |
59165 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | - | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
ORD 229/20-25 ATSWITCH REED SPST-NO 500MA 300V |
28,568 |
|
برگه مشخصات |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC), 700mA (DC) | 300 V | 350 V | 50W | 0.6 ms | 0.05 ms | Through Hole | Axial | 2.181" (55.40mm) | 0.108" Dia x 0.827" L (2.75mm x 21.00mm) | - | - | 0.5 pF | 2.5A (AC/DC) |
|
ORD 213S-1/10-15 ATSWITCH REED SPST-NO 100MA 24V |
7,269 |
|
برگه مشخصات |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 100mA (AC/DC) | 24 V | 24 V | 1VA | 0.3 ms | 0.05 ms | Surface Mount | Gull Wing | - | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | - | 0.4 pF | 300mA (AC/DC) |
|
MK06-8-BSWITCH REED SPST-NO 500MA 200V |
7,515 |
|
برگه مشخصات |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | PC Pin | 0.879" (22.33mm) | 0.879" L x 0.130" W x 0.165" H (22.33mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | 0.3 pF | 1A (AC/DC) |
|
SW PR126/25-30 ATSWITCH REED SPST-NO 1.5A 300V |
623 |
|
برگه مشخصات |
PR126 | Bulk | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | 16 ~ 23AT | 1.5A (AC/DC) | 300 V | 300 V | 70VA | 0.8 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.098" Dia x 0.799" L (2.50mm x 20.30mm) | - | -40°C ~ 130°C | 0.3 pF | 2.5A (AC/DC) |
|

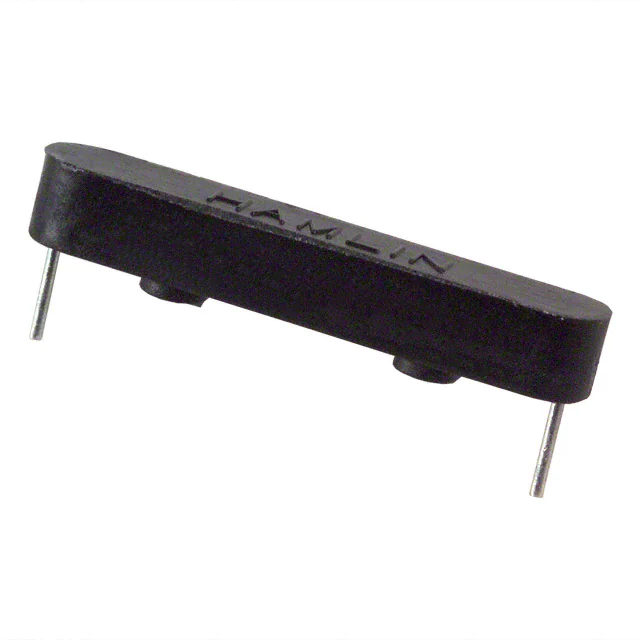

59050-010SWITCH REED SPST-NO 350MA 140V |
4,400 |
|
برگه مشخصات |
59050 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -40°C ~ 105°C | 0.3 pF | 1A (DC) |
|
MISM-7R-6-10SWITCH REED SPST-NO 180MA 120V |
5,594 |
|
برگه مشخصات |
MISM-7 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 6 ~ 10AT | - | 180mA (AC), 250mA (DC) | 120 V | 170 V | 10W | 450 µs | 0.2 ms | Surface Mount | Gull Wing | 0.540" (13.72mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.090" (2.28mm) | -40°C ~ 125°C | 0.3 pF | 500mA (DC) |
|
MK23-80-B-2SWITCH REED SPST-NO 500MA 170V |
7,021 |
|
برگه مشخصات |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.1 ms | Surface Mount | Gull Wing | 0.512" (13.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|
MK31-B-3SWITCH REED SPST-NO 300MA 30V |
6,113 |
|
برگه مشخصات |
MK31 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 300mA (AC/DC) | 30 V | 30 V | 3W | 0.2 ms | 0.15 ms | Surface Mount | J Lead | 0.272" (6.91mm) | 0.252" L x 0.087" W x 0.077" H (6.40mm x 2.20mm x 1.95mm) | 0.077" (1.95mm) | -40°C ~ 115°C | 0.1 pF | 500mA (AC/DC) |
|
RI80SMDM-0510-G1SWITCH REED SPST-NO 250MA 140V |
43,956 |
|
برگه مشخصات |
RI-80 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 5 ~ 10AT | - | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | Gull Wing | 0.376" (9.55mm) | 0.252" L x 0.091" W x 0.091" H (6.40mm x 2.31mm x 2.31mm) | 0.095" (2.41mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
|
RI80SMDM-1015-G1SWITCH REED SPST-NO 250MA 140V |
19,659 |
|
برگه مشخصات |
RI-80 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | Gull Wing | 0.376" (9.55mm) | 0.252" L x 0.091" W x 0.091" H (6.40mm x 2.31mm x 2.31mm) | 0.095" (2.41mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
RI80SMDM-0510-J1SWITCH REED SPST-NO 250MA 140V |
10,132 |
|
برگه مشخصات |
RI-80 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 5 ~ 10AT | - | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | J Lead | 0.295" (7.49mm) | 0.275" L x 0.091" W x 0.091" H (7.00mm x 2.31mm x 2.31mm) | 0.095" (2.41mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
RI-90GP1520SWITCH REED SPDT 280MA 125V |
7,454 |
|
برگه مشخصات |
RI-90 | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 20AT | - | 280mA (AC), 400mA (DC) | 125 V | 175 V | 5W | 1 ms | 1 ms | Through Hole | Axial | 1.988" (50.50mm) | 0.100" Dia x 0.563" L (2.54mm x 14.30mm) | - | -55°C ~ 125°C | 0.8 pF | 500mA (DC) |
|

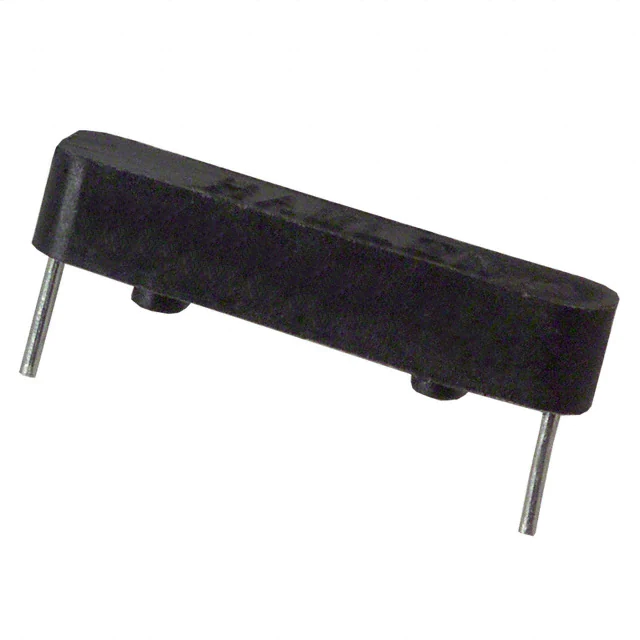

59045-010SWITCH REED SPST-NO 350MA 140V |
5,191 |
|
برگه مشخصات |
59045 | Bulk | Active | Molded Body Reed | SPST-NO | 10 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.700" (17.78mm) | 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm) | 0.170" (4.33mm) | -40°C ~ 105°C | 0.3 pF | 1A (DC) |
|

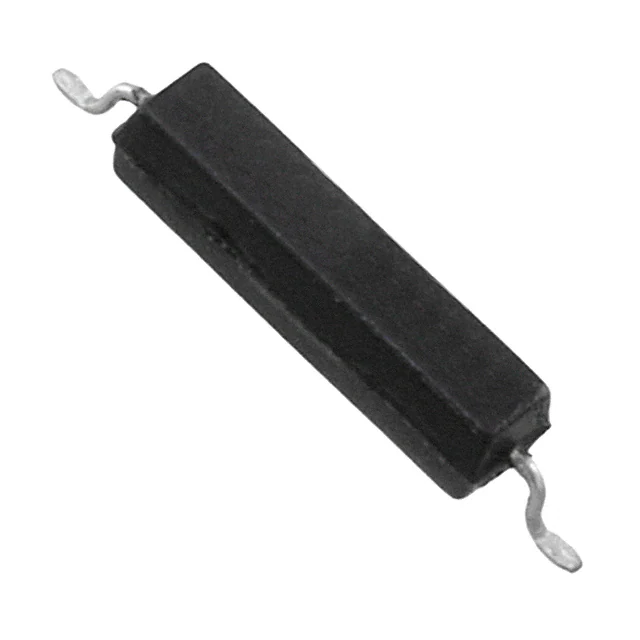

MK17-C-2SWITCH REED SPST-NO 500MA 170V |
8,491 |
|
برگه مشخصات |
MK17 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.05 ms | Surface Mount | Gull Wing | 0.484" (12.30mm) | 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.4 pF | 500mA (AC/DC) |
|
MK17-B-3SWITCH REED SPST-NO 500MA 170V |
22,602 |
|
برگه مشخصات |
MK17 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.05 ms | Surface Mount | J Lead | 0.382" (9.70mm) | 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.4 pF | 500mA (AC/DC) |
|

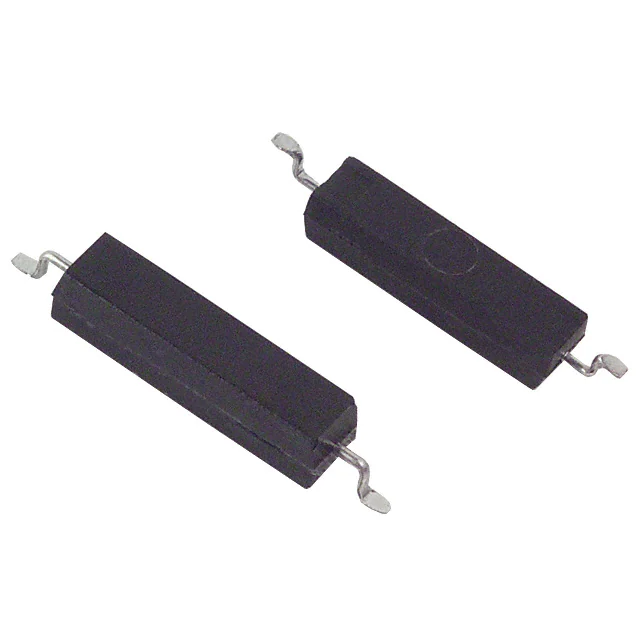

MK17-B-2SWITCH REED SPST-NO 500MA 170V |
8,243 |
|
برگه مشخصات |
MK17 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.05 ms | Surface Mount | Gull Wing | 0.484" (12.30mm) | 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.4 pF | 500mA (AC/DC) |
|
MRPR-20-17-23SWITCH REED SPST-NO 1.1A 265V |
4,361 |
|
برگه مشخصات |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
