سوئیچ های مغناطیسی، نی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | مدار | محدوده عملیاتی | محدوده انتشار | جریان - سوئیچینگ | ولتاژ - سوئیچینگ AC | ولتاژ - سوئیچینگ DC | قدرت - دارای رتبه | زمان عملیات | زمان انتشار | نوع نصب | سبک خاتمه | طول - به طور کلی | اندازه - بدن | ارتفاع بالای تخته | دمای عملیاتی | ظرفیت | جاری - حمل |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MK23-80-B-4SWITCH REED SPST-NO 500MA 170V |
0 |
|
برگه مشخصات |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 170 V | 170 V | 10W | 0.6 ms | 0.1 ms | Surface Mount | Gull Wing | 0.524" (13.30mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.2 pF | 500mA (AC/DC) |
|

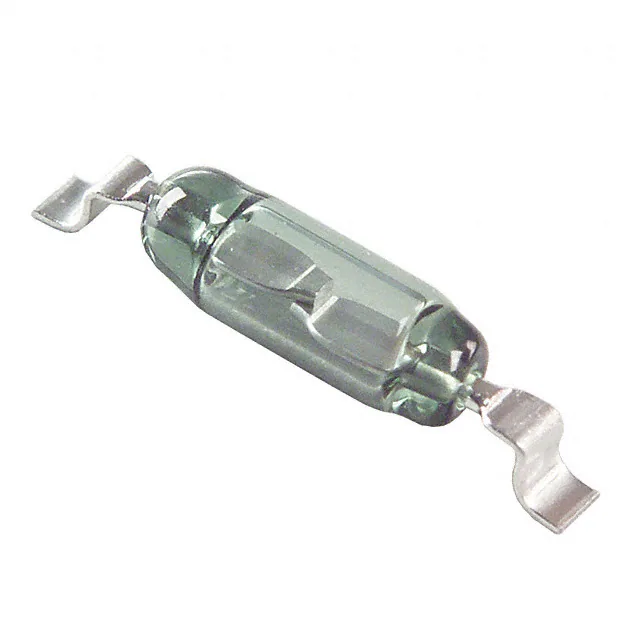

RI-80SMD0515-G1SWITCH REED SPST-NO 250MA 140V |
0 |
|
برگه مشخصات |
RI-80 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 5 ~ 15AT | 2 ~ 13AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | Gull Wing | 0.342" (8.68mm) | 0.071" Dia x 0.197" L (1.80mm x 5.00mm) | 0.076" (1.92mm) | -55°C ~ 125°C | 0.45 pF | 500mA (AC/DC) |
|
|
RI-80SMD0515-G2SWITCH REED SPST-NO 250MA 140V |
0 |
|
برگه مشخصات |
RI-80 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 5 ~ 15AT | 2 ~ 13AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | Gull Wing | 0.400" (10.16mm) | 0.071" Dia x 0.197" L (1.80mm x 5.00mm) | 0.076" (1.92mm) | -55°C ~ 125°C | 0.45 pF | 500mA (AC/DC) |
|
MRPR-20-32-43SWITCH REED SPST-NO 1.1A 265V |
0 |
|
برگه مشخصات |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 32 ~ 43AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|
|
MRPR-20-22-43SWITCH REED SPST-NO 1.1A 265V |
0 |
|
برگه مشخصات |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 43AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|
|
MRPR-20-17-28SWITCH REED SPST-NO 1.1A 265V |
0 |
|
برگه مشخصات |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 28AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|
CT05-2550-G1SWITCH REED SPST-NO 250MA 100V |
0 |
|
برگه مشخصات |
CT05 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 25 ~ 50AT | 5 ~ 45AT | 250mA (AC), 350mA (DC) | 100 V | 140 V | 5W | - | - | Surface Mount | Gull Wing | 0.376" (9.55mm) | 0.252" L x 0.091" W x 0.091" H (6.40mm x 2.31mm x 2.31mm) | 0.094" (2.40mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
AX211720REED SWITCHES FOR. A-15MM-10W/10 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 20AT | 8 ~ 19AT | 500mA (DC) | - | 100 V | 10W | 0.6 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | 0.091" (2.30mm) | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
RI-80GP0510SWITCH REED SPST-NO 250MA 140V |
0 |
|
برگه مشخصات |
RI-80 | Bulk | Discontinued | Glass Body Reed | SPST-NO | 5 ~ 10AT | - | 250mA (AC), 350mA (DC) | 140 V | 200 V | 5W | 0.35 ms | 0.02 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.197" L (1.80mm x 5.00mm) | - | -55°C ~ 125°C | 0.45 pF | 500mA (AC/DC) |
|
|
RI-80SMD-0510-G1SWITCH REED SPST-NO 250MA 140V |
0 |
|
برگه مشخصات |
RI-80 SMD | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 5 ~ 10AT | 2 ~ 8AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | Gull Wing | 0.342" (8.68mm) | 0.070" Dia x 0.196" L (1.78mm x 4.98mm) | 0.075" (1.90mm) | -55°C ~ 125°C | 0.45 pF | 500mA (DC) |
|
|
RI-80SMD-1015-G1SWITCH REED SPST-NO 250MA 140V |
0 |
|
برگه مشخصات |
RI-80 SMD | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4 ~ 13AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | Gull Wing | 0.342" (8.68mm) | 0.070" Dia x 0.196" L (1.78mm x 4.98mm) | 0.075" (1.90mm) | -55°C ~ 125°C | 0.45 pF | 500mA (DC) |
|
|
RI-80SMD-0510-G2SWITCH REED SPST-NO 250MA 140V |
0 |
|
برگه مشخصات |
RI-80 SMD | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 5 ~ 10AT | 2 ~ 8AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | Gull Wing | 0.400" (10.16mm) | 0.070" Dia x 0.196" L (1.78mm x 4.98mm) | 0.075" (1.90mm) | -55°C ~ 125°C | 0.45 pF | 500mA (DC) |
|
|
RI-80SMD-1015-G2SWITCH REED SPST-NO 250MA 140V |
0 |
|
برگه مشخصات |
RI-80 SMD | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4 ~ 13AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | Gull Wing | 0.400" (10.16mm) | 0.070" Dia x 0.196" L (1.78mm x 4.98mm) | 0.075" (1.90mm) | -55°C ~ 125°C | 0.45 pF | 500mA (DC) |
|
|
RI-80SMD-1015-JSWITCH REED SPST-NO 250MA 140V |
0 |
|
برگه مشخصات |
RI-80 SMD | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4 ~ 13AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | J Lead | 0.279" (7.09mm) | 0.070" Dia x 0.196" L (1.78mm x 4.98mm) | 0.075" (1.90mm) | -55°C ~ 125°C | 0.45 pF | 500mA (DC) |
|
|
AJ211035SWITCH REED SPST-NO 400MA |
0 |
|
برگه مشخصات |
- | Box | Obsolete | Glass Body Reed | SPST-NO | - | - | 400mA (DC) | - | 100 V | 10VA | 1.1 ms | 50 ms | Through Hole | Axial | 1.740" (44.20mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|

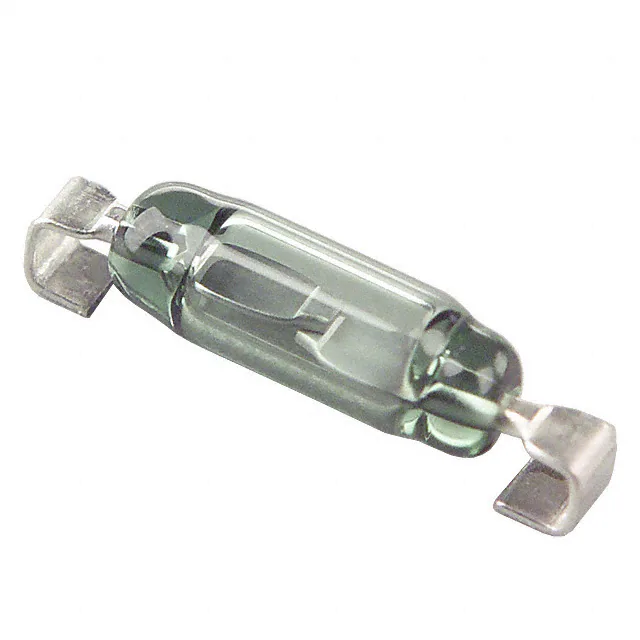

RI-80SMD0515-JSWITCH REED SPST-NO 250MA 140V |
0 |
|
برگه مشخصات |
RI-80 | Tape & Reel (TR) | Obsolete | Glass Body Reed | SPST-NO | 5 ~ 15AT | 2 ~ 13AT | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | J Lead | 0.279" (7.09mm) | 0.071" Dia x 0.197" L (1.80mm x 5.00mm) | 0.076" (1.92mm) | -55°C ~ 125°C | 0.45 pF | 500mA (AC/DC) |
|
MK01-CSWITCH REED SPST-NO 500MA 180V |
0 |
|
برگه مشخصات |
MK01 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 30 ~ 73AT | - | 500mA (AC/DC) | 180 V | 180 V | 10W | 0.5 ms | 0.05 ms | Surface Mount | J Lead | 0.740" (18.80mm) | 0.709" L x 0.146" W x 0.134" H (18.00mm x 3.70mm x 3.40mm) | 0.134" (3.40mm) | -20°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
|
COM-08642SWITCH REED SPST-NO 500MA |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | - | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
COM-10601SWITCH REED SPST-NO 350MA 140V |
0 |
|
- |
- | Bulk | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | - | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
|
AJ213035REED SWITCHES FOR. A-14MM-10W/10 |
0 |
|
- |
- | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | 10 ~ 18AT | 400mA (DC) | - | 100 V | 10W | 1.1 ms | 50 µs | Through Hole | Axial | 1.740" (44.20mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.087" (2.20mm) | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
