سیم مغناطیسی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | سیم سنج | مواد هادی | جنس ژاکت (عایق). | قطر ژاکت (عایق). | طول - تقریبی | رتبه بندی ها | وزن |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8051MW-28C SL 22AWG |
18 |
|
برگه مشخصات |
- | Spool | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.027" (0.69mm) | 254.0' (77m) | MW 28-C SL | - |
|
8052MW-28C SL 24AWG |
19 |
|
برگه مشخصات |
- | Spool | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.022" (0.55mm) | 404.0' (123m) | MW 28-C SL | - |
|
8074MW-35C HY 16AWG |
5 |
|
برگه مشخصات |
- | Spool | Active | 16 AWG | Copper, Annealed Bare | Polyamide | 0.054" (1.37mm) | 126.0' (38m) | MW 35-C HY | - |
|
8075MW-35C HY 18AWG |
10 |
|
برگه مشخصات |
- | Spool | Active | 18 AWG | Copper, Annealed Bare | Polyamide | 0.044" (1.12mm) | 190.0' (58m) | MW 35-C HY | - |
|
|
8077MW-35C HY 22AWG |
6 |
|
برگه مشخصات |
- | Spool | Active | 22 AWG | Copper, Annealed Bare | Polyamide | 0.028" (0.71mm) | 501.0' (153m) | MW 35-C HY | - |
|
|
8076MW-35C HY 20AWG |
5 |
|
برگه مشخصات |
- | Spool | Active | 20 AWG | Copper, Annealed Bare | Polyamide | 0.035" (0.89mm) | 315.0' (96m) | MW 35-C HY | - |
|
|
8080MW-35C HY 28AWG |
6 |
|
برگه مشخصات |
- | Spool | Active | 28 AWG | Copper, Annealed Bare | Polyamide | 0.015" (0.38mm) | 1990.0' (607m) | MW 35-C HY | - |
|
|
8081MW-35C HY 30AWG |
3 |
|
برگه مشخصات |
- | Spool | Active | 30 AWG | Copper, Annealed Bare | Polyamide | 0.011" (0.30mm) | 3140.0' (957m) | MW 35-C HY | - |
|

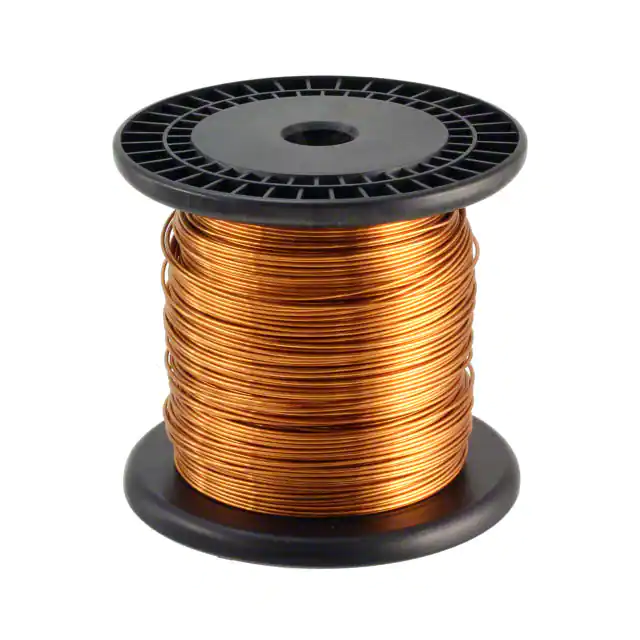

610216MW28-C SL 16AWG 1KG MAX/V 2300 |
6 |
|
برگه مشخصات |
- | Spool | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.053" (1.35mm) | 282.4' (86.1m) | MW 28-C SL | - |
|
|
8083MW-35-C HVY 34AWG |
3 |
|
برگه مشخصات |
- | Spool | Active | 34 AWG | Copper, Annealed Bare | Polyamide | 0.008" (0.20mm) | 25787.4' (7860m) | MW 35-C HY | 3.4 lbs (1.5 kg) |
|

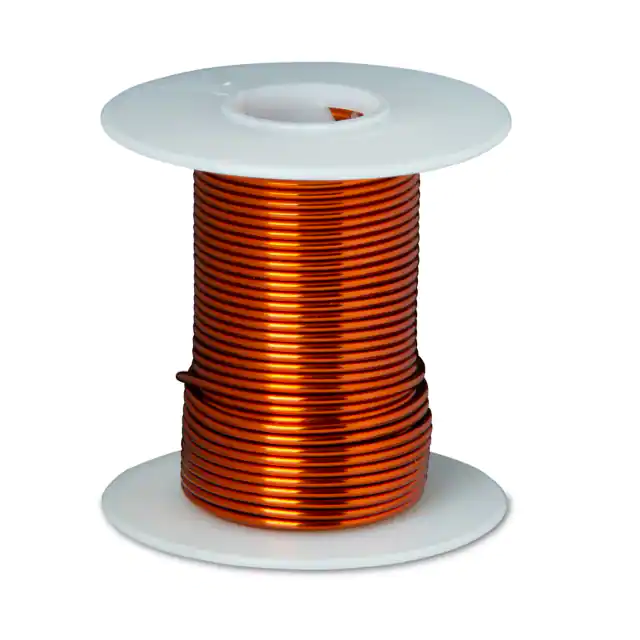

14H200P.12514H200P.125 MAGNET WIRE, ENAMELE |
6 |
|
برگه مشخصات |
- | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyester | - | 9.0' (2.7m) | MW 35-C | 0.13 lbs (56.7 g) |
|
16H200P.12516H200P.125 MAGNET WIRE, ENAMELE |
29 |
|
برگه مشخصات |
- | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyester | - | 16.0' (4.9m) | MW 35-C | 0.13 lbs (56.7 g) |
|
20H200P.12520H200P.125 MAGNET WIRE, ENAMELE |
14 |
|
برگه مشخصات |
- | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyester | - | 39.0' (12m) | MW 35-C | 0.13 lbs (56.7 g) |
|
18H200P.125MAGNET WIRE, ENAMELED COPPER WIR |
12 |
|
برگه مشخصات |
- | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 25.0' (7.6m) | MW 35-C | 0.13 lbs (56.7 g) |
|
22H200P.12522H200P.125 MAGNET WIRE, ENAMELE |
27 |
|
برگه مشخصات |
- | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 62.0' (19m) | MW 35-C | 0.13 lbs (56.7 g) |
|
24H200P.12524H200P.125 MAGNET WIRE, ENAMELE |
81 |
|
برگه مشخصات |
- | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyester | - | 98.0' (30m) | MW 35-C | 0.13 lbs (56.7 g) |
|
22H200P.2522H200P.25 22 AWG MAGNET WIRE, E |
13 |
|
برگه مشخصات |
- | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 125.0' (38m) | MW 35-C | 0.25 lbs (113.4 g) |
|
26H200P.125MAGNET WIRE, ENAMELED COPPER WIR |
39 |
|
برگه مشخصات |
- | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyester | - | 157.0' (48m) | MW 35-C | 0.13 lbs (56.7 g) |
|

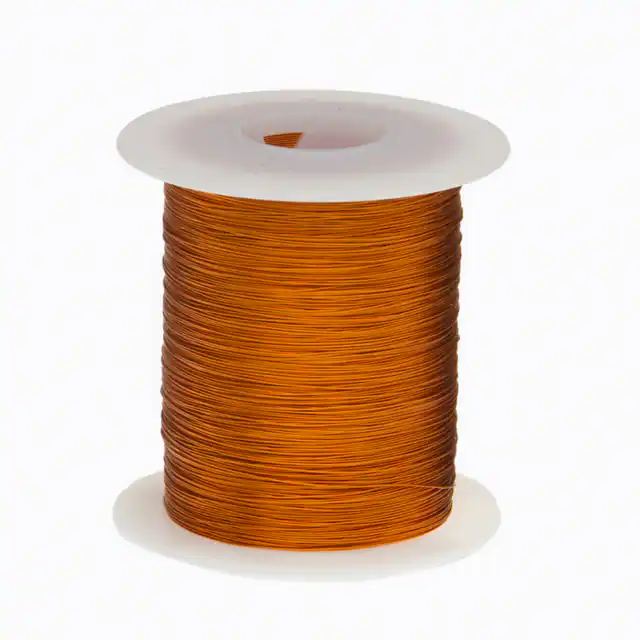

24H200P.2524H200P.25 24 AWG MAGNET WIRE, E |
42 |
|
برگه مشخصات |
- | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyester | - | 197.0' (60m) | MW 35-C | 0.25 lbs (113.4 g) |
|
28H200P.12528H200P.125 MAGNET WIRE, ENAMELE |
24 |
|
برگه مشخصات |
- | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyester | - | 248.0' (76m) | MW 35-C | 0.13 lbs (56.7 g) |
