مانیتورهای خروجی رله
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | وضعیت سفر | محدوده سفر | زمان تاخیر | ولتاژ - منبع تغذیه | نوع خروجی | مدار | تماس با رتبه @ ولتاژ | نوع نصب |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SAO-Q1NSENSOR CURRENT 100/110/120VAC |
0 |
|
برگه مشخصات |
SAO | Bulk | Active | Current Sensing AC | - | - | No Delay | 100 ~ 120VAC | Relay | SPDT (1 Form C) | 3A @ 240VAC | Socketable |
|
|
3UG46312AW30DIGITAL MONITORING RELAY |
0 |
|
برگه مشخصات |
SIRIUS | Box | Active | Voltage Sensing AC/DC | - | 0.1 ~ 60V AC/DC | 0.1 Sec ~ 20 Sec | 24 ~ 240VAC/DC | Relay | SPDT (1 Form C) | - | DIN Rail |
|
|
3UG46322AW30DIGITAL MONITORING RELAY, 1-PH V |
0 |
|
برگه مشخصات |
SIRIUS | Box | Active | Voltage Sensing AC/DC | - | 10 ~ 600V AC/DC | 0.1 Sec ~ 20 Sec | 24 ~ 240VAC/DC | Relay | SPDT (1 Form C) | - | DIN Rail |
|
CMD-120-ASE-1UNIVERSAL AC CURRENT MONITOR/REL |
0 |
|
برگه مشخصات |
CMD | Box | Discontinued | Current Sensing AC | Energized High/Low | 0.2 ~ 1A AC | 0.1 Sec ~ 30 Sec | 120VAC | Relay | DPDT (2 Form C) | 10A @ 120VAC | Chassis Mount |
|

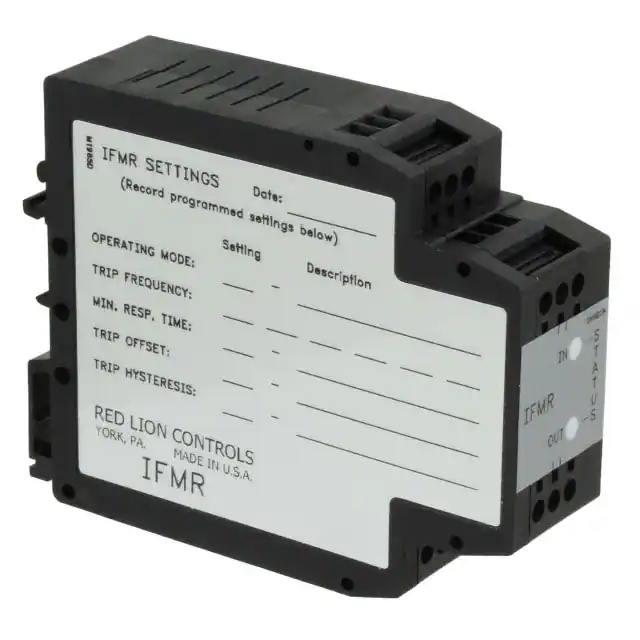

IFMR0036SPEED SWITCH DC POWERED |
0 |
|
برگه مشخصات |
IFMR | Box | Obsolete | Frequency Sensing | Energized High/Low | 0 ~ 25kHz | 0.05 Sec ~ 10 Sec | 9 ~ 32VDC | Relay | SPDT (1 Form C) | 5A @ 240VAC/28VDC | DIN Rail |
|

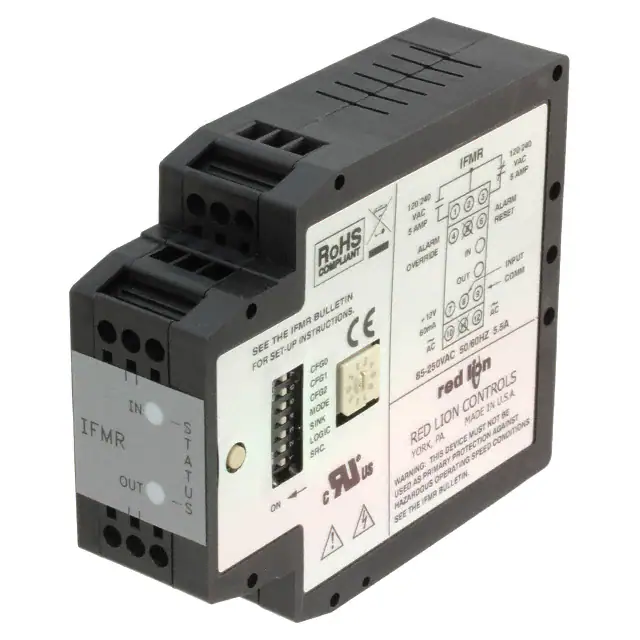

IFMR0066SPEED SWITCH AC POWERED |
0 |
|
برگه مشخصات |
IFMR | Box | Obsolete | Frequency Sensing | Energized High/Low | 0 ~ 25kHz | 0.05 Sec ~ 10 Sec | 85 ~ 250VAC | Relay | SPDT (1 Form C) | 5A @ 240VAC/28VDC | DIN Rail |
|
|
3UG48151AA40MON. RELAY,IO-LINK,3-PH VOLT.,1C |
0 |
|
برگه مشخصات |
SIRIUS | Box | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss, Phase Sequence | Energized High/Low | 160 ~ 690VAC | 0 Sec ~ 999.9 Sec | 24VDC | Relay | SPDT (1 Form C) | 3A @ 400VAC | DIN Rail |
|
|
K8DT-PZ1CN3-PHSE SQNCE&PHSELSS RLY PSHIN |
0 |
|
برگه مشخصات |
K8DT | Box | Active | Phase Loss, Phase Sequence | - | - | 0.1 Sec ~ 30 Sec | 200 ~ 240VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
|
K8DT-PZ2CN3-PHSE SQNCE&PHSELSS TNS PSHIN |
0 |
|
برگه مشخصات |
K8DT | Box | Active | Phase Loss, Phase Sequence | - | - | 0.1 Sec ~ 30 Sec | 380 ~ 480VAC | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail |
|
|
K8DT-PZ2TN3-PHSE SQNCE&PHSELSS TNS PSHIN |
0 |
|
برگه مشخصات |
K8DT | Box | Active | Phase Loss, Phase Sequence | - | - | 0.1 Sec ~ 30 Sec | 380 ~ 480VAC | Solid State | NPN | - | DIN Rail |
|
|
SAO-SU2NCURRENT RELAY |
0 |
|
برگه مشخصات |
SAO | Bulk | Active | Current Sensing AC | - | - | No Delay | 200 ~ 240VAC | Relay | SPDT (1 Form C) | 3A @ 240VAC | Socketable |
|
|
DIC01DD48AV01-PHASE TRUE RMS MONITORING RELA |
0 |
|
- |
DIC01 | Bulk | Active | Current Sensing AC/DC, Voltage Sensing AC/DC | Energized Low | 0.5 ~ 20mA AC/DC, 0.1 ~ 10V AC/DC | 0.1 ~ 30 Sec | 24 ~ 48VAC/DC | Relay | SPDT (1 Form C) x 2 | 8A @ 250VAC | DIN Rail |
|
3UG46212AW30DIGITAL MONITORING RELAY |
0 |
|
برگه مشخصات |
SIRIUS | Box | Active | Current Sensing AC/DC | - | 3 ~ 600mA | 0.1 Sec ~ 20 Sec | 20.4 ~ 264VAC/DC | Relay | SPDT (1 Form C) | 3A @ 400VAC | DIN Rail |
|
|
3UG48152AA40MON. RELAY,IO-LINK,3-PH VOLT.,1C |
0 |
|
برگه مشخصات |
SIRIUS | Box | Active | Voltage Asymmetry, Voltage Sensing AC, Phase Loss, Phase Sequence | Energized High/Low | 160 ~ 690VAC | 0 Sec ~ 999.9 Sec | 24VDC | Relay | SPDT (1 Form C) | 3A @ 400VAC | DIN Rail |
|
|
K8DT-AW2TDOVRUNDRTRANSNPN 0.1-5A PSH IN |
0 |
|
برگه مشخصات |
K8DT | Box | Active | Current Sensing AC/DC | - | 0.1 ~ 5A AC/DC | 0.1 Sec ~ 30 Sec | 24VAC/DC | Solid State | NPN | - | DIN Rail |
|
|
K8DT-AW3TDOVRUNDRTRANSNPN 10-200A PSH IN |
0 |
|
برگه مشخصات |
K8DT | Box | Active | Current Sensing AC/DC | - | 10 ~ 200A AC/DC | 0.1 Sec ~ 30 Sec | 24VAC/DC | Solid State | NPN | - | DIN Rail |
|
50R200291-PHASE VOLTAGE MONITOR/ 190-2 |
0 |
|
برگه مشخصات |
50R | Bulk | Active | Voltage Sensing AC | Energized Low | 190 ~ 240V AC | 2 Sec ~ 300 Sec | 190 ~ 240VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
50R4001-PHASE VOLTAGE MONITOR/ 380-4 |
0 |
|
برگه مشخصات |
50R | Bulk | Active | Voltage Sensing AC | Energized Low | 380 ~ 480V AC | No Delay | 380 ~ 480VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
50R40021-PHASE VOLTAGE MONITOR/ 380-4 |
0 |
|
برگه مشخصات |
50R | Bulk | Active | Voltage Sensing AC | Energized Low | 380 ~ 480V AC | 2 Sec ~ 300 Sec | 380 ~ 480VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
|
|
50R400291-PHASE VM/ 380-480V/ ADJ RD/ |
0 |
|
برگه مشخصات |
50R | Bulk | Active | Voltage Sensing AC | Energized Low | 380 ~ 480V AC | 2 Sec ~ 300 Sec | 380 ~ 480VAC | Relay | SPDT (1 Form C) | 10A @ 240VAC | Chassis Mount |
