Photointerrupters - نوع اسلات - خروجی منطقی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | سنجش فاصله | روش سنجش | پیکربندی خروجی | نوع نصب | جاری - عرضه | ولتاژ - منبع تغذیه | زمان پاسخگویی | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SF2-EH72SENSOR OPTICAL MODULE WIRE LEADS |
0 |
|
برگه مشخصات |
SF2-EH | Module, Wire Leads | Box | Active | 11.811" ~ 393.701" (30cm ~ 10m) | Reflective | PNP | Chassis Mount | 200 mA | 20.4V ~ 27.6V | 15ms, 20ms | -10°C ~ 55°C |
|
|
SF2-EH80SENSOR OPTICAL MODULE WIRE LEADS |
0 |
|
برگه مشخصات |
SF2-EH | Module, Wire Leads | Box | Obsolete | 11.811" ~ 393.701" (30cm ~ 10m) | Reflective | PNP | Chassis Mount | 200 mA | 20.4V ~ 27.6V | 15ms, 20ms | -10°C ~ 55°C |
|
|
SF2-EH64-NSENSOR OPTICAL MODULE WIRE LEADS |
0 |
|
برگه مشخصات |
SF2-EH | Module, Wire Leads | Box | Active | 11.811" ~ 393.701" (30cm ~ 10m) | Reflective | NPN | Chassis Mount | 200 mA | 20.4V ~ 27.6V | 15ms, 20ms | -10°C ~ 55°C |
|
|
SF2-EH72-NSENSOR OPTICAL MODULE WIRE LEADS |
0 |
|
برگه مشخصات |
SF2-EH | Module, Wire Leads | Box | Active | 11.811" ~ 393.701" (30cm ~ 10m) | Reflective | NPN | Chassis Mount | 200 mA | 20.4V ~ 27.6V | 15ms, 20ms | -10°C ~ 55°C |
|
|
SF2-EH80-NSENSOR OPTICAL MODULE WIRE LEADS |
0 |
|
برگه مشخصات |
SF2-EH | Module, Wire Leads | Box | Active | 11.811" ~ 393.701" (30cm ~ 10m) | Reflective | NPN | Chassis Mount | 200 mA | 20.4V ~ 27.6V | 15ms, 20ms | -10°C ~ 55°C |
|
|
SD3-A1SENSOR OPTICAL MODULE TYPE 3 |
0 |
|
- |
- | Module | Box | Active | 157.480" (4m) | Reflective | PNP | - | - | 24V | 80ms | - |
|
EE-SX301SENSOR OPTICAL 3.4MM PCB MOUNT |
0 |
|
برگه مشخصات |
- | PCB Mount | Tray | Obsolete | 0.134" (3.4mm) | Through-Beam | NPN - Open Collector/Dark-ON | Through Hole | 3.2 mA | 4.5V ~ 16V | - | -40°C ~ 75°C |
|
|
EE-SX401SENSOR OPTICAL 3.4MM PCB MOUNT |
0 |
|
برگه مشخصات |
- | PCB Mount | Tray | Obsolete | 0.134" (3.4mm) | Through-Beam | NPN - Open Collector/Light-ON | Through Hole | 3.2 mA | 4.5V ~ 16V | - | -40°C ~ 75°C |
|

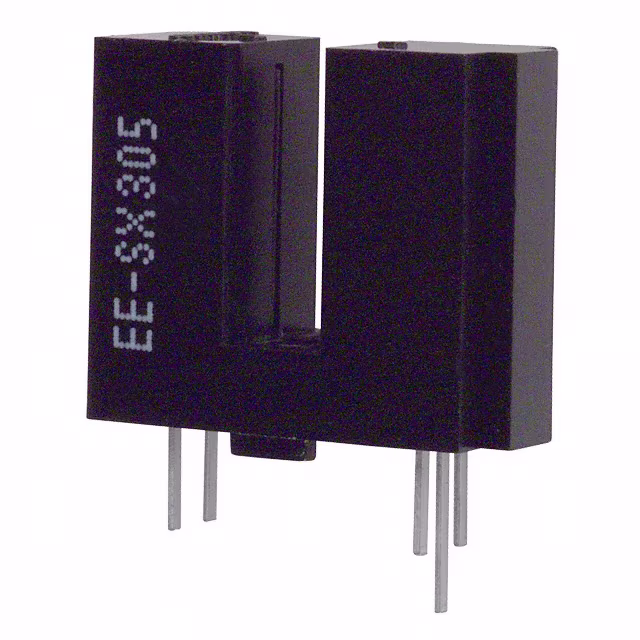

EE-SX305SENSOR OPTICAL 3.4MM PCB MOUNT |
0 |
|
برگه مشخصات |
- | PCB Mount | Tray | Obsolete | 0.134" (3.4mm) | Through-Beam | NPN - Open Collector/Dark-ON | Through Hole | 3.2 mA | 4.5V ~ 16V | - | -40°C ~ 75°C |
|
EE-SX4235A-P2SENSOR OPTICAL 5MM MODULE W/CONN |
0 |
|
برگه مشخصات |
- | Module, Connector | Bag | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Open Collector/Light-ON | Snap-In | 16.5 mA | 7V | - | -25°C ~ 75°C |
|
|
GP1A70RSENSOR OPTICAL 2MM PCB MOUNT |
0 |
|
برگه مشخصات |
OPIC™ | PCB Mount | Bulk | Obsolete | 0.079" (2mm) | Through-Beam | NPN - Open Collector | Through Hole | 5 mA | 4.5V ~ 5.5V | - | 0°C ~ 70°C |
|

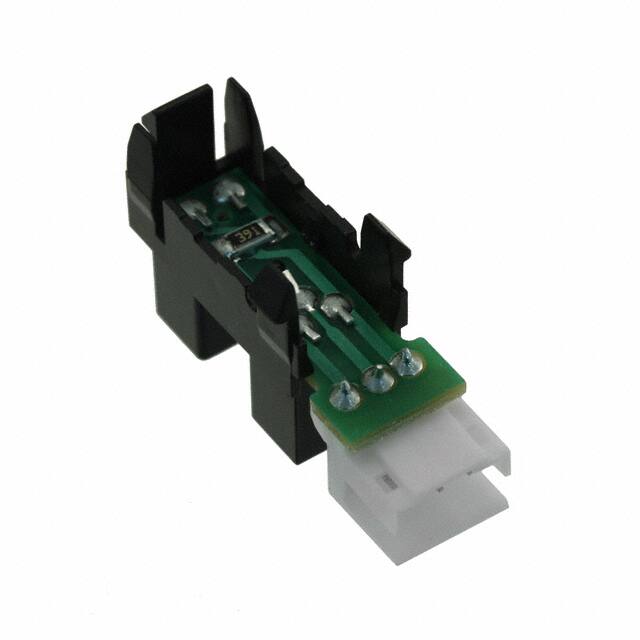

EE-SX3239-P2SENSOR OPTICAL 5MM MODULE |
0 |
|
برگه مشخصات |
- | Module | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Open Collector/Dark-ON | Snap-In | 16 mA | 4.75V ~ 5.25V | - | -20°C ~ 75°C |
|
HOA0902-011SENSOR OPTICAL 3.2MM PCB MOUNT |
0 |
|
- |
- | PCB Mount | Bulk | Obsolete | 0.126" (3.2mm) | Through-Beam | NPN - Open Collector | Through Hole | 12 mA | 4.5V ~ 5.5V | - | -40°C ~ 70°C |
|
HOA0961-N51SENSOR OPTICAL 3.18MM PCB MOUNT |
0 |
|
برگه مشخصات |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | NPN - Open Collector, Buffer | Through Hole | 12 mA | 4.5V ~ 10V | 60ns, 15ns | -40°C ~ 70°C |
|
|
HOA0971-N51SENSOR OPTICAL 3.18MM PCB MOUNT |
0 |
|
برگه مشخصات |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | NPN - Open Collector, Buffer | Through Hole | 12 mA | 4.5V ~ 10V | 60ns, 15ns | -40°C ~ 70°C |
|

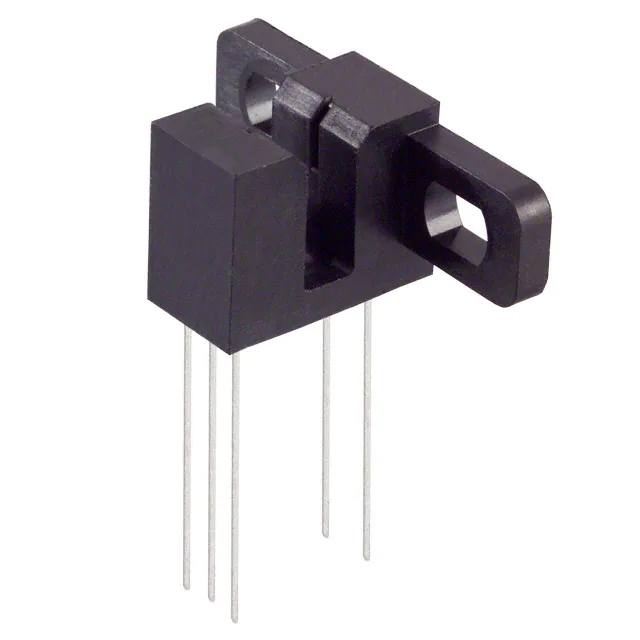

HOA2004-001SENSOR OPTICAL 3.18MM PCB MOUNT |
0 |
|
برگه مشخصات |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | NPN - Open Collector, Buffer | Through Hole | 12 mA | 4.5V ~ 10V | 60ns, 15ns | -40°C ~ 70°C |
|

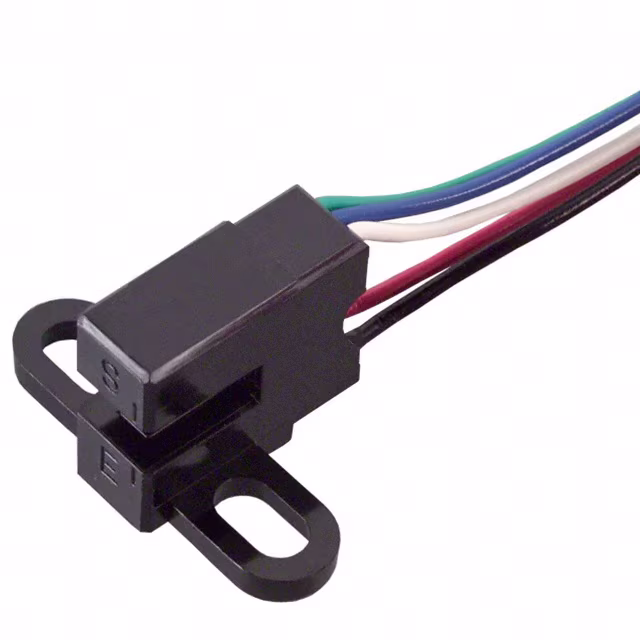

HOA2005-001SENSOR OPTICAL 3.18MM SLOT MOD |
0 |
|
برگه مشخصات |
- | Module, Slotted | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | NPN - Open Collector, Buffer | Chassis Mount | 12 mA | 4.5V ~ 12V | 60ns, 6ns | -40°C ~ 70°C |
|

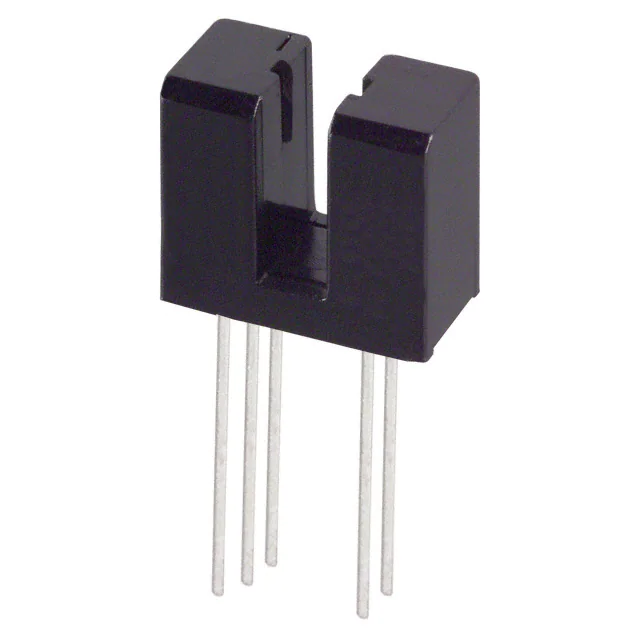

HOA6972-N55SENSOR OPTICAL 3.18MM PCB MOUNT |
0 |
|
برگه مشخصات |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Totem Pole, Inverted | Through Hole | 15 mA | 4.5V ~ 7V | 70ns | -40°C ~ 70°C |
|

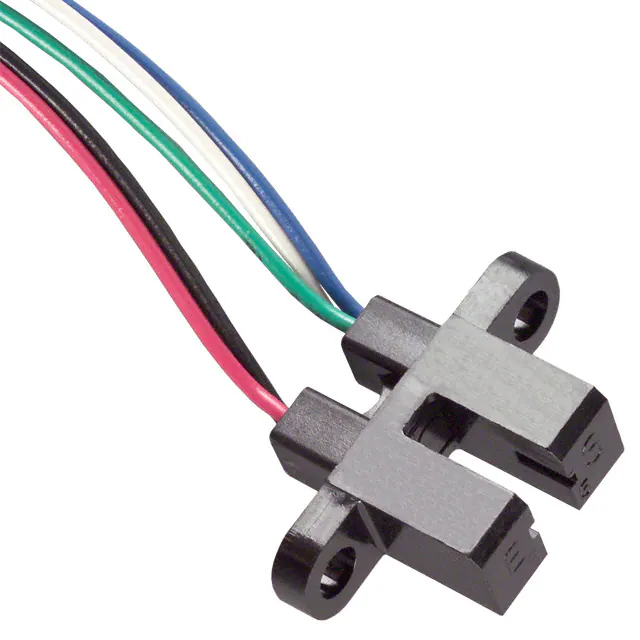

HOA6990-T51SENSOR OPTICAL 3.18MM MOD WIRE |
0 |
|
برگه مشخصات |
- | Module, Wire Leads | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | Chassis Mount | 15 mA | 4.5V ~ 7V | 70ns | -40°C ~ 70°C |
|
GP1A038RBK0FSENSOR OPTICAL 1.7MM PCB MOUNT |
0 |
|
برگه مشخصات |
OPIC™ | PCB Mount | Bulk | Obsolete | 0.067" (1.7mm) | Through-Beam | NPN - Open Collector | Through Hole | 5 mA | 2.7V ~ 5.5V | 1µs | - |
