قطع کننده های عکس - نوع اسلات - خروجی ترانزیستور
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | سنجش فاصله | روش سنجش | پیکربندی خروجی | جریان - DC رو به جلو (اگر) (حداکثر) | فعلی - گردآورنده (IC) (حداکثر) | ولتاژ - خرابی امیتر کلکتور (حداکثر) | زمان پاسخگویی | دمای عملیاتی | درجه | صلاحیت | نوع نصب |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EE-SX913-C1J-R 0.3MSENSOR OPT SLOT NPN MODULE |
0 |
|
برگه مشخصات |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX913P-R 1MSENSOR OPT SLOT PNP MODULE |
0 |
|
برگه مشخصات |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
EE-SX914-C1J-R 0.3MSENSOR OPT SLOT NPN MODULE |
0 |
|
برگه مشخصات |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX914-R 1MSENSOR OPT SLOT NPN MODULE |
0 |
|
برگه مشخصات |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
EE-SX914P-R 1MSENSOR OPT SLOT PNP MODULE |
0 |
|
برگه مشخصات |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
ITR9803SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
برگه مشخصات |
- | Slotted Module | Bulk | Active | 0.122" (3.1mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 15µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
LTH-306-41P1SENSOR OPT SLOT MODULE |
0 |
|
برگه مشخصات |
- | Module, PC Pins, Slot Type | Bulk | Active | - | - | - | 1 A | 20 mA | 30 V | 3µs, 4µs | -25°C ~ 85°C | - | - | Through Hole |
|
PM-F24PSENSOR OPT SLOT PNP MODULE |
0 |
|
برگه مشخصات |
PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-F24-RSENSOR OPT SLOT NPN MODULE |
0 |
|
برگه مشخصات |
PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-K24PSENSOR OPT SLOT PNP MODULE |
0 |
|
برگه مشخصات |
PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-K24-RSENSOR OPT SLOT NPN MODULE |
0 |
|
برگه مشخصات |
PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-K64PSENSOR OPT SLOT PNP MODULE |
0 |
|
برگه مشخصات |
PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|

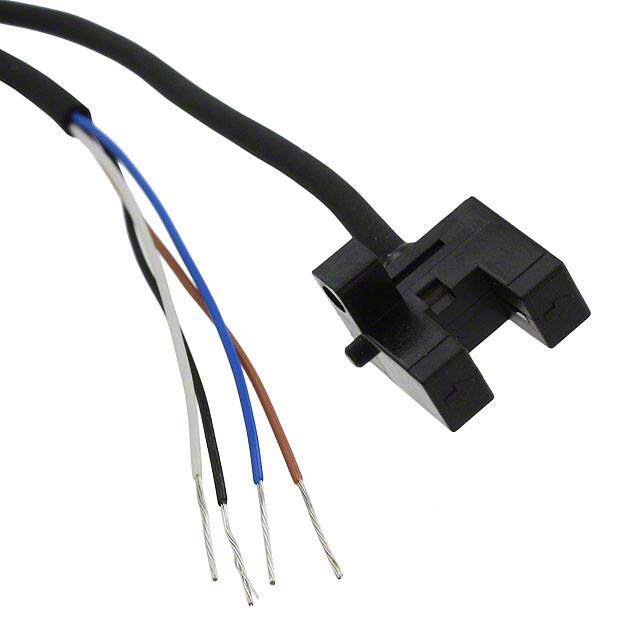

PM-R24PSENSOR OPT SLOT PNP MODULE |
0 |
|
برگه مشخصات |
PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-R64SENSOR OPT SLOT NPN MODULE |
0 |
|
برگه مشخصات |
PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|

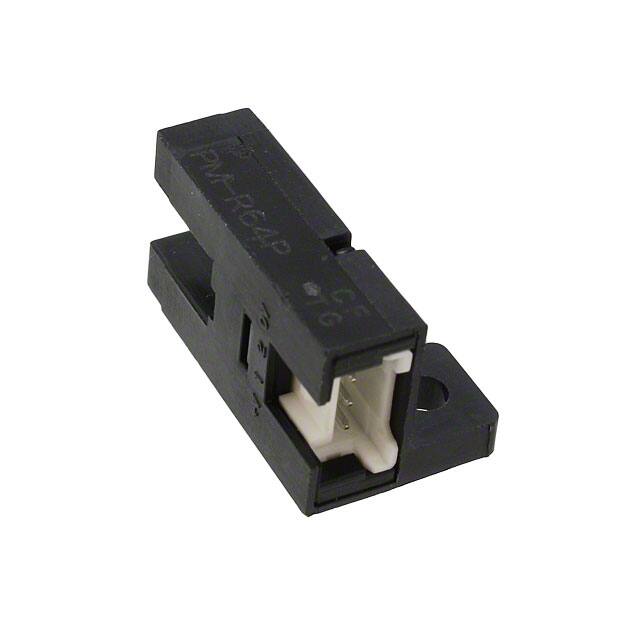

PM-R64PSENSOR OPT SLOT PNP MODULE |
0 |
|
برگه مشخصات |
PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-F54SENSOR OPT SLOT NPN MODULE |
0 |
|
برگه مشخصات |
PM-54 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|

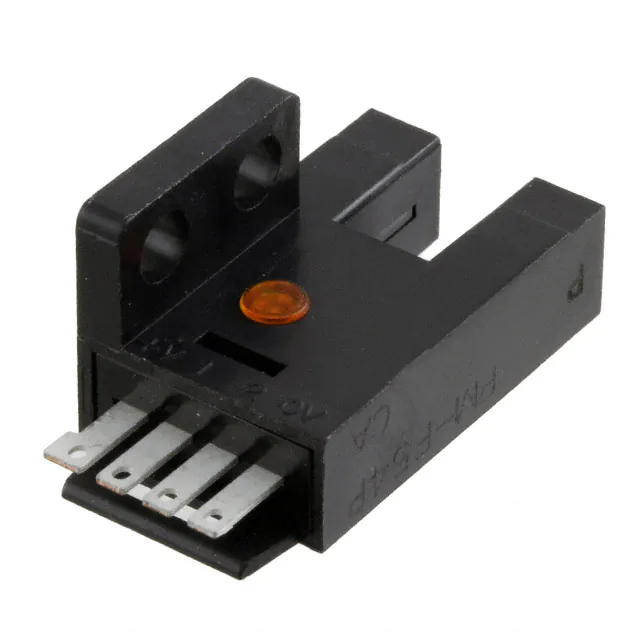

PM-F54PSENSOR OPT SLOT PNP MODULE |
0 |
|
برگه مشخصات |
PM-54 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|

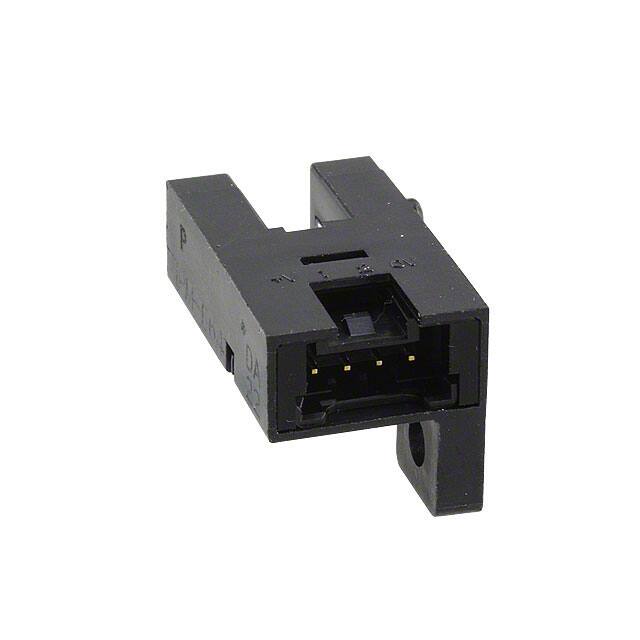

PM-F64SENSOR OPT SLOT NPN MODULE |
0 |
|
برگه مشخصات |
PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
.JPG)
|

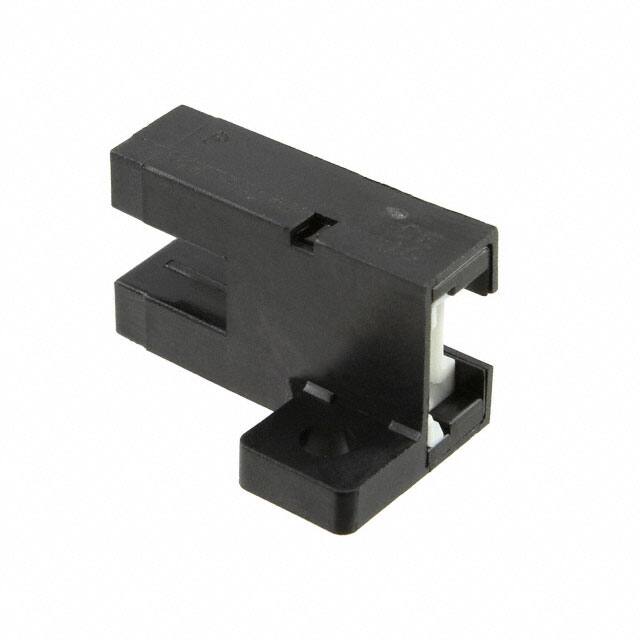

PM-F64PSENSOR OPT SLOT PNP MODULE |
0 |
|
برگه مشخصات |
PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-K64SENSOR OPT SLOT NPN MODULE |
0 |
|
برگه مشخصات |
PM-64 | Module, Connector, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
