نشانگرهای پانل، چراغ های پیلوت
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | رنگ لامپ | رنگ لنز | شفافیت لنز | رتبه بندی ها | ولتاژ | فعلی | شکل برش پانل | ابعاد برش پانل | اندازه لنز | سبک لنز | رتبه بندی میلیکاندلا | طول موج - اوج | زاویه دید | سبک خاتمه | حفاظت از ورود | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP6M166-R-ENGRAVEDPILOT LIGHT 16MM |
0 |
|
برگه مشخصات |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Q22F1CXXSR24ELED INDICATOR 22MM |
0 |
|
برگه مشخصات |
Q22 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 40mA | Round | 0.87" (22.00mm) | 16.75mm Dia | Round with Flat Top | 800mcd | - | 100° | Solder Lug | IP67 | - |
|
|
3SB22046BE06PILOT LIGHT,GRN,FV W/O BULB,RING |
0 |
|
برگه مشخصات |
- | Box | Active | LED | - | - | - | AC/DC | 5V ~ 60V | - | Round | 0.63" (16.00mm) | 16.00mm Dia | Round with Flat Top | - | - | - | Tab Terminal | IP65 | - |
|
|
Q10F5ANZZRGB02ECALED PANEL INDICATOR RGB |
0 |
|
- |
Q10 | Bulk | Active | LED | Red, Green, Blue (RGB) | - | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA Red, 20mA Green, 20mA Blue | Round | 0.394" (10.00mm) | 7.80mm Dia | Round with Flat Top | 330mcd Red, 750mcd Green, 150mcd Blue | - | 60° | Wire Leads - 7.87" (200.00mm) | IP67 | - |
|
|
QRM65BXXSW02ELED INDICATOR REAR MOUNT |
0 |
|
برگه مشخصات |
QRM6 | Bulk | Active | LED | White | White | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.24" (6.00mm) | 3mm, T-1 | Round with Flat Top | 1560mcd | - | 60° | Wire Leads - 8.268" (210.0mm) | IP67 | - |
|
Q22F1ABXXB220EINDICATOR 220V 22MM FLUSH BLUE |
0 |
|
برگه مشخصات |
Q22 | Bag | Active | LED | Blue | Blue | Diffused | AC | 220V | 3mA | Round | 0.87" (22.10mm) | 18.00mm Dia | Round with Flat Top | 101mcd | - | - | Solder Lug | IP67 | - |
|
|
QRM65BXXSG02ELED INDICATOR REAR MOUNT |
0 |
|
برگه مشخصات |
QRM6 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.24" (6.00mm) | 3mm, T-1 | Round with Flat Top | 2000mcd | - | 60° | Wire Leads - 8.268" (210.0mm) | IP67 | - |
|
|
QRM65BXXSB02ELED INDICATOR REAR MOUNT |
0 |
|
برگه مشخصات |
QRM6 | Bulk | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 2V | 20mA | Round | 0.24" (6.00mm) | 3mm, T-1 | Round with Flat Top | 200mcd | - | 60° | Wire Leads - 8.268" (210.0mm) | IP67 | - |
|

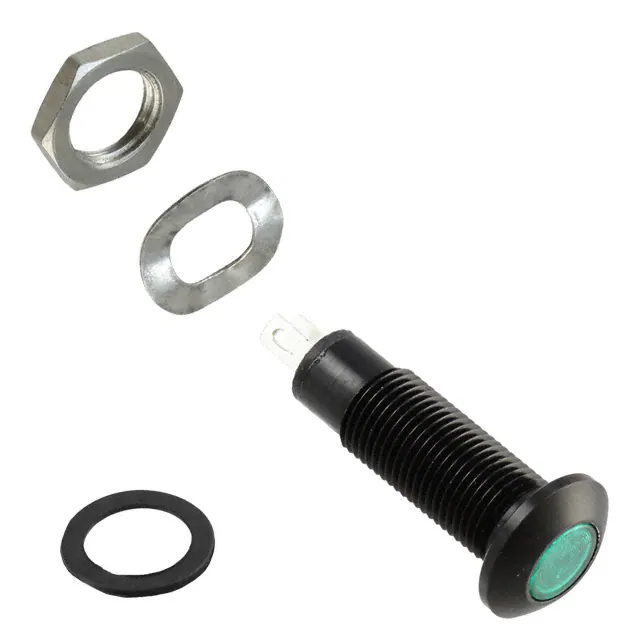

PM5-A7G28VPANEL MOUNT ASSEM 8.1MM GREEN |
1 |
|
برگه مشخصات |
PM5 | Bag | Obsolete | LED | Green | Green | Fresnel | AC/DC | 12V ~ 28V | 20mA | Round | 0.32" (8.13mm) | 7.00mm Dia | Round with Flat Top | 800mcd | 515nm | 120° | Quick Connect - 0.110" (2.8mm) | IP67 | - |
|
|
Q22P1BXXSR24ELED INDICATOR 22MM |
0 |
|
برگه مشخصات |
Q22 | Bulk | Active | LED | Red | Red | Diffused | DC | 24V | 40mA | Round | 0.87" (22.00mm) | 16.75mm Dia | Round with Domed Top | 465mcd | - | 100° | Solder Lug | IP67 | - |
|
|
M22-FY-24APILOT LIGHT 24V LED ROUND YELLOW |
0 |
|
برگه مشخصات |
M22 | Bulk | Obsolete | LED | Yellow | Yellow | Diffused | AC/DC | 24V | 8mA | Round | 0.88" (22.35mm) | 29.70mm Dia | Round with Flat Top | - | - | - | - | IP65 | - |
|
|
5563903204F1" DOME ORNG LED 12V |
0 |
|
برگه مشخصات |
556 | Bag | Active | LED | Orange | - | - | DC | 12V | 95mA | Round | 1.00" (25.4mm) | 28.50mm Dia | Round with Domed Top | 3500mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5563504224F1" DOME RED LED PMI 24V C1D2 |
0 |
|
- |
556 | Bag | Active | LED | Red | - | - | DC | 24V | 46mA | Round | 1.00" (25.4mm) | 28.50mm Dia | Round with Domed Top | 14000mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5561704224F1" FLAT YEL LED PMI 24V C1D2 |
0 |
|
- |
556 | Bag | Active | LED | Yellow | - | - | DC | 24V | 46mA | Round | 1.00" (25.4mm) | 28.50mm Dia | Round with Flat Top | 13500mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5561503224F1" FLAT RED LED PMI 12V C1D2 |
0 |
|
- |
556 | Bag | Active | LED | Red | - | - | DC | 12V | 95mA | Round | 1.00" (25.4mm) | 28.50mm Dia | Round with Flat Top | 22000mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5563704224F1" DOME YEL LED PMI 24V C1D2 |
0 |
|
- |
556 | Bag | Active | LED | Yellow | - | - | DC | 24V | 46mA | Round | 1.00" (25.4mm) | 28.50mm Dia | Round with Domed Top | 4000mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5561903224F1" FLAT C1D2 ORNG LED 12V |
0 |
|
- |
556 | Bag | Active | LED | Orange | - | - | DC | 12V | 95mA | Round | 1.00" (25.4mm) | 28.50mm Dia | Round with Flat Top | 11500mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5561703224F1" FLAT YEL LED PMI 12V C1D2 |
0 |
|
- |
556 | Bag | Active | LED | Yellow | - | - | DC | 12V | 95mA | Round | 1.00" (25.4mm) | 28.50mm Dia | Round with Flat Top | 13500mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5561904224F1" FLAT C1D2 ORNG LED 24V |
0 |
|
- |
556 | Bag | Active | LED | Orange | - | - | DC | 24V | 46mA | Round | 1.00" (25.4mm) | 28.50mm Dia | Round with Flat Top | 11500mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
5563703224F1" DOME YEL LED PMI 12V C1D2 |
0 |
|
- |
556 | Bag | Active | LED | Yellow | - | - | DC | 12V | 95mA | Round | 1.00" (25.4mm) | 28.50mm Dia | Round with Domed Top | 4000mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
