متر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | نوع اندازه گیری | محدوده اندازه گیری | نوع نمایشگر | تعداد کاراکترها در هر ردیف | نمایش شخصیت ها - ارتفاع | نوع خروجی | ولتاژ - منبع تغذیه | ابعاد برش پانل | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MINI-5VDIM-200V200V 0.01% super accurate dimmab |
50 |
|
برگه مشخصات |
- | Bulk | Active | Voltmeter | Voltage | 200VDC | LED - Red Characters | 3.5 | 0.275" (7.00mm) | - | 5VDC | - | Panel Mount | Screw Terminal | - | - |
|
SM35DCV4-20DDifferential 4-20mADC Ct Shunt 5 |
50 |
|
برگه مشخصات |
SM | Retail Package | Active | Ammeter, Process Meter | Current, Process | 4 ~ 20mA | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable |
|
|
SM35DCV4-20I4-20mA DC Mtr 1.5kV Isolat 5VPwr |
50 |
|
برگه مشخصات |
SM | Retail Package | Active | Ammeter, Process Meter | Current, Process | 4 ~ 20mA | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable |
|
|
SM35DCVCMVDIDifferen 100mVDC Ct Shunt Iso 5V |
50 |
|
برگه مشخصات |
SM | Retail Package | Active | Process Meter, Voltmeter | Voltage | 0 ~ 100VDC | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable, External Current Shunt Compatible |
|
|
SM35DCVLMVDIDifferen 50mVDC Ct Shunt Iso 5V |
50 |
|
برگه مشخصات |
SM | Retail Package | Active | Process Meter, Voltmeter | Voltage | 0 ~ 50VDC | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable, External Current Shunt Compatible |
|
PM-45X-200MV200MV DIFFERENTIAL 0.01% DCV MTR |
50 |
|
- |
PM | Bulk | Active | Voltmeter | Voltage | 0 ~ 200mVDC | LED | 4.5 | 0.480" (12.20mm) | - | 4.5 ~ 5.5VDC | Rectangular - 64.77mm x 24.64mm | Panel Mount | Card Edge | - | - |
|
|
PM-45X-200V200V DIFFERENTIAL 0.01% DCV MTR |
50 |
|
- |
PM | Bulk | Active | Voltmeter | Voltage | 0 ~ 200VDC | LED | 4.5 | 0.480" (12.20mm) | - | 4.5 ~ 5.5VDC | Rectangular - 64.77mm x 24.64mm | Panel Mount | Card Edge | - | - |
|
|
AP93-ZV3HR20000000DC PWR MTR 200-1000DC,RS485,2RLY |
100 |
|
برگه مشخصات |
Alpha EM DC | Case | Active | DC Amp Meter Controller | - | 201 ~ 1000VDC | LCD - Red Characters | 8, 8, 8, 8 | 0.713" (18.10mm) | - | 60 ~ 300VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | - | IP54 - Dust Protected, Water Resistant | DC Energy Meter With Advanced Monitoring and Logging option |
|
|
AP30-23GUZZZ000000DigMFM 3PH;IN208/480,Ax100-250AC |
100 |
|
برگه مشخصات |
Alpha 30 | Case | Active | Multifunction Meter (Current, Voltage, Frequency, Power) | Current (3-Phase), Voltage, Wattage | 1 ~ 5A, 0 ~ 480VAC | LCD - Red Characters | 4, 4, 4 | 0.713" (18.10mm) | - | 100 ~ 250VAC/DC | Square - 92.80mm x 92.80mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Alpha 30 Multifunction Programmable Power/Energy Meter |
|
|
MLM1-030101AH10000PWR METER;12chnl,100-600AC,RS485 |
100 |
|
برگه مشخصات |
Alpha ML14XX | Case | Active | Multifunction Meter (Current, Voltage, Frequency, Power) | Current (1-Phase/3-Phase), Voltage, Wattage | 0 ~ 5A, 208 ~ 480VAC, 45 ~ 65Hz | LCD - Black Characters, Backlight | Programmable | 0.384" (9.75mm) | Relay (2) | 100 ~ 550VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | 12 Circuit Monitoring, THD Monitoring |
|
|
AP30-23GDZZZ000000DigMFM 3PH;IN208/480,Aux12-48vDC |
100 |
|
برگه مشخصات |
Alpha 30 | Case | Active | Multifunction Meter (Current, Voltage, Frequency, Power) | Current (3-Phase), Voltage, Wattage | 1 ~ 5A, 0 ~ 480VAC | LCD - Red Characters | 4, 4, 4 | 0.713" (18.10mm) | - | 12 ~ 48VDC | Square - 92.80mm x 92.80mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Alpha 30 Multifunction Programmable Power/Energy Meter |
|
UM-35RTD-CTEMPERATURE RTD 100OHM PT 3 OR 4 |
50 |
|
برگه مشخصات |
UM | Box | Active | Temperature Meter | RTD | -200°C ~ 800°C | LED - Red Characters | 3.5 | 0.560" (14.22mm) | - | 85 ~ 305VAC, 120 ~ 430VDC, 50/60Hz | Rectangular - 91.00mm x 41.60mm | Panel Mount | Plug In Screw Terminals | - | - |
|

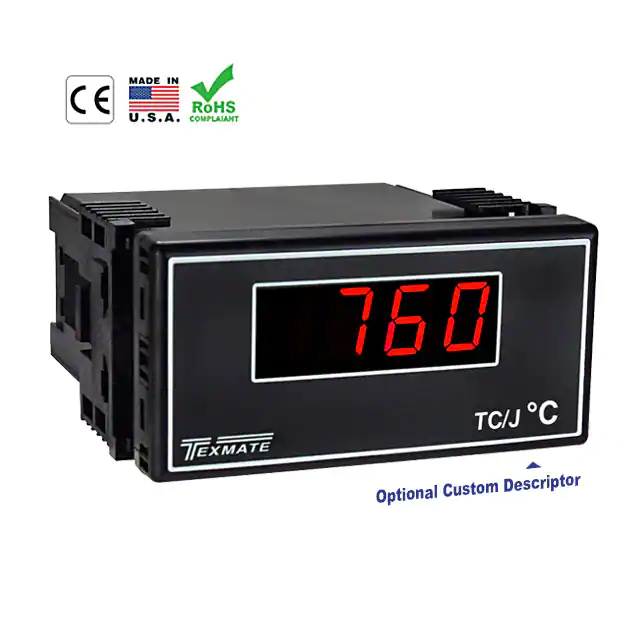

UM-35-TC-JCTHERMOCOUPLE JC 1 120 OR 240VAC |
50 |
|
برگه مشخصات |
UM | Box | Active | Temperature Meter | RTD | 0°C ~ 760°C | LED - Red Characters | 3.5 | 0.560" (14.22mm) | - | 85 ~ 305VAC, 120 ~ 430VDC, 50/60Hz | Rectangular - 91.00mm x 41.60mm | Panel Mount | Plug In Screw Terminals | - | - |
|
UM-35RTD-F.1TEMPERATURE RTD 100 OHM PT 3 OR |
50 |
|
برگه مشخصات |
UM | Box | Active | Temperature Meter | RTD | -199.9°F ~ 199.9°F | LED - Red Characters | 3.5 | 0.560" (14.22mm) | - | 85 ~ 305VAC, 120 ~ 430VDC, 50/60Hz | Rectangular - 91.00mm x 41.60mm | Panel Mount | Plug In Screw Terminals | - | - |
|

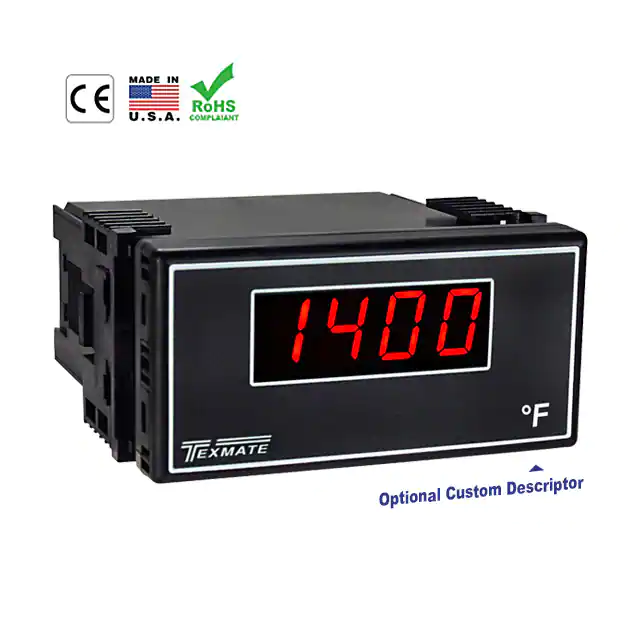

UM-35-TC-JFTHERMOCOUPLE JF 1 120 OR 240VAC |
50 |
|
برگه مشخصات |
UM | Box | Active | Temperature Meter | RTD | 0°F ~ 1400°F | LED - Red Characters | 3.5 | 0.560" (14.22mm) | - | 85 ~ 305VAC, 120 ~ 430VDC, 50/60Hz | Rectangular - 91.00mm x 41.60mm | Panel Mount | Plug In Screw Terminals | - | - |
|
UM-35RTD-FTEMPERATURE RTD 100 OHM PT 3 OR |
50 |
|
برگه مشخصات |
UM | Box | Active | Temperature Meter | RTD | -200°F ~ 1470°F | LED - Red Characters | 3.5 | 0.560" (14.22mm) | - | 85 ~ 305VAC, 120 ~ 430VDC, 50/60Hz | Rectangular - 91.00mm x 41.60mm | Panel Mount | Plug In Screw Terminals | - | - |
|
|
AP93-ZV3HR40000000DC PWR MTR 200-1000DC,RS485,4RLY |
100 |
|
برگه مشخصات |
Alpha EM DC | Case | Active | DC Amp Meter Controller | - | 201 ~ 1000VDC | LCD - Red Characters | 8, 8, 8, 8 | 0.713" (18.10mm) | RS485, Relay (4) | 60 ~ 300VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | - | IP54 - Dust Protected, Water Resistant | DC Energy Meter With Advanced Monitoring and Logging option |
|
|
AP30-23GURZZ000000DigMFM 3PH;IN208/480VAC,RS485 |
100 |
|
برگه مشخصات |
Alpha 30 | Case | Active | Multifunction Meter (Current, Voltage, Frequency, Power) | Current (3-Phase), Voltage, Wattage | 1 ~ 5A, 0 ~ 480VAC | LCD - Red Characters | 4, 4, 4 | 0.713" (18.10mm) | RS485 | 100 ~ 250VAC/DC | Square - 92.80mm x 92.80mm | Panel Mount | Screw Terminal | IP54 - Dust Protected, Water Resistant | Alpha 30 Multifunction Programmable Power/Energy Meter |
|
|
SM35DCV420DIDifferen 4-20mADC Ct Shun Iso 5V |
50 |
|
برگه مشخصات |
SM | Retail Package | Active | Ammeter, Process Meter | Current, Process | 4 ~ 20mA | LED | 3.5 | 0.560" (14.22mm) | - | - | Rectangular - 64.77mm x 24.64mm | Panel Mount - Bezel | - | IP30 | Header Programmable |
|
|
E5B-EW-E3Three-Phase Energy Monitor |
250 |
|
برگه مشخصات |
E5B | Retail Package | Active | Power Meter | Current (3-Phase) | 0 ~ 200A | - | - | - | - | - | - | - | - | - | - |
