| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | نوع اندازه گیری | محدوده اندازه گیری | نوع نمایشگر | تعداد کاراکترها در هر ردیف | نمایش شخصیت ها - ارتفاع | نوع خروجی | ولتاژ - منبع تغذیه | ابعاد برش پانل | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLA-300HRLVOLTMETER 200MVDC LED PANEL MT |
6 |
|
برگه مشخصات |
DK630-640 | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | Bezel Sold Separately |
|
DPM 750S-EB-WPROCESS METER LCD PNL MOUNT |
2 |
|
برگه مشخصات |
DPM | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - White Characters, Backlight | 3.5 | 0.500" (12.70mm) | Reference | 4.75 ~ 7.5VDC | Rectangular - 62.00mm x 32.00mm | Panel Mount | PC Pin | IP67 - Dust Tight, Waterproof | - |
|
DK563VOLTMETER 20VDC LCD PANEL MOUNT |
10 |
|
برگه مشخصات |
DK540-580 EPIC | Bulk | Active | Voltmeter | Voltage | ±20VDC | LCD - Green Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DMS-30DR-1-R-CVOLTMETER 2VDC LED PANEL MOUNT |
19 |
|
برگه مشخصات |
DMS-30DR | Box | Active | Voltmeter | Voltage | ±2VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|
DMS-30PC-2-BS-CVOLTMETER 20VDC LED PANEL MOUNT |
11 |
|
برگه مشخصات |
DMS-30PC | Box | Active | Voltmeter | Voltage | ±20VDC | LED - Blue Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | - |
|
DLA20-DCM-R-1VOLTMETER 8-50VDC LED PANEL MT |
5 |
|
برگه مشخصات |
DLA20-DCM | Bulk | Active | Voltmeter | Voltage | 8 ~ 50VDC | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
|
DLA20-DCM-R-2VOLTMETER 30-264VDC LED PNL MT |
3 |
|
برگه مشخصات |
DLA20-DCM | Bulk | Active | Voltmeter | Voltage | 30 ~ 264VDC | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DLA20-DCM-G-1VOLTMETER 8-50VDC LED PANEL MT |
2 |
|
برگه مشخصات |
DLA20-DCM | Bulk | Active | Voltmeter | Voltage | 8 ~ 50VDC | LED - Green Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
DK704VOLTMETER 200MVDC LCD PANEL MT |
7 |
|
برگه مشخصات |
DK700 | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 4.5 | 0.512" (13.00mm) | - | 9VDC | Rectangular - 58.40mm x 22.40mm | Panel Mount - Surface, Window | PC Pin | - | - |
|
DK711VOLTMETER 2VDC LCD PANEL MOUNT |
5 |
|
برگه مشخصات |
DK710 | Bulk | Active | Voltmeter | Voltage | 2VDC | LCD - Black Characters | 4.5 | 0.512" (13.00mm) | - | 5VDC | Rectangular - 60.70mm x 24.90mm | Panel Mount | PC Pin | - | - |
|
|
DK710VOLTMETER 200MVDC LCD PANEL MT |
2 |
|
برگه مشخصات |
DK710 | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters | 4.5 | 0.512" (13.00mm) | - | 5VDC | Rectangular - 60.70mm x 24.90mm | Panel Mount | PC Pin | - | - |
|

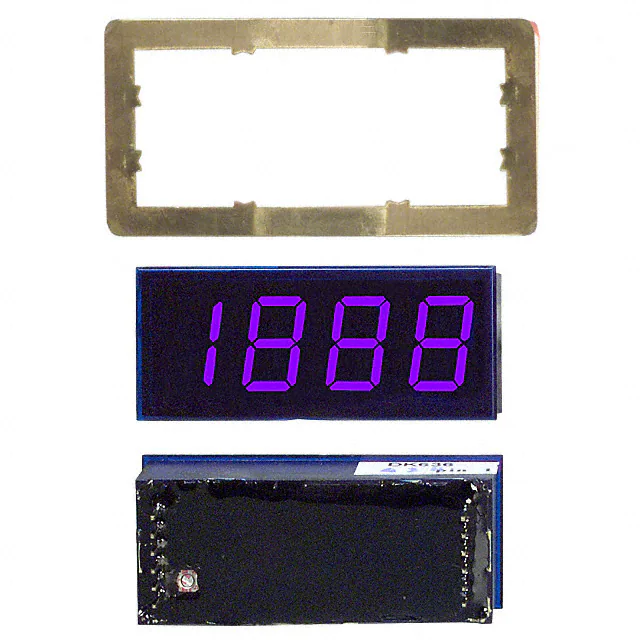

DLA-301BLVOLTMETER 2VDC LED PANEL MOUNT |
10 |
|
برگه مشخصات |
DK630-640 | Bulk | Active | Voltmeter | Voltage | ±2VDC | LED - Blue Characters | 3.5 | 0.560" (14.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | Bezel Sold Separately |
|
DLA20-DCA-R-1AMMETER 0-199.9UA LED PANEL MT |
5 |
|
برگه مشخصات |
DLA20-DCA | Bulk | Active | Ammeter | Current | 0 ~ 199.9µA | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 5 ~ 40VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|

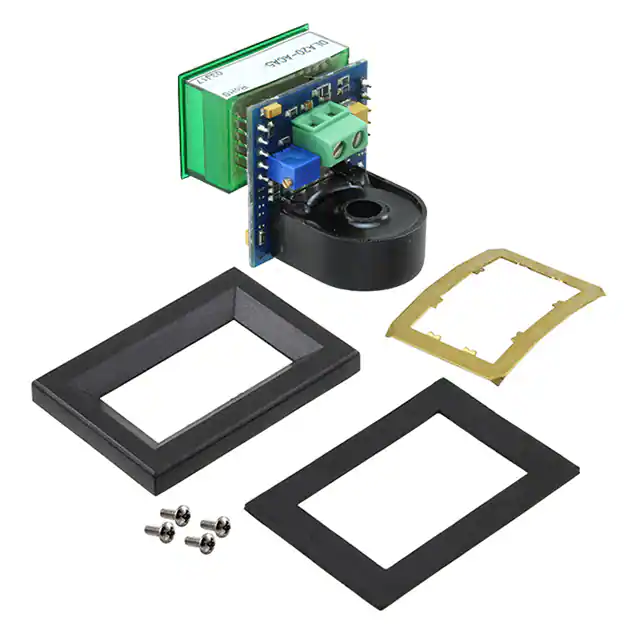

DLA20-ACA-G-4AMMETER 0-100A LED PANEL MOUNT |
5 |
|
برگه مشخصات |
DLA20-ACA | Bulk | Active | Ammeter | Current | 0 ~ 100A | LED - Green Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|

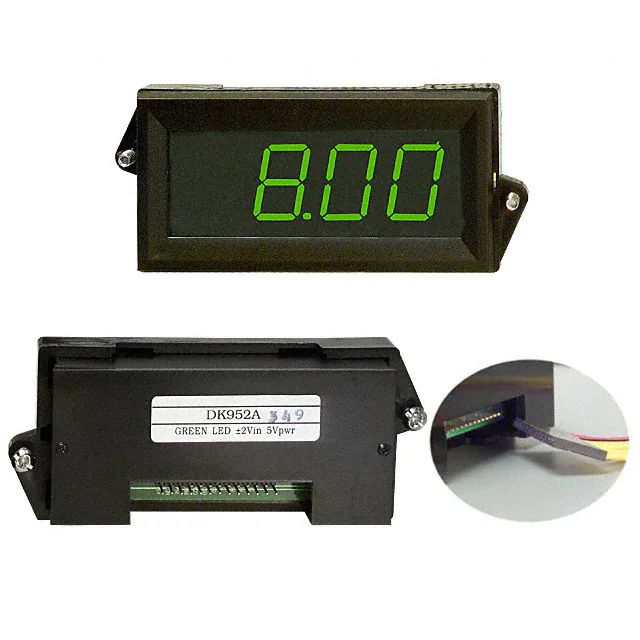

DK952AVOLTMETER 2VDC LED PANEL MOUNT |
11 |
|
برگه مشخصات |
DK800/900 | Bulk | Active | Voltmeter | Voltage | ±2VDC | LED - Green Characters | 3.5 | 0.800" (20.32mm) | - | 5VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | PC Pin | IP66 - Dust Tight, Water Resistant | - |
|
DK190PROCESS METER 4-20MA LCD PNL MT |
11 |
|
برگه مشخصات |
DK190 | Bulk | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters | 3.5 | 0.500" (12.70mm) | - | Loop Power | Rectangular - 56.40mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|

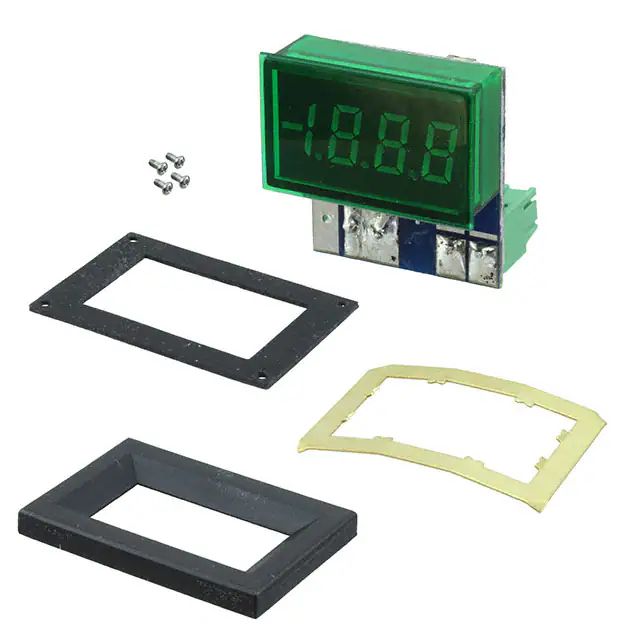

DLA20-DCA-G-4AMMETER 0-199.9MA LED PANEL MT |
2 |
|
برگه مشخصات |
DLA20-DCA | Bulk | Active | Ammeter | Current | 0 ~ 199.9mA | LED - Green Characters | 3.5 | 0.370" (9.40mm) | - | 5 ~ 40VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | - |
|
ACA-20PC-2-DC1-RL-CAMMETER 0-19.99A LED PANEL MOUNT |
3 |
|
برگه مشخصات |
ACA-20PC | Box | Active | Ammeter | Current | 0 ~ 19.99A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 4.75 ~ 40VDC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Current Transformer (Primary) |
|

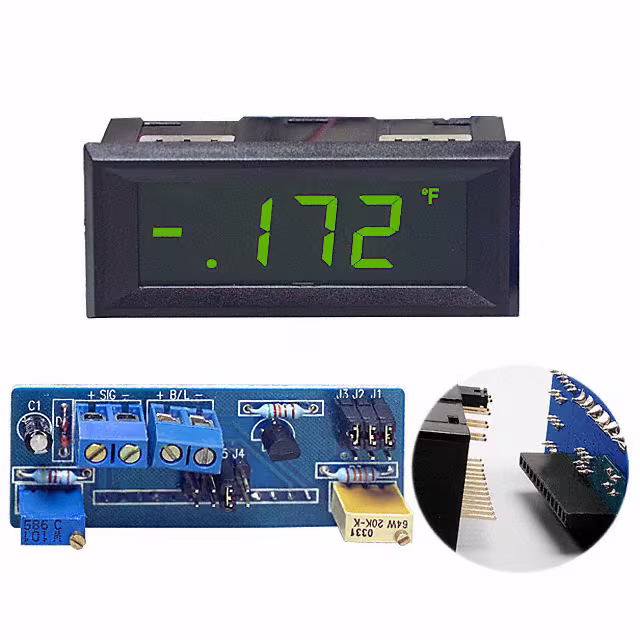

DK193PROCESS METER 4-20MA LCD PNL MT |
8 |
|
برگه مشخصات |
DK191 EPIC Loop | Bulk | Active | Process Meter | Process | 4 ~ 20mA | LCD - Green Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK763VOLTMETER 20VDC LCD PANEL MOUNT |
2 |
|
برگه مشخصات |
DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±20VDC | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
