| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | نوع اندازه گیری | محدوده اندازه گیری | نوع نمایشگر | تعداد کاراکترها در هر ردیف | نمایش شخصیت ها - ارتفاع | نوع خروجی | ولتاژ - منبع تغذیه | ابعاد برش پانل | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DK797PROCESS METER 0-10VDC LCD PNL MT |
1 |
|
برگه مشخصات |
DK790V EPIC | Bulk | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK800PPROCESS METER 0-10VDC LCD PNL MT |
1 |
|
برگه مشخصات |
DK790V EPIC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Black Characters, Green Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DPM 950S-FPSIPROCESS METER LCD PNL MOUNT |
1 |
|
برگه مشخصات |
DPM | Box | Active | Voltmeter | Voltage | ±200mVDC | LCD - Black Characters, Green/Red Backlight | 3.5 | 0.748" (19.00mm) | Reference | 4.5 ~ 5.5VDC | Rectangular - 72.00mm x 40.00mm | Panel Mount | PC Pin | - | - |
|

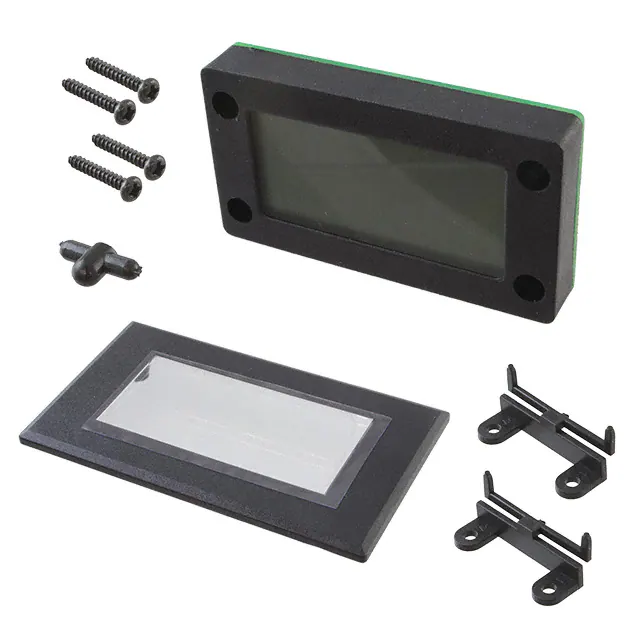

DPM 970PROCESS METER LCD PNL MOUNT |
1 |
|
برگه مشخصات |
DPM | Box | Active | Voltmeter | Voltage | 0 ~ 500VAC | LCD - Black Characters, Green Backlight | 3.5 | 0.748" (19.00mm) | - | 7.5 ~ 14VDC | Rectangular - 72.00mm x 40.00mm | Panel Mount | Screw Terminal | - | - |
|
SGD 24-M-IP2.4" WATERPROOF PROG |
1 |
|
برگه مشخصات |
SGD | Box | Active | Voltmeter | Voltage | 0 ~ 40VDC | TFT - Color (Touch) | - | - | - | 4 ~ 30VDC | Circular - 33.00mm Dia | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - |
|

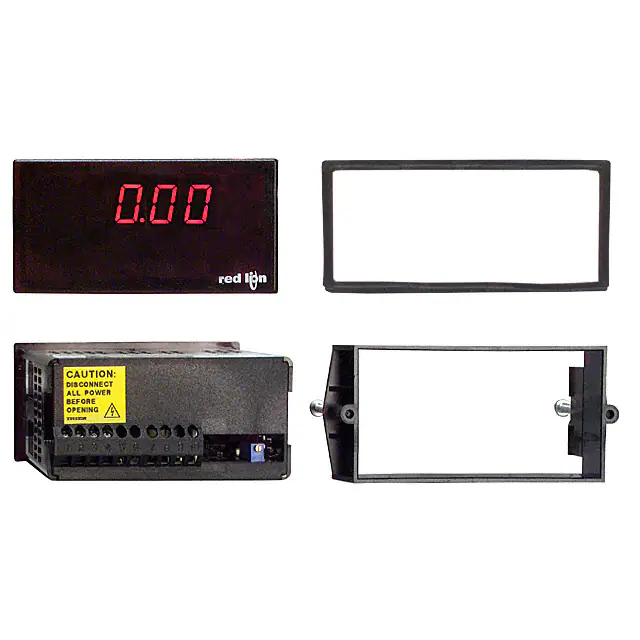

PAXLIA00AMMETER LED PANEL MOUNT |
1 |
|
برگه مشخصات |
PAX®LITE PAXLI | Bulk | Active | Ammeter | Current | 0 ~ 1.999A | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 115VAC, 230VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
|
SGD 24-M-IP4202.4" WATERPROOF PROG 4-20MA |
1 |
|
برگه مشخصات |
SGD | Box | Active | Process Meter | Process | 0 ~ 40VDC | TFT - Color (Touch) | - | - | - | 4 ~ 30VDC | Circular - 33.00mm Dia | Panel Mount | PC Pin | IP67 - Dust Tight, Waterproof | - |
|
CUB5TCR0TEMP METER LCD PANEL MOUNT |
1 |
|
برگه مشخصات |
CUB5TC | Box | Active | Temperature Meter | Thermocouple | -200°C ~ 1820°C, -10 ~ 65mVDC | LCD - Black Characters | 5 | 0.480" (12.20mm) | Option Cards Available | 9 ~ 28VDC | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|
EM340DINAV23XO1PFBANNEX D ENERGY METER 3-PH |
1 |
|
برگه مشخصات |
EM340 | Box | Active | Energy Monitor | - | 5 ~ 65A, 208 ~ 400VAC, 45 ~ 65Hz | LCD - Black Characters, White Backlight | 8, 8, 8 | 0.276" (7.00mm) | Analog | - | - | DIN Rail | Screw Terminal | IP51 - Dust Protected | - |
|
|
EM340DINAV23XS1XENERGY METER 3-PHASE |
1 |
|
برگه مشخصات |
EM340 | Box | Active | Energy Monitor | - | 5 ~ 65A, 208 ~ 400VAC, 45 ~ 65Hz | LCD - Black Characters, White Backlight | 8, 8, 8 | 0.276" (7.00mm) | Analog | - | - | DIN Rail | Screw Terminal | IP51 - Dust Protected | - |
|
BDR-999GPROCESS MTR/VOLTMTR LED CHAS MT |
1 |
|
برگه مشخصات |
BDR | Box | Active | Process Meter | Process | ±20VDC | LED - Green Characters | 3.5 | 2.300" (58.40mm) | - | 90 ~ 250VAC | Rectangular - 264.00mm x 100.80mm | Chassis Mount - Bracket; Panel Mount | Screw Terminal | - | - |
|
K3MA-L-C 24VAC/VDCTEMP METER LCD PANEL MOUNT |
0 |
|
برگه مشخصات |
K3MA-L | Bulk | Active | Temperature Meter | RTD, Thermocouple | -200°C ~ 1800°C | LCD - Dual Color Characters, Backlight | 4 | 0.560" (14.20mm) | Relay | 24VAC/DC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|

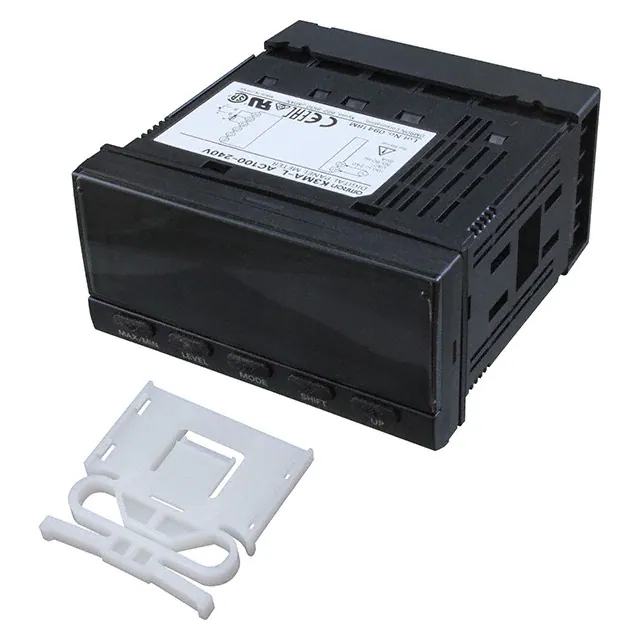

K3MA-L 100-240VACTEMP METER LCD PANEL MOUNT |
1 |
|
برگه مشخصات |
K3MA-L | Bulk | Active | Temperature Meter | RTD, Thermocouple | -200°C ~ 1800°C | LCD - Dual Color Characters, Backlight | 4 | 0.560" (14.20mm) | - | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
K3GN-NDT1-FLK 24VDCPROC MTR 4-20MA/10VDC LCD PNL MT |
1 |
|
برگه مشخصات |
K3GN | Bulk | Active | Process Meter | Process | 4 ~ 20mA, ±10VDC | LCD - Dual Color Characters, Backlight | 5 | 0.275" (7.00mm) | Solid State (3) | 24VDC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Serial Communications Output |
|
|
RIA15-AAA2DISPLAY PANEL 4-20MA + HART |
1 |
|
برگه مشخصات |
RIA15 | Box | Active | Ammeter | Current | 4 ~ 20mA | LCD - Black Characters, Backlight | 5 | 0.669" (17.00mm) | - | Loop Power, 1.9VDC to 2.9VDC (Backlight) | Rectangular - 91.95mm x 44.96mm | DIN Rail | Connector | IP65 - Dust Tight, Water Resistant | - |
|
2907954DIN-MOUNT ENERGY METER WITHOUT D |
1 |
|
برگه مشخصات |
EEM-MB | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 5A, 35 ~ 690VAC | - | - | - | - | 100 ~ 230VAC, 150 ~ 250VDC | - | DIN Rail | Screw Terminal | IP20 | - |
|
2907955DIN-MOUNT ENERGY METER WITHOUT D |
0 |
|
برگه مشخصات |
EEM-MB | Box | Active | Energy Monitor | Current (3-Phase), Voltage, Wattage | 0 ~ 5A, 35 ~ 690VAC | - | - | - | - | 100 ~ 230VAC, 150 ~ 250VDC | - | DIN Rail | Screw Terminal | IP20 | - |
|
|
K3GN-NDC 24VDCPROC MTR 4-20MA/10VDC LCD PNL MT |
1 |
|
برگه مشخصات |
K3GN | Bulk | Active | Process Meter | Process | 4 ~ 20mA, ±10VDC | LCD - Dual Color Characters, Backlight | 5 | 0.275" (7.00mm) | Relay (2) | 24VDC | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|

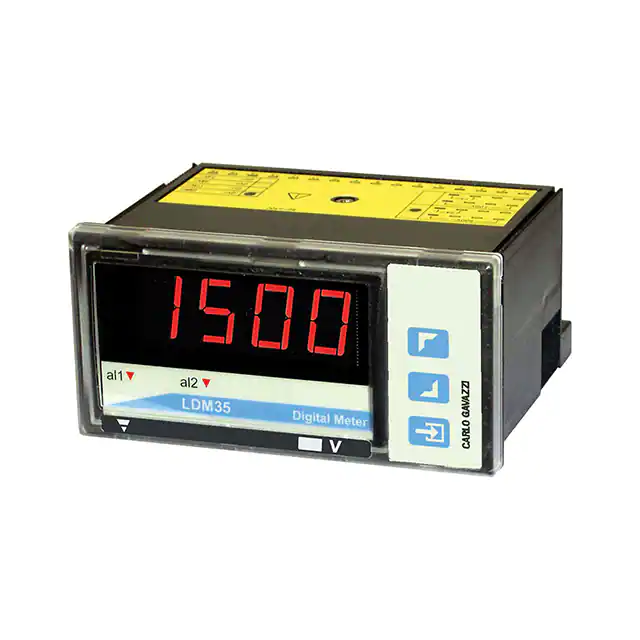

LDM35HHSXH1XXXX3.5 DIGIT CONTROLLER |
1 |
|
برگه مشخصات |
LDM35H | Box | Active | Ammeter, Voltmeter | Current, Voltage | ±5A, ±500V | LED - Red Characters | 3.5 | 0.560" (14.20mm) | Relay | 90 ~ 260VAC/DC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - |
|

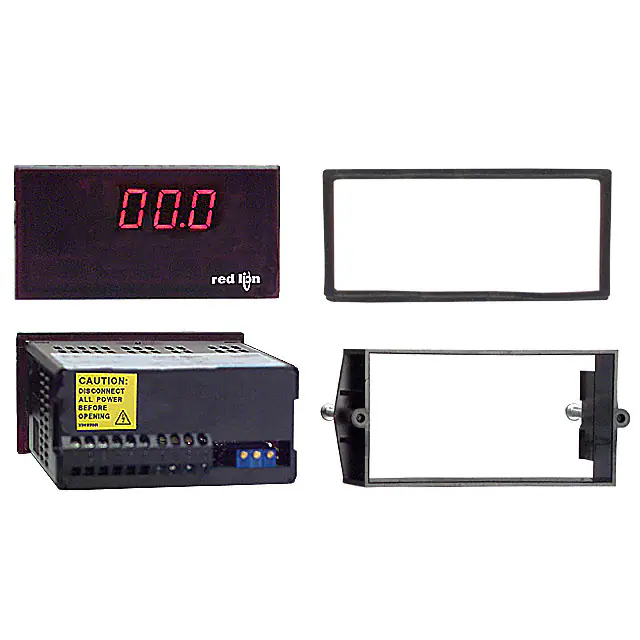

PAXLSG00PROCESS METER 2VDC LED PANEL MT |
1 |
|
برگه مشخصات |
PAX®LITE PAXLSG | Bulk | Active | Process Meter | Process | ±2VDC | LED - Red Characters | 3.5 | 0.560" (14.20mm) | - | 85 ~ 250VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Excitation Supply |
