| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | نوع اندازه گیری | محدوده اندازه گیری | نوع نمایشگر | تعداد کاراکترها در هر ردیف | نمایش شخصیت ها - ارتفاع | نوع خروجی | ولتاژ - منبع تغذیه | ابعاد برش پانل | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DK191PPROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters | 3.5 | 0.449" (11.40mm) | - | Loop Power | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK190FPROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK190 | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters | 3.5 | 0.472" (12.00mm) | - | Loop Power | - | Panel Mount - Surface | Screw Terminal | - | - |
|
DMS-20PC-1-DCM-G-CVOLTMETER 8-50VDC LED PANEL MT |
0 |
|
برگه مشخصات |
DMS-20PC | Box | Obsolete | Voltmeter | Voltage | 8 ~ 50VDC | LED - Green Characters | 3.5 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 35.10mm x 20.40mm | Panel Mount | Screw Terminal | - | Bezel Sold Separately |
|
M4N-DA-02DC AMP 1.999mA FULL SCALE 5VDC |
1 |
|
برگه مشخصات |
M4N | Box | Active | Ammeter | Current | 1.999mA | LED - Red Characters | 3.5 | 0.945" (24.00mm) | - | 5VDC | Rectangular - 45.50mm x 21.50mm | DIN Rail | Screw Terminal | - | - |
|
|
M4N-DV-02DC VOLT 199.9mV FULL SCALE 5VDC |
1 |
|
برگه مشخصات |
M4N | Box | Active | Voltmeter | Voltage | 1.999V | LED - Red Characters | 3.5 | 0.945" (24.00mm) | - | 5VDC | Rectangular - 45.50mm x 21.50mm | Panel Mount | Screw Terminal | - | - |
|
ACM20-4-AC1-B-CMULTI METER 0-100A LED PNL MOUNT |
0 |
|
برگه مشخصات |
ACM20 | Box | Active | Energy Monitor | Current, Voltage, Wattage | 0 ~ 100A | LED - Blue Characters | 4 | 0.360" (9.14mm) | - | 85 ~ 264VAC | Rectangular - 36.22mm x 22.10mm | Panel Mount - Surface | Screw Terminal | - | Built In Current Transformer (Primary) |
|
ACM20-5-AC1-G-F-CMULTI METER 0-32A LED PANEL MT |
0 |
|
برگه مشخصات |
ACM20 | Bulk | Active | Energy Monitor | Current, Frequency, Voltage, Wattage | 0 ~ 32A | LED - Green Characters | 4 | 0.360" (9.14mm) | - | 85 ~ 264VAC | Rectangular - 36.22mm x 22.10mm | Panel Mount - Surface | Screw Terminal | - | Built In Current Transformer (Primary) |
|
ACA5-20PC-9-AC1-RL-CAMMETER 0-500A LED PANEL MOUNT |
0 |
|
برگه مشخصات |
ACA5-20PC | Box | Active | Ammeter | Current | 0 ~ 500A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Current Transformer (Secondary) |
|
DMS-20PC-1-LM-G-CVOLTMETER 85-264VAC LED PNL MT |
0 |
|
برگه مشخصات |
DMS-20PC-1-LM | Box | Obsolete | Voltmeter | Voltage | 85 ~ 264VAC | LED - Green Characters | 3 | 0.370" (9.40mm) | - | Loop Power | Rectangular - 33.93mm x 21.29mm | Panel Mount | Screw Terminal | - | Bezel Sold Separately |
|
DMS-20PC-1-LM-GF-CVOLTMETER 85-264VAC LED PNL MT |
0 |
|
برگه مشخصات |
DMS-20PC-1-LM | Box | Obsolete | Voltmeter | Voltage | 85 ~ 264VAC | LED - Green Characters | 3 | 0.370" (9.40mm) | Reference | 5VDC | Rectangular - 35.10mm x 20.40mm | Panel Mount | Blade Terminals | - | Bezel Sold Separately |
|

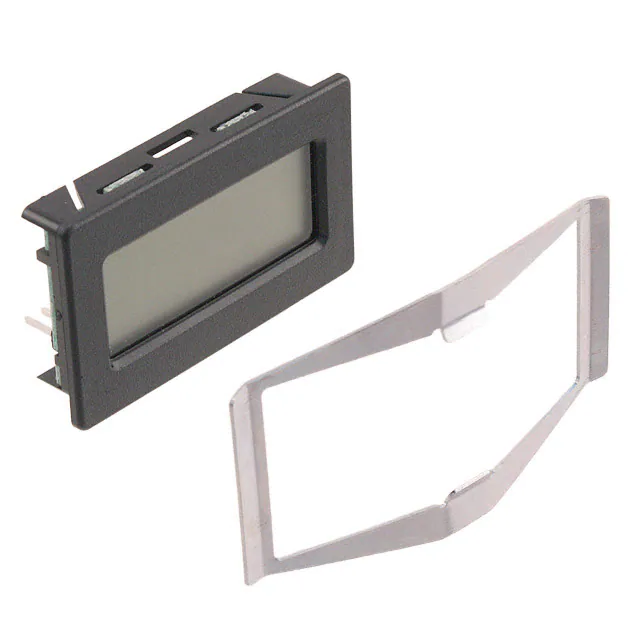

MDMV0000VOLTMETER 199.9MVDC LCD PNL MT |
0 |
|
برگه مشخصات |
MDMV | Bulk | Obsolete | Voltmeter | Voltage | ±199.9mVDC | LCD - Black Characters | 3.5 | 0.401" (10.20mm) | - | 5VDC | Rectangular - 42.70mm x 23.60mm | Panel Mount | PC Pin | - | - |
|

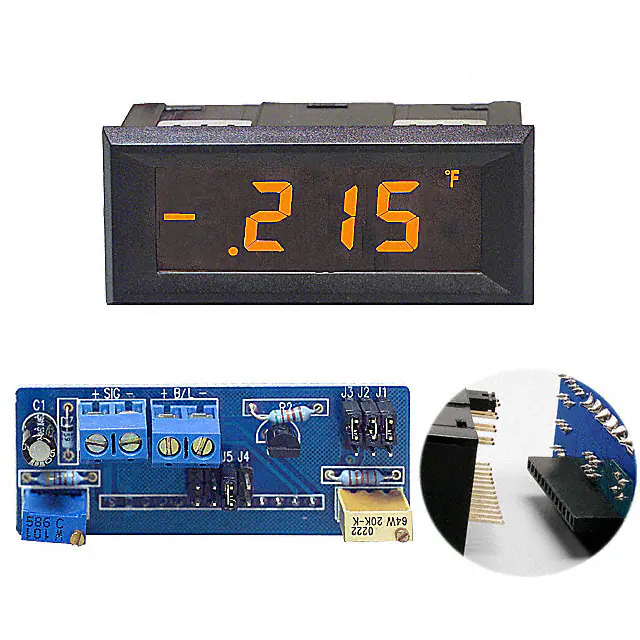

DK192PROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK191 EPIC Loop | Bulk | Active | Process Meter | Process | 4 ~ 20mA | LCD - Amber Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK194PPROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Red Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK195PPROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters, Green Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK192PPROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Amber Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|

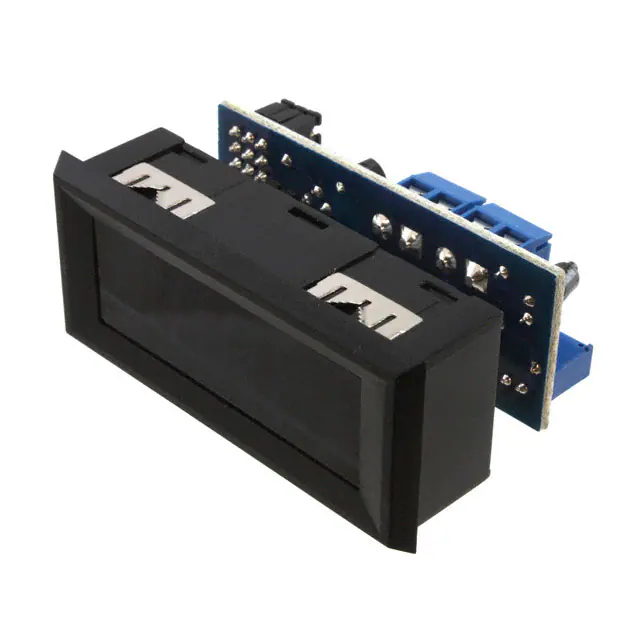

DK193PPROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK191 EPIC Loop | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Green Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
A1-A1-1-BLED DIGITAL AMP METER, 0-20A |
1 |
|
برگه مشخصات |
- | Bulk | Active | Ammeter | Current | 0 ~ 20A | LED - Red Characters | 3 | - | - | 7 ~ 33VDC | - | Panel Mount | - | - | - |
|
DK751VOLTMETER 200MVDC LCD PANEL MT |
0 |
|
برگه مشخصات |
DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LCD - Amber Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
DK761VOLTMETER 200MVDC LCD PANEL MT |
0 |
|
برگه مشخصات |
DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±200mVDC | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
|
|
DK762VOLTMETER 2VDC LCD PANEL MOUNT |
0 |
|
برگه مشخصات |
DK740-770 EPIC | Bulk | Active | Voltmeter | Voltage | ±2VDC | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 5VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | PC Pin | - | - |
