| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | نوع اندازه گیری | محدوده اندازه گیری | نوع نمایشگر | تعداد کاراکترها در هر ردیف | نمایش شخصیت ها - ارتفاع | نوع خروجی | ولتاژ - منبع تغذیه | ابعاد برش پانل | نوع نصب | سبک خاتمه | حفاظت از ورود | ویژگی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DK194-XECPROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK190-XEC | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Red Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
DK195-XECPROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK190-XEC | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Black Characters, Green Backlight | 3.5 | 0.449" (11.40mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK196-XECPROC METER/VOLTMETER LCD PNL MT |
0 |
|
برگه مشخصات |
DK190V-XEC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Amber Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK197-XECPROC METER/VOLTMETER LCD PNL MT |
0 |
|
برگه مشخصات |
DK190V-XEC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Green Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK198-XECPROC METER/VOLTMETER LCD PNL MT |
0 |
|
برگه مشخصات |
DK190V-XEC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Red Characters, Backlight | 3.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
|
DK200-XECPROC METER/VOLTMETER LCD PNL MT |
0 |
|
برگه مشخصات |
DK190V-XEC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Black Characters, Green Backlight | 3.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC (Backlight) | Rectangular - 71.77mm x 32.02mm | Panel Mount | Screw Terminal | - | - |
|
ACA-20PC-1-AC1-RL-CAMMETER 0-1.999A LED PANEL MOUNT |
0 |
|
برگه مشخصات |
ACA-20PC | Box | Obsolete | Ammeter | Current | 0 ~ 1.999A | LED - Red Characters | 3.5 | 0.370" (9.40mm) | - | 85 ~ 264VAC | Rectangular - 33.93mm x 21.29mm | Panel Mount - Bezel | Screw Terminal | - | Built In Current Transformer (Primary) |
|
DMS-40PC-2-YS-CVOLTMETER 20VDC LED PANEL MOUNT |
0 |
|
برگه مشخصات |
DMS-40PC | Box | Obsolete | Voltmeter | Voltage | ±20VDC | LED - Yellow Characters | 4.5 | 0.520" (13.20mm) | Reference | 5VDC | Rectangular - 53.80mm x 22.30mm | Panel Mount | PC Pin | - | Bezel Sold Separately |
|

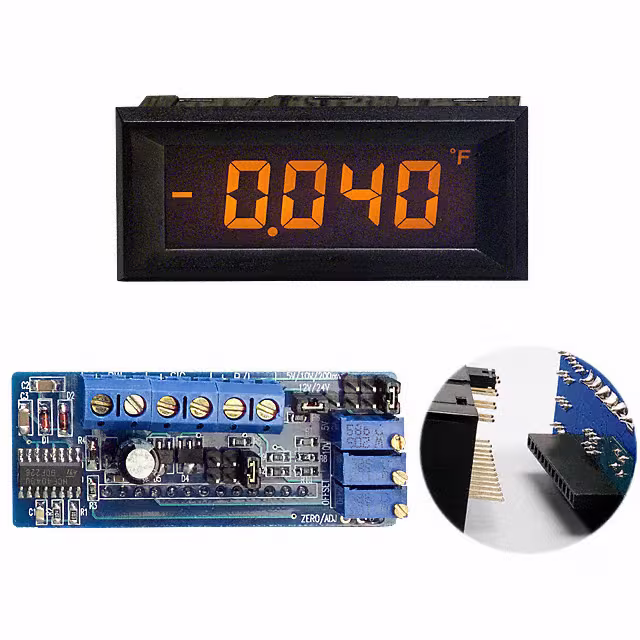

DK796PROCESS METER 0-10VDC LCD PNL MT |
0 |
|
برگه مشخصات |
DK790V EPIC | Bulk | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Amber Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK798PROCESS METER 0-10VDC LCD PNL MT |
0 |
|
برگه مشخصات |
DK790V EPIC | Bulk | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Red Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK796PPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
برگه مشخصات |
DK790V EPIC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Amber Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK797PPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
برگه مشخصات |
DK790V EPIC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Green Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|
DK798PPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
برگه مشخصات |
DK790V EPIC | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Red Characters, Backlight | 4.5 | 0.449" (11.40mm) | - | 12VDC, 24VDC | Rectangular - 61.00mm x 25.40mm | Panel Mount | Screw Terminal | - | - |
|

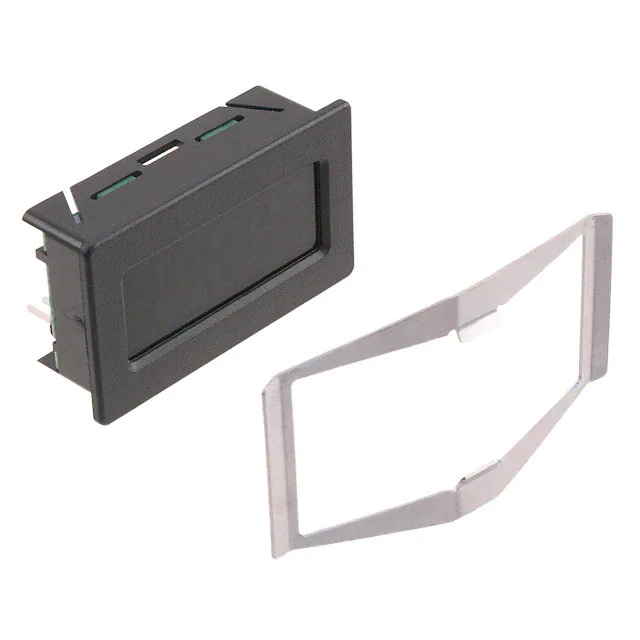

MDMV0020VOLTMETER 199.9MVDC LCD PNL MT |
0 |
|
برگه مشخصات |
MDMV | Bulk | Obsolete | Voltmeter | Voltage | ±199.9mVDC | LCD - Red Characters, Backlight | 3.5 | 0.401" (10.20mm) | - | 5VDC | Rectangular - 42.70mm x 23.60mm | Panel Mount | PC Pin | - | - |
|

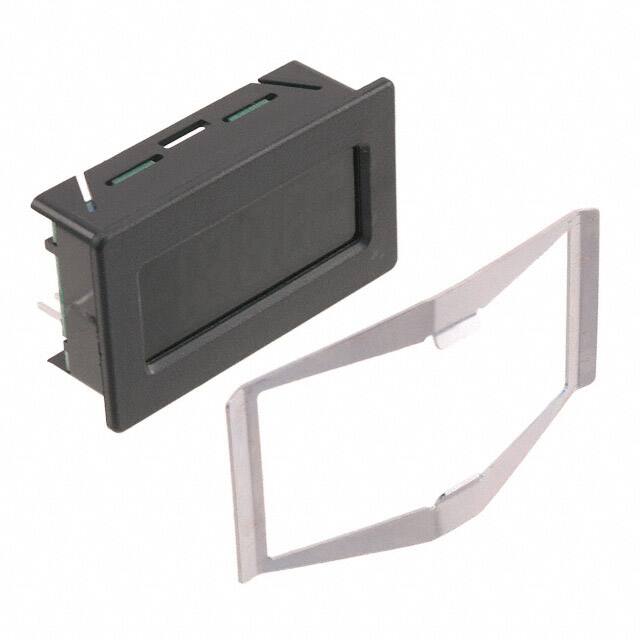

MDMV0010VOLTMETER 199.9MVDC LCD PNL MT |
0 |
|
برگه مشخصات |
MDMV | Bulk | Obsolete | Voltmeter | Voltage | ±199.9mVDC | LCD - Black Characters, Green Backlight | 3.5 | 0.401" (10.20mm) | - | 5VDC | Rectangular - 42.70mm x 23.60mm | Panel Mount | PC Pin | - | - |
|

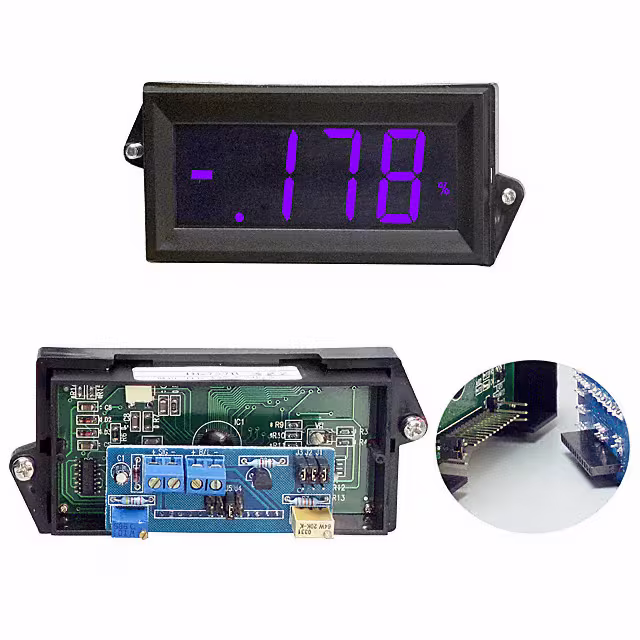

DK757BPROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK807 | Bulk | Active | Process Meter | Process | 4 ~ 20mA | LCD - Blue Characters, Backlight | 3.5 | 1.000" (24.90mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|

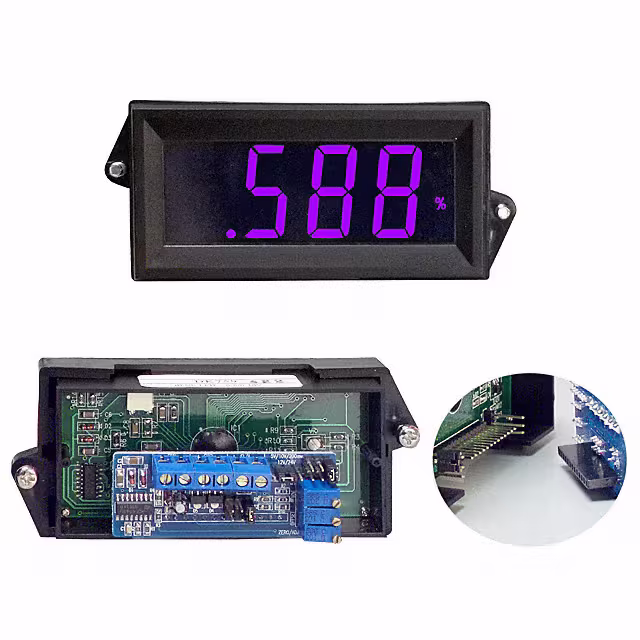

DK759PROCESS METER 0-10VDC LCD PNL MT |
0 |
|
برگه مشخصات |
DK809 | Bulk | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Blue Characters, Backlight | 3.5 | 1.000" (24.90mm) | - | 12VDC, 24VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|

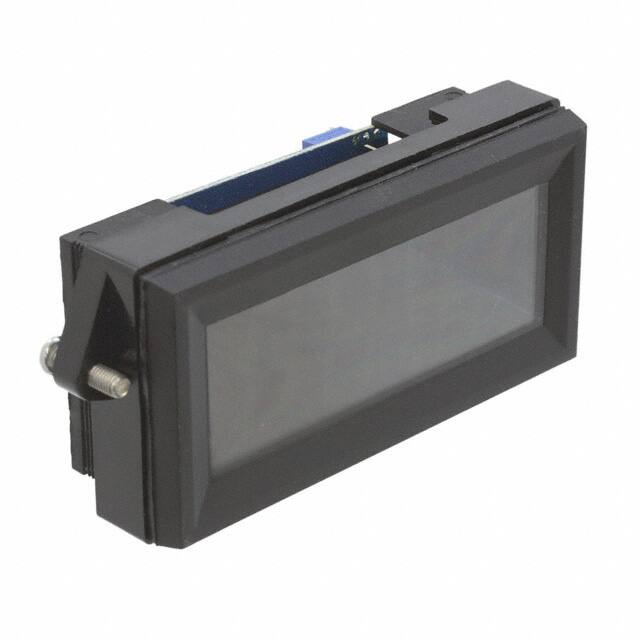

DK759PPROCESS METER 0-10VDC LCD PNL MT |
0 |
|
برگه مشخصات |
DK809 | Box | Active | Process Meter | Process | 0 ~ 10VDC | LCD - Blue Characters, Backlight | 3.5 | 1.000" (24.90mm) | - | 12VDC, 24VDC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
DK757BPPROCESS METER 4-20MA LCD PNL MT |
0 |
|
برگه مشخصات |
DK807 | Box | Active | Process Meter | Process | 4 ~ 20mA | LCD - Blue Characters, Backlight | 3.5 | 1.000" (24.90mm) | - | Loop Power, 24VDC (Backlight) | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
CRM2000-25-RAMMETER 0-25A LED PANEL MOUNT |
0 |
|
برگه مشخصات |
CRM2000 | Bulk | Active | Ammeter | Current | 0 ~ 25A | LED - Tri-Color Bar Graph | - | - | - | Loop Power | - | Panel Mount - Surface | - | - | - |
