ماژول های فیلتر خط برق
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع فیلتر | پیکربندی | ولتاژ - نامی DC | ولتاژ - نامی AC | ولتاژ - نامی AC (فاز به زمین/خنثی) | ولتاژ - نامی AC (فاز به فاز) | فعلی | فرکانس - عملیاتی | برنامه های کاربردی | آژانس تایید | دمای عملیاتی | نوع نصب | سبک خاتمه | اندوکتانس |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN2660-10-08-C0909LINE FILTER 250VAC 10A CHASS MNT |
14 |
|
برگه مشخصات |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 10 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C20, Threaded Post (M4) | L1 - 8.3mH, L2 - 8.3mH |
|
|
FN2500-32-07-C13LINE FLTR 400VDC 277VAC 32A CHAS |
16 |
|
برگه مشخصات |
FN2500 | Bulk | Active | Single Phase | Single Stage | 400V | 277V | - | - | 32 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 100°C | Chassis Mount | Wire Leads | 1.5mH |
|
|
FN2660-15-05-C0909LINE FILTER 250VAC 15A CHASS MNT |
6 |
|
برگه مشخصات |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 15 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C14, Quick Connect | L1 - 4mH, L2 - 4mH |
|

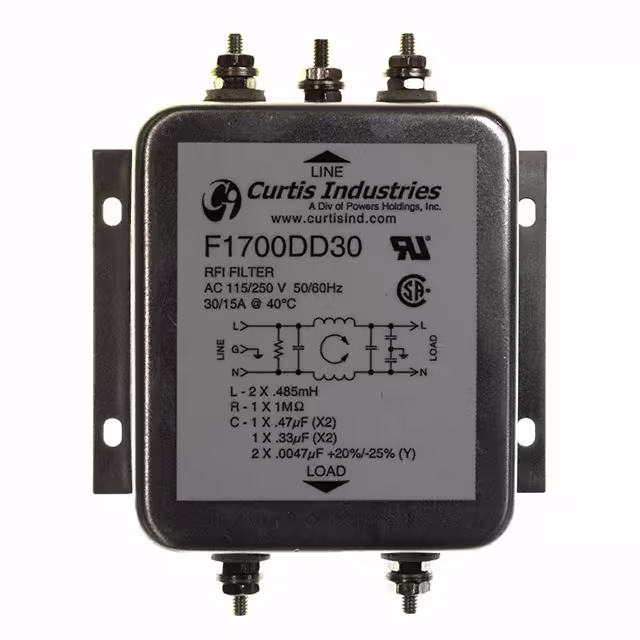

F1700DD30LINE FILTER 250VAC 30A CHASS MNT |
15 |
|
برگه مشخصات |
F1700 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 30 A | 50/60Hz | General Purpose | CE, CSA, UR | - | Chassis Mount | Threaded Post (8-32) | - |
|
|
FN2520-15-07-C1111LINE FLTR 400VDC 277VAC 15A CHAS |
13 |
|
برگه مشخصات |
FN2520 | Bulk | Active | Single Phase | Two Stage | 400V | 277V | - | - | 15 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 85°C | Chassis Mount | Wire Leads | L1 - 4mH, L2 - 4mH |
|

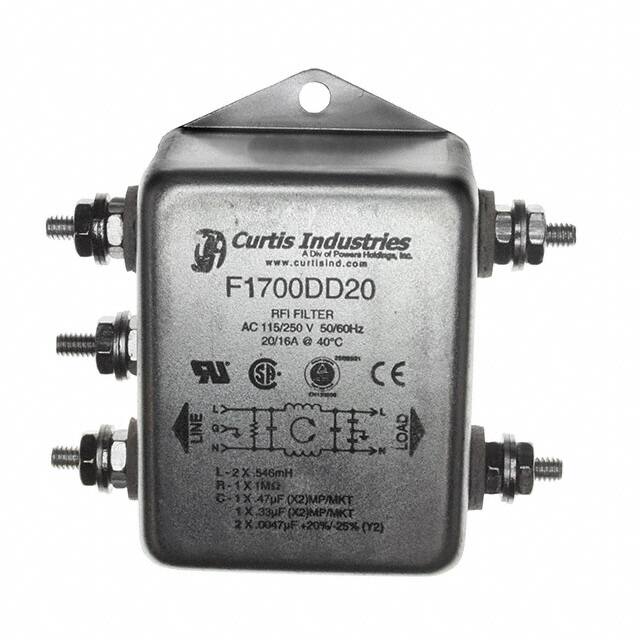

F1700DD20LINE FILTER 250VAC 20A CHASS MNT |
11 |
|
برگه مشخصات |
F1700 | Box | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | 50/60Hz | General Purpose | CE, CSA, TUV, UR | - | Chassis Mount | Threaded Post (8-32) | - |
|
|
RSMN-2020DLINE FILTER 250VAC/VDC 20A DIN |
4 |
|
برگه مشخصات |
RSMN | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 20 A | - | General Purpose | CSA, EN, UL | -25°C ~ 85°C | DIN Rail | Terminal Block | - |
|
|
FN2640-20-08-C11LINE FILTER 250VAC 20A CHASS MNT |
20 |
|
برگه مشخصات |
FN2640 | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 20 A | DC ~ 60Hz | General Purpose | CE, CQC, ENEC, UKCA, UR | -40°C ~ 100°C | Chassis Mount | IEC 320-C20, Threaded Post (M4) | 2.4mH |
|
|
FN2500-32-08-C13LINE FLTR 400VDC 277VAC 32A CHAS |
16 |
|
برگه مشخصات |
FN2500 | Bulk | Active | Single Phase | Single Stage | 400V | 277V | - | - | 32 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 100°C | Chassis Mount | Threaded Post (M4) | 1.5mH |
|
|
FN2660-15-07-C0909LINE FILTER 250VAC 15A CHASS MNT |
14 |
|
برگه مشخصات |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 15 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C14, Wire Leads | L1 - 4mH, L2 - 4mH |
|
B84111F0000M125LINE FILTER 250VAC/VDC 25A CHASS |
24 |
|
برگه مشخصات |
B84111F | Bulk | Active | Single Phase | Single Stage | 250V | 250V | - | - | 25 A | 50/60Hz | General Purpose | cUR, ENEC, UR | -25°C ~ 100°C | Chassis Mount | Threaded Post (M5) | 660µH |
|
|
FN2520-10-103-C1111LINE FLTR 400VDC 277VAC 10A CHAS |
12 |
|
برگه مشخصات |
FN2520 | Bulk | Active | Single Phase | Two Stage | 400V | 277V | - | - | 10 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 85°C | Chassis Mount | Terminal Block | L1 - 8.3mH, L2 - 8.3mH |
|
|
FN2500-25-103-C13LINE FLTR 400VDC 277VAC 25A CHAS |
4 |
|
برگه مشخصات |
FN2500 | Bulk | Active | Single Phase | Single Stage | 400V | 277V | - | - | 25 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 100°C | Chassis Mount | Terminal Block | 1.5mH |
|
RTEN-5010LINE FILTER 500VAC/VDC 10A CHASS |
6 |
|
برگه مشخصات |
RTEN | Bulk | Active | Three Phase (Delta) | Single Stage | 500V | 500V | - | - | 10 A | - | General Purpose | EN, UL | -25°C ~ 85°C | Chassis Mount | Terminal Block | - |
|
|
FN2520-15-08-C1111LINE FLTR 400VDC 277VAC 15A CHAS |
15 |
|
برگه مشخصات |
FN2520 | Bulk | Active | Single Phase | Two Stage | 400V | 277V | - | - | 15 A | DC ~ 60Hz | General Purpose | CE, CQC, CSA, ENEC, UKCA, UR | -40°C ~ 85°C | Chassis Mount | Threaded Post (M4) | L1 - 4mH, L2 - 4mH |
|
|
FN2640-16-103-C11LINE FILTER 250VAC 16A CHASS MNT |
20 |
|
برگه مشخصات |
FN2640 | Bulk | Active | Single Phase | Single Stage | - | 250V | - | - | 16 A | DC ~ 60Hz | General Purpose | CE, CQC, ENEC, UKCA, UR | -40°C ~ 100°C | Chassis Mount | IEC 320-C14, Terminal Block | 4mH |
|
|
FN2660-10-103-C0909LINE FILTER 250VAC 10A CHASS MNT |
15 |
|
برگه مشخصات |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 10 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C14, Terminal Block | L1 - 8.3mH, L2 - 8.3mH |
|
|
FN2660-16-05-C0909LINE FILTER 250VAC 16A CHASS MNT |
14 |
|
برگه مشخصات |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 16 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C14, Quick Connect | L1 - 4mH, L2 - 4mH |
|
|
FN2660-15-08-C0909LINE FILTER 250VAC 15A CHASS MNT |
11 |
|
برگه مشخصات |
FN2660 | Bulk | Active | Single Phase | Two Stage | - | 250V | - | - | 15 A | DC ~ 60Hz | General Purpose | - | -40°C ~ 85°C | Chassis Mount | IEC 320-C20, Threaded Post (M4) | L1 - 4mH, L2 - 4mH |
|
5500.2263LINE FILTER 125V/250VAC 1A DIN |
21 |
|
برگه مشخصات |
FMBB RAIL | Bulk | Active | Single Phase | Two Stage | - | 125V, 250V | - | - | 1 A | - | General Purpose | cURus, ENEC, VDE | -25°C ~ 100°C | DIN Rail | Terminal Block | 15mH |
