درایورهای دروازه
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته / کیس | بسته بندی | وضعیت محصول | قابل برنامه ریزی | پیکربندی هدایت شده | نوع کانال | تعداد رانندگان | نوع دروازه | ولتاژ - منبع تغذیه | ولتاژ منطقی - VIL، VIH | جریان - حداکثر خروجی (منبع، سینک) | نوع ورودی | ولتاژ سمت بالا - حداکثر (بوت استرپ) | زمان ظهور / سقوط (نوع) | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR21364SPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
برگه مشخصات |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 2.5V | 200mA, 350mA | Non-Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
IRS2336DSPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
برگه مشخصات |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
|
IRS23364DSPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
برگه مشخصات |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 2.5V | 200mA, 350mA | Non-Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
IRS21271PBFIC GATE DRVR HIGH-SIDE 8DIP |
0 |
|
برگه مشخصات |
- | 8-DIP (0.300", 7.62mm) | Tube | Discontinued | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
IR21362PBFIC GATE DRVR HALF-BRIDGE 28DIP |
0 |
|
برگه مشخصات |
- | 28-DIP (0.600", 15.24mm) | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 3V | 200mA, 350mA | Inverting, Non-Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 28-PDIP |
|
IRS21094PBFIC GATE DRVR HALF-BRIDGE 14DIP |
0 |
|
برگه مشخصات |
- | 14-DIP (0.300", 7.62mm) | Tube | Discontinued | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 600 V | 100ns, 35ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
|
IR2131PBFIC GATE DRVR HALF-BRIDGE 28DIP |
0 |
|
برگه مشخصات |
- | 28-DIP (0.600", 15.24mm) | Tube | Active | Not Verified | Half-Bridge | Independent | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA | Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 28-PDIP |
|
IR2235SPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
برگه مشخصات |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2V | 250mA, 500mA | Inverting | 1200 V | 90ns, 40ns | 125°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
|
IRS2184PBFIC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
برگه مشخصات |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A | Non-Inverting | 600 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
IRS2608DSPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
برگه مشخصات |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA | Inverting, Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IRS21271SPBFIC GATE DRVR HIGH-SIDE 8SOIC |
0 |
|
برگه مشخصات |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IRS21281SPBFIC GATE DRVR HIGH-SIDE 8SOIC |
0 |
|
برگه مشخصات |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IRS2336SPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
برگه مشخصات |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Discontinued | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
|
IR2235PBFIC GATE DRVR HALF-BRIDGE 28DIP |
0 |
|
برگه مشخصات |
- | 28-DIP (0.600", 15.24mm) | Tube | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2V | 250mA, 500mA | Inverting | 1200 V | 90ns, 40ns | 125°C (TJ) | - | - | Through Hole | 28-PDIP |
|
IRS21853SPBFIC GATE DRVR HIGH-SIDE 16SOIC |
0 |
|
برگه مشخصات |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | High-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.6V, 3.5V | 2A, 2A | Non-Inverting | 600 V | 15ns, 15ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
IRS21953SPBFIC GATE DRVR HALF BRD/LOW 16SOIC |
0 |
|
برگه مشخصات |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge, Low-Side | Independent | 3 | N-Channel MOSFET | 10V ~ 20V | 0.6V, 3.5V | 500mA, 500mA | Non-Inverting | 600 V | 25ns, 25ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
IRS21952SPBFIC GATE DRVR HALF BRD/LOW 16SOIC |
0 |
|
برگه مشخصات |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge, Low-Side | Independent | 3 | N-Channel MOSFET | 10V ~ 20V | 0.6V, 3.5V | 500mA, 500mA | Non-Inverting | 600 V | 25ns, 25ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|

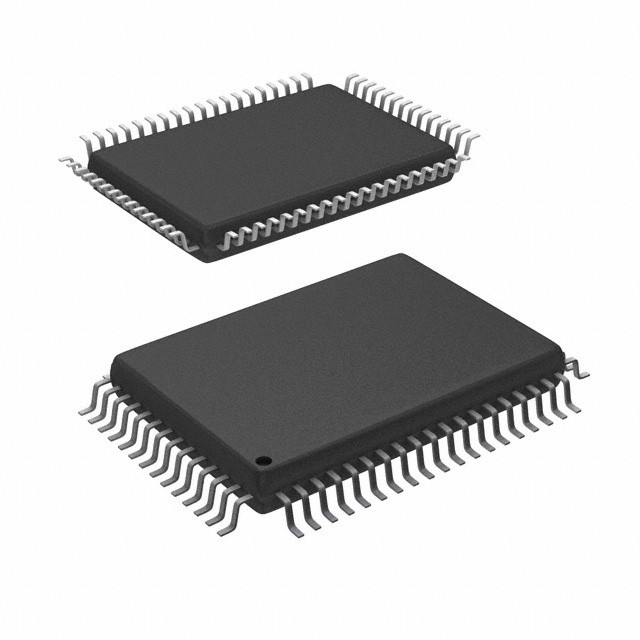

IR2138QPBFIC GATE DRVR HALF-BRIDGE 64MQFP |
0 |
|
برگه مشخصات |
- | 64-BQFP | Tray | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT | 12.5V ~ 20V | 0.8V, 2V | 350mA, 200mA | Inverting, Non-Inverting | 600 V | 80ns, 25ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 64-MQFP (20x14) |
|
|
IR21365STRPBFIC GATE DRVR HALF-BRIDGE 28SOIC |
0 |
|
برگه مشخصات |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 200mA, 350mA | Inverting | 600 V | 125ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
IRS21094STRPBFIC GATE DRVR HALF-BRIDGE 14SOIC |
0 |
|
برگه مشخصات |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 600 V | 100ns, 35ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
