سوئیچ های توزیع برق، درایورهای بار
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | سری | بسته بندی | وضعیت محصول | نوع سوئیچ | تعداد خروجی ها | نسبت - ورودی:خروجی | پیکربندی خروجی | نوع خروجی | رابط | ولتاژ - بار | ولتاژ - منبع تغذیه (Vcc/Vdd) | جریان - خروجی (حداکثر) | Rds روشن (نوع) | نوع ورودی | ویژگی ها | حفاظت از خطا | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPS024GIC PWR SWITCH N-CHAN 1:1 16SOIC |
0 |
|
برگه مشخصات |
16-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 4 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 700mA | 135mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
IPS031GIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
برگه مشخصات |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 2.2A | 45mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IPS031GTRIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
برگه مشخصات |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 2.2A | 45mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IPS031SIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
برگه مشخصات |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 2.8A | 45mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IPS032GIC PWR SWITCH N-CHAN 1:1 16SOIC |
0 |
|
برگه مشخصات |
16-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 1.65A | 45mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
IPS041LTRIC PWR SWITCH N-CHAN 1:1 SOT223 |
0 |
|
برگه مشخصات |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 750mA | 370mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 |
|
|
IPS042GTRIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
برگه مشخصات |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 530mA | 370mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

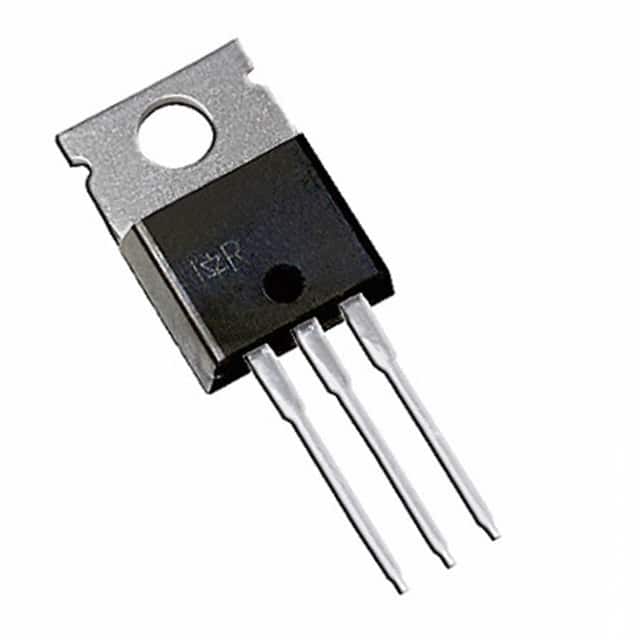

IPS0551TIC PWR SWITCH N-CHAN 1:1 TO-220 |
0 |
|
برگه مشخصات |
TO-273AA | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 18V (Max) | Not Required | 35A | 4.5mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-220™ (TO-273AA) |
|
IPS511FIC PWR SWITCH N-CHAN 1:1 TO220-5 |
0 |
|
برگه مشخصات |
TO-220-5 Full Pack | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 1.7A | 110mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 Full-Pak |
|
|
IPS512GIC PWR SWITCH N-CHAN 1:1 16SOIC |
0 |
|
برگه مشخصات |
16-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 1A | 130mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
IPS521FIC PWR SWITCH N-CHAN 1:1 TO220-5 |
0 |
|
برگه مشخصات |
TO-220-5 Full Pack | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 2.2A | 55mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 Full-Pak |
|
|
IPS521GIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
برگه مشخصات |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 1.6A | 80mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IPS521GTRIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
برگه مشخصات |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 35V | Not Required | 1.6A | 80mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IPS5451SIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
برگه مشخصات |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 18V | Not Required | 3.5A | 19mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (SMD-220 5-Lead) |
|
|
IPS5551TIC PWR SWITCH N-CHAN 1:1 TO-220 |
0 |
|
برگه مشخصات |
TO-273AA | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 35A | 4.6mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-220™ (TO-273AA) |
.jpg)
|
IR6210STRLIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
برگه مشخصات |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 35V | Not Required | 5A | 200mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (SMD-220 5-Lead) |
|
|
IR6216SIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
برگه مشخصات |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 35V | Not Required | 10A | 200mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (SMD-220 5-Lead) |
|
|
IR6224IC PWR DRVR N-CHAN 1:1 TO220AB |
0 |
|
برگه مشخصات |
TO-220-5 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 50V | Not Required | 20A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB (5-LEAD) |
|
|
IR6224SIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
برگه مشخصات |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 50V | Not Required | 20A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (SMD-220 5-Lead) |
|
|
IR6226SIC PWR DRIVER N-CHAN 1:1 D2PAK |
0 |
|
برگه مشخصات |
TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 35V | Not Required | 20A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (SMD-220 5-Lead) |
