رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCA-125-3705LFCA-125-3705L=M83536/37-005L |
0 |
|
- |
FCA-125, CII | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 25 A | 115VAC, 28VDC - Max | 2875VA, 700W | 87.5 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 10 ms | 10 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
9444660000RELAY GEN PURPOSE 24V |
0 |
|
برگه مشخصات |
RSM | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (DB/DM) (1 Form Z) | - | - | - | - | Non Latching | - | Spring Terminal | - | - | - | - | - | - | -25°C ~ 40°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
6-1393817-1RELAY GEN PURP |
0 |
|
- |
V23003, AXICOM | Bulk | Active | Socketable | - | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | - | Latching, Dual Coil | - | Plug In | - | - | - | - | - | - | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
MM4XKP-JD DC100/110RELAY GEN PURPOSE 4PDT 5A 110V |
0 |
|
برگه مشخصات |
MMK | Bulk | Active | Socketable | 110VDC | 4PDT (4 Form C) | 5 A | 250VAC, 250VDC - Max | 20VA, 700W | 24.5 mA | Latching, Dual Coil | - | Plug In, 15 Pin (Octal) | - | - | 88 VDC | - | 60 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
G7K-422S-T03 DC125LATCHING RELAY DC125 |
0 |
|
- |
G7K | Bulk | Obsolete | Socketable | 125VDC | - | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 7.1 mA | Non Latching | - | Plug In | - | - | 100 VDC | - | 30 ms | 30 ms | -10°C ~ 55°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
1617002-7B07A113BC1-0380 = RELAY. |
0 |
|
- |
07, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13 VDC | 1.8 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
1448470000RSM-16 24VDC 1NO + C Z |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 24VDC | SPST-NO (1 Form A) x 16 | 6 A | 250VAC - Max | 1500VA | 16.7 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE | General Purpose | - | - |
|
|
FCA-410-BX4FCA-410-BX4 |
0 |
|
- |
FCA-410, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | 1150VA, 280W | 96.6 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
9-1617790-1FCA-415-AY4= RELAY |
0 |
|
برگه مشخصات |
FCA-415, CII | Bulk | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | 96.6 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
1448310000RSM-16 24V- 1CO Z |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 16 | 6 A | 250VAC - Max | 1500VA | 16.7 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1448350000RSM-16 48V- 1CO Z |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 48VDC | SPDT (1 Form C) x 16 | 6 A | 250VAC - Max | 1500VA | 8.7 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1448270000RSM-16 12V- 1CO Z |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 12VDC | SPDT (1 Form C) x 16 | 6 A | 250VAC - Max | 1500VA | 33 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1448340000RSM-16 48V+ 1CO Z |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 48VDC | SPDT (1 Form C) x 16 | 6 A | 250VAC - Max | 1500VA | 8.7 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1448250000RSM-16 12V+ 1CO Z |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 12VDC | SPDT (1 Form C) x 16 | 6 A | 250VAC - Max | 1500VA | 33 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1448300000RSM-16 24V+ 1CO Z |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 16 | 6 A | 250VAC - Max | 1500VA | 16.7 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1448380000RSM-16 24VAC/DC 1CO Z |
0 |
|
برگه مشخصات |
RSM | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) x 16 | 6 A | 250VAC - Max | 1500VA | 13.9 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
FCA-410-1617MFCA-410-1617M=M83536/16-017M |
0 |
|
- |
FCA-410, CII | Bulk | Active | Through Hole | 28VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | 1150VA, 280W | 96.6 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|

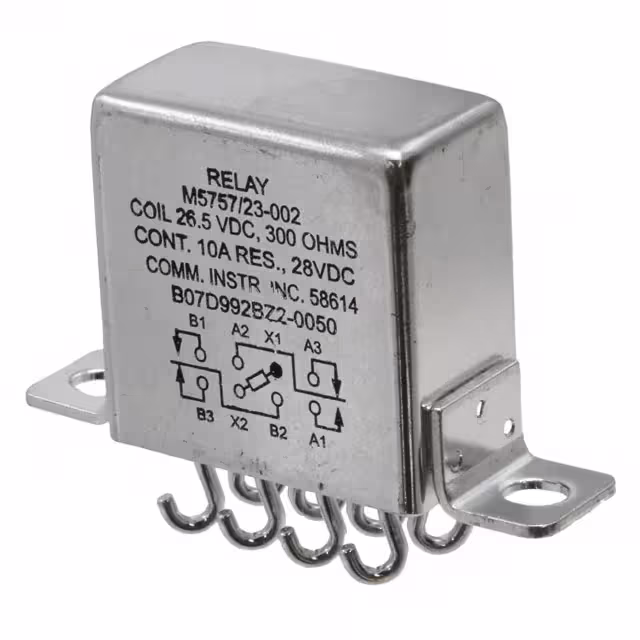

B07D992BZ2-0050RELAY GEN PURPOSE DPDT 10A 26.5V |
0 |
|
برگه مشخصات |
07, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Nom | - | 88.3 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13 VDC | 2.3 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | Military | MIL-R-5757/23 |
|
|
31-311-11-ERELAY GEN PURPOSE SPST 300A 12V |
0 |
|
برگه مشخصات |
31, KISSLING | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (DM) (1 Form X) | 300 A | - | - | - | Latching, Dual Coil | Diode | Screw Terminal | - | - | - | - | 500 ms | 100 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
|
FCA-410-1614MFCA-410-1614M=M83536/16-014M |
0 |
|
- |
FCA-410, CII | Bulk | Active | Chassis Mount | 12VDC | 4PDT (4 Form C) | 10 A | 115VAC, 28VDC - Max | 1150VA, 280W | 171.4 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 9 VDC | 0.75 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
