رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1432786-1RELAY GEN PURPOSE SPDT 30A 12V |
0 |
|
برگه مشخصات |
VF4 | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | - | 151 mA | Non Latching | Resistor | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.8 VDC | 1.2 VDC | 10 ms | 13 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
1432826-1RELAY GEN PURPOSE SPDT 30A 24V |
0 |
|
برگه مشخصات |
VF4 | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | - | 66.7 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 15.6 VDC | 2.4 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
RE030006RELAY GEN PURPOSE SPST 6A 6V |
0 |
|
برگه مشخصات |
RE, SCHRACK | Tube | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RE032005RELAY GEN PURPOSE SPST 6A 5V |
0 |
|
برگه مشخصات |
RE, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | cURus, VDE | General Purpose | - | - |
|
|
RE032012RELAY GEN PURPOSE SPST 6A 12V |
0 |
|
برگه مشخصات |
RE, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | cURus, VDE | General Purpose | - | - |
|
|
RE032024RELAY GEN PURPOSE SPST 6A 24V |
0 |
|
برگه مشخصات |
RE, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | cURus, VDE | General Purpose | - | - |
|
CSL-38-60010RELAY GEN PURPOSE DPDT 10A 110V |
0 |
|
برگه مشخصات |
CS | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | Adjustable | Adjustable | 25 ms | - | -10°C ~ 55°C | - | CSA, UR | General Purpose | - | - |
|

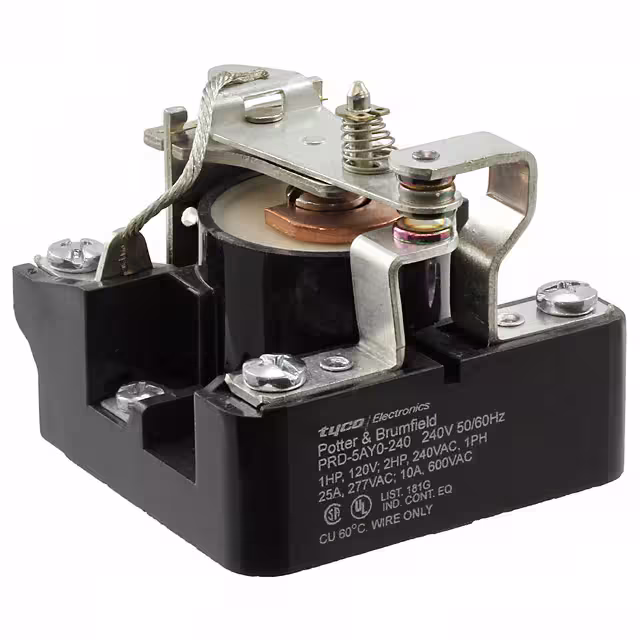

PRD-5AY0-240RELAY GEN PURPOSE SPDT 25A 240V |
0 |
|
برگه مشخصات |
PRD | Bulk | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 43 mA | Non Latching | - | Screw Terminal | - | Class B | 204 VAC | 24 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | CSA, UL | General Purpose | - | - |
|
KRPA-11AN-12RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
برگه مشخصات |
KRPA | Tray | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 168 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | Class B | 10.2 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
KRPA-5DY-12RELAY GEN PURPOSE SPDT 5A 12V |
0 |
|
برگه مشخصات |
KRPA | Tray | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 5 A | 240VAC - Max | 1200VA | 100 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 9 VDC | - | - | - | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
-SH-1(05,12)(D,L),394, OMI-SH-124(D,L),300, OUDH-SS-112D,000.jpg)
|
OMI-SH-124L,394RELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
OMI, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
OMI-SH-212D,594RELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
برگه مشخصات |
OMI, OEG | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 8.4 VDC | 0.6 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
OMI-SH-224L,594RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
برگه مشخصات |
OMI, OEG | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 1.2 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
OUDH-SS-112D,000RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
برگه مشخصات |
OUDH, OEG | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 120VAC, 28VDC - Max | 1200VA, 280W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, cURus | General Purpose | - | - |
|
PCLH-202D1SP,000RELAY GEN PURPOSE DPDT 15A 12V |
0 |
|
برگه مشخصات |
PCLH, OEG | Tray | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 15 A | 120VAC - Max | 1800VA | 75 mA | Non Latching | - | PC Pin | - | Class F | 9.6 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
PCLH-202D1S,000RELAY GEN PURPOSE DPDT 15A 12V |
0 |
|
برگه مشخصات |
PCLH, OEG | Tray | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 15 A | 120VAC - Max | 1800VA | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class F | 9.6 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
PCLH-203D1SP,000RELAY GEN PURPOSE DPDT 15A 24V |
0 |
|
برگه مشخصات |
PCLH, OEG | Tray | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 15 A | 120VAC - Max | 1800VA | 37.5 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VDC | 2.4 VDC | 15 ms | 8 ms | -40°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
PCLH-204D1S,000RELAY GEN PURPOSE DPDT 15A 48V |
0 |
|
برگه مشخصات |
PCLH, OEG | Tray | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 15 A | 120VAC - Max | 1800VA | 18.8 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class F | 38.4 VDC | 4.8 VDC | 15 ms | 8 ms | -40°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
PCLH-206A1SP,000RELAY GEN PURPOSE DPDT 15A 110V |
0 |
|
برگه مشخصات |
PCLH, OEG | Tray | Obsolete | Through Hole | 110VAC | DPDT (2 Form C) | 15 A | 120VAC - Max | 1800VA | 32.4 mA | Non Latching | - | PC Pin | - | Class F | 88 VAC | 33 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
PCLH-206A1S,000RELAY GEN PURPOSE DPDT 15A 110V |
0 |
|
برگه مشخصات |
PCLH, OEG | Tray | Obsolete | Socketable | 110VAC | DPDT (2 Form C) | 15 A | 120VAC - Max | 1800VA | 32.4 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class F | 88 VAC | 33 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
