رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-2-AUL-T130 DC24RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
برگه مشخصات |
G2R | Tray | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2 DC18RELAY GEN PURPOSE DPDT 5A 18V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 18VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 29.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 12.6 VDC | 2.7 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2-DC4RELAY GEN PURPOSE DPDT 5A 4V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 4VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 133 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 2.8 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2-SKVD-AC220RELAY GEN PURPOSE DPDT 5A 220V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 220VAC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 4.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 176 VAC | 66 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2-Z DC24RELAY GEN PURPOSE DPDT 5A 24V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 24VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-2-Z DC48 BY OMIRELAY GEN PURPOSE DPDT 5A 48V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 48VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 11.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|

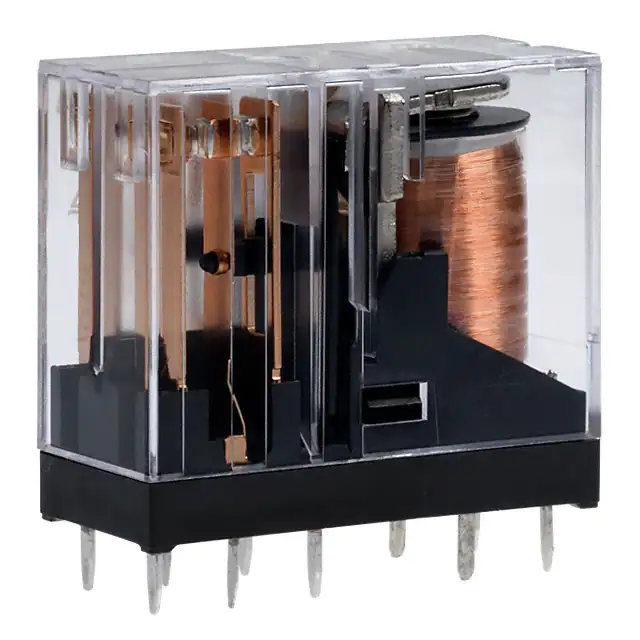

G2RK-2A-ASI-DC24RELAY GEN PURPOSE DPST 3A 24V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 3 A | 380VAC, 125VDC - Max | 1140VA, 375W | 34.6 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2RK-2A-DC5RELAY GEN PURPOSE DPST 3A 5V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 3 A | 380VAC, 125VDC - Max | 1140VA, 375W | 167 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2RK-2-AUL DC12RELAY GEN PURPOSE DPDT 3A 12V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 380VAC, 125VDC - Max | 1140VA, 375W | 70.6 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2RK-2-TUDC12RELAY GEN PURPOSE DPDT 3A 12V |
0 |
|
برگه مشخصات |
G2R | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 380VAC, 125VDC - Max | 1140VA, 375W | 70.6 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G2RL-14 DC22RELAY GEN PURPOSE SPDT 12A 22V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 22VDC | SPDT (1 Form C) | 12 A | 440VAC, 300VDC - Max | 5280VA, 3600W | 18 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 15.4 VDC | 2.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-1A4 DC48RELAY GEN PURPOSE SPST 12A 48V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 12 A | 440VAC, 300VDC - Max | 5280VA, 3600W | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-1-E-R DC18RELAY GEN PURPOSE SPDT 16A 18V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 18VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-2A4 DC48RELAY GEN PURPOSE DPST 8A 48V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 48VDC | DPST-NO (2 Form A) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
G2RL-2A DC6RELAY GEN PURPOSE DPST 8A 6V |
0 |
|
برگه مشخصات |
G2RL | Tube | Active | Through Hole | 6VDC | DPST-NO (2 Form A) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 4.2 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
PT22A615BRELAY GEN PURPOSE DPDT 12A 115V |
0 |
|
برگه مشخصات |
PTH, SCHRACK | Bulk | Obsolete | Socketable | 115VAC | DPDT (2 Form C) | 12 A | 440VAC - Max | 5280VA | 8.8 mA | Non Latching | - | Plug In | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, TUV | General Purpose | - | - |
|
|
PT52A524BRELAY GEN PURPOSE 4PDT 6A 24V |
0 |
|
برگه مشخصات |
PTH, SCHRACK | Bulk | Obsolete | Socketable | 24VAC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 41.6 mA | Non Latching | - | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, TUV | General Purpose | - | - |
|
|
PT22B024BRELAY GEN PURPOSE DPDT 12A 24V |
0 |
|
برگه مشخصات |
PTH, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 12 A | 440VAC - Max | 5280VA | 30.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, TUV | General Purpose | - | - |
|
|
PT52B012BRELAY GEN PURPOSE 4PDT 6A 12V |
0 |
|
برگه مشخصات |
PTH, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 62.5 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 20 ms | 20 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, TUV | General Purpose | - | - |
|
|
PT52B024BRELAY GEN PURPOSE 4PDT 6A 24V |
0 |
|
برگه مشخصات |
PTH, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | 4PDT (4 Form C) | 6 A | 250VAC - Max | 1500VA | 30.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -45°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, TUV | General Purpose | - | - |
