رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G9EA-1-B-ED1 DC12RELAY GEN PURPOSE SPST 60A 12V |
0 |
|
برگه مشخصات |
G9EA-1 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 60 A | 400VDC - Max | 24000W | 417 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -40°C ~ 70°C | - | cURus | General Purpose | - | - |
|
G9EB-1-B-ED1 DC12RELAY GEN PURPOSE SPST 25A 12V |
0 |
|
برگه مشخصات |
G9EB-1 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 25 A | 250VDC - Max | 6250W | 167 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 9 VDC | 1.2 VDC | 30 ms | 15 ms | -40°C ~ 70°C | - | - | General Purpose | - | - |
|
G9EC-1-B-ED1 DC12RELAY GEN PURPOSE SPST 200A 12V |
0 |
|
برگه مشخصات |
G9EC-1 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 200 A | 400VDC - Max | 80000VA | 938 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -40°C ~ 50°C | - | cURus | General Purpose | - | - |
|
G9EH-1 DC12DC POWER RELAY |
0 |
|
برگه مشخصات |
G9EH-1 | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 300 A | 400VAC - Max | 120000VA | 583 mA | Non Latching | - | Screw Terminal | - | - | 9 VDC | 0.96 VDC | 50 ms | 30 ms | -45°C ~ 85°C | - | - | General Purpose | - | - |
|
|
G9EH-1 DC24DC POWER RELAY |
0 |
|
برگه مشخصات |
G9EH-1 | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 300 A | 400VAC - Max | 120000VA | 292 mA | Non Latching | - | Screw Terminal | - | - | 32 VDC | 1.92 VDC | 50 ms | 30 ms | -45°C ~ 85°C | - | - | General Purpose | - | - |
|
AHN12012RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
برگه مشخصات |
AHN | Tray | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 30VDC - Max | 4000VA, 480W | 44.4 mA | Non Latching | - | Plug In | - | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
HL1-HP-DC12V-FRELAY GEN PURPOSE SPDT 15A 12V |
0 |
|
برگه مشخصات |
HL | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 15 A | 125VAC - Nom | - | 75 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

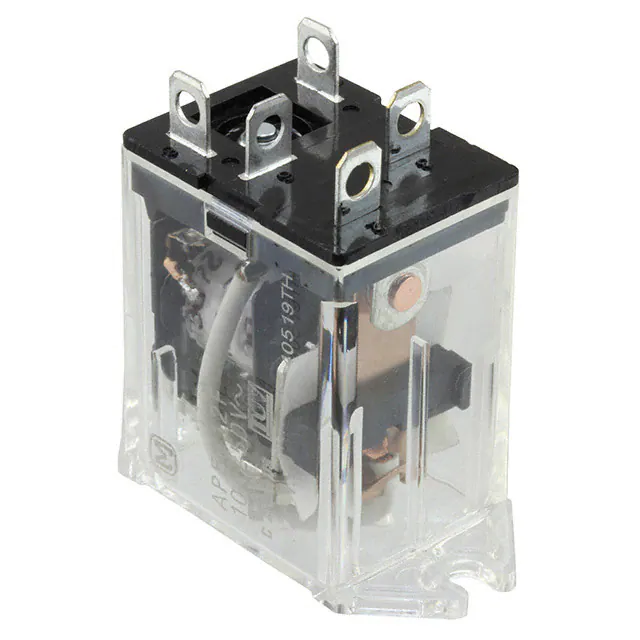

HL1-HTM-DC24V-FRELAY GEN PURPOSE SPDT 15A 24V |
0 |
|
برگه مشخصات |
HL | Tube | Obsolete | Chassis Mount | 24VDC | SPDT (1 Form C) | 15 A | 125VAC - Nom | - | 37 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
JM1AN-ZTM-DC24V-FRELAY GEN PURPOSE SPST 20A 24V |
0 |
|
برگه مشخصات |
JM | Tube | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 37.5 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JS1A-48V-FRELAY GEN PURPOSE SPST 10A 48V |
0 |
|
برگه مشخصات |
JS | Tray | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 33.6 VDC | 4.8 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|

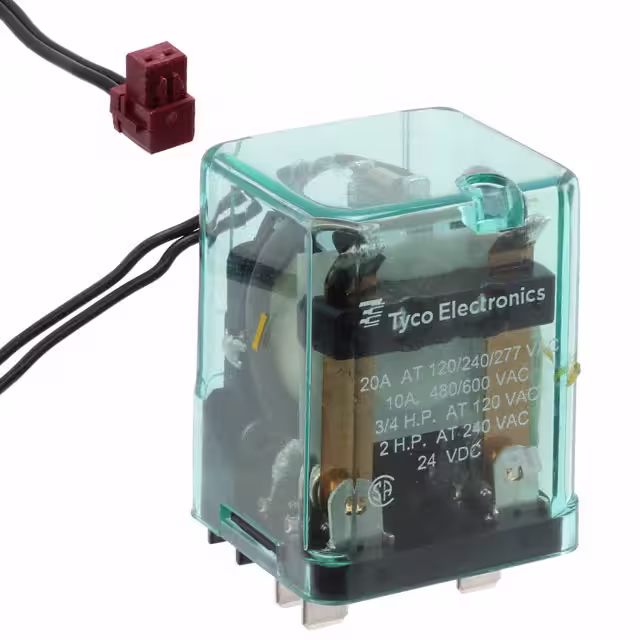

18726C2L1RELAY GEN PURPOSE DPST 20A 24V |
0 |
|
برگه مشخصات |
187 | Tray | Active | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 20 A | 240VAC, 28VDC - Max | 4800VA, 560W | 50 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
7-1393298-3VF4A-15F21-S01=VF4A |
0 |
|
برگه مشخصات |
VF4A | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | - | 16.7 mA | Non Latching | Resistor | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
H-17CRELAY |
0 |
|
- |
H-17, KILOVAC | Bulk | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 30 A | - | - | 220 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 16 VDC | 1 VDC | 25 ms | 25 ms | -55°C ~ 125°C | Tungsten (W) | - | General Purpose | - | - |
|

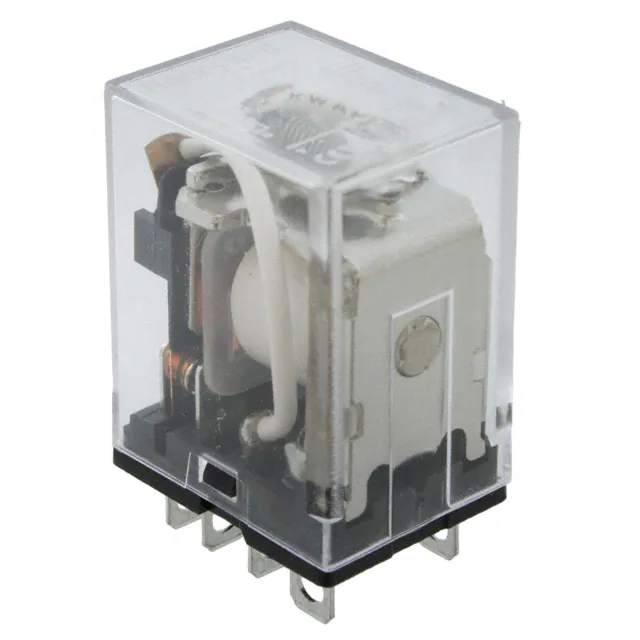

SZR-LY2-1-AC24VRELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
- |
SZR-LY | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 46 mA | Non Latching | - | Plug In | - | - | 18 VAC | 7.2 VAC | 25 ms | 25 ms | - | Silver Cadmium Oxide (AgCdO) | CE, CSA, UR | General Purpose | - | - |
|

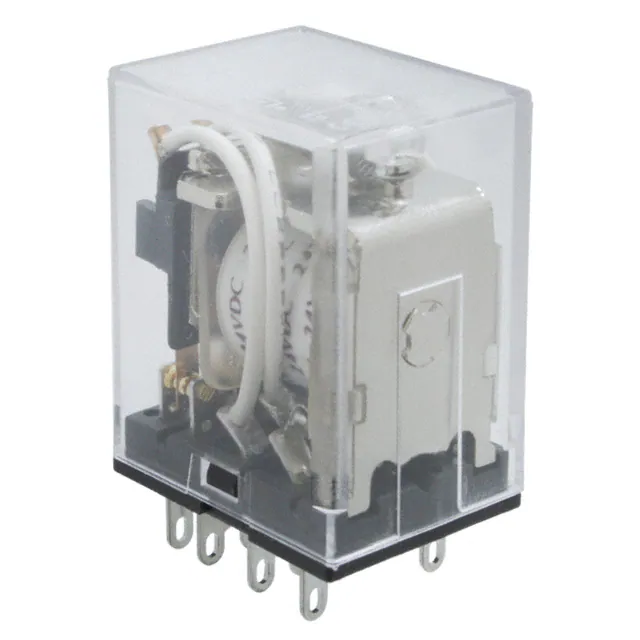

SZR-MY4-1-DC24VRELAY GEN PURPOSE 4PDT 3A 24V |
0 |
|
برگه مشخصات |
SZR-MY | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 125VDC - Max | 750VA, 375W | 36.9 mA | Non Latching | - | Plug In | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | - | Silver (Ag) | CE, CSA, UR | General Purpose | - | - |
|
1393304-5RELAY GEN PURPOSE SPST 70A 24V |
0 |
|
برگه مشخصات |
V23134, AXICOM | Bulk | Obsolete | Socketable | 24VDC | SPST-NO (1 Form A) | 70 A | 24VDC - Nom | - | 89.6 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 16 VDC | 4 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver Alloy | - | General Purpose | - | - |
|
|
1432635-1VF4A-61F21-A01 |
0 |
|
- |
VF4A | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 40 A | 12VDC - Nom | - | 133.3 mA | Non Latching | Resistor | Plug In, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | - | 7.2 VDC | 1.2 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | - | General Purpose | - | - |
|
OZ-SS-112LF,000RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
برگه مشخصات |
OZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 240VAC, 24VDC - Max | 3840VA, 380W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 20 ms | 8 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | CQC, CSA, TUV, UR | General Purpose | - | - |
|
ORWH-SS-112H3F,000RELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
برگه مشخصات |
ORWH, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC, 28VDC - Max | 2770VA, 280W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -30°C ~ 85°C | Silver Nickel (AgNi) | cURus, TUV | General Purpose | - | - |
|

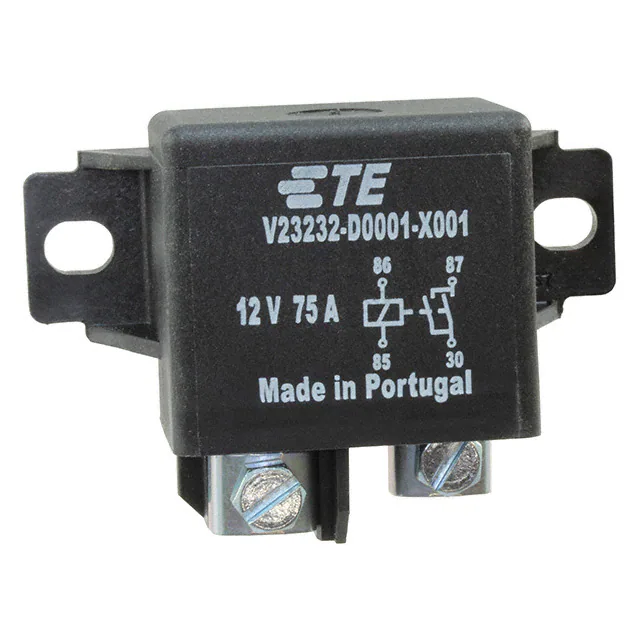

1904000-1V23232D0001X001-EV-260 |
0 |
|
برگه مشخصات |
V23232, AXICOM | Box | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 50 A | 12VDC - Nom | - | 16.7 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 8.8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 125°C | Silver (Ag) | - | General Purpose | - | - |
