رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS1F-12V-FRELAY GEN PURPOSE SPDT 10A 12V |
0 |
|
برگه مشخصات |
JS | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1F-24V-FRELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
JS | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1F-48V-FRELAY GEN PURPOSE SPDT 10A 48V |
0 |
|
برگه مشخصات |
JS | Bulk | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 33.6 VDC | 4.8 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1F-5V-FRELAY GEN PURPOSE SPDT 10A 5V |
0 |
|
برگه مشخصات |
JS | Tray | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 72 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1F-6V-FRELAY GEN PURPOSE SPDT 10A 6V |
0 |
|
برگه مشخصات |
JS | Bulk | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class E | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
JS1F-B-24V-FRELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
برگه مشخصات |
JS | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
HC2E-H-DC12V-FRELAY GEN PURPOSE DPDT 3A 12V |
0 |
|
برگه مشخصات |
HC | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | 75 mA | Non Latching | - | Plug In | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC2E-H-DC48V-FRELAY GEN PURPOSE DPDT 3A 48V |
0 |
|
برگه مشخصات |
HC | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | 18.5 mA | Non Latching | - | Plug In | Sealed - Fully | - | 38.4 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
HC2E-HP-AC115V-FRELAY GEN PURPOSE DPDT 3A 115V |
0 |
|
برگه مشخصات |
HC | Bulk | Obsolete | Through Hole | 115VAC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | 10.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 92 VAC | 34.5 VAC | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC2E-HP-AC24V-FRELAY GEN PURPOSE DPDT 3A 24V |
0 |
|
برگه مشخصات |
HC | Bulk | Obsolete | Through Hole | 24VAC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VAC | 7.2 VAC | 10 ms | 10 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC2E-HP-DC12V-FRELAY GEN PURPOSE DPDT 3A 12V |
0 |
|
برگه مشخصات |
HC | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
HC2-H-AC200V-FRELAY GEN PURPOSE DPDT 7A 200V |
0 |
|
برگه مشخصات |
HC | Bulk | Obsolete | Socketable | 200VAC | DPDT (2 Form C) | 7 A | 250VAC - Max | 1750VA | 6 mA | Non Latching | - | Plug In | - | - | 160 VAC | 60 VAC | 10 ms | 10 ms | -50°C ~ 70°C | Silver Alloy, Cadmium Free, Gold | CSA, UR, VDE | General Purpose | - | - |
|
|
HC3-HL-AC115V-FRELAY GEN PURPOSE 3PDT 7A 115V |
0 |
|
برگه مشخصات |
HC | Bulk | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 1750VA | 11.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 92 VAC | 34.5 VAC | 10 ms | 10 ms | -50°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
HL1-H-AC24V-FRELAY GEN PURPOSE SPDT 15A 24V |
0 |
|
برگه مشخصات |
HL | Bulk | Obsolete | Socketable | 24VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | - | 50 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 10 ms | 10 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
HL1-HP-AC240V-FRELAY GEN PURPOSE SPDT 15A 240V |
0 |
|
برگه مشخصات |
HL | Bulk | Obsolete | Through Hole | 240VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | - | 5 mA | Non Latching | - | PC Pin | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
HL1-HP-DC24V-FRELAY GEN PURPOSE SPDT 15A 24V |
0 |
|
برگه مشخصات |
HL | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 15 A | 125VAC - Nom | - | 37 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

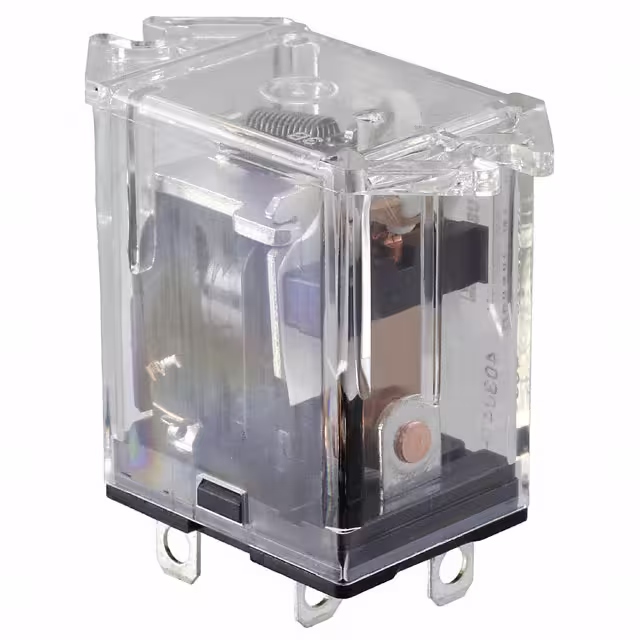

HL1-HTM-AC120V-FRELAY GEN PURPOSE SPDT 15A 120V |
0 |
|
برگه مشخصات |
HL | Bulk | Obsolete | Chassis Mount | 120VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | - | 10 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 36 VAC | 10 ms | 10 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

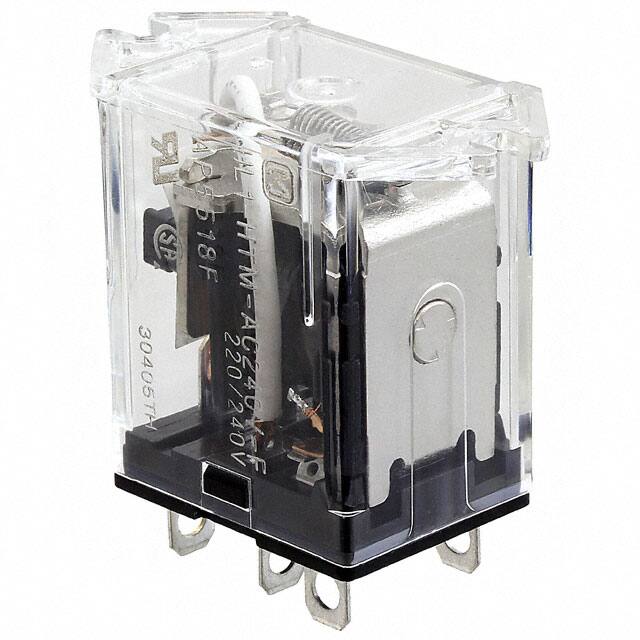

HL1-HTM-AC240V-FRELAY GEN PURPOSE SPDT 15A 240V |
0 |
|
برگه مشخصات |
HL | Bulk | Obsolete | Chassis Mount | 240VAC | SPDT (1 Form C) | 15 A | 125VAC - Nom | - | 5 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 192 VAC | 72 VAC | 10 ms | 10 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
HL2-H-DC110V-FRELAY GEN PURPOSE DPDT 10A 110V |
0 |
|
برگه مشخصات |
HL | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 125VAC - Nom | - | 10 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 88 VDC | 11 VDC | 10 ms | 5 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

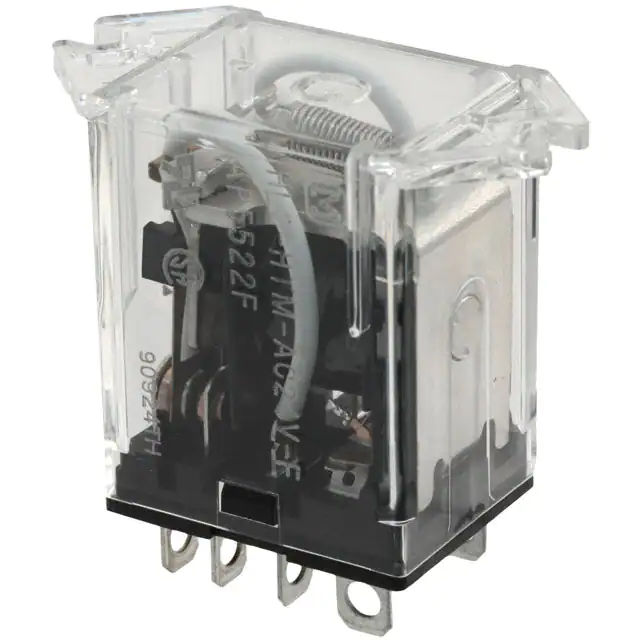

HL2-HTM-AC120V-FRELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
برگه مشخصات |
HL | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 10 A | 125VAC - Nom | - | 10 mA | Non Latching | - | Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -50°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
