رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LKG1AF-9V-10-1RELAY GEN PURPOSE SPST 10A 9V |
0 |
|
برگه مشخصات |
LK-G | Box | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 58.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.9 VDC | 15 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
LKQ1AF-12V-TV-5RELAY GEN PURPOSE SPST 5A 12V |
0 |
|
برگه مشخصات |
LK-Q | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1285VA | 20.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
LKQ1AF-24V-TV-5RELAY GEN PURPOSE SPST 5A 24V |
0 |
|
برگه مشخصات |
LK-Q | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1285VA | 10.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
LKQ1AF-24V-TV-8RELAY GEN PURPOSE SPST 8A 24V |
0 |
|
برگه مشخصات |
LK-Q | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 277VAC - Max | 2216VA | 10.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
LKQ1AF-5V-TV-5RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
برگه مشخصات |
LK-Q | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1285VA | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
LKQ1AF-5V-TV-8RELAY GEN PURPOSE SPST 8A 5V |
0 |
|
برگه مشخصات |
LK-Q | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 277VAC - Max | 2216VA | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
LKQ1AF-5V-TV8-Y2RELAY GEN PURPOSE SPST 8A 5V |
0 |
|
برگه مشخصات |
LK-Q | Box | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 277VAC - Max | 2216VA | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
LKQ1AF-9V-TV-5RELAY GEN PURPOSE SPST 5A 9V |
0 |
|
برگه مشخصات |
LK-Q | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1285VA | 27.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 7.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
|
LKQ1AF-9V-TV-8RELAY GEN PURPOSE SPST 8A 9V |
0 |
|
برگه مشخصات |
LK-Q | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 277VAC - Max | 2216VA | 27.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 7.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|

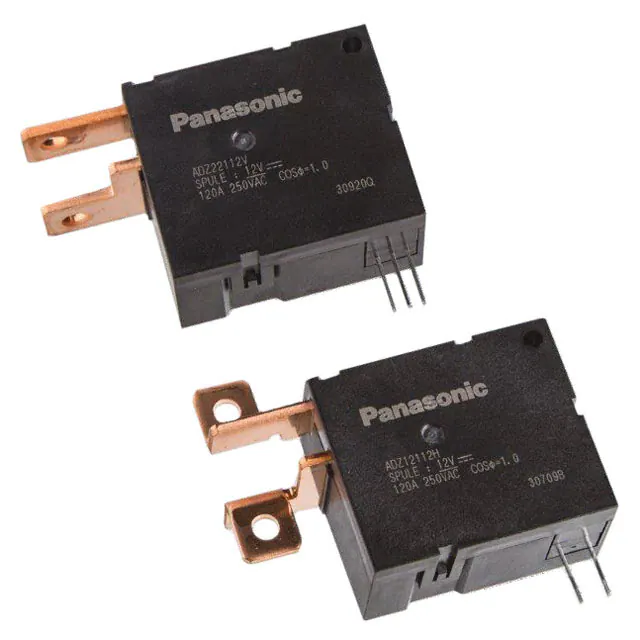

ADZ12105HRELAY GEN PURPOSE SPST 120A 5V |
0 |
|
برگه مشخصات |
ADZ | Box | Obsolete | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 280 mA | Latching, Single Coil | - | Solder Lug | - | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | VDE | General Purpose | - | - |
|
|
ADZ12112HRELAY GEN PURPOSE SPST 120A 12V |
0 |
|
برگه مشخصات |
ADZ | Box | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 116.7 mA | Latching, Single Coil | - | Solder Lug | - | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | VDE | General Purpose | - | - |
|
|
ADZ12105VRELAY GEN PURPOSE SPST 120A 5V |
0 |
|
برگه مشخصات |
ADZ | Box | Obsolete | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 280 mA | Latching, Single Coil | - | Solder Lug | - | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | VDE | General Purpose | - | - |
|
|
ADZ12124VRELAY GEN PURPOSE SPST 120A 24V |
0 |
|
برگه مشخصات |
ADZ | Box | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 58.3 mA | Latching, Single Coil | - | Solder Lug | - | - | 16.8 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | VDE | General Purpose | - | - |
|
|
ADZ22112HRELAY GEN PURPOSE SPST 120A 12V |
0 |
|
برگه مشخصات |
ADZ | Box | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 233.3 mA | Latching, Dual Coil | - | Solder Lug | - | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | VDE | General Purpose | - | - |
|
|
ADZ22105VRELAY GEN PURPOSE SPST 120A 5V |
0 |
|
برگه مشخصات |
ADZ | Box | Obsolete | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 560 mA | Latching, Dual Coil | - | Solder Lug | - | - | 3.5 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | VDE | General Purpose | - | - |
|
|
ADZ22112VRELAY GEN PURPOSE SPST 120A 12V |
0 |
|
برگه مشخصات |
ADZ | Box | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 120 A | 276VAC - Max | 33120VA | 233.3 mA | Latching, Dual Coil | - | Solder Lug | - | - | 8.4 VDC | - | 20 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | VDE | General Purpose | - | - |
|
|
156-14Q200RELAY GEN PURPOSE 4PDT 24V |
0 |
|
- |
156, CII | Bulk | Obsolete | Socketable | 24VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | 150 mA | Non Latching | - | Solder Lug | - | - | 20.4 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, TUV, UL | General Purpose | - | - |
|
|
156-14T2L0RELAY GEN PURP |
0 |
|
- |
156, CII | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 240VAC - Nom | - | - | Non Latching | - | Solder Lug | - | - | 93.5 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, TUV, UL | General Purpose | - | - |
|
|
15722F2L5RELAY GEN PURP |
0 |
|
- |
157, CII | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Nom | 2400VA, 280W | 11 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 82.5 VDC | - | 20 ms | 10 ms | -45°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|
|
15732S7A1RELAY GEN PURPOSE DPDT |
0 |
|
- |
157, CII | Bulk | Active | Socketable | - | DPDT (2 Form C) | - | - | - | - | Non Latching | - | PC Pin, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
