رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC4-P-DC24V-H72RELAY GEN PURPOSE 4PDT 5A 24V |
0 |
|
- |
HC | Box | Obsolete | Through Hole | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 37 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | CSA, UR, VDE | General Purpose | - | - |
|
|
24059-10RELAY GEN PURPOSE 65A 12V |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | Chassis Mount | 12VDC | - | 65 A | - | - | 685.7 mA | Non Latching | - | Screw Terminal | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
24712-GS7RELAY GEN PURPOSE SPST 200A 12V |
0 |
|
- |
- | Bulk | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 200 A | - | - | 4.8 A | Non Latching | - | Screw Terminal | - | - | - | - | 5 ms | 5 ms | -40°C ~ 60°C | Copper | - | General Purpose | - | - |
|
|
880086SRELAY GEN PURPOSE SPDT 300A 12V |
0 |
|
- |
HD | Bulk | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 300 A | 16VDC - Max | 4800W | - | Latching, Single Coil | Lighted Indicator, Test Button | Screw Terminal | Sealed - Fully | - | - | - | - | - | -50°C ~ 105°C | Silver Alloy | - | General Purpose | - | - |
|
|
RY4S-UAC220-240VRELAY GEN PURPOSE 4PDT 5A 230V |
0 |
|
برگه مشخصات |
RY | Bulk | Obsolete | Socketable | 230VAC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | 1200VA, 150W | 4.3 mA | Non Latching | - | Plug In | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | CE, CSA, TUV, UR | General Purpose | - | - |
|

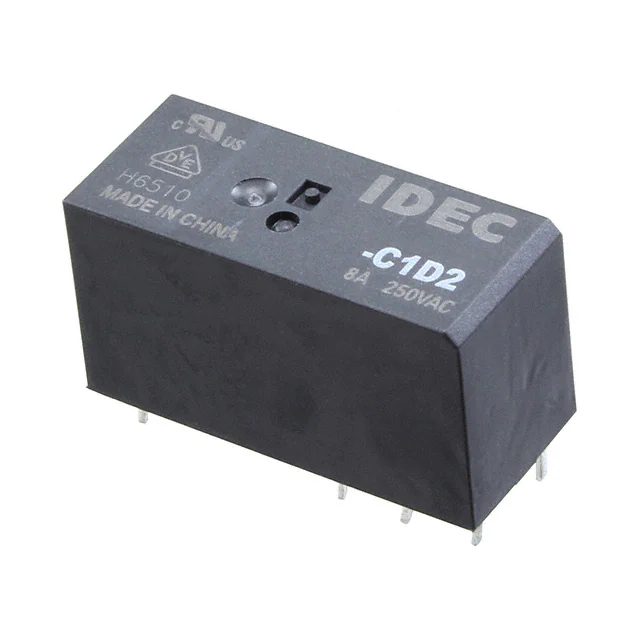

RV2H-2G-D110-C1D2RELAY GEN PURPOSE DPDT 8A 110V |
0 |
|
برگه مشخصات |
RV8 | Bulk | Obsolete | Through Hole | 110VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 5.8 mA | Non Latching | - | PC Pin | - | - | 88 VDC | 7.7 VDC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
|
RV2H-2G-D18-C1D2RELAY GEN PURPOSE DPDT 8A 18V |
0 |
|
برگه مشخصات |
RV8 | Bulk | Obsolete | Through Hole | 18VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 24 mA | Non Latching | - | PC Pin | - | - | 14.4 VDC | 1.26 VDC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
|
RV2H-2G-D5-C1D2RELAY GENERAL PURPOSE DPDT 8A 5V |
0 |
|
برگه مشخصات |
RV8 | Bulk | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 75 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.42 VDC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
|
RV2H-2G-D24-C1D2RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
برگه مشخصات |
RV8 | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 20 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 1.68 VDC | 15 ms | 15 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | CE, cULus | General Purpose | - | - |
|
RJ2V-C-D100RELAY GEN PURPOSE DPDT 8A 110V |
0 |
|
برگه مشخصات |
RJ | Bulk | Obsolete | Through Hole | 110VDC | DPDT (2 Form C) | 8 A | 250VAC - Nom | - | 5.3 mA | Non Latching | - | PC Pin | - | - | 77 VDC | 11 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CE, CSA, cURus, VDE | General Purpose | - | - |
|

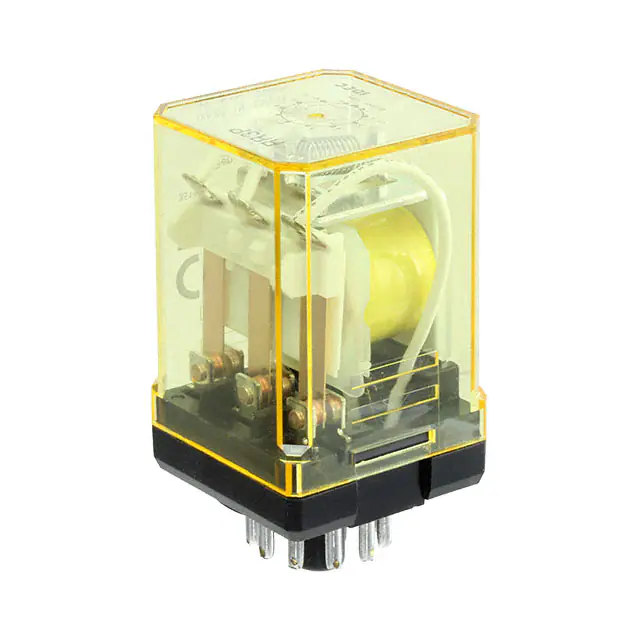

RR3P-UAC110VRELAY GEN PURPOSE 3PDT 10A 110V |
0 |
|
برگه مشخصات |
RR | Bulk | Obsolete | Socketable | 110VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 23 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | 88 VAC | 33 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
RR3P-UAC240VRELAY GEN PURPOSE 3PDT 10A 240V |
0 |
|
برگه مشخصات |
RR | Bulk | Obsolete | Socketable | 240VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 10.5 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -25°C ~ 40°C | Silver (Ag) | CE, CSA, cURus, TUV | General Purpose | - | - |
|
|
S160156724RELAY GEN PURPOSE SPDT 8A 24V |
0 |
|
برگه مشخصات |
S160 | Box | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 8 A | 250VAC - Max | 2000VA | - | Latching, Single Coil | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 50°C | - | - | General Purpose | - | - |
|
|
S160156230RELAY GEN PURPOSE SPDT 8A 230V |
0 |
|
- |
S160 | Box | Obsolete | Socketable | 230VAC | SPDT (1 Form C) | 8 A | 250VAC - Max | 2000VA | - | Latching, Single Coil | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
HJ2-AC120V-6RELAY GEN PURPOSE DPDT 7A 120V |
0 |
|
برگه مشخصات |
HJ | Bulk | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 7 A | 250VAC, 125VDC - Max | 1750VA, 875W | 10.3 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | cURus, TUV | General Purpose | - | - |
|
|
HJ2-AC220/240VRELAY GEN PURPOSE DPDT 7A 240V |
0 |
|
برگه مشخصات |
HJ | Bulk | Obsolete | Socketable | 240VAC | DPDT (2 Form C) | 7 A | 250VAC, 125VDC - Max | 1750VA, 875W | 6.4 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag) | cURus, TUV | General Purpose | - | - |
|
|
HJ2-DC12V-D-6RELAY GEN PURPOSE DPDT 7A 12V |
0 |
|
برگه مشخصات |
HJ | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 7 A | 250VAC, 125VDC - Max | 1750VA, 875W | 75 mA | Non Latching | Diode | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | cURus, TUV | General Purpose | - | - |
|
|
HJ2-DC24V-6RELAY GEN PURPOSE DPDT 7A 24V |
0 |
|
برگه مشخصات |
HJ | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 7 A | 250VAC, 125VDC - Max | 1750VA, 875W | 37 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | cURus, TUV | General Purpose | - | - |
|
|
HJ2-DC24V-D-6RELAY GEN PURPOSE DPDT 7A 24V |
0 |
|
برگه مشخصات |
HJ | Bulk | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 7 A | 250VAC, 125VDC - Max | 1750VA, 875W | 37 mA | Non Latching | Diode | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | cURus, TUV | General Purpose | - | - |
|
|
HJ2-DC48V-6RELAY GEN PURPOSE DPDT 7A 48V |
0 |
|
برگه مشخصات |
HJ | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 7 A | 250VAC, 125VDC - Max | 1750VA, 875W | 18 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | cURus, TUV | General Purpose | - | - |
