رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

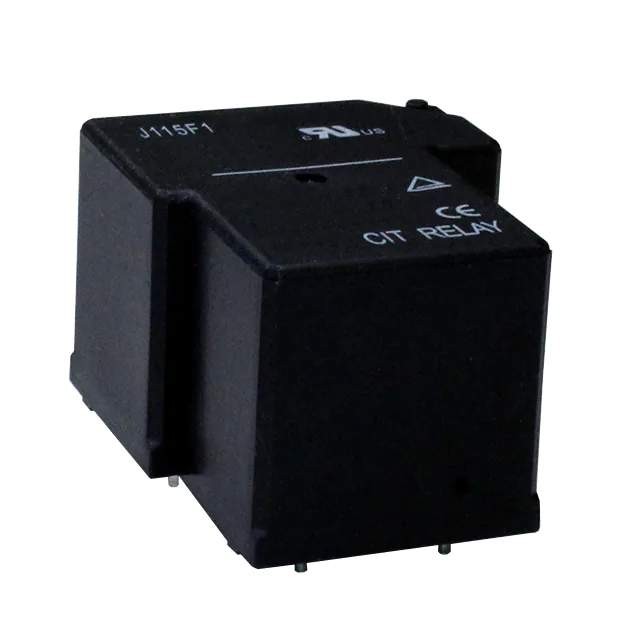

J115F11CH110VDCSH1.5URELAY GEN PURPOSE SPDT 50A 110V |
0 |
|
برگه مشخصات |
J115F | Tube | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 13.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|

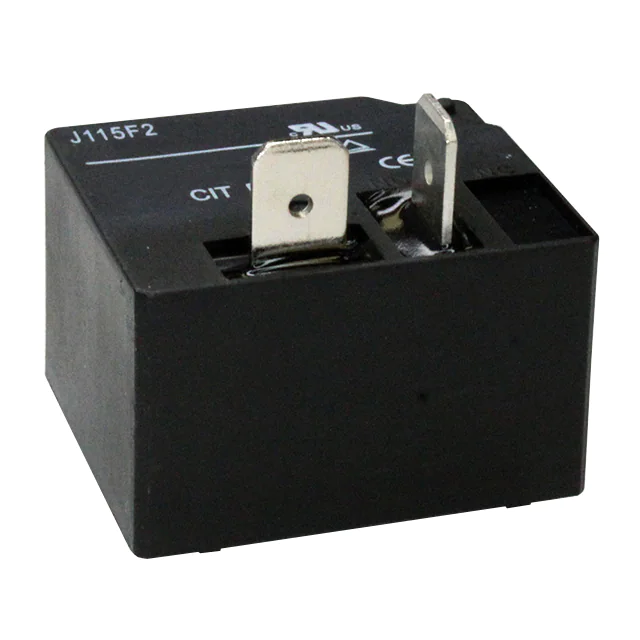

J115F21AHL12VDCS61.5URELAY GEN PURPOSE SPST 50A 12V |
0 |
|
برگه مشخصات |
J115F | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
J115F21CHL110VDCS61.5URELAY GEN PURPOSE SPDT 50A 110V |
0 |
|
برگه مشخصات |
J115F | Tube | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 13.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|

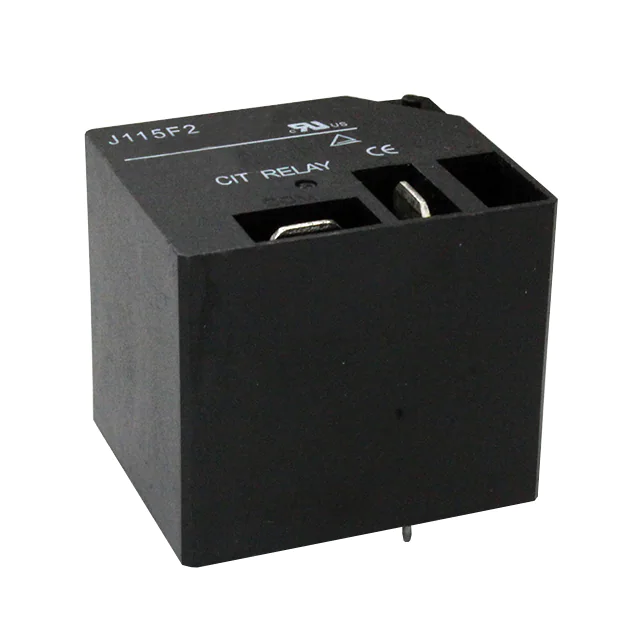

J115F21CH110VDCS61.5URELAY GEN PURPOSE SPDT 50A 110V |
0 |
|
برگه مشخصات |
J115F | Tube | Obsolete | Through Hole | 110VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 13.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
J115F21CHL24VDCS61.5URELAY GEN PURPOSE SPDT 50A 24V |
0 |
|
برگه مشخصات |
J115F | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
J115F31AHL24VDCS61.5URELAY GEN PURPOSE SPST 50A 24V |
0 |
|
برگه مشخصات |
J115F | Tray | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
J115F31AHL12VDCS61.5URELAY GEN PURPOSE SPST 50A 12V |
0 |
|
برگه مشخصات |
J115F | Tray | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
J115F21CHL5VDCS61.5URELAY GEN PURPOSE SPDT 50A 5V |
0 |
|
برگه مشخصات |
J115F | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 299.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|

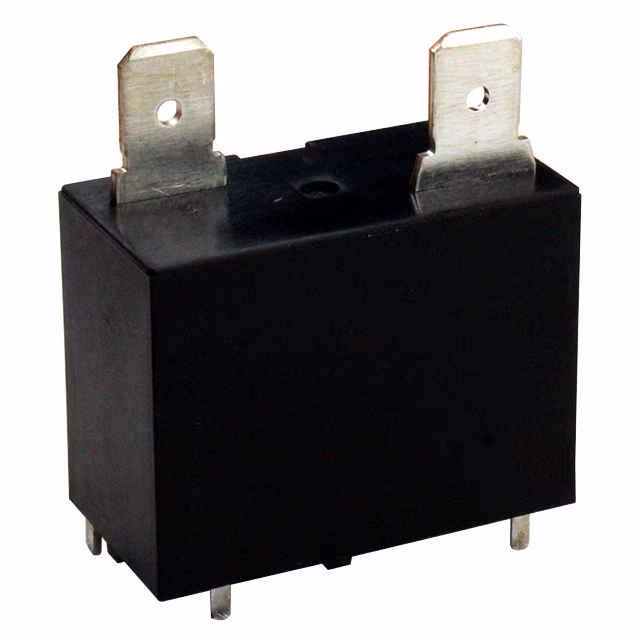

J120D1AC24VDCRELAY GEN PURPOSE SPST 20A 24V |
0 |
|
برگه مشخصات |
J120D | Tray | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J120D1AC12VDCRELAY GEN PURPOSE SPST 20A 12V |
0 |
|
برگه مشخصات |
J120D | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 55°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
|
J115F31CHL12VDCS61.5URELAY GEN PURPOSE SPDT 50A 12V |
0 |
|
برگه مشخصات |
J115F | Tray | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
J115F31CHL24VDCS61.5URELAY GEN PURPOSE SPDT 50A 24V |
0 |
|
برگه مشخصات |
J115F | Tray | Obsolete | Chassis Mount | 24VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 62.5 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
RM 524L-NRELAY GEN PURPOSE 4PDT 7A 24VAC |
0 |
|
برگه مشخصات |
RM | Box | Active | Socketable | 24VAC | 4PDT (4 Form C) | 7 A | 250VAC, 24VDC - Max | - | 151.9 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VAC | 4.8 VAC | 10 ms | 8 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
ALE7PB09RELAY |
0 |
|
- |
ALE | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 22.2 mA | Non Latching | - | PC Pin | - | Class B | 6.75 VDC | 0.45 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
ALE7PF12RELAY |
0 |
|
- |
ALE | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
ALE7PB18RELAY |
0 |
|
- |
ALE | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 11.1 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 0.9 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
ALE7PB24RELAY |
0 |
|
- |
ALE | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 8.3 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
ALE7PF18RELAY |
0 |
|
- |
ALE | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 11.1 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 0.9 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
ALE7PF09RELAY |
0 |
|
- |
ALE | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 22.2 mA | Non Latching | - | PC Pin | - | Class B | 6.75 VDC | 0.45 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
JS1APF-6V-FRELAY |
0 |
|
- |
JS | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 4.2 VDC | 0.6 VDC | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
