رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS1A-5V-FRELAY GEN PURPOSE SPST 10A 5V |
8,573 |
|
برگه مشخصات |
JS | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 2500VA, 1000W | 72 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
Y3FSS112DM0L01RELAY GEN PURPOSE SPST 10A 12V |
48,000 |
|
برگه مشخصات |
Y3F | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | - | - | 30 mA | - | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | - | General Purpose | - | - |
|
2-1419128-9RELAY GEN PURPOSE SPST 10A 5V |
782 |
|
برگه مشخصات |
OJE, OEG | Retail Package | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 91 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.25 VDC | 10 ms | 4 ms | -30°C ~ 70°C | Silver (Ag) | CQC, cULus, TUV, VDE | General Purpose | - | - |
|
SDT-S-109LMR2,000RELAY GEN PURPOSE SPST 5A 9V |
707 |
|
- |
SDT-R, OEG | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | - | Class E | 6.75 VDC | 0.9 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|

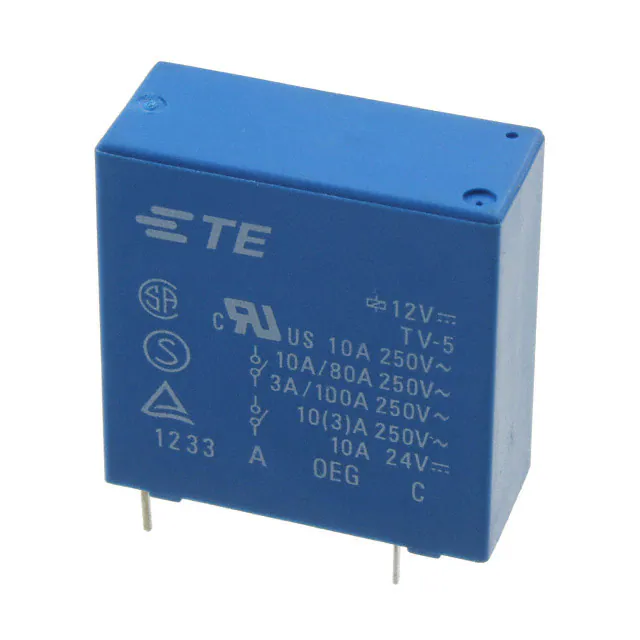

SDT-SS-112DM,000RELAY GEN PURPOSE SPST 10A 12V |
1,986 |
|
برگه مشخصات |
SDT, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 24VDC - Max | 2500VA, 240W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 15 ms | 8 ms | -30°C ~ 60°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CSA, SEMKO, SEV, TUV, UL | General Purpose | - | - |
|

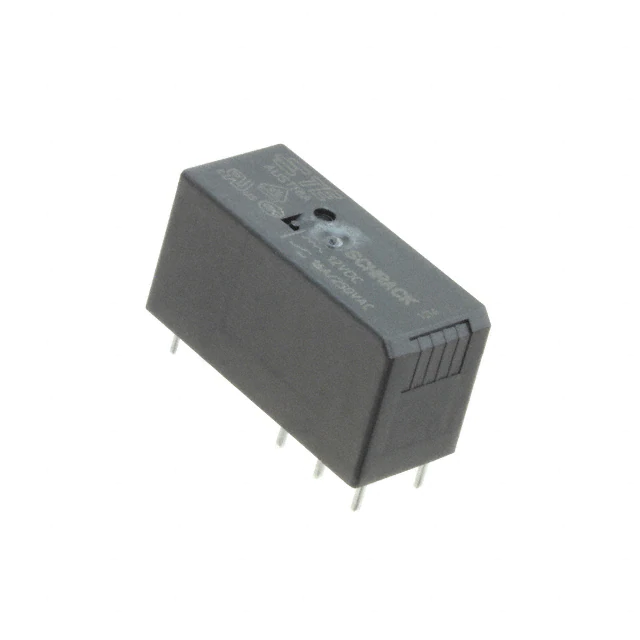

4-2158100-6RELAY GEN PURPOSE SPDT 16A 12V |
8,810 |
|
برگه مشخصات |
RZL, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 44.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
PCH-112L2MH,000RELAY GEN PURPOSE SPST 5A 12V |
8,712 |
|
برگه مشخصات |
PCH, OEG | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
T7NS1D1-12RELAY GEN PURPOSE SPST 10A 12V |
0 |
|
برگه مشخصات |
T7N | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
OSA-SS-224DM3,000RELAY GEN PURPOSE DPST 3A 24V |
5,614 |
|
برگه مشخصات |
OSA, OEG | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 3 A | 240VAC, 30VDC - Max | 720VA, 90W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 1.2 VDC | 20 ms | 10 ms | -30°C ~ 60°C | Silver Alloy | CQC, CSA, TUV, UR | General Purpose | - | - |
|
|
7-1393224-1RELAY GEN PURP |
0 |
|
برگه مشخصات |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | - | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 12.6 VDC | 1.8 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
9-1419126-7RELAY GEN PURPOSE SPDT 12A 5V |
0 |
|
برگه مشخصات |
SRUDH, OEG | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 12 A | 240VAC, 28VDC - Max | 2880VA, 336W | 72 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -30°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, cURus, TUV | General Purpose | - | - |
|

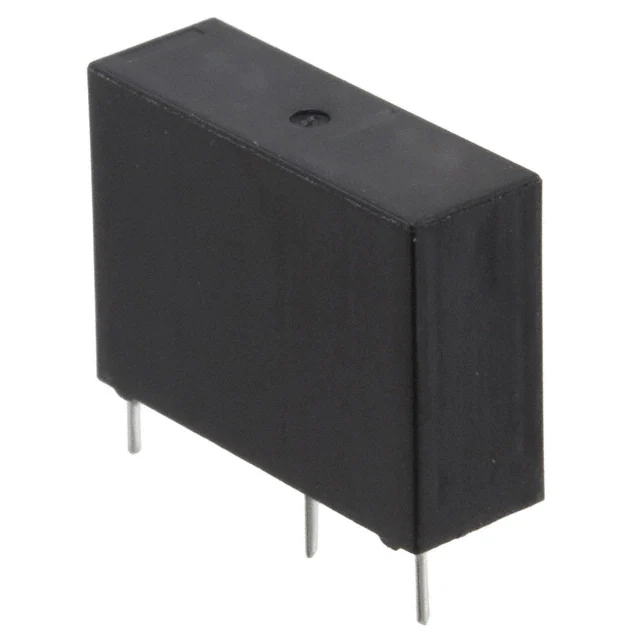

PCJ-105D3MH,301RELAY GEN PURPOSE SPST 3A 5V |
1,984 |
|
برگه مشخصات |
PCJ, OEG | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 250VAC, 30VDC - Max | 750VA, 90W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.75 VDC | 0.25 VDC | 10 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, UR, VDE | General Purpose | - | - |
|
|
4-2158100-7RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
برگه مشخصات |
RZL, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, cURus, VDE | General Purpose | - | - |
|
|
SDT-S-112DMR,000RELAY GEN PURPOSE SPST 10A 12V |
928 |
|
برگه مشخصات |
SDT-R, OEG | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 45 mA | Non Latching | - | PC Pin | - | Class E | 9 VDC | 1.2 VDC | 15 ms | 5 ms | -30°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, TUV, VDE | General Purpose | - | - |
|
|
3-1415070-1RELAY GEN PURPOSE SPDT 8A 24V |
0 |
|
برگه مشخصات |
RY, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 10.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
PCH-124L2M-WGRELAY GEN PURPOSE SPST 5A 24V |
0 |
|
برگه مشخصات |
PCH, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
G5LE-1A4-DC9HA RELAYS - POWER PCB RELAY |
277 |
|
برگه مشخصات |
G5LE | Box | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | - | 45 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
G5LA-14-DC24POWER PCB RELAY |
57,190 |
|
- |
G5LA | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 24VDC - Max | - | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
|
|
PCH-112L2M,000RELAY GEN PURPOSE SPST 5A 12V |
3,472 |
|
برگه مشخصات |
PCH, OEG | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
PCH-105L2M,000RELAY GEN PURPOSE SPST 5A 5V |
880 |
|
برگه مشخصات |
PCH, OEG | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
