رله های برق، بیش از 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1415540-1RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
RT1, Inrush, SCHRACK | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 50 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 6.6 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
6-1416200-4V23061-D2003-A801 |
0 |
|
برگه مشخصات |
V23061, AXICOM | Bulk | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 36.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 4.1 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
T9ES1D12-12RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
برگه مشخصات |
T9E | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 83.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | UR, VDE | General Purpose | - | - |
|
|
RTS3L024Power/Signal Relay, 1 Form A, SP |
3,530 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T90R1D12-12RELAY PWR |
357 |
|
- |
T90 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RT33K048RELAY GEN PURPOSE SPST 16A 48V |
0 |
|
برگه مشخصات |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 8.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 9 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G2RL8116MRELAY GEN PURPOSE DPST 8A 24V |
226 |
|
برگه مشخصات |
G2RL | Box | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 440VAC, 300VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
|
G2RL-2A4-DC24POWER RELAYS - POWER PCB RELAY |
226 |
|
برگه مشخصات |
G2RL | Box | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 8 A | 440VAC, 300VDC - Max | - | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | - | General Purpose | - | - |
|
|
9-1393224-8RY551005 |
0 |
|
برگه مشخصات |
RY, SCHRACK | Tube | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
2-1415898-7RELAY GEN PURPOSE SPST 16A 12V |
0 |
|
برگه مشخصات |
RT1, Inrush, SCHRACK | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
RTS3L012WGGeneral Purpose Relays RTS3L012W |
212 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
T75S1D112-24RELAY GEN PURPOSE SPST 14A 24V |
0 |
|
برگه مشخصات |
T75 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 14 A | 400VAC - Max | 5600VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 17.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
RP420006RELAY GEN PURPOSE DPDT 8A 6V |
0 |
|
برگه مشخصات |
RP II/2, SCHRACK | Bulk | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 88.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 9 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

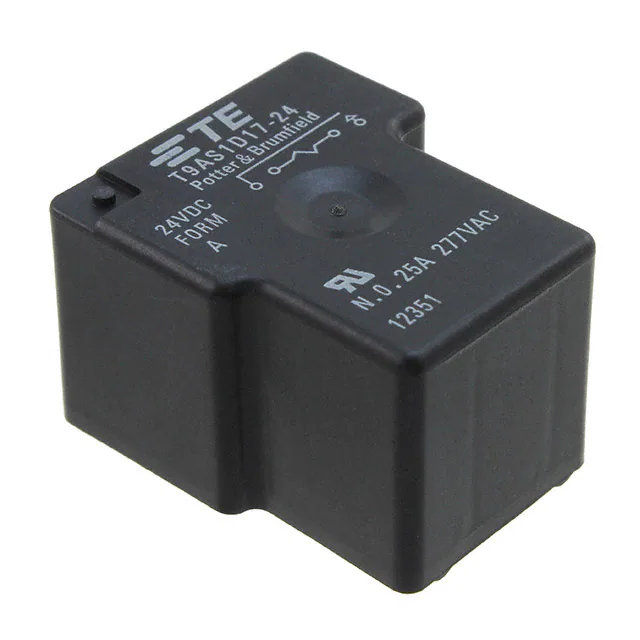

T9AS1D17-24RELAY GEN PURPOSE SPST 21A 24V |
0 |
|
- |
T9A | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 21 A | 277VAC - Max | 5817VA | 41.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
4-1415538-1RELAY GEN PURPOSE SPST 16A 230V |
5,422 |
|
برگه مشخصات |
RT1, SCHRACK | Tube | Obsolete | Through Hole | 230VAC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 7.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RP438024RELAY GEN PURPOSE SPST 12A 24V |
0 |
|
برگه مشخصات |
RP II/1, SCHRACK | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|
|
RP310048RELAY GEN PURPOSE SPDT 16A 48V |
0 |
|
برگه مشخصات |
RP II/1, SCHRACK | Tube | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 10.9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 8 ms | 2 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | cURus, VDE | General Purpose | - | - |
|

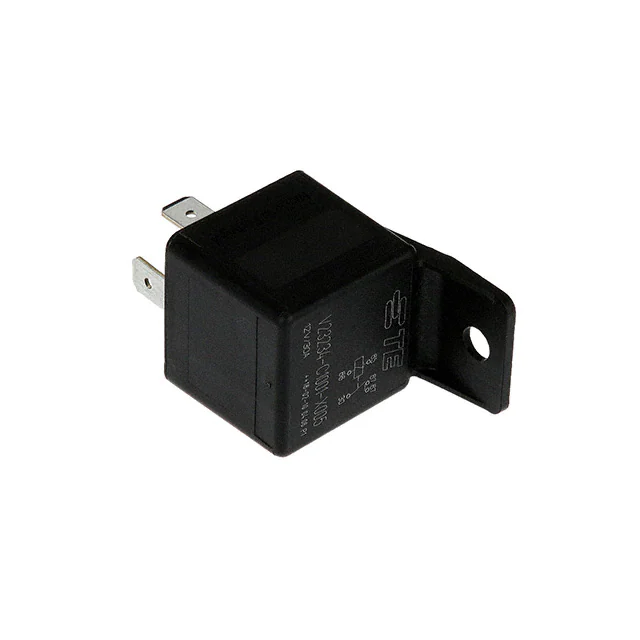

5-1904012-1RELAY GEN PURPOSE SPST 30A 12V |
316 |
|
برگه مشخصات |
V23234, AXICOM | Bulk | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 12VDC - Nom | - | 16.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | -40°C ~ 105°C | Silver Alloy | - | General Purpose | - | - |
|
JTV1G-PA-24VRELAY GEN PURPOSE SPST 20A 24V |
173 |
|
برگه مشخصات |
JT-V | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 277VAC - Max | 5540VA | 41.7 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
PCFN-124H2MS,02000RELAY GEN PURPOSE SPST 26A 24V |
399 |
|
برگه مشخصات |
PCFN Solar, OEG | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 26 A | 277VAC - Max | 7202VA | 62.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -25°C ~ 75°C | Silver Tin Oxide (AgSnO) | - | General Purpose | - | - |
